TOSHIBA
معرفی

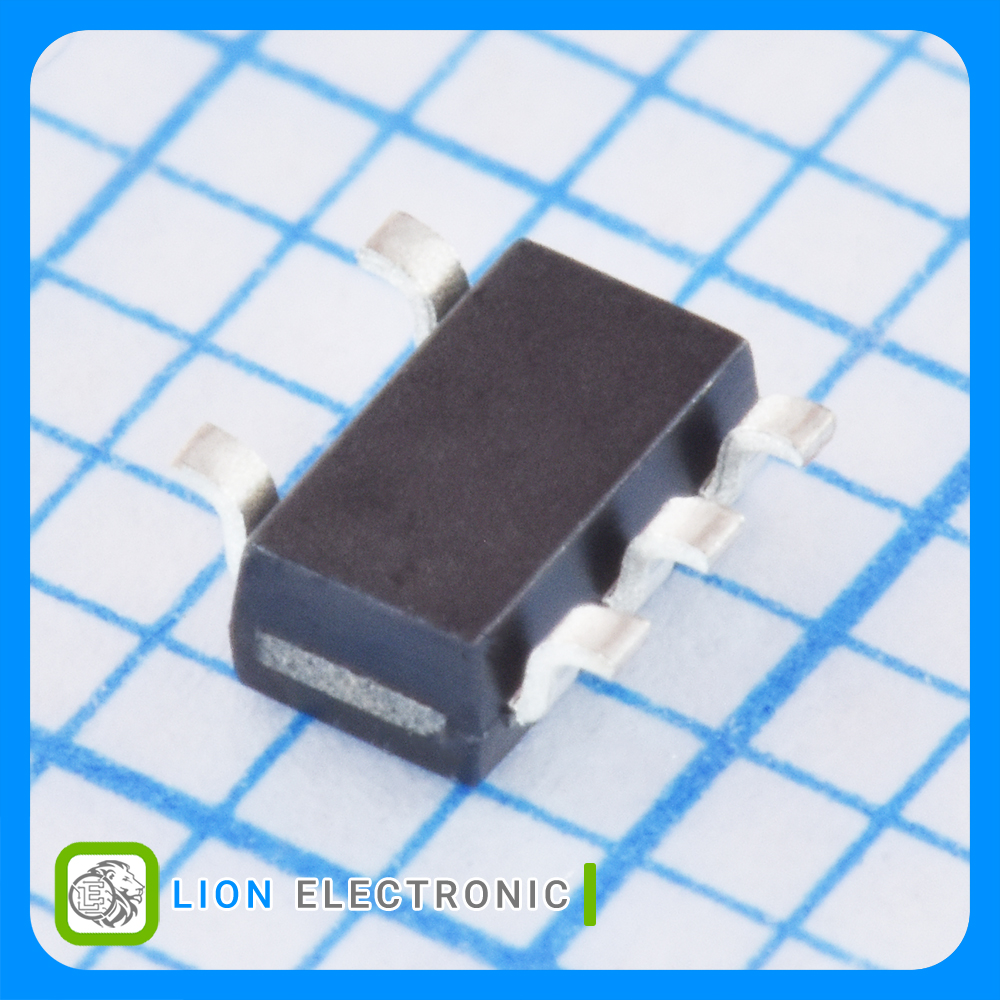

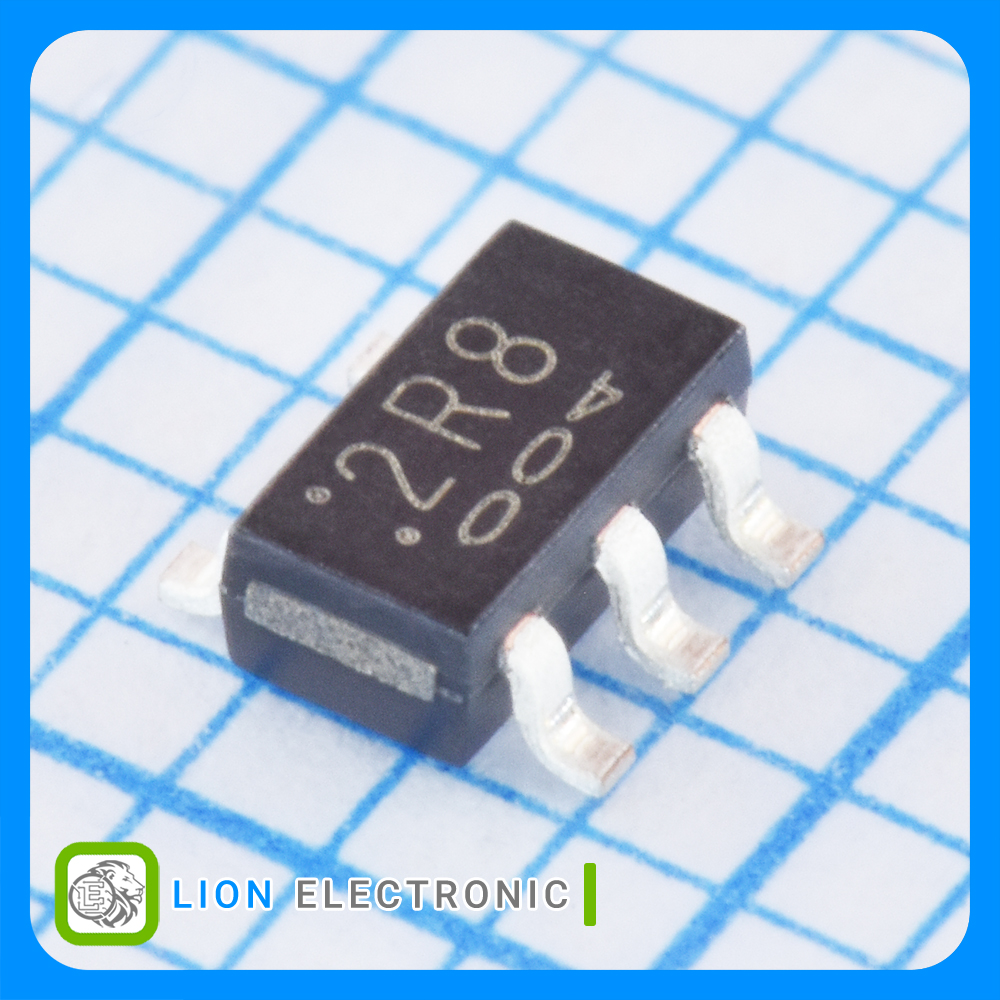

رگولاتور LDO ثابت 2.8 ولت 300 میلیآمپر با پکیج SOT-25-5
Fixed LDO Voltage Regulator 2.8V, 300mA with SOT-25-5 Package
Specifications
- Polarity: Positive
- Output Type: Fixed
- Package/Case: SOT-25-5
- Output Voltage: 2.8V
- Output Current: 300mA
- Dropout Voltage: 206mV
- Input Voltage Min: 1.5V
- Input Voltage Max: 5.5V
- PSRR / Ripple Rejection - Typ: 70dB
- Quiescent Current: 340nA
- Mounting Style: SMD/SMT
- Number of Outputs: 1
- Minimum Operating Temperature: -40C
- Maximum Operating Temperature: +85C
- Packaging: Reel
مشخصات رگولاتور(LDO) TCR3UF28A
رگولاتور(LDO) TCR3UF28A
Part Number
1
Number of Outputs
Reel
Packaging
340nA
Quiescent Current
-40C
Minimum Operating Temperature
Positive
Polarity
SMD/SMT
Mounting Style
5.5V
Input Voltage Max
+85C
Maximum Operating Temperature
Fixed
Output Type
206mV
Dropout Voltage
70dB
PSRR - Ripple Rejection - Typ
1.5V
Input Voltage Min
300mA
Output Current
2.8V
Output Voltage
SOT-23-5
Package-Case
