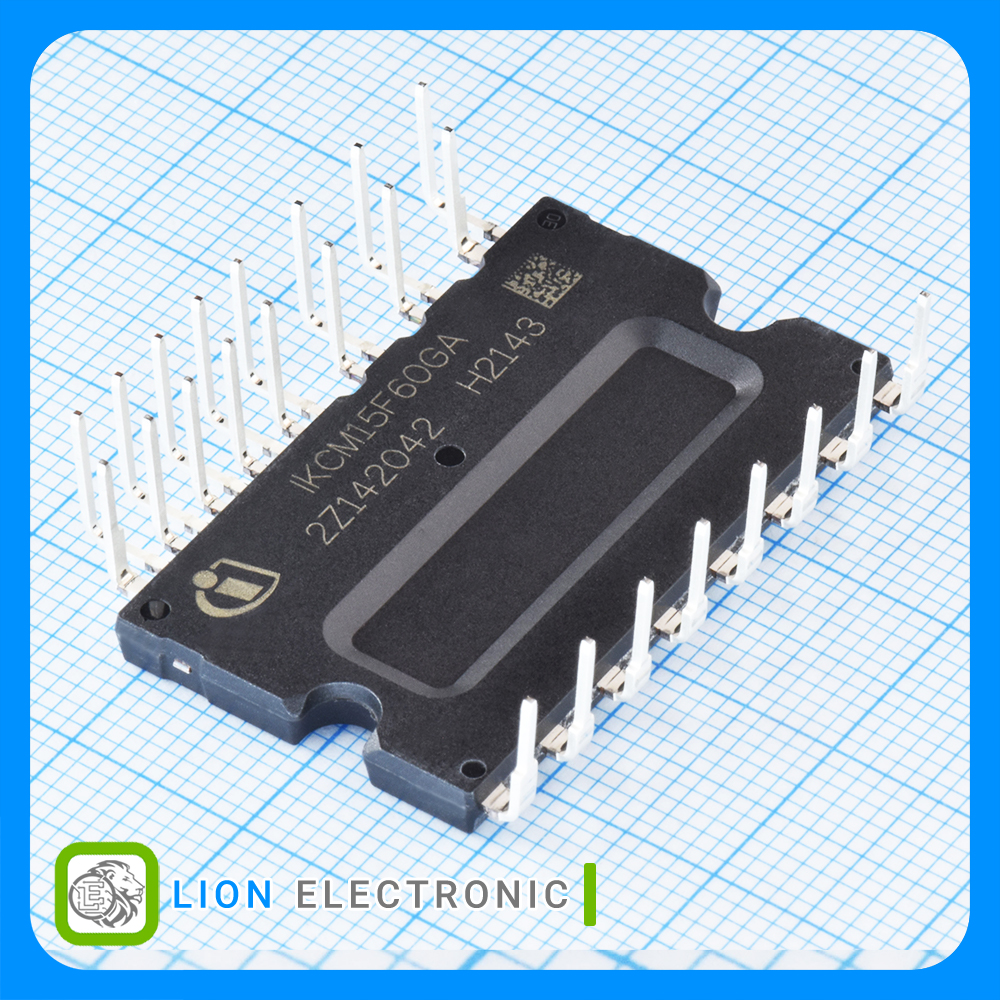

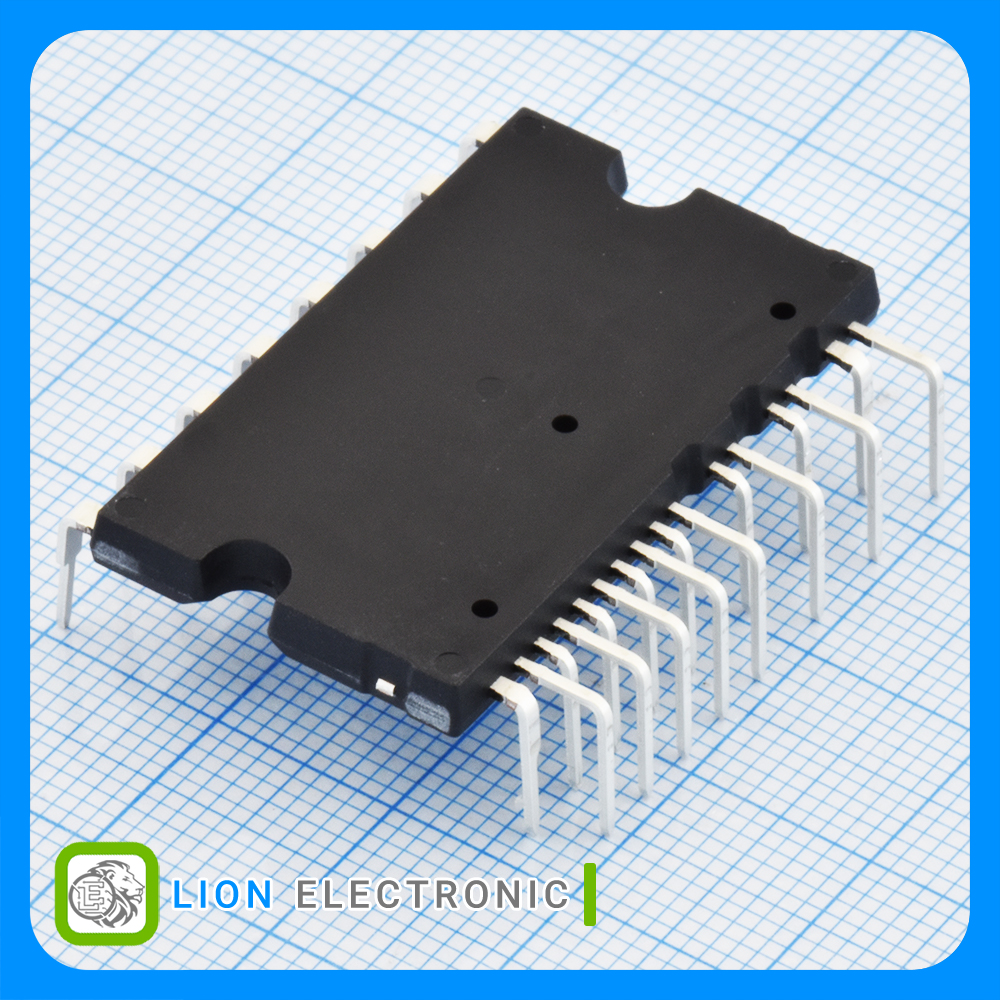

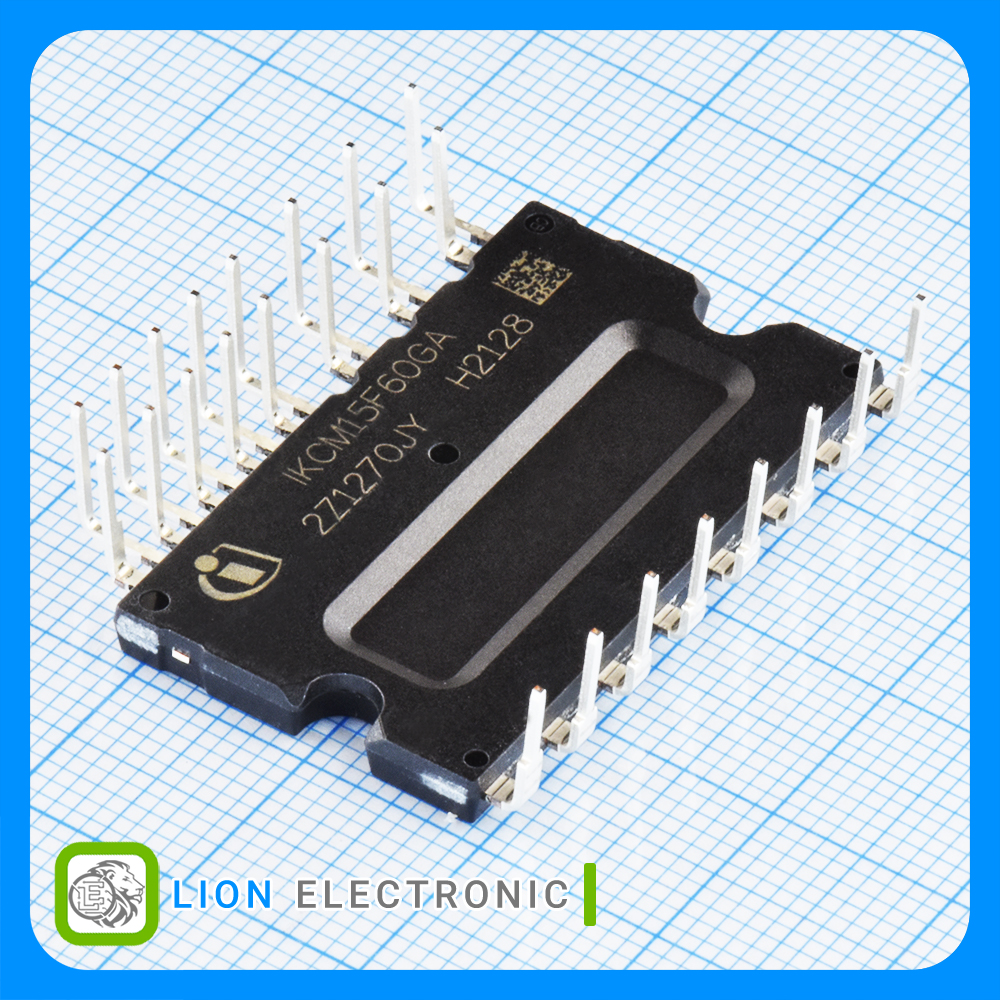

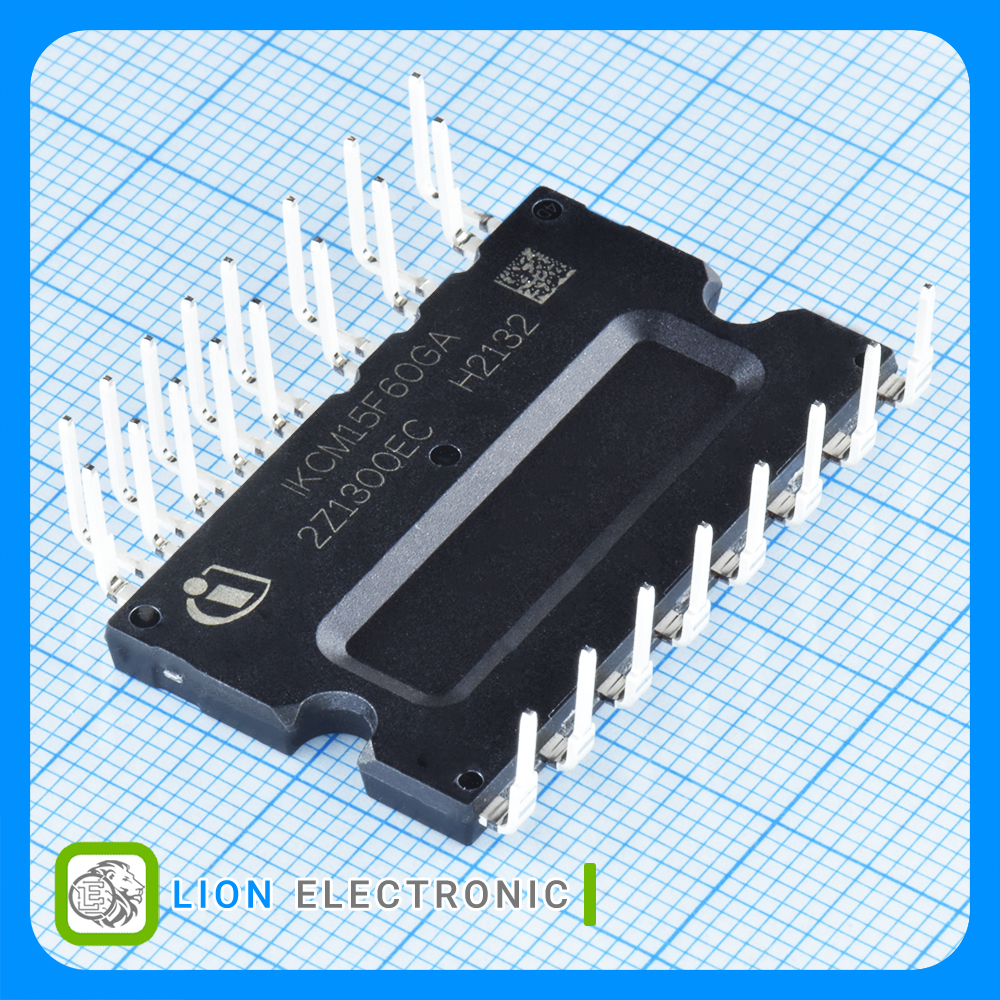

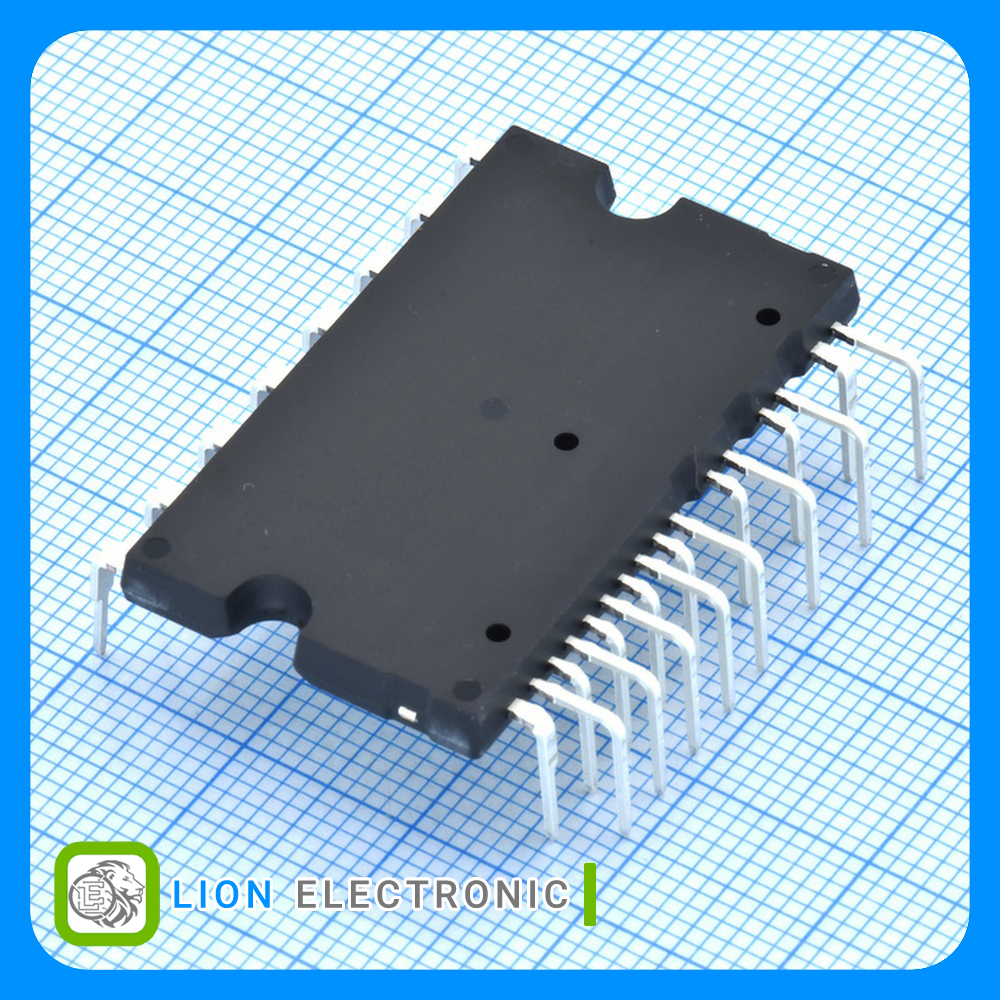

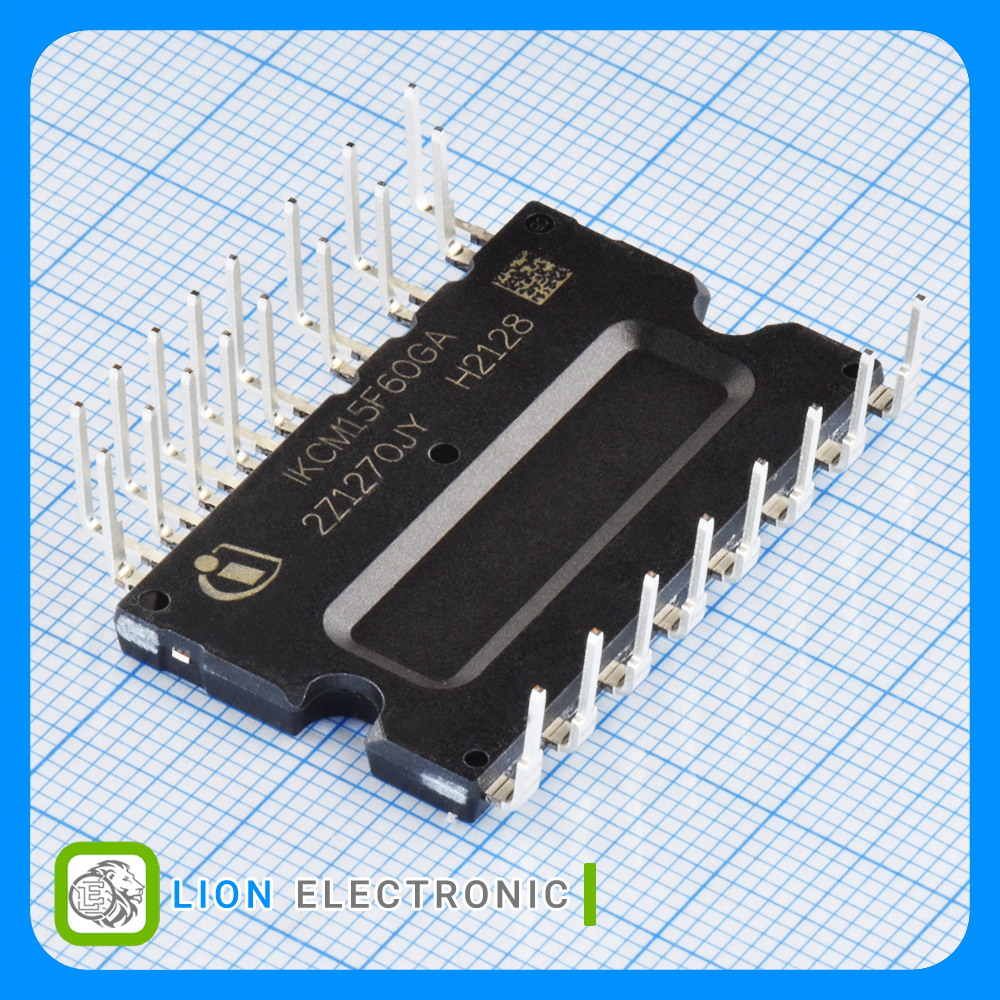

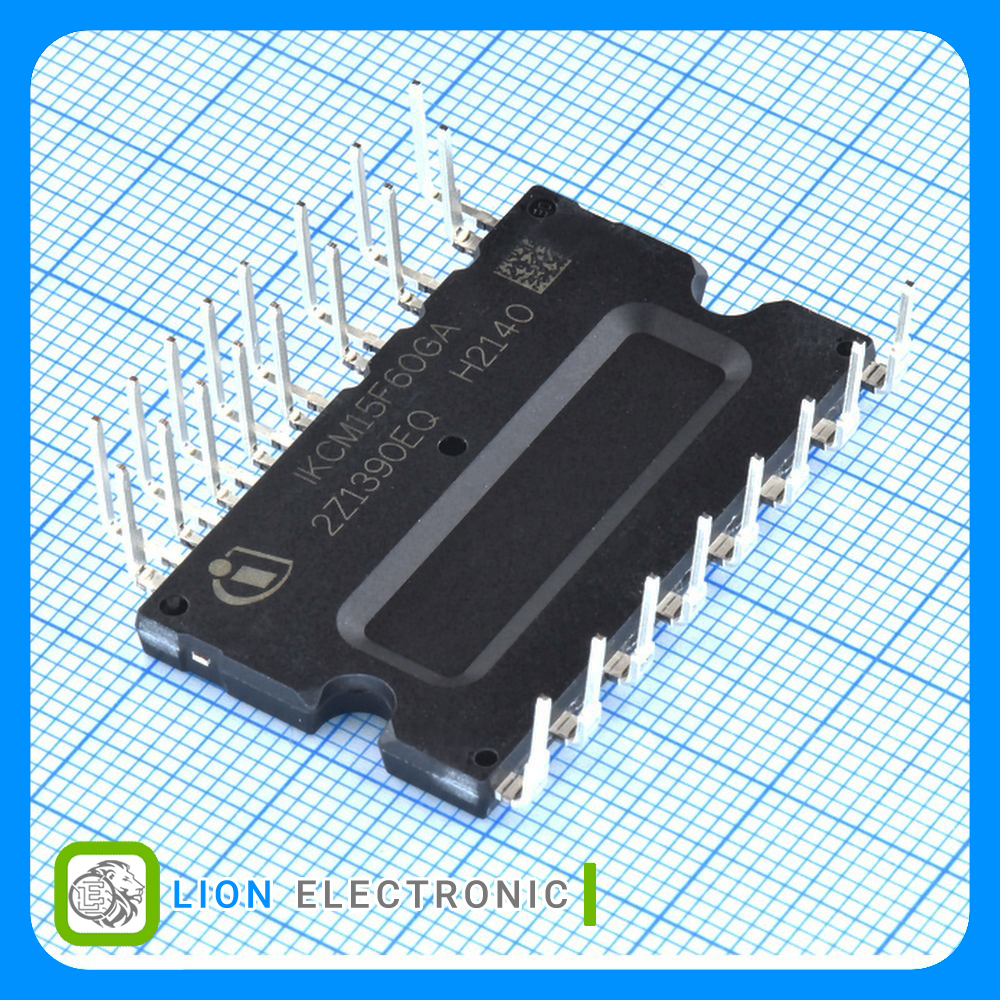

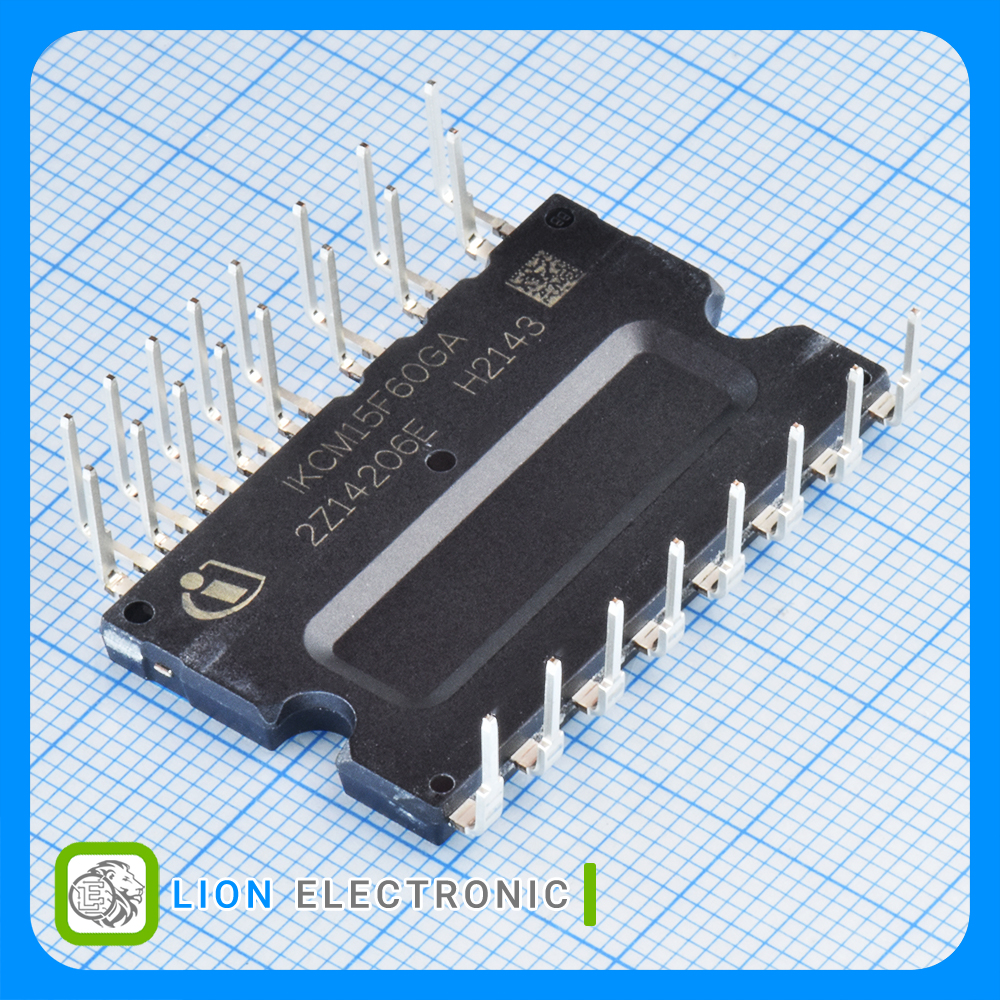

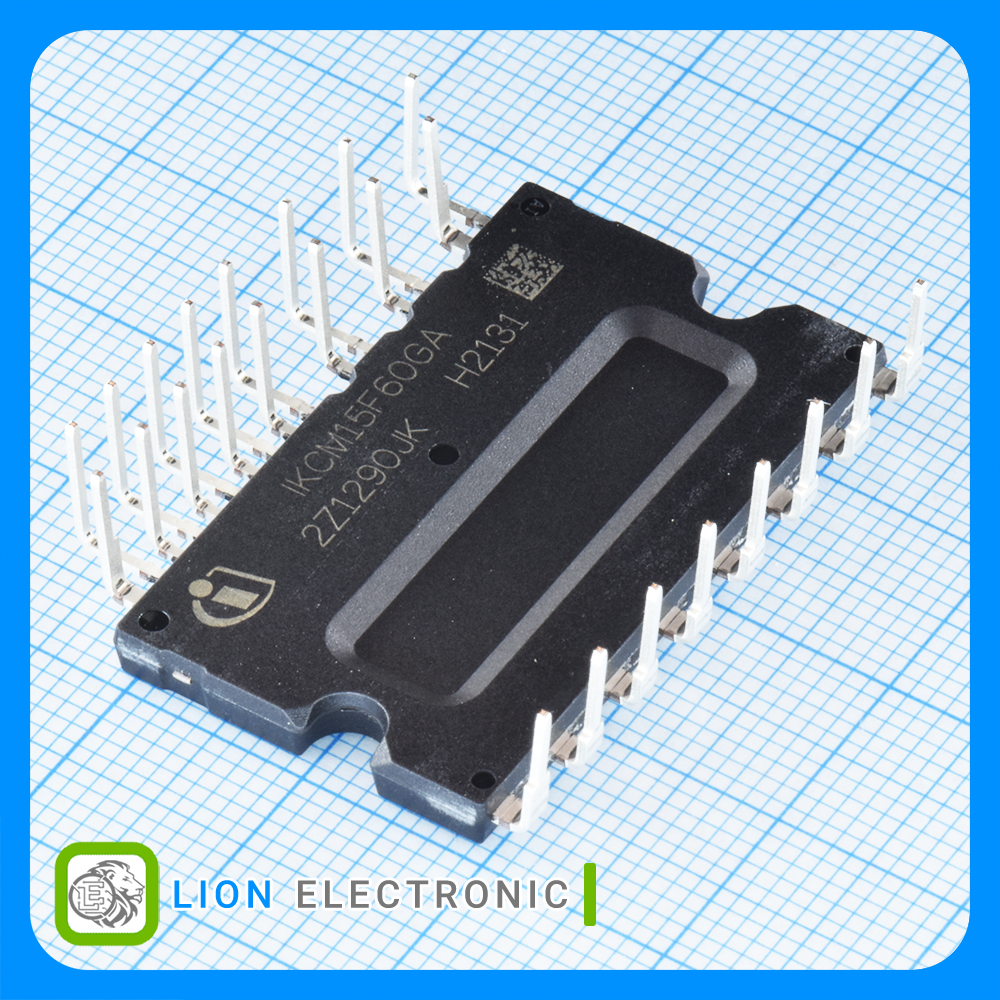

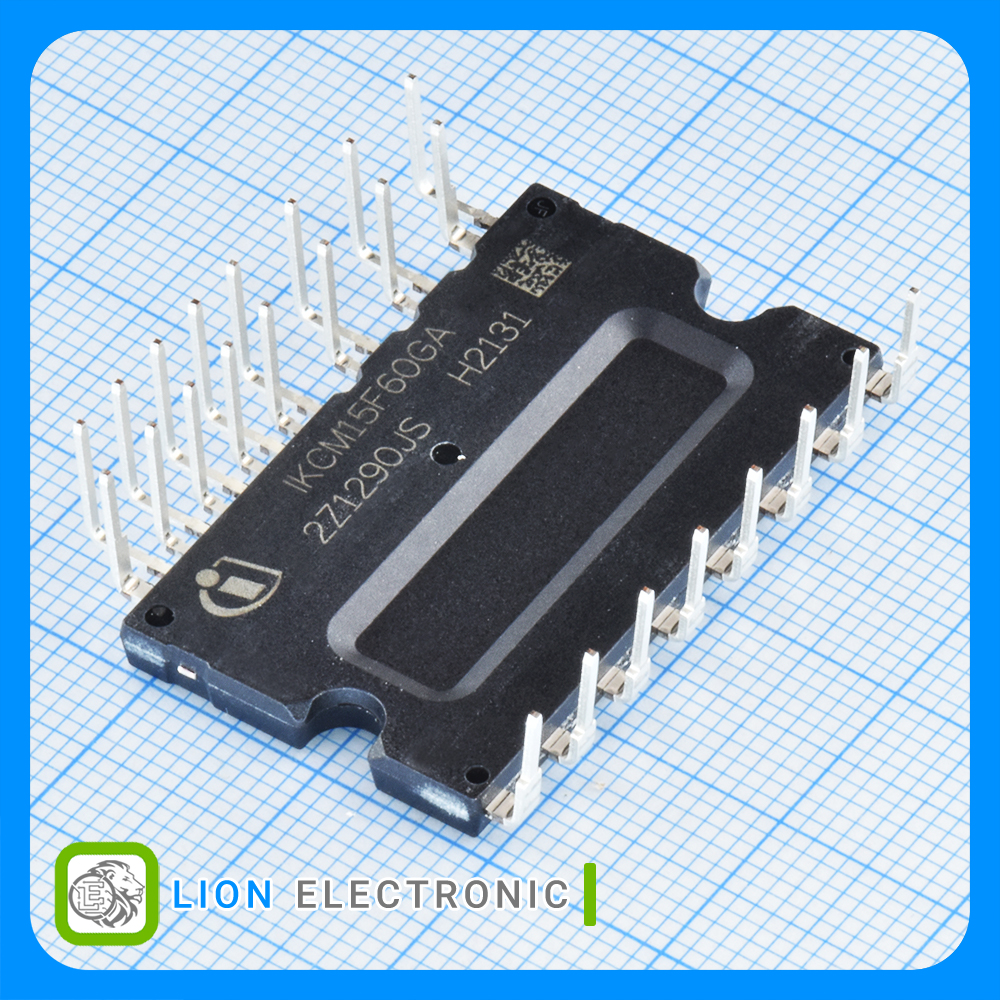

ماژول IGBT سه فاز IKCM15F60GA
IKCM15F60GA
Part Number
4525
Lion Part
Datasheet
Infineon Technologies Manufacture
ماژول آی جی بی تی سه فاز به همراه مدارات گیت درایور و محافظ
Dual In-Line Intelligent Power Module 3Φ -bridge 600V / 15A DIP 36x21D
معرفی
System Configuration
- 3 half bridges with TRENCHSTOP™ IGBTs and anti parallel diodes
- 3Φ SOI gate driver
- Thermistor
- Pin-to-heatsink clearance distance typ. 1.6mm
مشخصات ماژول IGBT سه فاز IKCM15F60GA
ماژول IGBT سه فاز IKCM15F60GA
Part Number
15A
Continuous Collector Current aT 25 c
1mA
Gate - Emitter Leakage Current
-40C
Minimum Operating Temperature
Tube
Packaging
3-Phase
Configuration
+125C
Maximum Operating Temperature
1.55V
Collector - Emitter Saturation Voltage
600V
Collector - Emitter Voltage VCEO Max
Fan / Motor Controllers / Drivers
Product
27.4W
Pd - Power Dissipation
36mm x 28.6mm x 9.7mm
Package-Case
