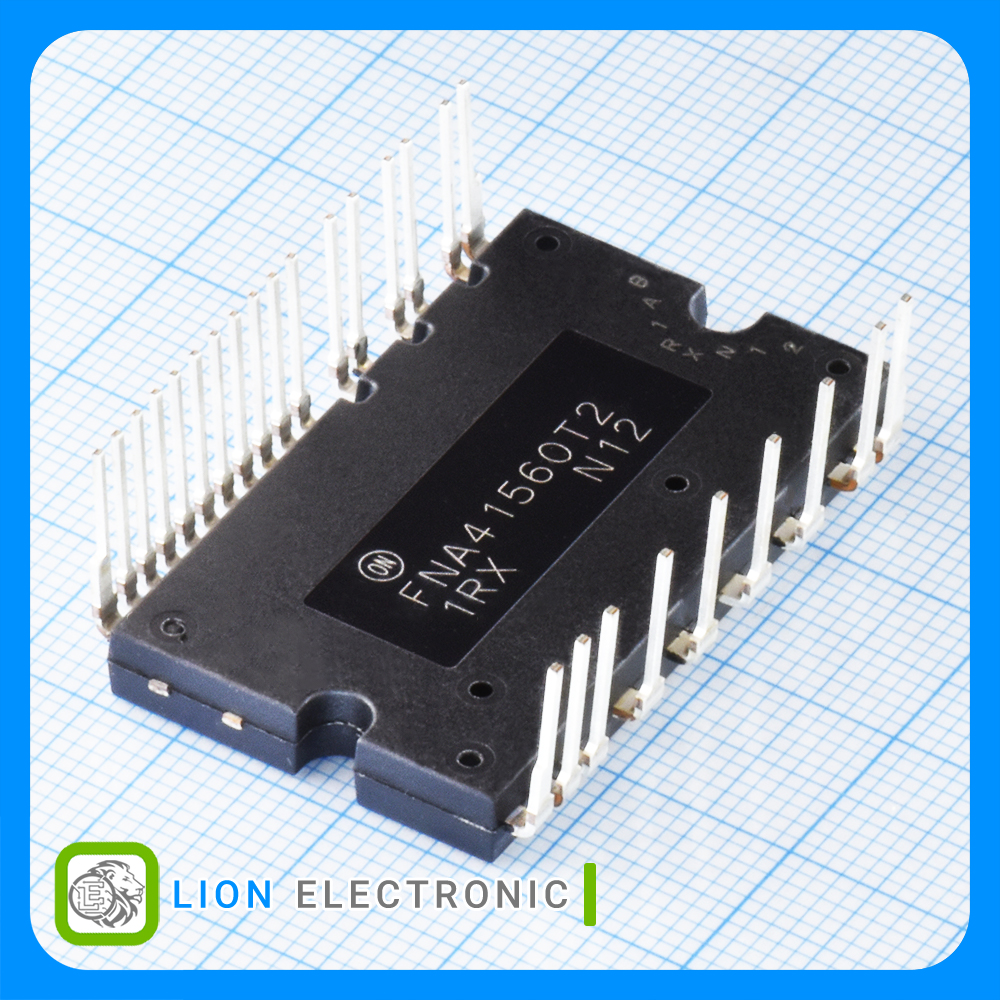

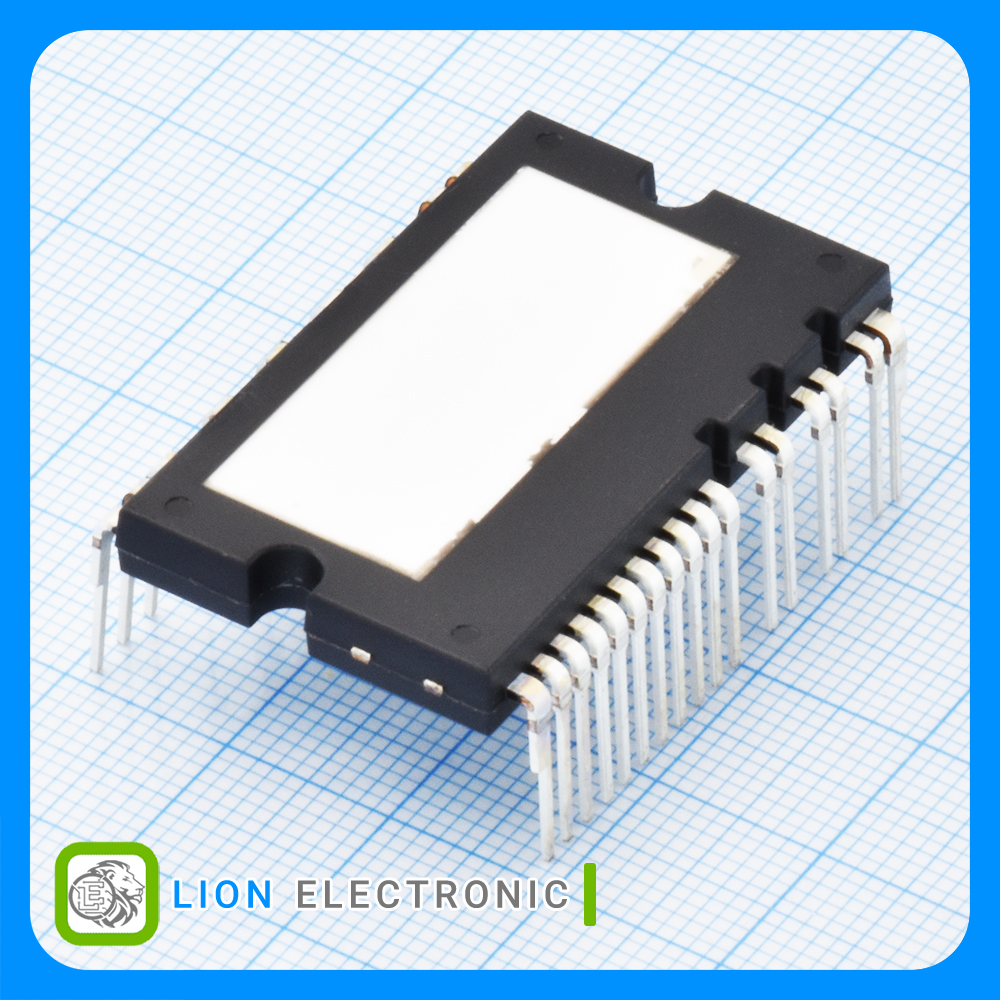

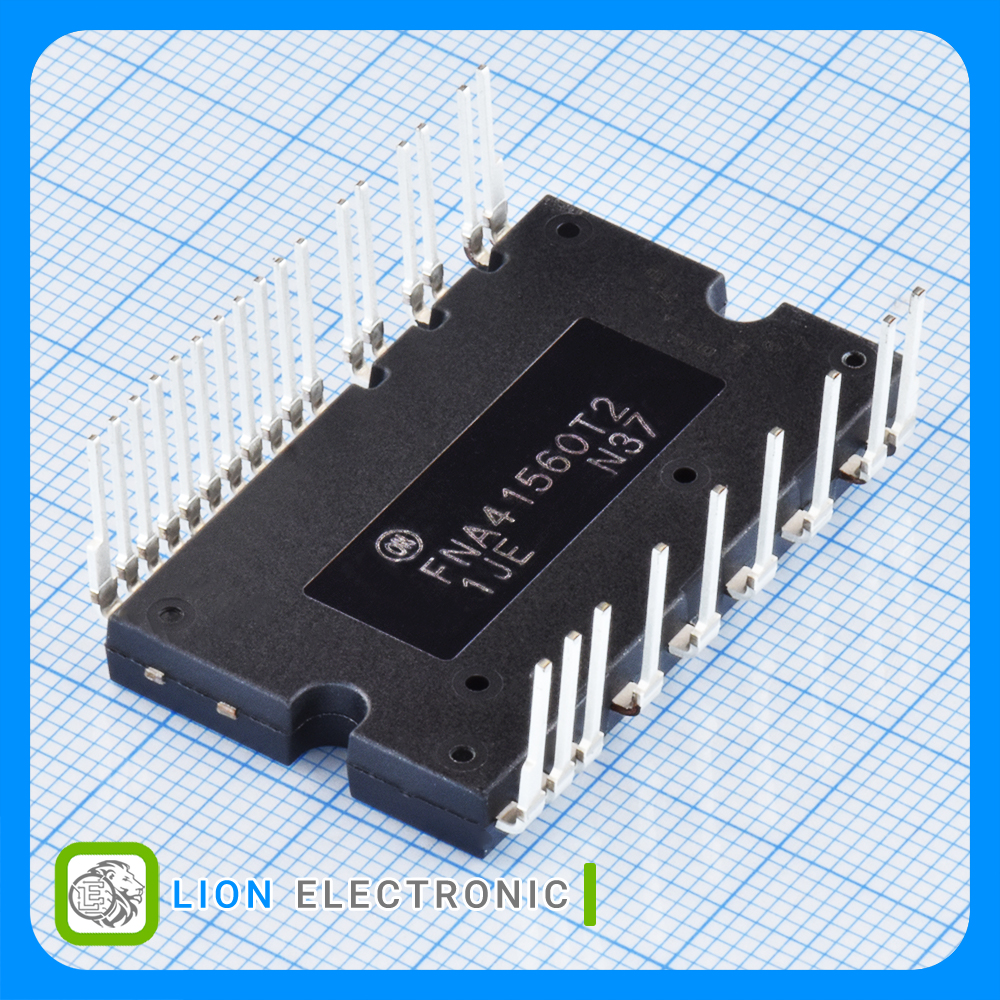

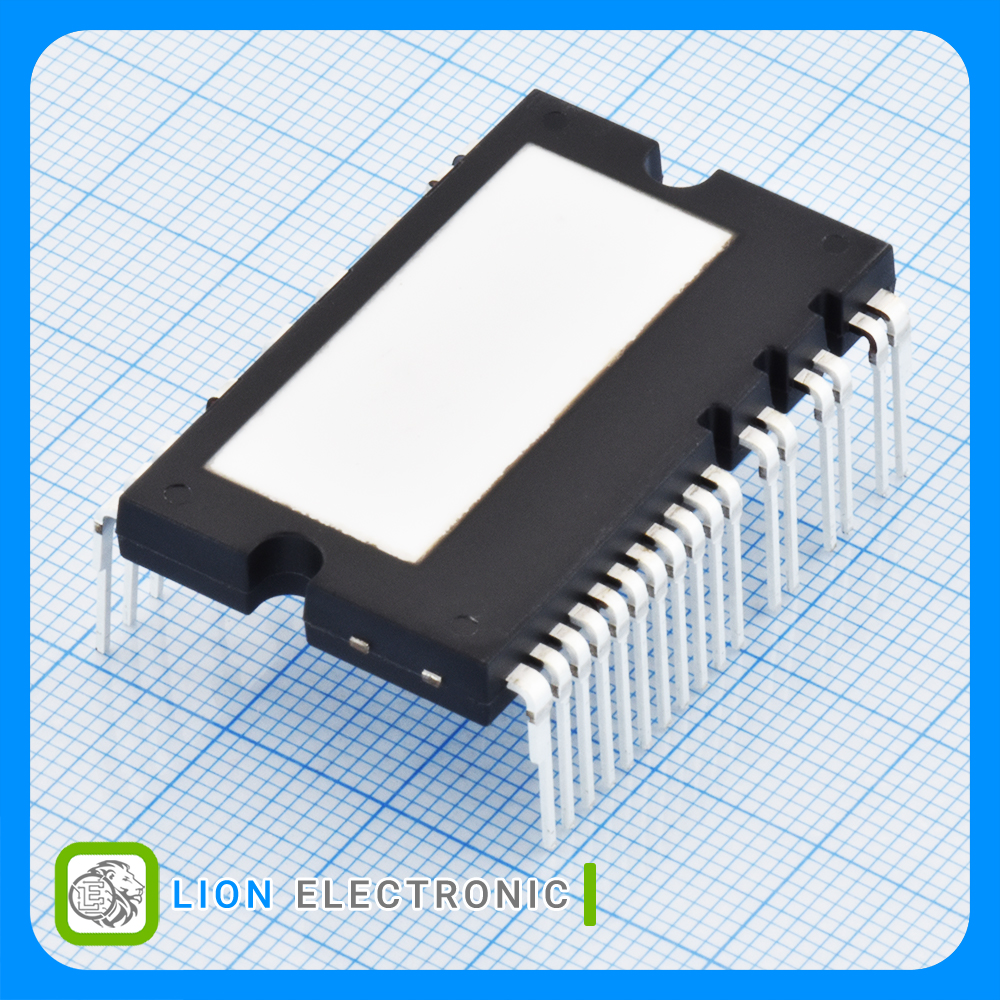

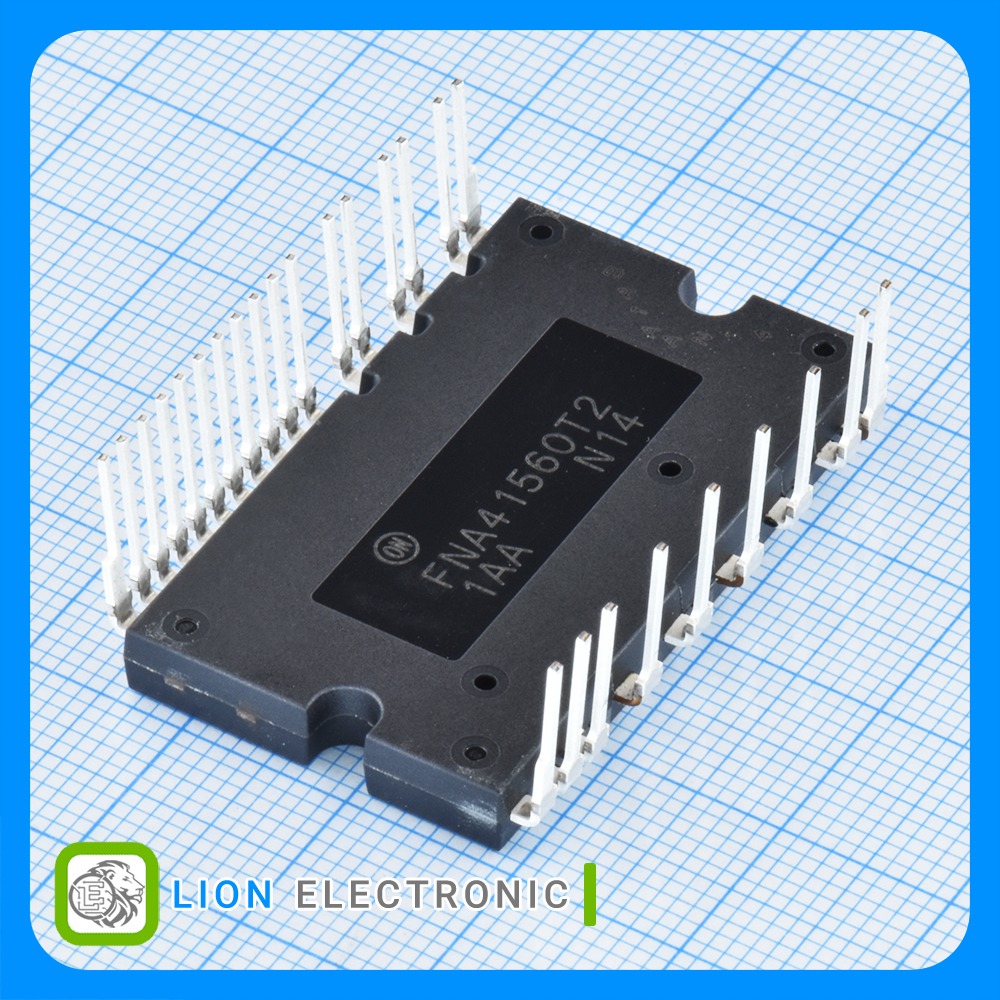

FNA41560T2
FNA41560T2
Part Number
5504
Lion Part
Datasheet
FAIRCHILD/ONSEMI Manufacture
ماژول IGBT اینورتر سه فاز 600 ولت 15 آمپر با گیت درایور و محافظ داخلی، پکیج SPMAA−C26
3-Phase IGBT Inverter Module 600V, 15A with Integral Gate Drives and Protection, SPMAA−C26 Package
معرفی
ماژول IGBT اینورتر سه فاز 600 ولت 15 آمپر با گیت درایور و محافظ داخلی، پکیج SPMAA−C26
3-Phase IGBT Inverter Module 600V, 15A with Integral Gate Drives and Protection, SPMAA−C26 Package
Specifications
- Product: Fan / Motor Controllers / Drivers
- Configuration: 3-Phase
- Collector - Emitter Voltage VCEO Max: 600V
- Collector - Emitter Saturation Voltage: 1.6V
- Continuous Collector Current aT 25 c: 15A
- Gate - Emitter Leakage Current: 1mA
- Pd - Power Dissipation: 38W
- Package/Case: SPMAA−C26
- Minimum Operating Temperature: -40C
- Maximum Operating Temperature: +150C
- Packaging: Tube
مشخصات FNA41560T2
FNA41560T2
Part Number
15A
Continuous Collector Current aT 25 c
1mA
Gate - Emitter Leakage Current
-40C
Minimum Operating Temperature
Tube
Packaging
3-Phase
Configuration
+150C
Maximum Operating Temperature
1.6V
Collector - Emitter Saturation Voltage
600V
Collector - Emitter Voltage VCEO Max
Fan / Motor Controllers / Drivers
Product
38W
Pd - Power Dissipation
SPMAA−C26
Package-Case
