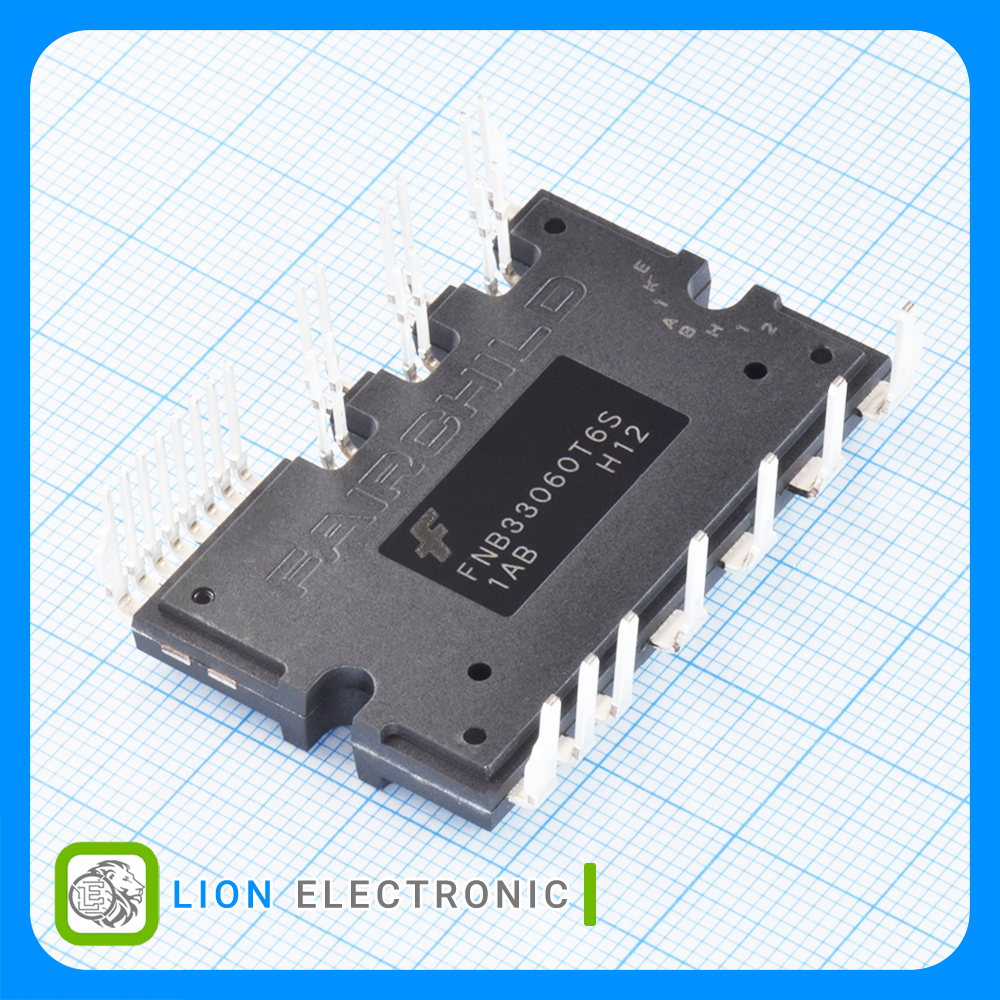

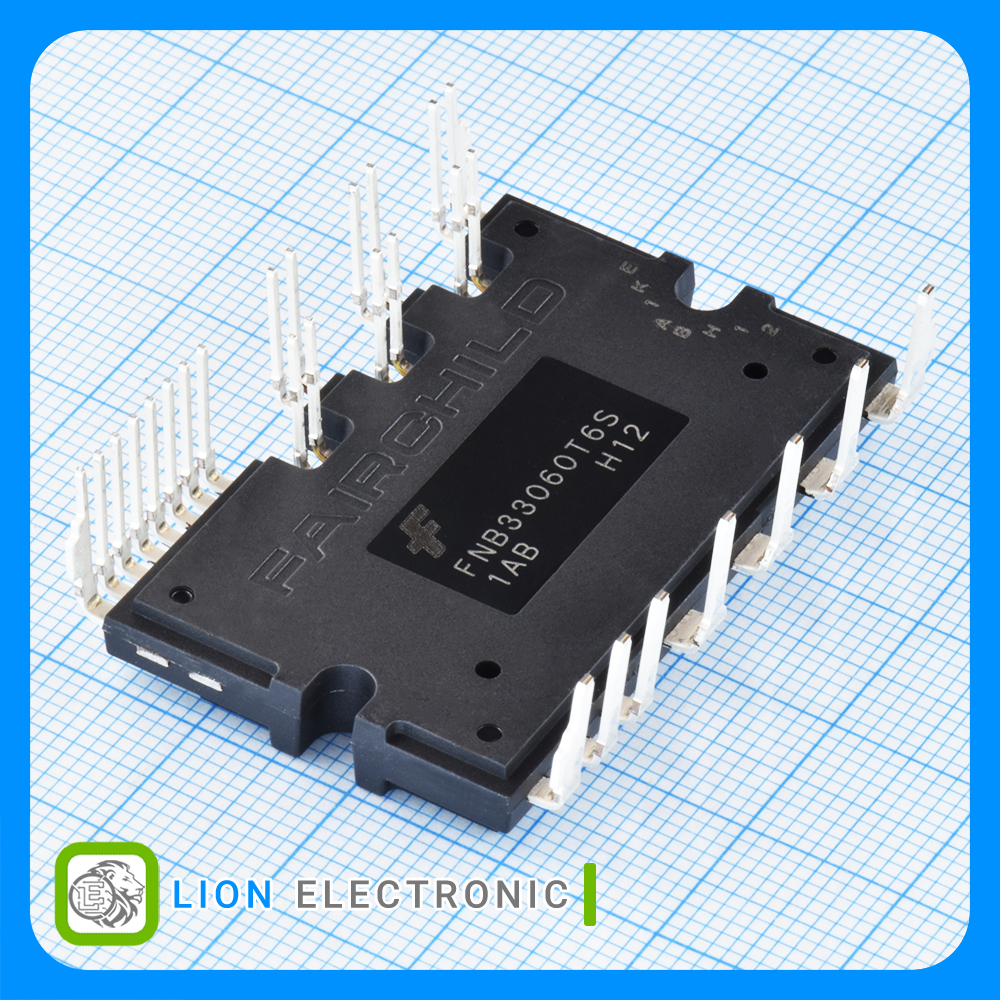

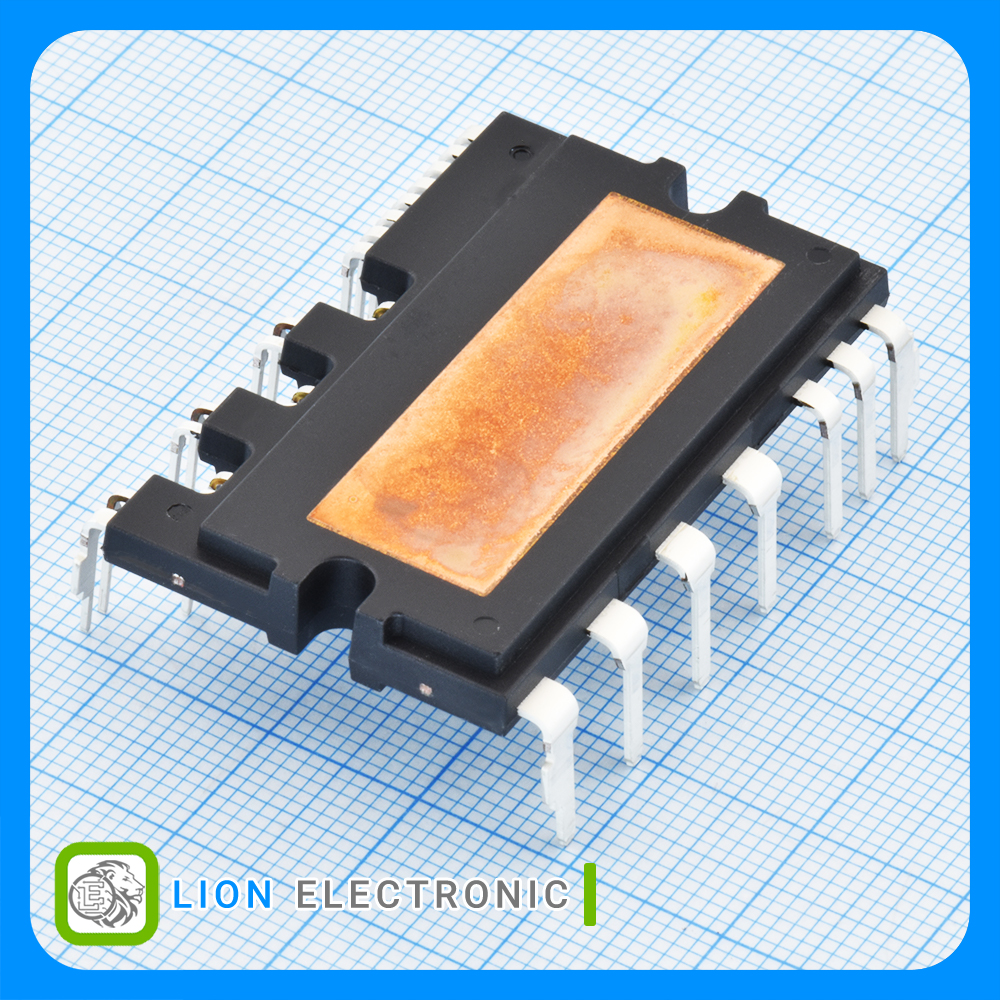

FNB33060T
FNB33060T
Part Number
5218
Lion Part
Datasheet
FAIRCHILD/ONSEMI Manufacture
ماژول IGBT سه فاز 600 ولت 30 آمپر به همراه مدارات گیت درایور و محافظ با پکیج SPMCA-27
3-Phase IGBT Inverter 600V, 30A with Integral Gate Drivers and Protection, with SPMCA-27 Package
معرفی
ماژول IGBT سه فاز 600 ولت 30 آمپر به همراه مدارات گیت درایور و محافظ با پکیج SPMCA-27
3-Phase IGBT Inverter 600V, 30A with Integral Gate Drivers and Protection, with SPMCA-27 Package
Specifications
- Product: Fan / Motor Controllers / Drivers
- Configuration: 3-Phase
- Collector - Emitter Voltage VCEO Max: 600V
- Collector - Emitter Saturation Voltage: 1.6V
- Continuous Collector Current aT 25 c: 30A
- Gate - Emitter Leakage Current: 250uA
- Pd - Power Dissipation: 89W
- Package/Case: SPMCA-27
- Minimum Operating Temperature: -40C
- Maximum Operating Temperature: +150C
- Packaging: Tube
مشخصات ماژول IGBT سه فاز FNB33060T
ماژول IGBT سه فاز FNB33060T
Part Number
250uA
Gate - Emitter Leakage Current
-40C
Minimum Operating Temperature
30A
Continuous Collector Current aT 25 c
Tube
Packaging
3-Phase
Configuration
+150C
Maximum Operating Temperature
1.6V
Collector - Emitter Saturation Voltage
600V
Collector - Emitter Voltage VCEO Max
Fan / Motor Controllers / Drivers
Product
89W
Pd - Power Dissipation
SPMCA-27
Package-Case
