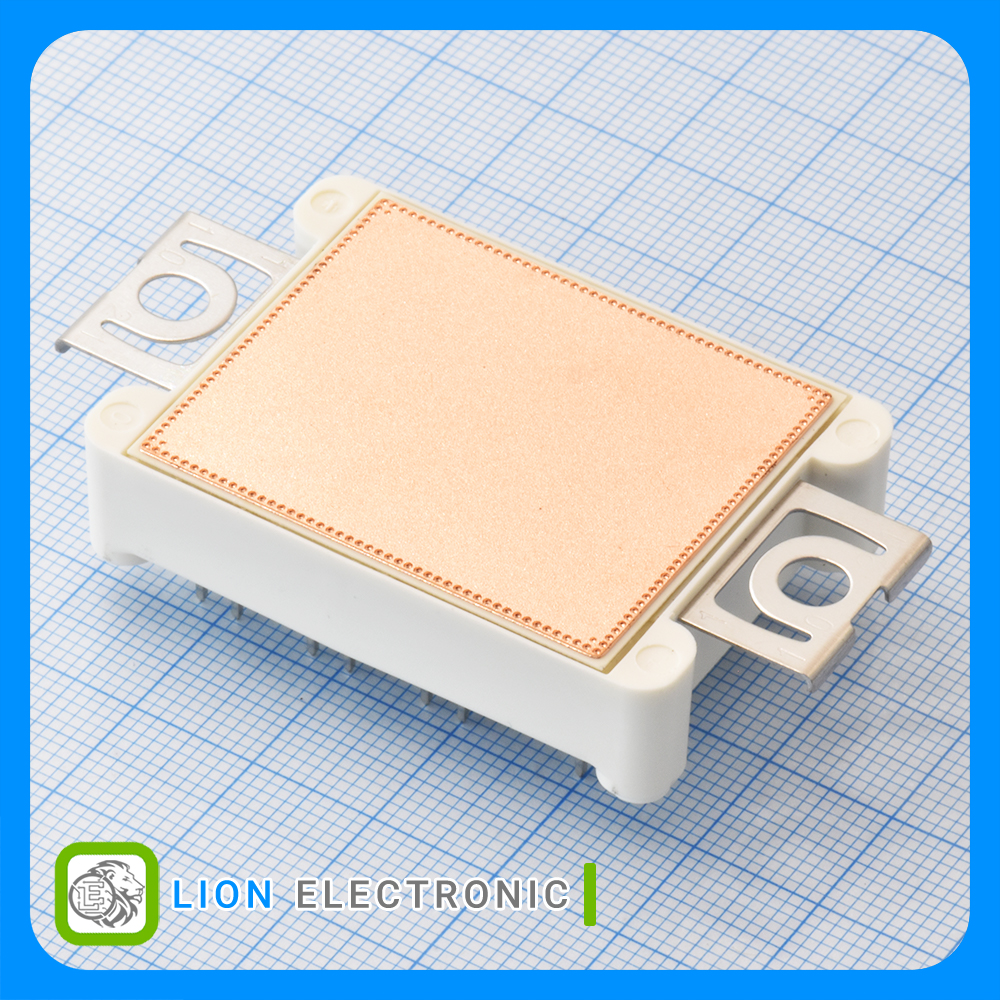

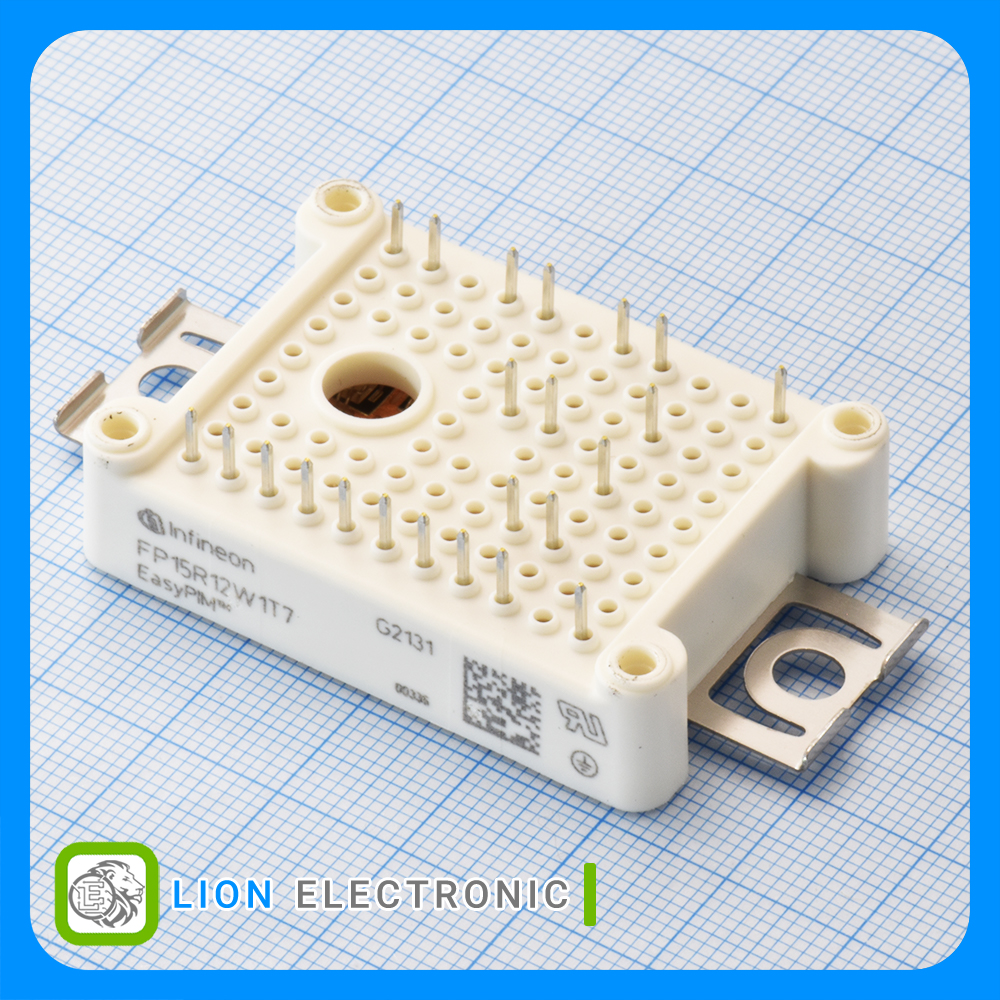

FP15R12W1T7
FP15R12W1T7
Part Number
5671
Lion Part
Datasheet
Infineon Technologies Manufacture
ماژول IGBT سه فاز 1200 ولت 15 آمپر با پکیج 62.8mmx33.8mmx15.5mm
3-Phase IGBT Module 1200V, 15A with 62.8mm x 33.8mm x 15.5mm Package
معرفی
ماژول IGBT سه فاز 1200 ولت 15 آمپر با پکیج 62.8mmx33.8mmx15.5mm
3-Phase IGBT Module 1200V, 15A with 62.8mm x 33.8mm x 15.5mm Package
Specifications
- Product: IGBT Silicon Modules
- Configuration: 3-Phase
- Collector - Emitter Voltage VCEO Max: 1.2kV
- Collector - Emitter Saturation Voltage: 1.6V
- Continuous Collector Current aT 25 c: 15A
- Gate - Emitter Leakage Current: 100nA
- Pd - Power Dissipation: 20mW
- Package/Case: 62.8mm x 33.8mm x 15.5mm
- Minimum Operating Temperature: -40C
- Maximum Operating Temperature: +175C
- Packaging: Tray
مشخصات ماژول(IGBT) FP15R12W1T7
ماژول(IGBT) FP15R12W1T7
Part Number
100nA
Gate - Emitter Leakage Current
15A
Continuous Collector Current aT 25 c
20mW
Pd - Power Dissipation
-40C
Minimum Operating Temperature
Tray
Packaging
3-Phase
Configuration
1.6V
Collector - Emitter Saturation Voltage
+175C
Maximum Operating Temperature
1.2kV
Collector - Emitter Voltage VCEO Max
62.8mm x 33.8mm x 15.5mm
Package-Case
IGBT Silicon Modules
Product
