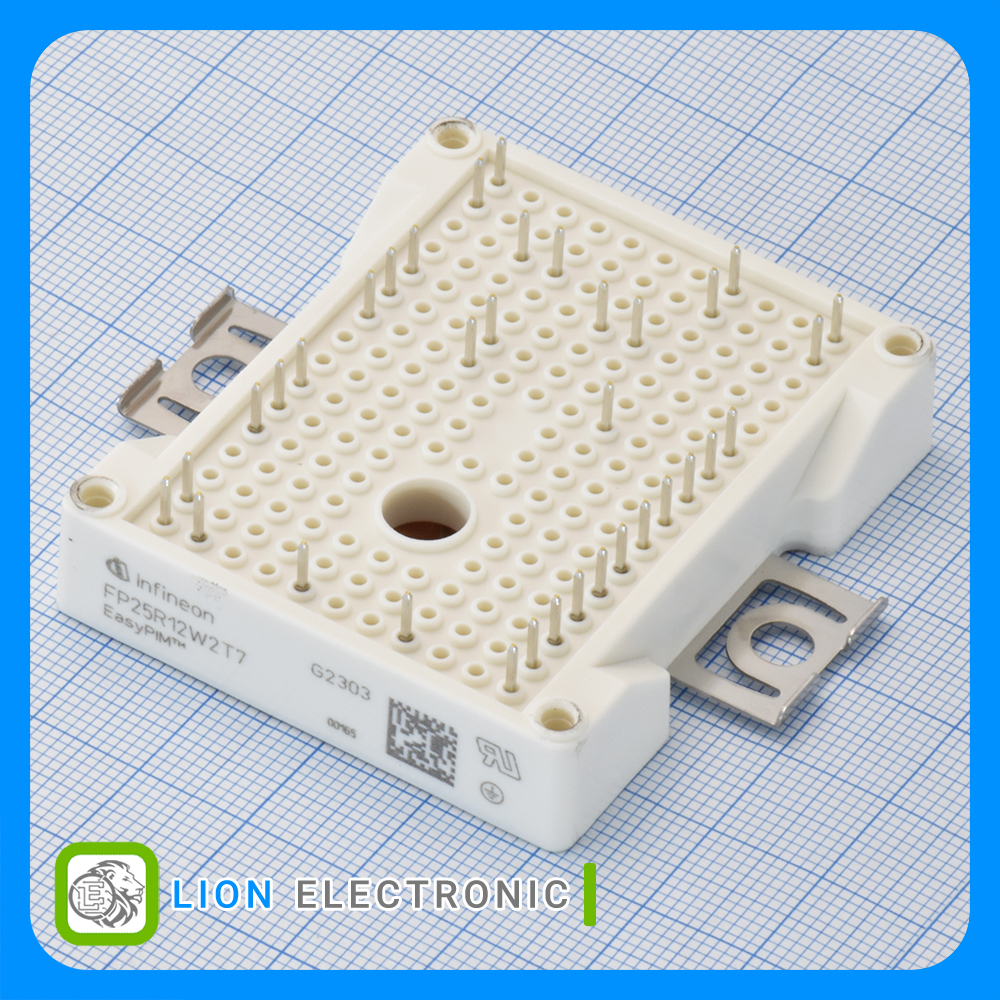

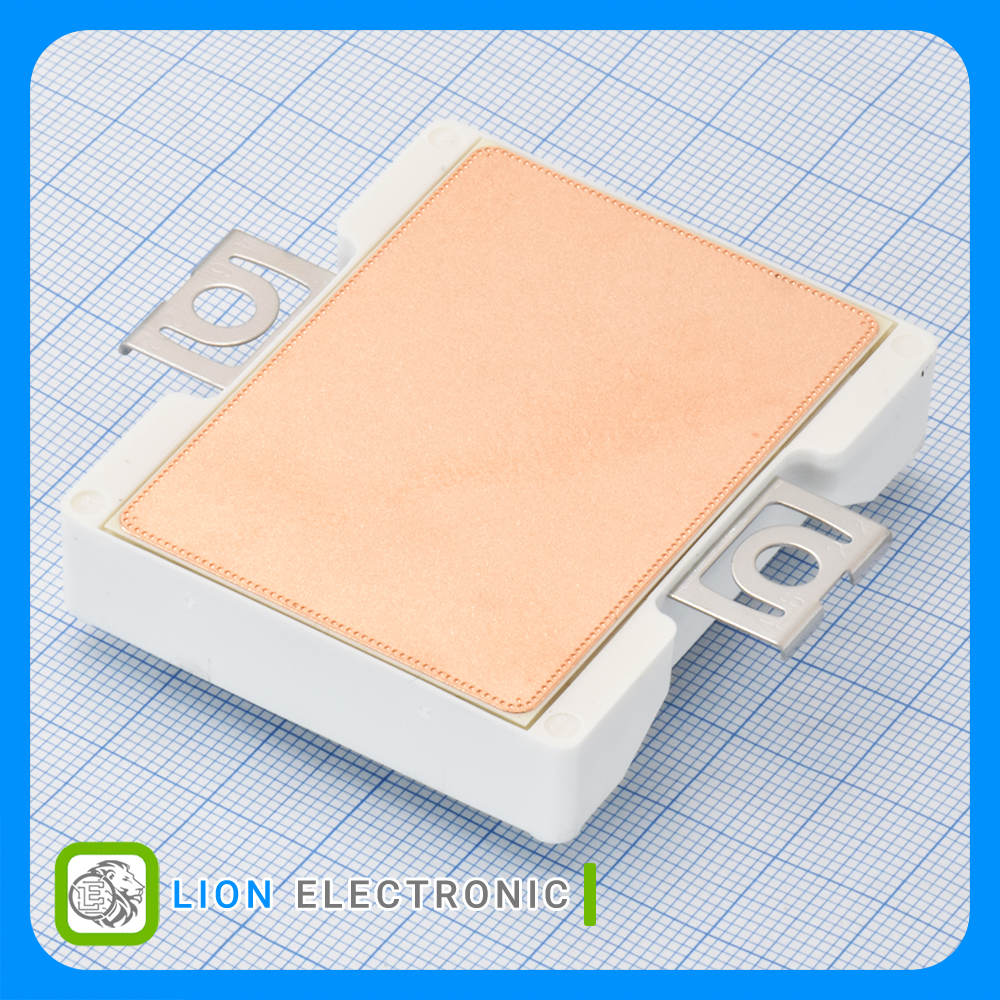

FP25R12W2T7
FP25R12W2T7
Part Number
5670
Lion Part
Datasheet
Infineon Technologies Manufacture
ماژول IGBT سه فاز 1200 ولت 25 آمپر، 7 IGBT و 7 دیود و NTC با پکیج 62.8mmx56.7mmx15.5mm
3-Phase IGBT Module 1200V, 25A, 7IGBT 7Diode And NTC with 62.8mm x 56.7mm x 15.5mm Package
معرفی
ماژول IGBT سه فاز 1200 ولت 25 آمپر، 7 IGBT و 7 دیود و NTC با پکیج 62.8mmx56.7mmx15.5mm
3-Phase IGBT Module 1200V, 25A, 7IGBT 7Diode And NTC with 62.8mm x 56.7mm x 15.5mm Package
Specifications
- Product: IGBT Silicon Modules
- Configuration: 3-Phase
- Collector - Emitter Voltage VCEO Max: 1.2kV
- Collector - Emitter Saturation Voltage: 1.6V
- Continuous Collector Current aT 25 c: 25A
- Gate - Emitter Leakage Current: 100nA
- Pd - Power Dissipation: 20mW
- Package/Case: 62.8mm x 56.7mm x 15.5mm
- Minimum Operating Temperature: -40C
- Maximum Operating Temperature: +175C
- Packaging: Tray
مشخصات ماژول(IGBT) FP25R12W2T7
ماژول(IGBT) FP25R12W2T7
Part Number
100nA
Gate - Emitter Leakage Current
20mW
Pd - Power Dissipation
25A
Continuous Collector Current aT 25 c
-40C
Minimum Operating Temperature
Tray
Packaging
3-Phase
Configuration
1.6V
Collector - Emitter Saturation Voltage
+175C
Maximum Operating Temperature
1.2kV
Collector - Emitter Voltage VCEO Max
62.8mm x 56.7mm x 15.5mm
Package-Case
IGBT Silicon Modules
Product
