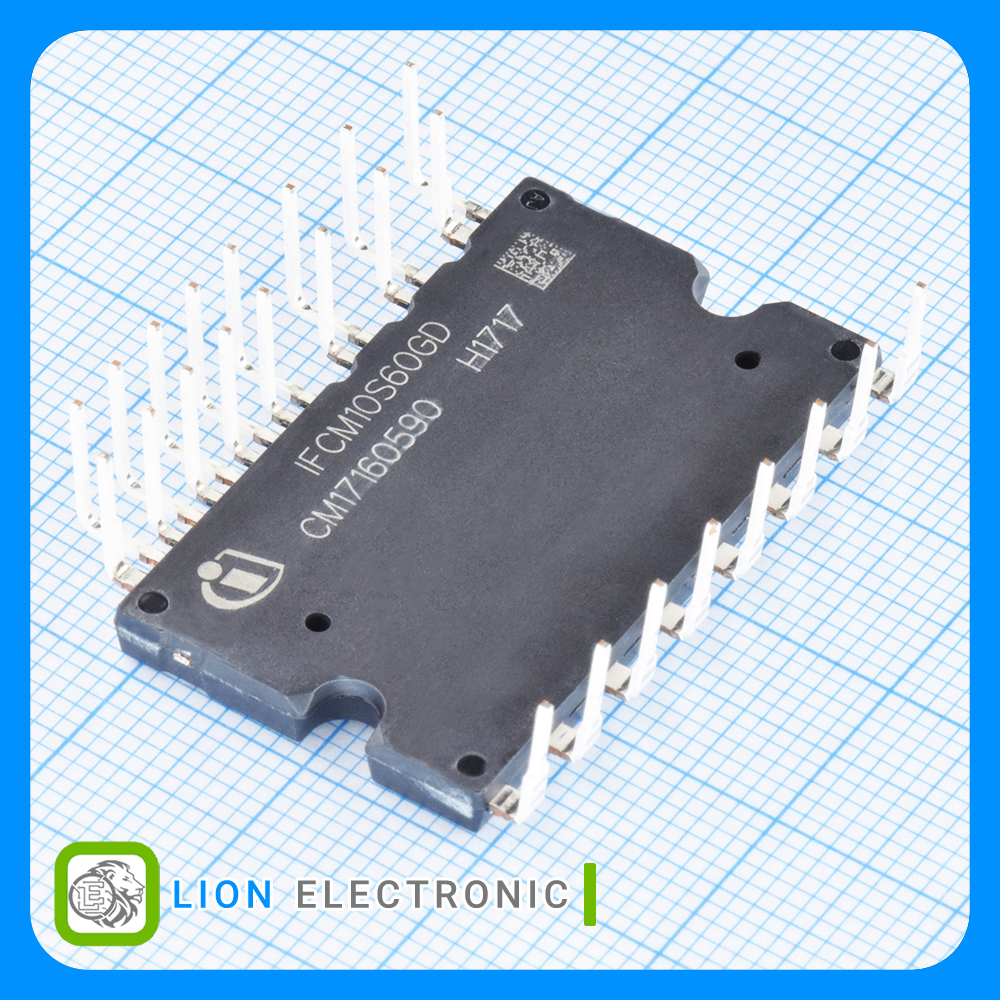

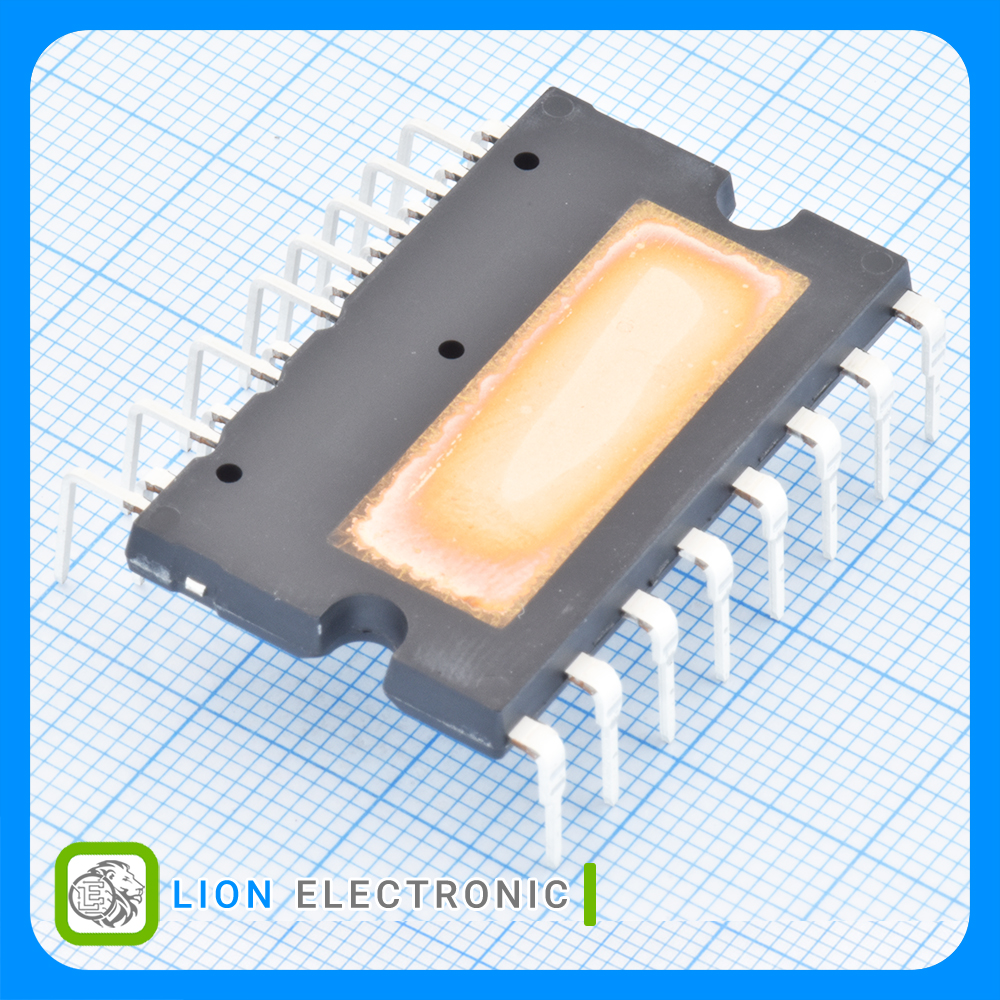

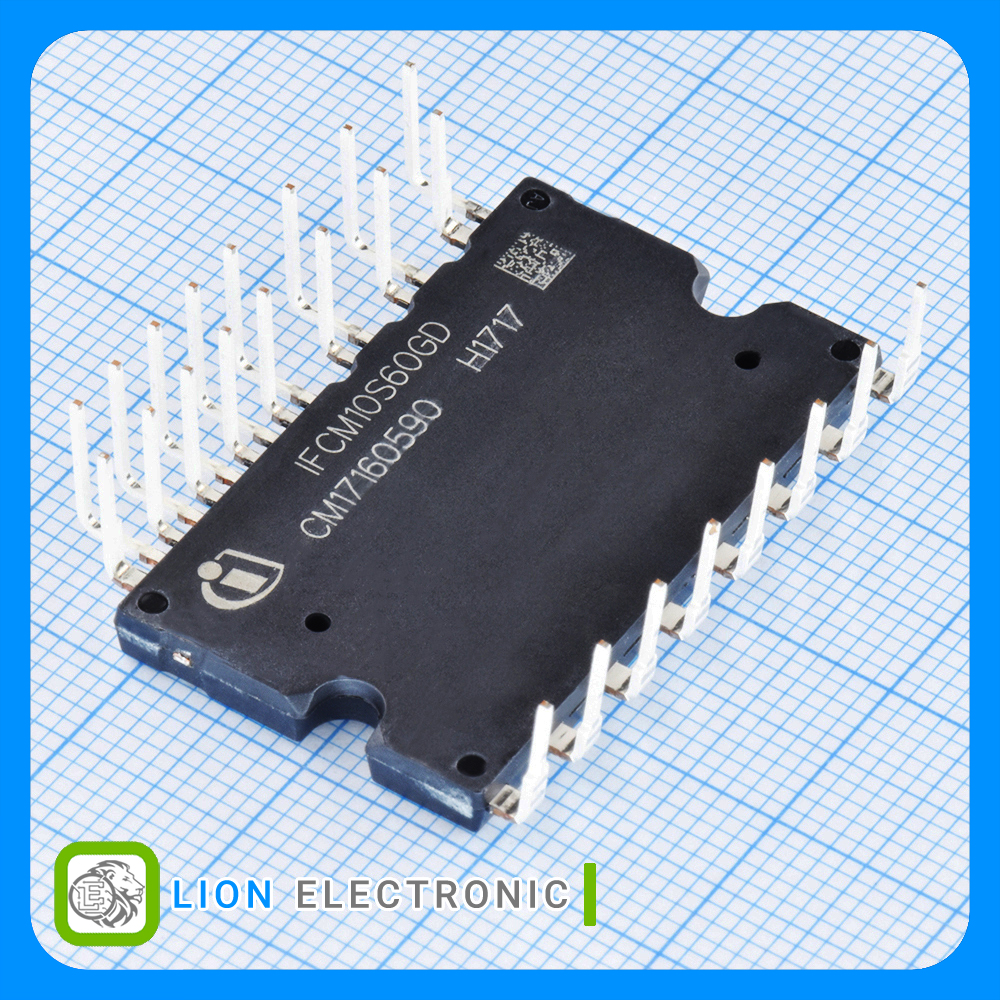

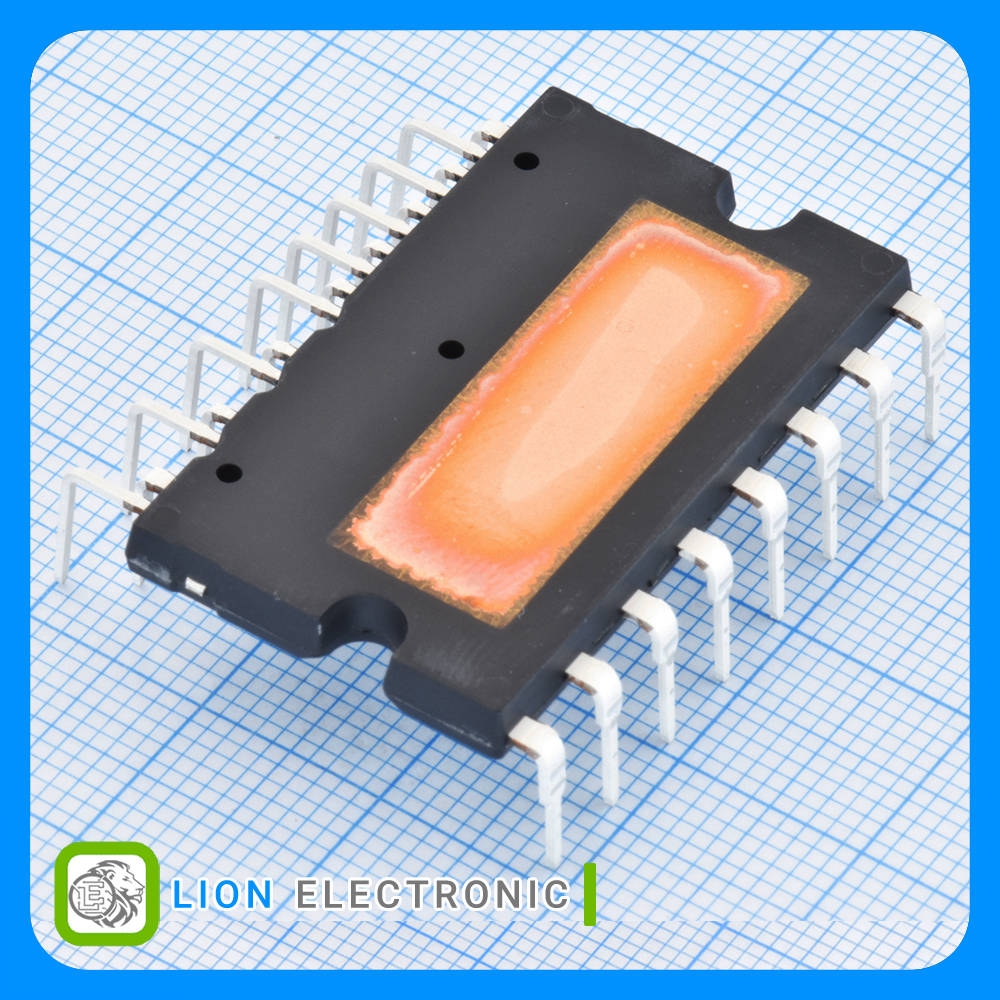

IFCM10S60GDXKMA1
IFCM10S60GDXKMA1
Part Number
5193
Lion Part
Datasheet
Infineon Technologies Manufacture
ماژول IGBT سه فاز به همراه مدارات گیت درایور و محافظ، 600 ولت 10 آمپر با پکیج 36mmx28.6mmx9.7mm
Dual In-Line PFC Integrated Intelligent Power Module 3 ɸ-bridge 600V/10A, Single Phase PFC 650V/30A, 3-Phase IGBT Module with 36mm x 28.6mm x 9.7mm Package
معرفی
ماژول IGBT سه فاز به همراه مدارات گیت درایور و محافظ، 600 ولت 10 آمپر با پکیج 36mmx28.6mmx9.7mm
Dual In-Line PFC Integrated Intelligent Power Module 3 ɸ-bridge 600V/10A, Single Phase PFC 650V/30A, 3-Phase IGBT Module with 36mm x 28.6mm x 9.7mm Package
Specifications
- Product: Fan / Motor Controllers / Drivers
- Configuration: 3-Phase
- Collector - Emitter Voltage VCEO Max: 600V
- Collector - Emitter Saturation Voltage: 2.05V
- Continuous Collector Current aT 25 c: 10A
- Gate - Emitter Leakage Current: 1uA
- Pd - Power Dissipation: 105.9W
- Package/Case: 36mm x 28.6mm x 9.7mm
- Minimum Operating Temperature: -40C
- Maximum Operating Temperature: +125C
- Packaging: Reel
مشخصات ماژول IGBT سه فاز IFCM10S60GDXKMA1
ماژول IGBT سه فاز IFCM10S60GDXKMA1
Part Number
10A
Continuous Collector Current aT 25 c
1uA
Gate - Emitter Leakage Current
Reel
Packaging
-40C
Minimum Operating Temperature
3-Phase
Configuration
+125C
Maximum Operating Temperature
2.05V
Collector - Emitter Saturation Voltage
600V
Collector - Emitter Voltage VCEO Max
36mm x 28.6mm x 9.7mm
Package-Case
Fan / Motor Controllers / Drivers
Product
105.9W
Pd - Power Dissipation
