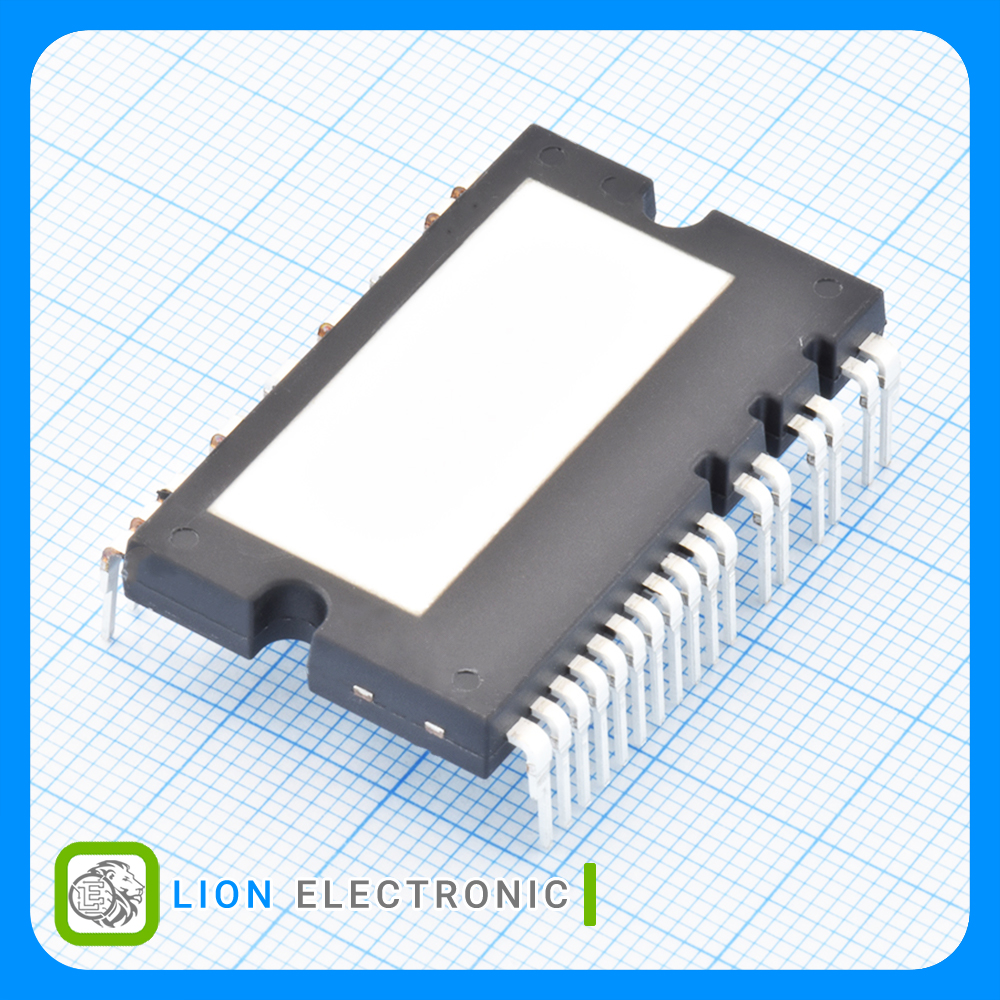

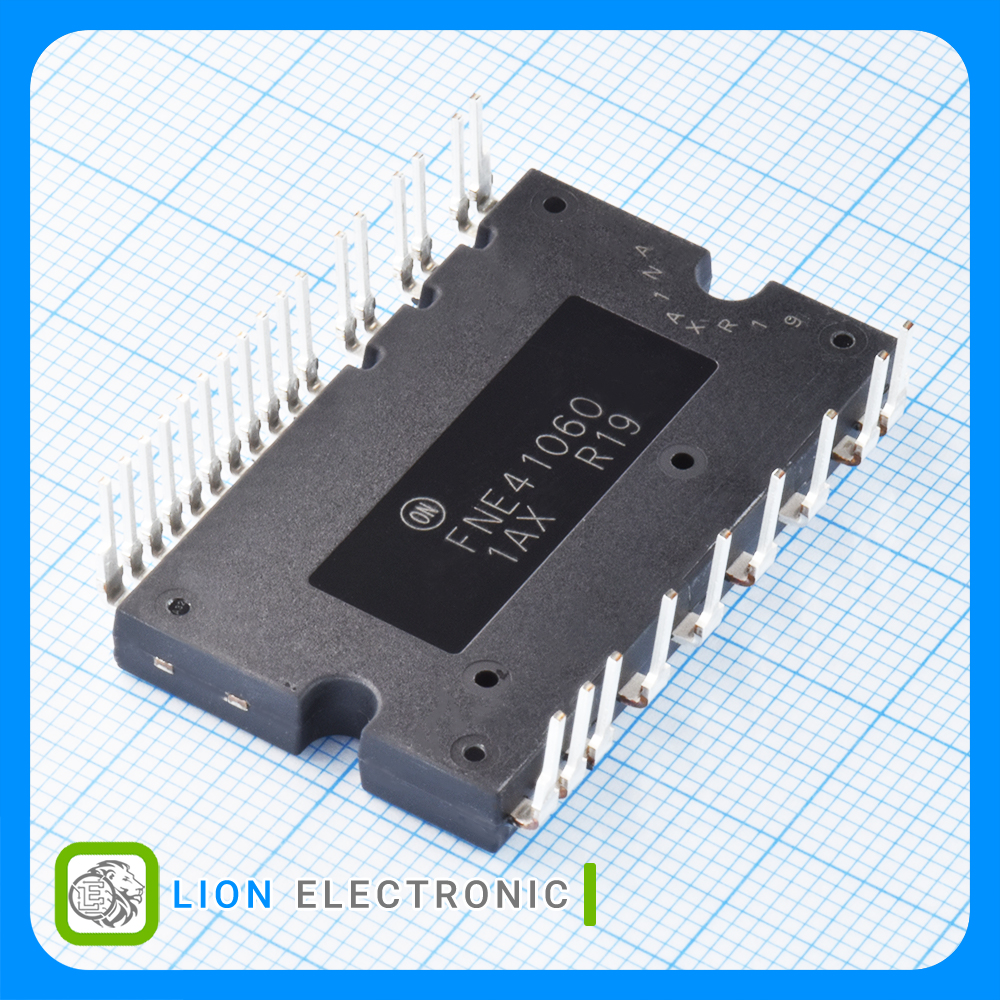

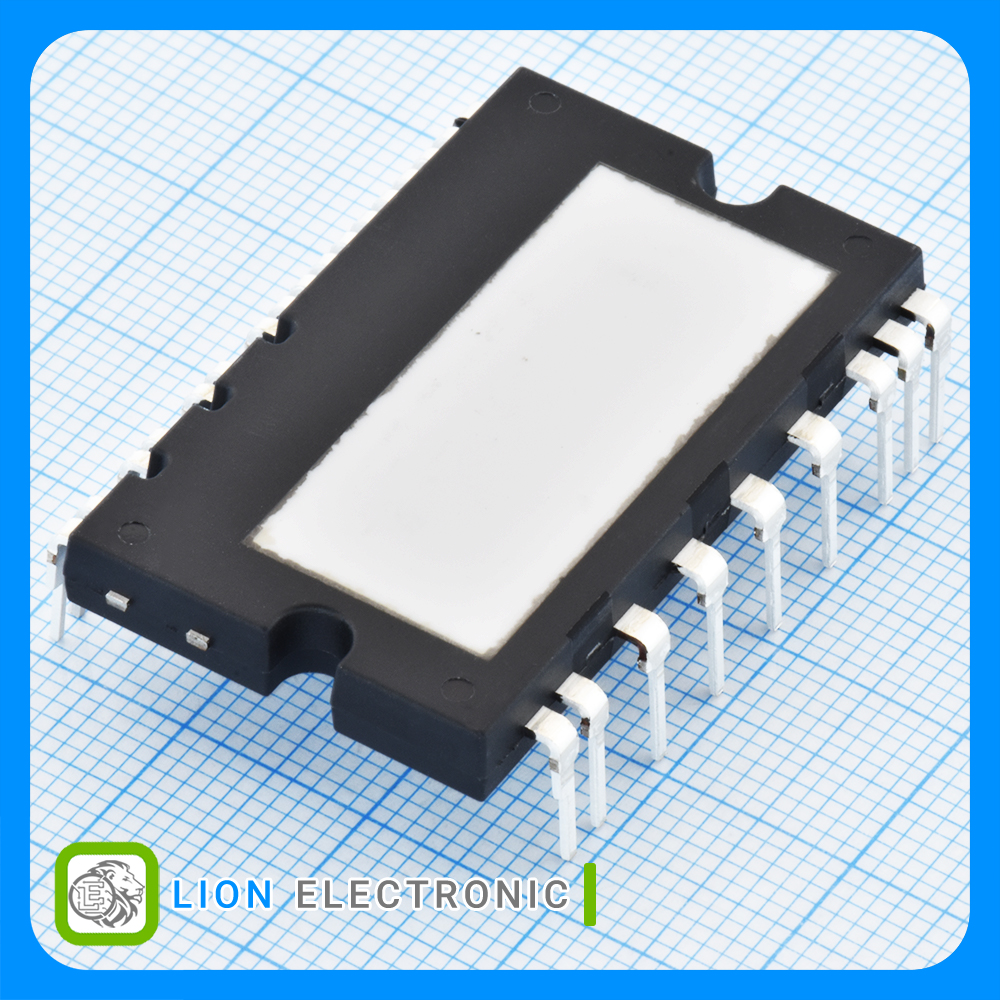

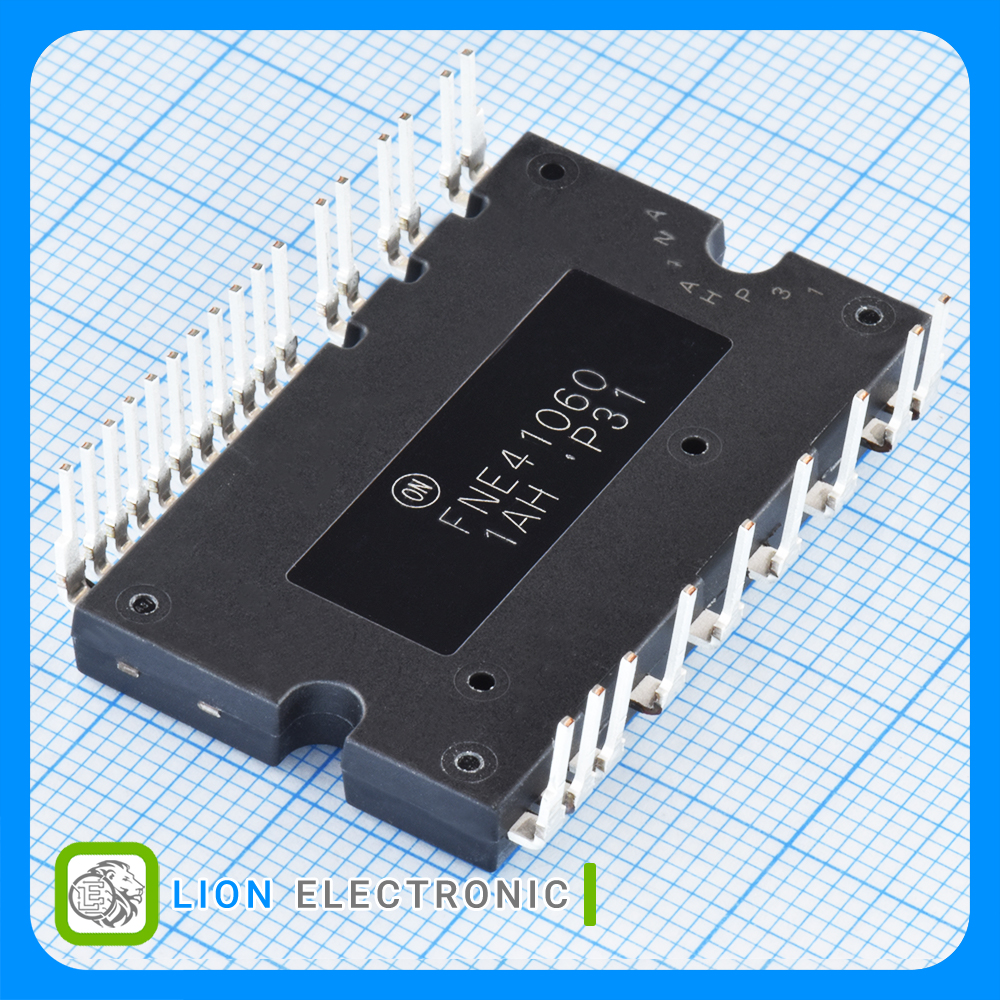

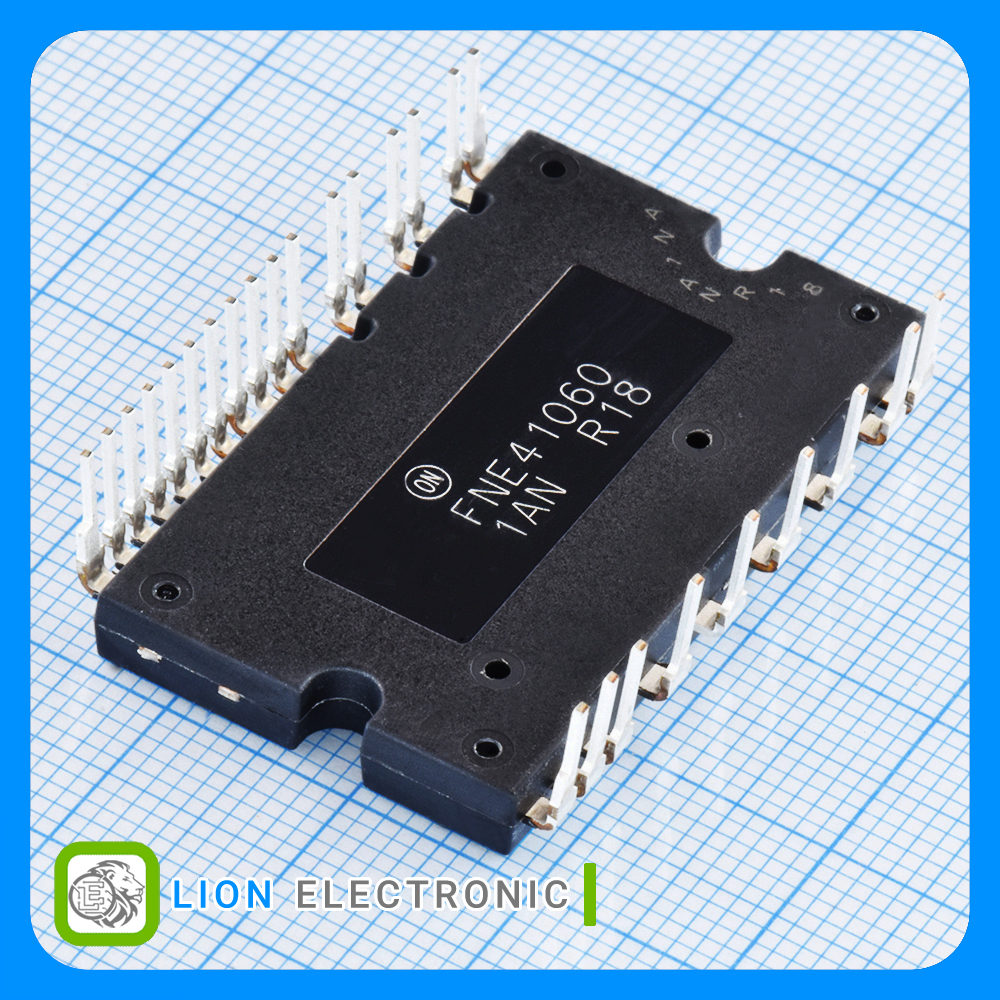

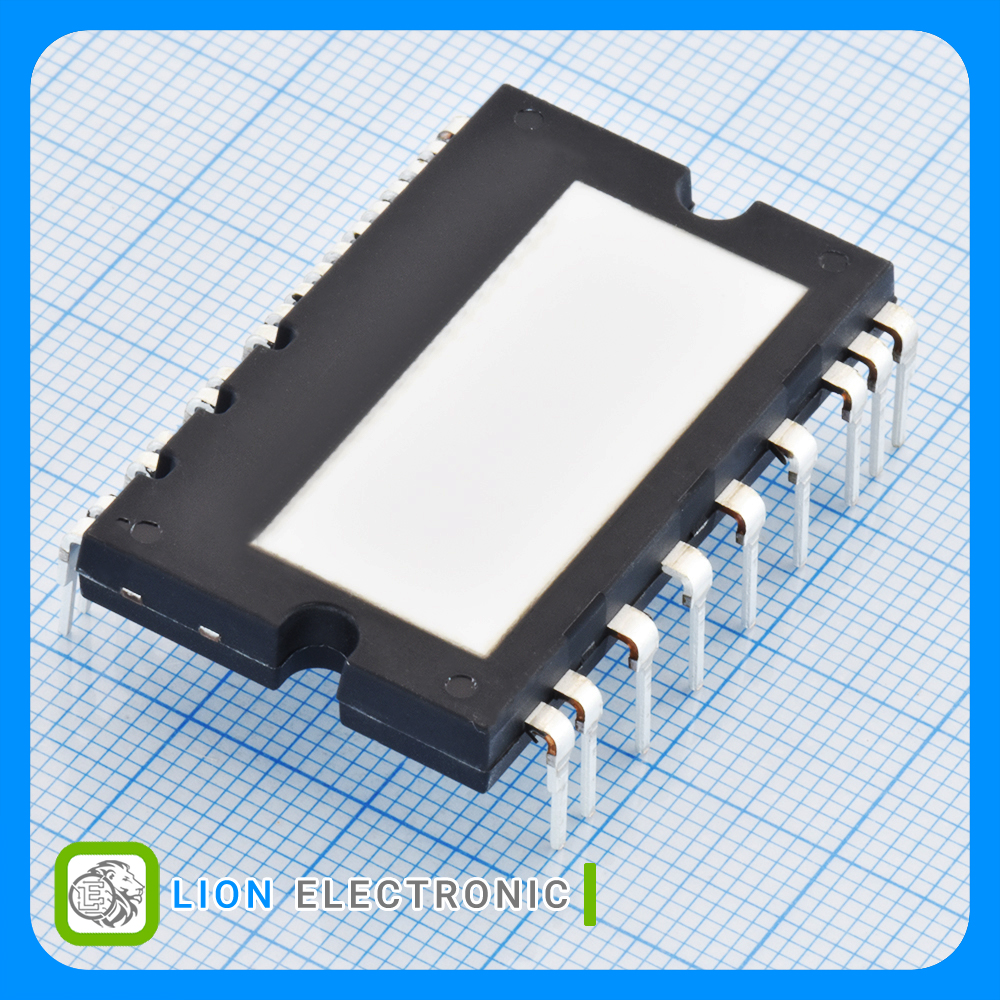

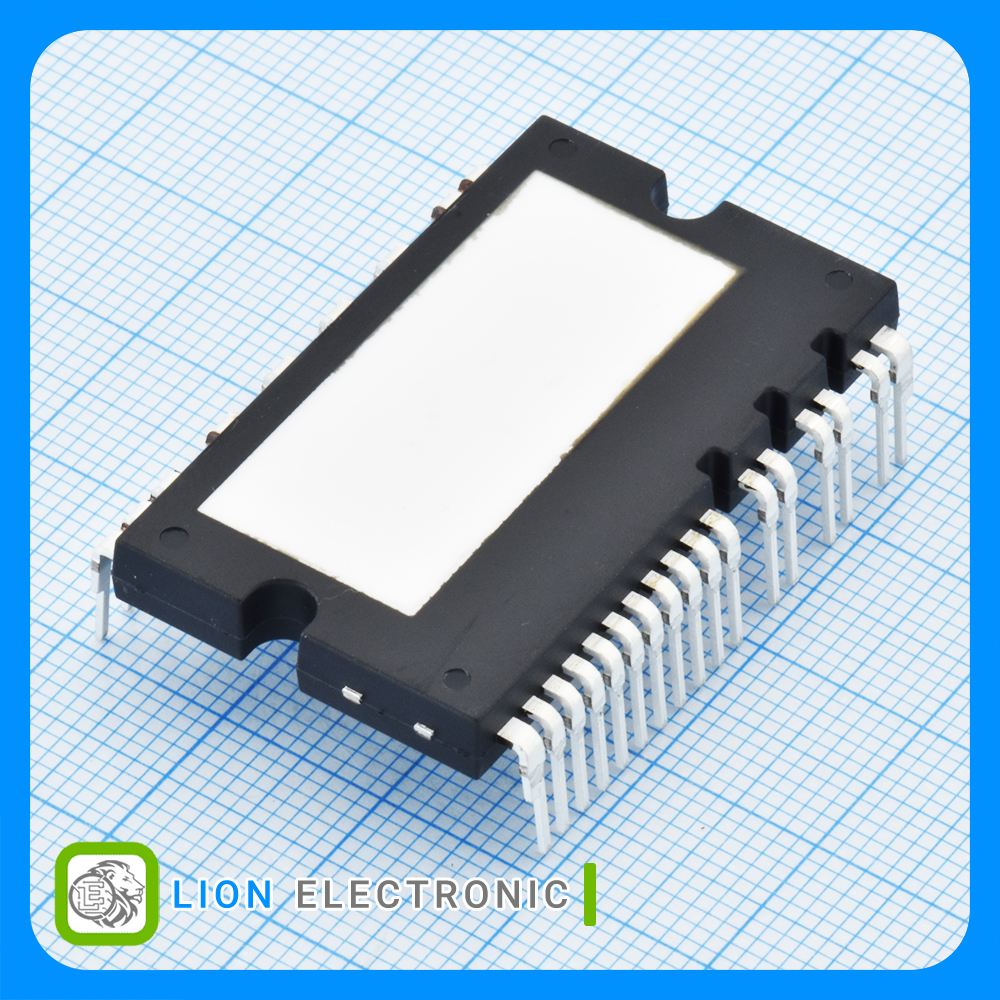

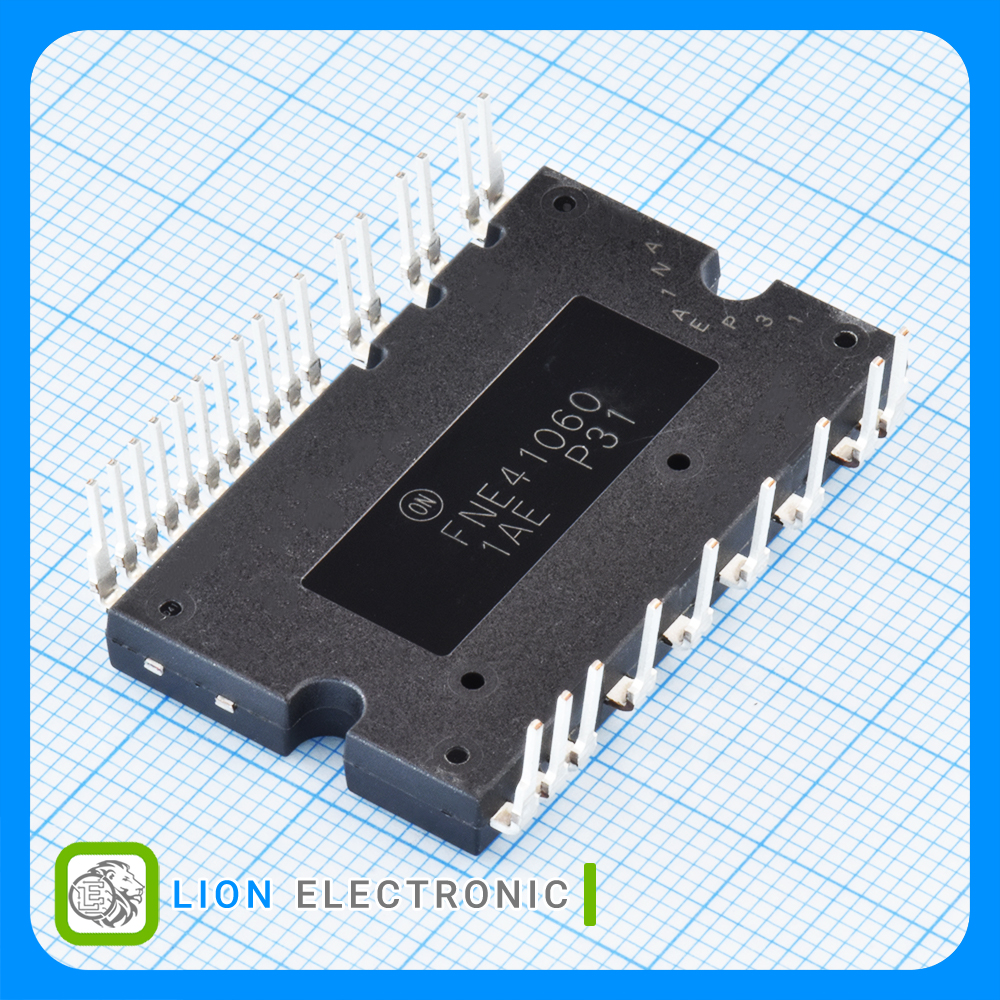

FNE41060
FNE41060
Part Number
5503
Lion Part
Datasheet
FAIRCHILD/ONSEMI Manufacture
ماژول IGBT سه فاز 600 ولت 10 آمپر با پکیج SPM26-AAA
3-Phase IGBT Module 600V, 10A with SPM26-AAA Package
معرفی
ماژول IGBT سه فاز 600 ولت 10 آمپر با پکیج SPM26-AAA
3-Phase IGBT Module 600V, 10A with SPM26-AAA Package
Specifications
- Product: Fan / Motor Controllers / Drivers
- Configuration: 3-Phase
- Collector - Emitter Voltage VCEO Max: 600V
- Collector - Emitter Saturation Voltage: 1.5V
- Continuous Collector Current aT 25 c: 10A
- Gate - Emitter Leakage Current: 1mA
- Pd - Power Dissipation: 32W
- Package/Case: SPM26-AAA
- Minimum Operating Temperature: -40C
- Maximum Operating Temperature: +150C
- Packaging: Tube
مشخصات FNE41060
FNE41060
Part Number
10A
Continuous Collector Current aT 25 c
1mA
Gate - Emitter Leakage Current
-40C
Minimum Operating Temperature
Tube
Packaging
3-Phase
Configuration
+150C
Maximum Operating Temperature
1.5V
Collector - Emitter Saturation Voltage
600V
Collector - Emitter Voltage VCEO Max
Fan / Motor Controllers / Drivers
Product
32W
Pd - Power Dissipation
SPM26-AAA
Package-Case
