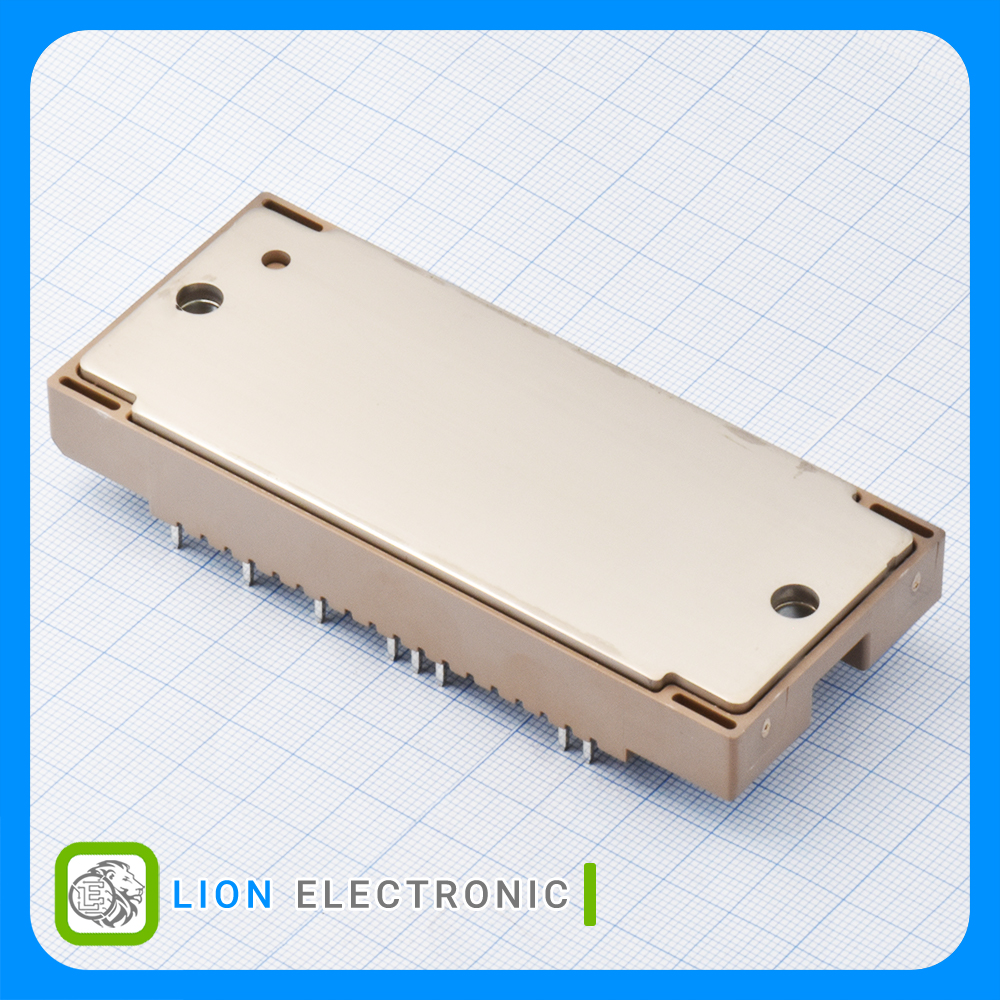

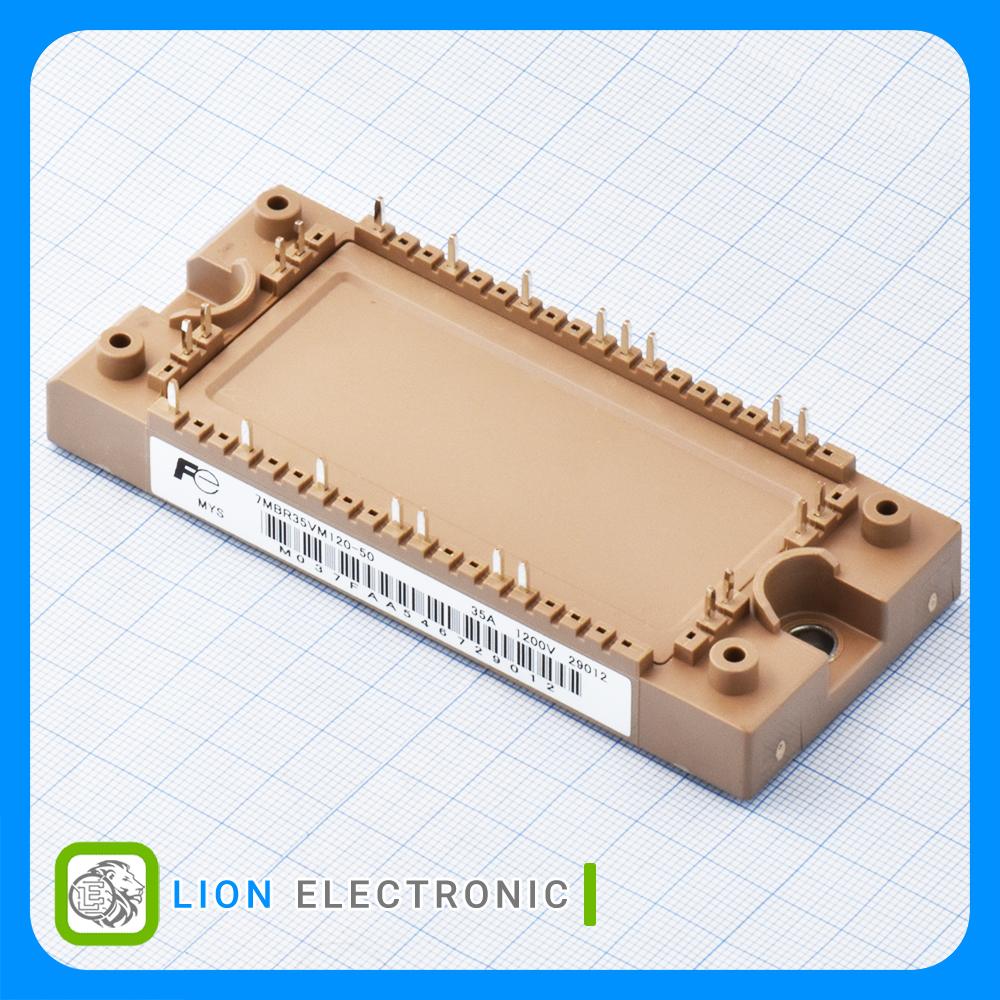

7MBR35VM120-50
7MBR35VM120-50
Part Number
5676
Lion Part
Datasheet
Fuji Electric Manufacture
ماژول IGBT سه فاز 1200 ولت 35 آمپر با پکیج 107.5mmx45mmx20.5mm
3-Phase IGBT Module 1200V, 35A with 107.5mm x 45mm x 20.5mm Package
معرفی
ماژول IGBT سه فاز 1200 ولت 35 آمپر با پکیج 107.5mmx45mmx20.5mm
3-Phase IGBT Module 1200V, 35A with 107.5mm x 45mm x 20.5mm Package
Specifications
- Product: IGBT Silicon Modules
- Configuration: 3-Phase
- Collector - Emitter Voltage VCEO Max: 1.2kV
- Collector - Emitter Saturation Voltage: 2.15V
- Continuous Collector Current aT 25 c: 35A
- Gate - Emitter Leakage Current: 200nA
- Package/Case: 107.5mm x 45mm x 20.5mm
- Minimum Operating Temperature: -40C
- Maximum Operating Temperature: +150C
- Packaging: Tray
مشخصات 7MBR35VM120-50
7MBR35VM120-50
Part Number
200nA
Gate - Emitter Leakage Current
-40C
Minimum Operating Temperature
Tray
Packaging
35A
Continuous Collector Current aT 25 c
3-Phase
Configuration
+150C
Maximum Operating Temperature
2.15V
Collector - Emitter Saturation Voltage
1.2kV
Collector - Emitter Voltage VCEO Max
107.5mm x 45mm x 20.5mm
Package-Case
IGBT Silicon Modules
Product
N/A
Pd - Power Dissipation
