AP7370-50Y-13
AP7370-50Y-13
Part Number
4728
Lion Part
Datasheet
Diodes Incorporated Manufacture
رگولاتور LDO ثابت 5 ولت 300 میلیآمپر با پکیج SOT-89-3
Fixed LDO Voltage Regulator 5V, 300mA with SOT-89-3 Package
معرفی
رگولاتور LDO ثابت 5 ولت 300 میلیآمپر با پکیج SOT-89-3
Fixed LDO Voltage Regulator 5V, 300mA with SOT-89-3 Package
Specifications
- Polarity: Positive
- Output Type: Fixed
- Package/Case: SOT-93-3
- Output Voltage: 5V
- Output Current: 300mA
- Dropout Voltage: 450mV
- Input Voltage Min: 3.2V
- Input Voltage Max: 18V
- Quiescent Current: 1.5uA
- Mounting Style: SMD/SMT
- Number of Outputs: 1
- Minimum Operating Temperature: -40C
- Maximum Operating Temperature: +125C
- Packaging: Reel
مشخصات رگولاتور(LDO) AP7370-50Y-13

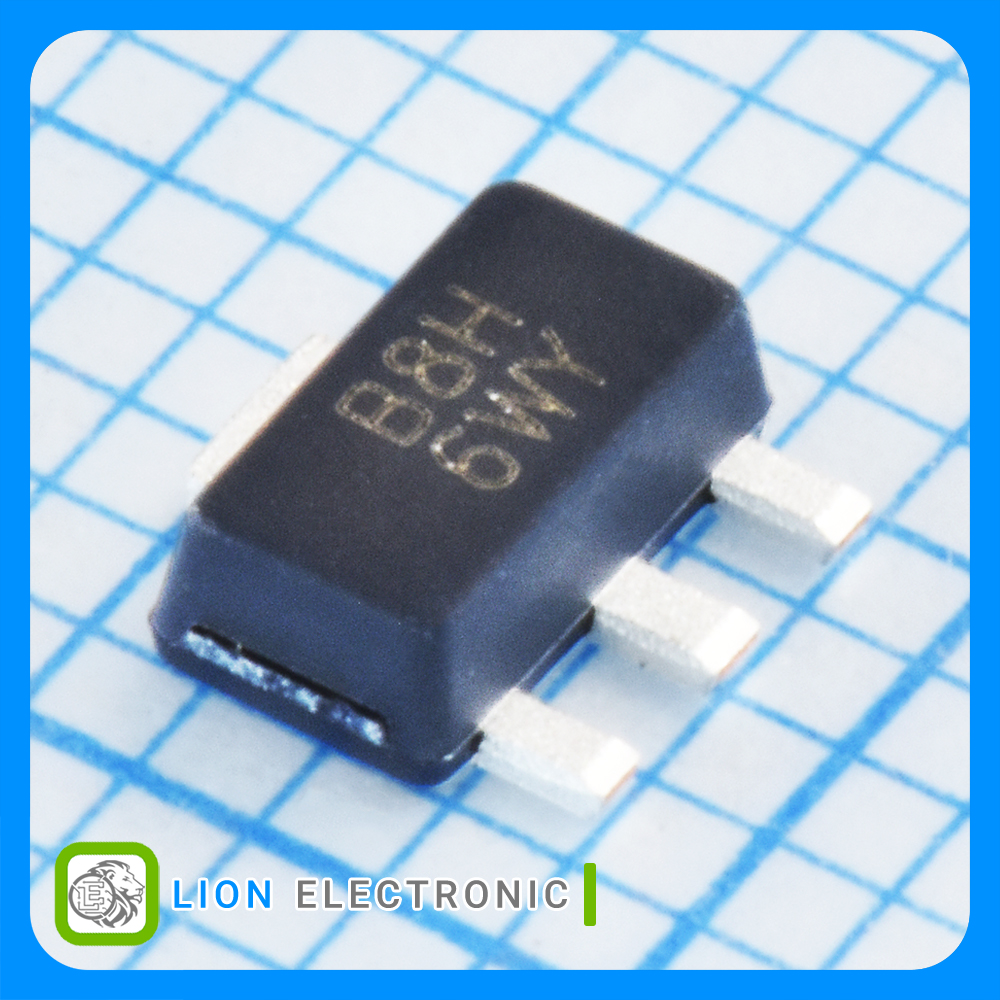

رگولاتور(LDO) AP7370-50Y-13
Part Number
1
Number of Outputs
Reel
Packaging
-40C
Minimum Operating Temperature
Positive
Polarity
SMD/SMT
Mounting Style
1.5uA
Quiescent Current
Fixed
Output Type
+125C
Maximum Operating Temperature
18V
Input Voltage Max
N/A
PSRR - Ripple Rejection - Typ
450mV
Dropout Voltage
3.2V
Input Voltage Min
300mA
Output Current
5V
Output Voltage
SOT-93-3
Package-Case
