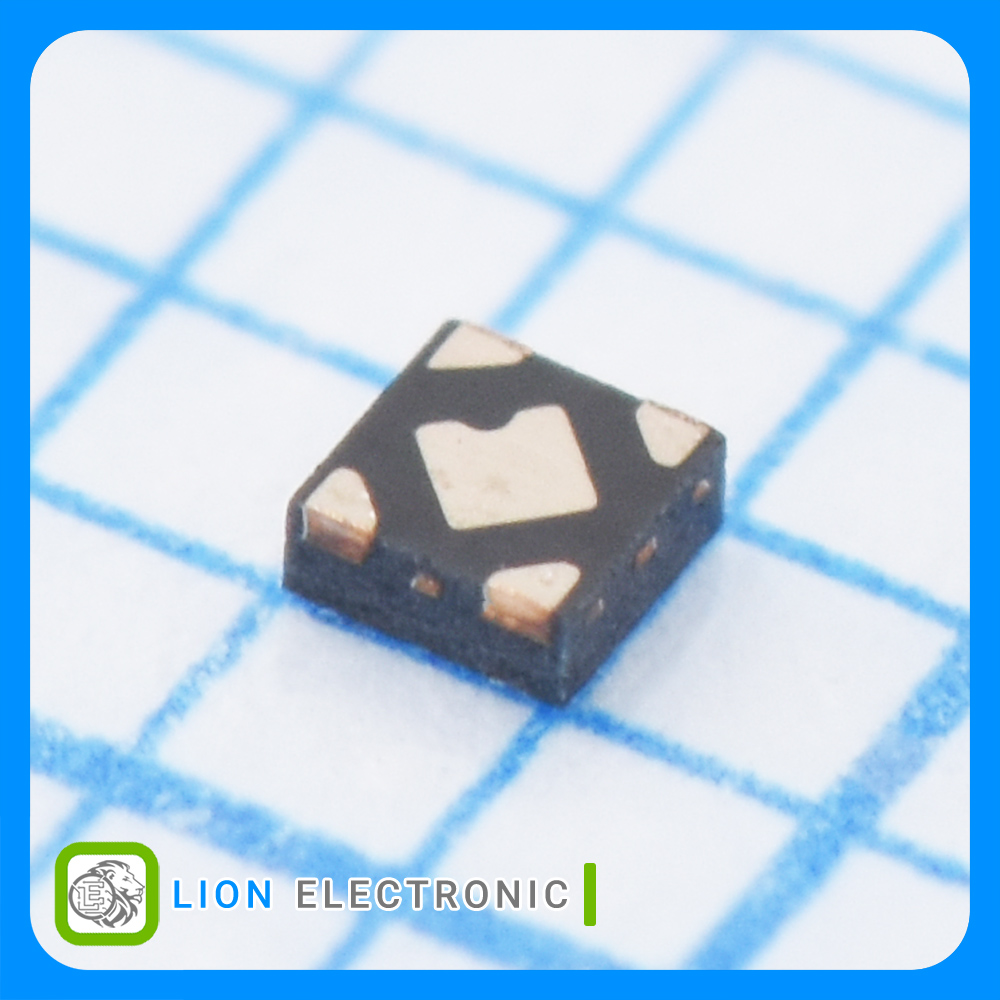

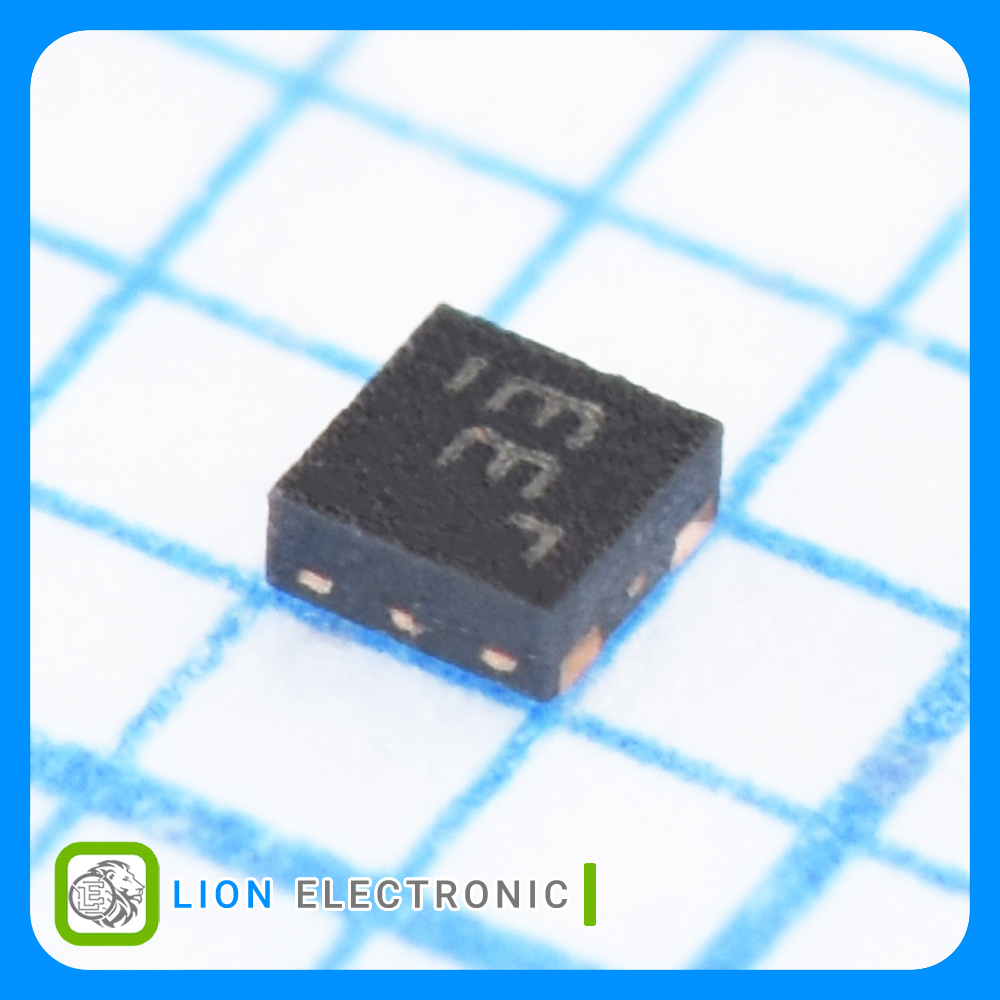

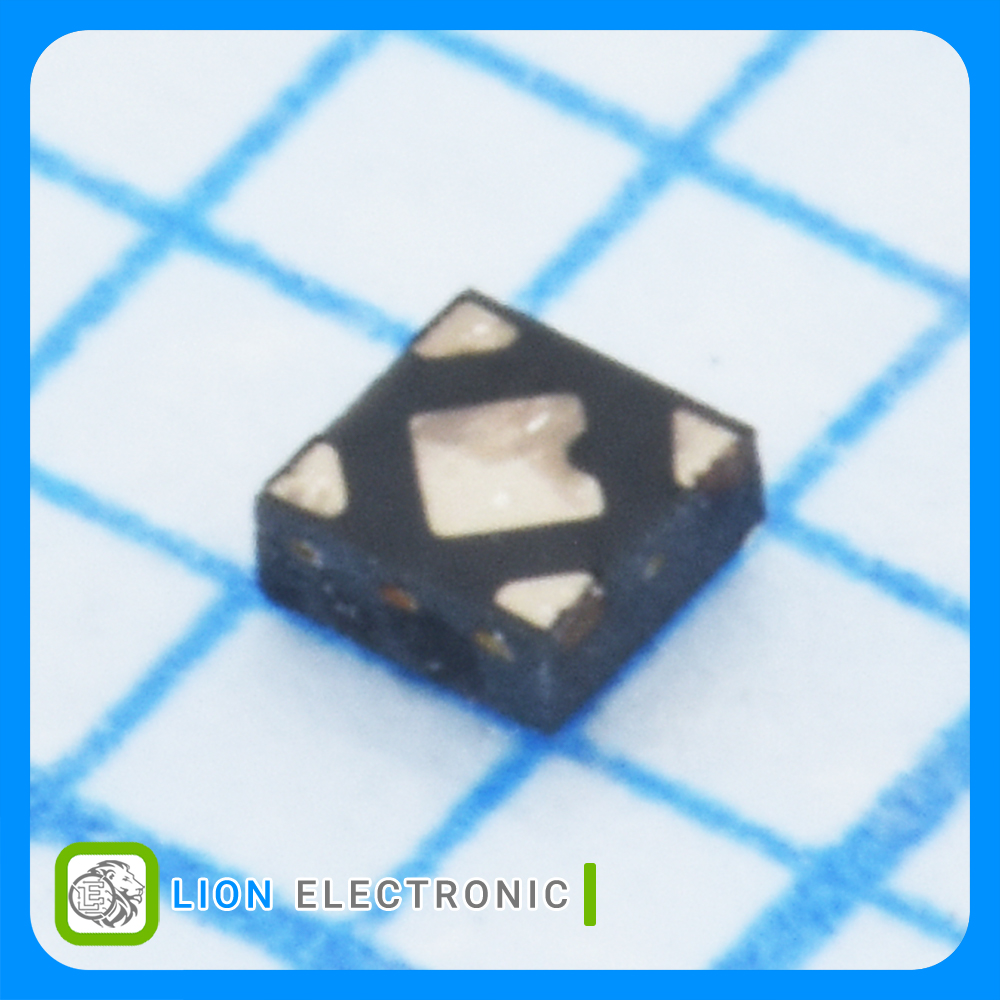

TLV74033PDQNR
TLV74033PDQNR
Part Number
4778
Lion Part
Datasheet
Texas Instruments Manufacture
رگولاتور LDO مثبت ثابت 3.3 ولت 300 میلیآمپر با محدودیت جریان فولدبک با پکیج X2SON-4
Fixed Positive Low-Dropout (LDO) Voltage Regulator 3.3V, 300mA with Foldback Current Limit, with X2SON-4 Package
معرفی
رگولاتور LDO مثبت ثابت 3.3 ولت 300 میلیآمپر با محدودیت جریان فولدبک با پکیج X2SON-4
Fixed Positive Low-Dropout (LDO) Voltage Regulator 3.3V, 300mA with Foldback Current Limit, with X2SON-4 Package
Specifications
- Polarity: Positive
- Output Type: Fixed
- Package/Case: X2SON-4
- Output Voltage: 3.3V
- Output Current: 300mA
- Dropout Voltage: 460mV
- Input Voltage Min: 1.4V
- Input Voltage Max: 5.5V
- PSRR / Ripple Rejection - Typ: 65dB
- Quiescent Current: 50uA
- Mounting Style: SMD/SMT
- Number of Outputs: 1
- Minimum Operating Temperature: -40C
- Maximum Operating Temperature: +85C
- Packaging: Reel
مشخصات رگولاتور(LDO) TLV74033PDQNR

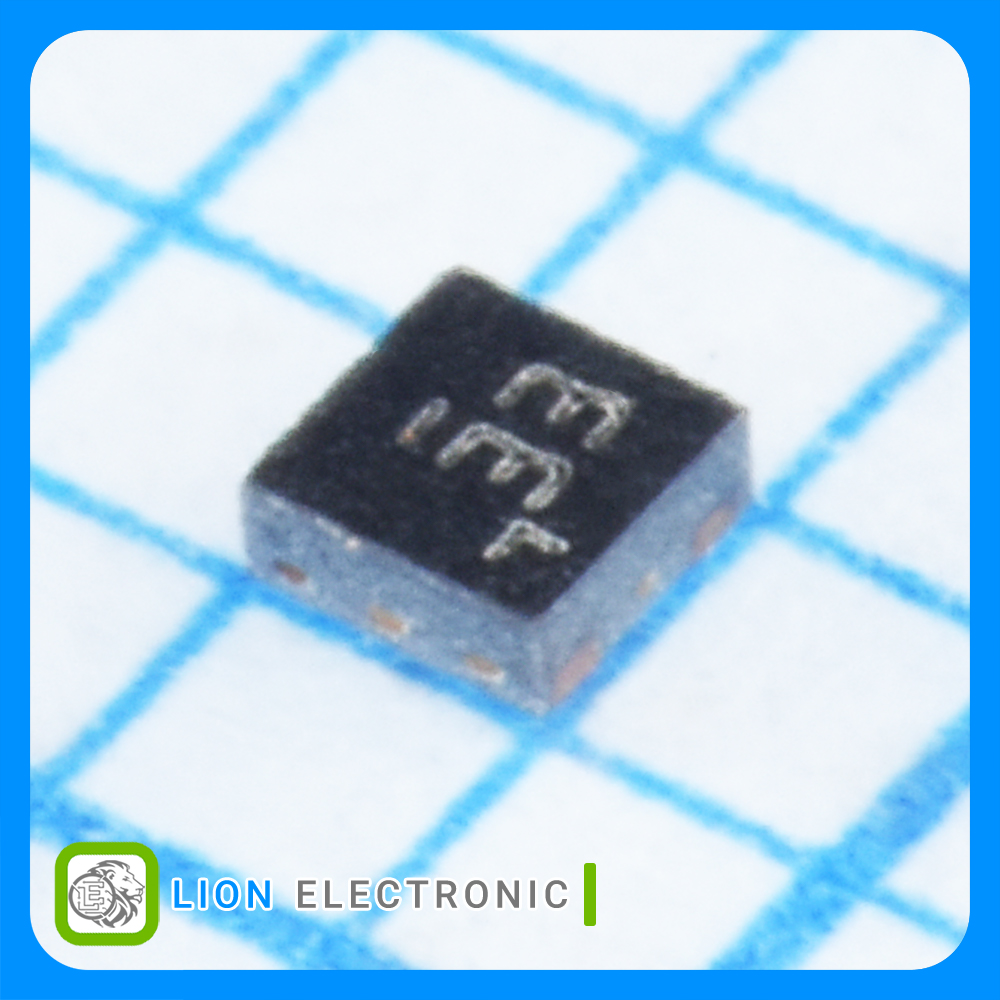

رگولاتور(LDO) TLV74033PDQNR
Part Number
1
Number of Outputs
Reel
Packaging
-40C
Minimum Operating Temperature
Positive
Polarity
5.5V
Input Voltage Max
SMD/SMT
Mounting Style
+85C
Maximum Operating Temperature
65dB
PSRR - Ripple Rejection - Typ
Fixed
Output Type
1.4V
Input Voltage Min
50uA
Quiescent Current
460mV
Dropout Voltage
300mA
Output Current
3.3V
Output Voltage
X2SON-4
Package-Case
