TPS7A2133PYWDJ
TPS7A2133PYWDJ
Part Number
4881
Lion Part
Datasheet
Texas Instruments Manufacture
رگولاتور خطی LDO ثابت 3.3 ولت 500 میلیآمپر کمنویز با جریان مصرفی کم و PSRR بالا با پکیج DSBGA-4

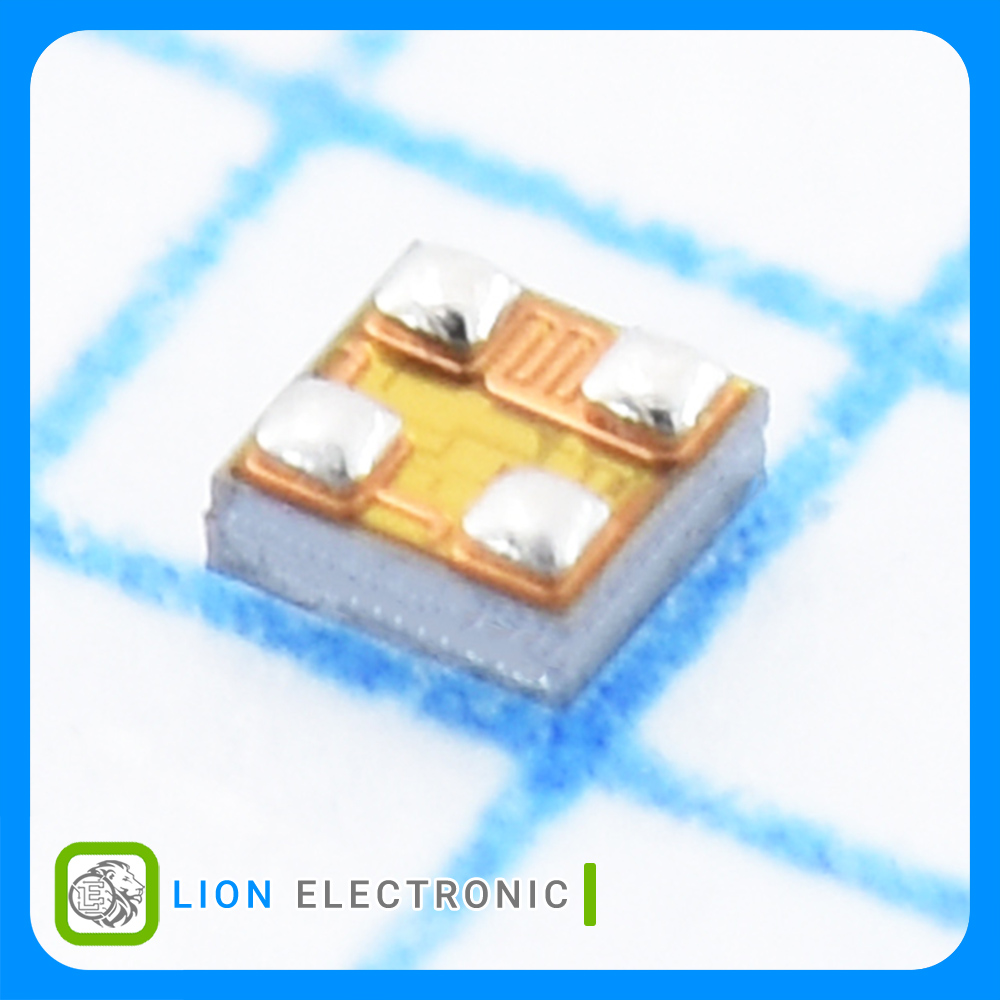

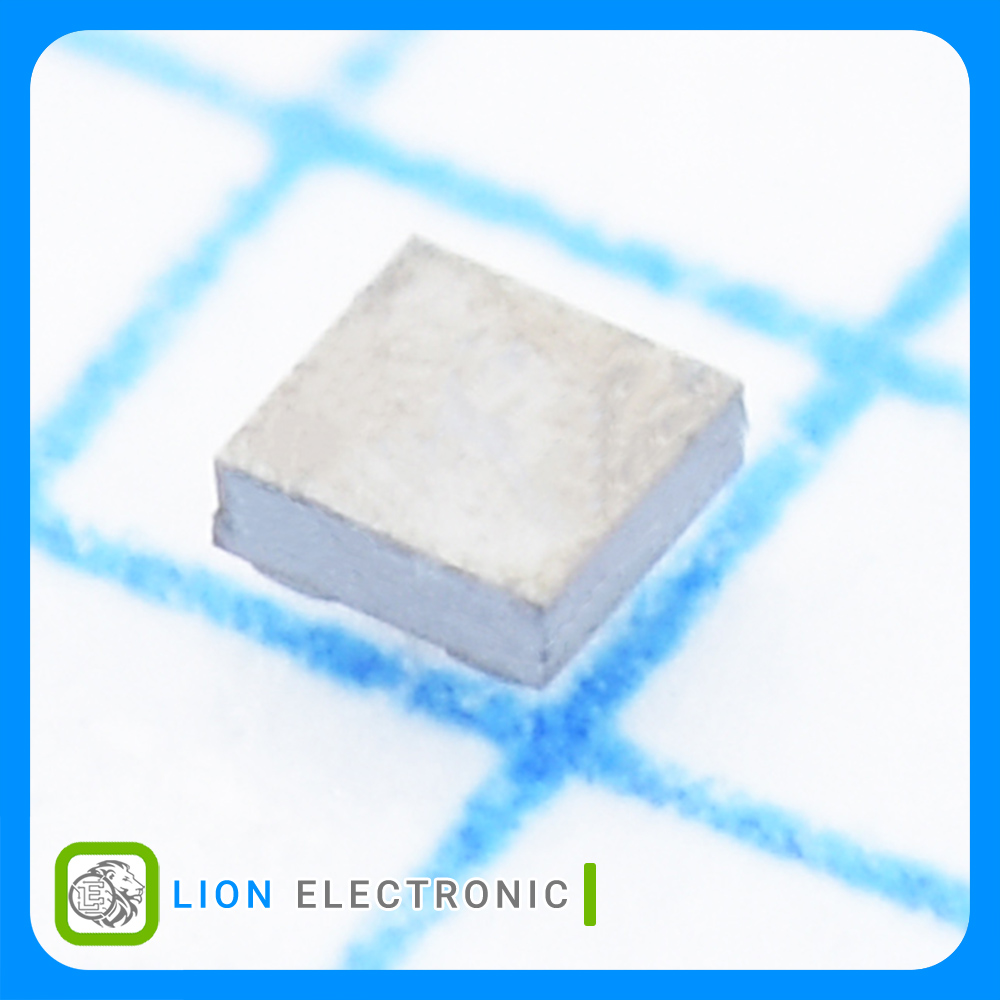

500mA, Low-Noise, Low-IQ, High-PSRR Fixed LDO Voltage Regulator 3.3V with DSBGA-4 Package
معرفی
رگولاتور خطی LDO ثابت 3.3 ولت 500 میلیآمپر کمنویز با جریان مصرفی کم و PSRR بالا با پکیج DSBGA-4
500mA, Low-Noise, Low-IQ, High-PSRR Fixed LDO Voltage Regulator 3.3V with DSBGA-4 Package
Specifications
- Polarity: Positive
- Output Type: Fixed
- Package/Case: DSBGA-4
- Output Voltage: 3.3V
- Output Current: 500mA
- Dropout Voltage: 175mV
- Input Voltage Min: 2V
- Input Voltage Max: 6V
- PSRR / Ripple Rejection - Typ: 90dB
- Quiescent Current: 6.5uA
- Mounting Style: SMD/SMT
- Number of Outputs: 1
- Minimum Operating Temperature: -40C
- Maximum Operating Temperature: +125C
- Packaging: Reel
مشخصات رگولاتور(LDO) TPS7A2133PYWDJ
رگولاتور(LDO) TPS7A2133PYWDJ
Part Number
1
Number of Outputs
Reel
Packaging
Positive
Polarity
-40C
Minimum Operating Temperature
SMD/SMT
Mounting Style
6V
Input Voltage Max
175mV
Dropout Voltage
6.5uA
Quiescent Current
Fixed
Output Type
+125C
Maximum Operating Temperature
90dB
PSRR - Ripple Rejection - Typ
2V
Input Voltage Min
0.03%/V
Line Regulation
0.001%/mA
Load Regulation
500mA
Output Current
DSBGA-4
Package-Case
3.3V
Output Voltage
