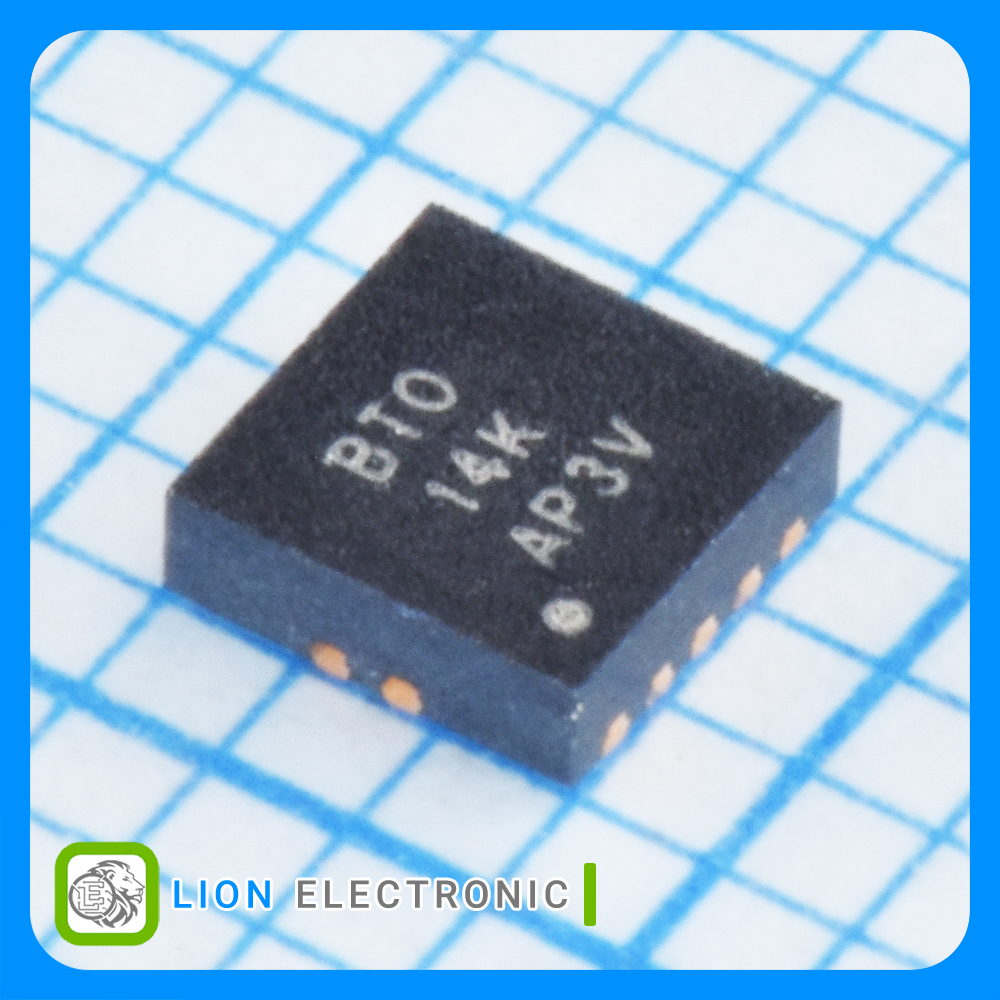

رگولاتور(LDO) TPS74801DRCR
TPS74801DRCR
Part Number
4882
Lion Part
Datasheet
Texas Instruments Manufacture
رگولاتور(LDO) با خروجی قابل تنظیم 1.5 آمپر با پکیج VSON-10
1.5A, Low-Dropout Linear Regulator With Programmable Soft-Start
مشخصات رگولاتور(LDO) TPS74801DRCR
رگولاتور(LDO) TPS74801DRCR
Part Number
1
Number of Outputs
Reel
Packaging
-40C
Minimum Operating Temperature
Positive
Polarity
SMD/SMT
Mounting Style
5.5V
Input Voltage Max
Adjustable
Output Type
60dB
PSRR - Ripple Rejection - Typ
800mV
Input Voltage Min
+125C
Maximum Operating Temperature
0.8-- 3.6V
Output Voltage
1.31V
Dropout Voltage
-
Quiescent Current
1.5A
Output Current
VSON-10
Package-Case
