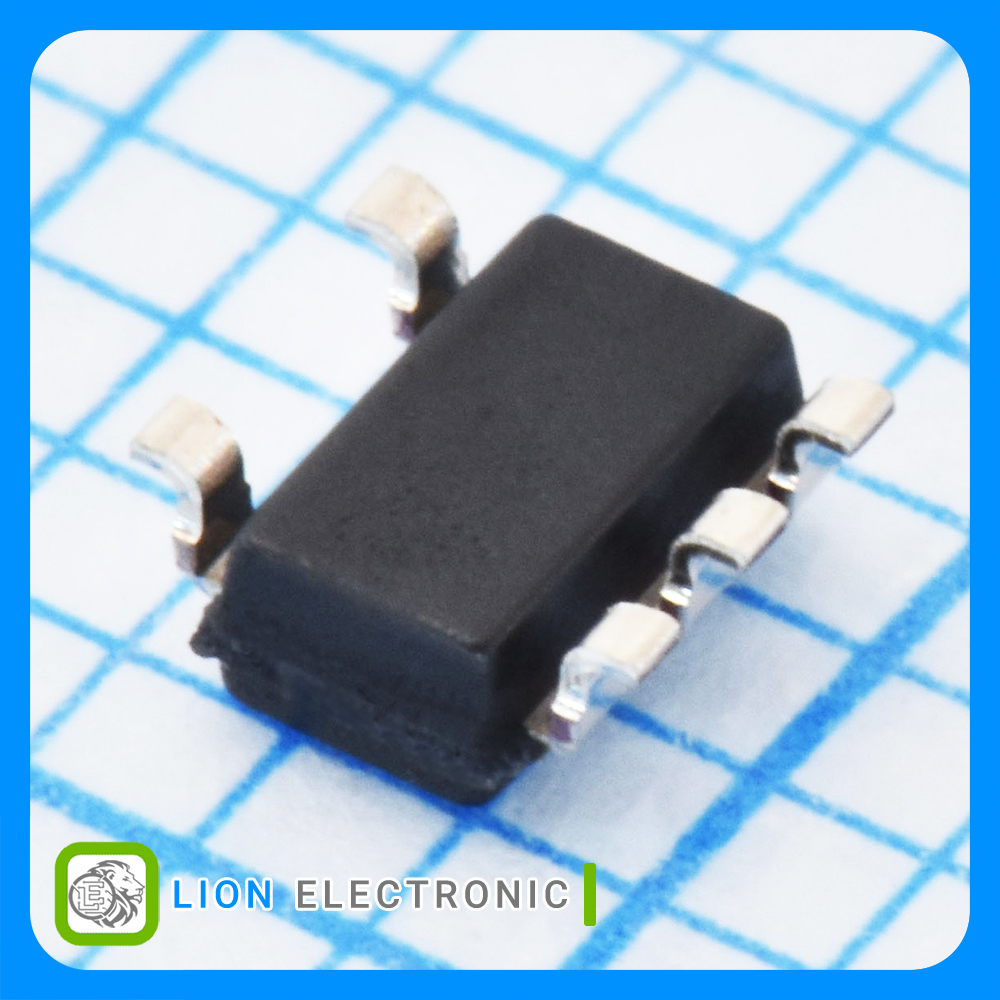

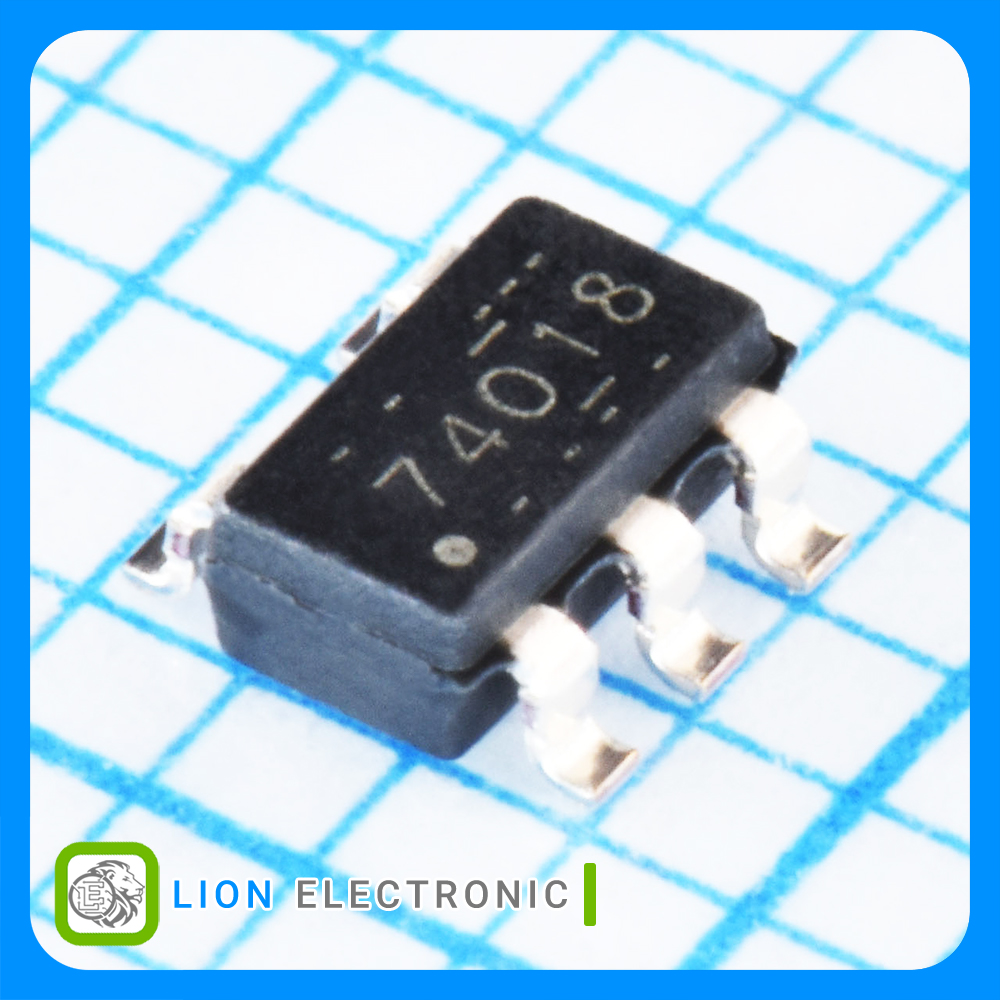

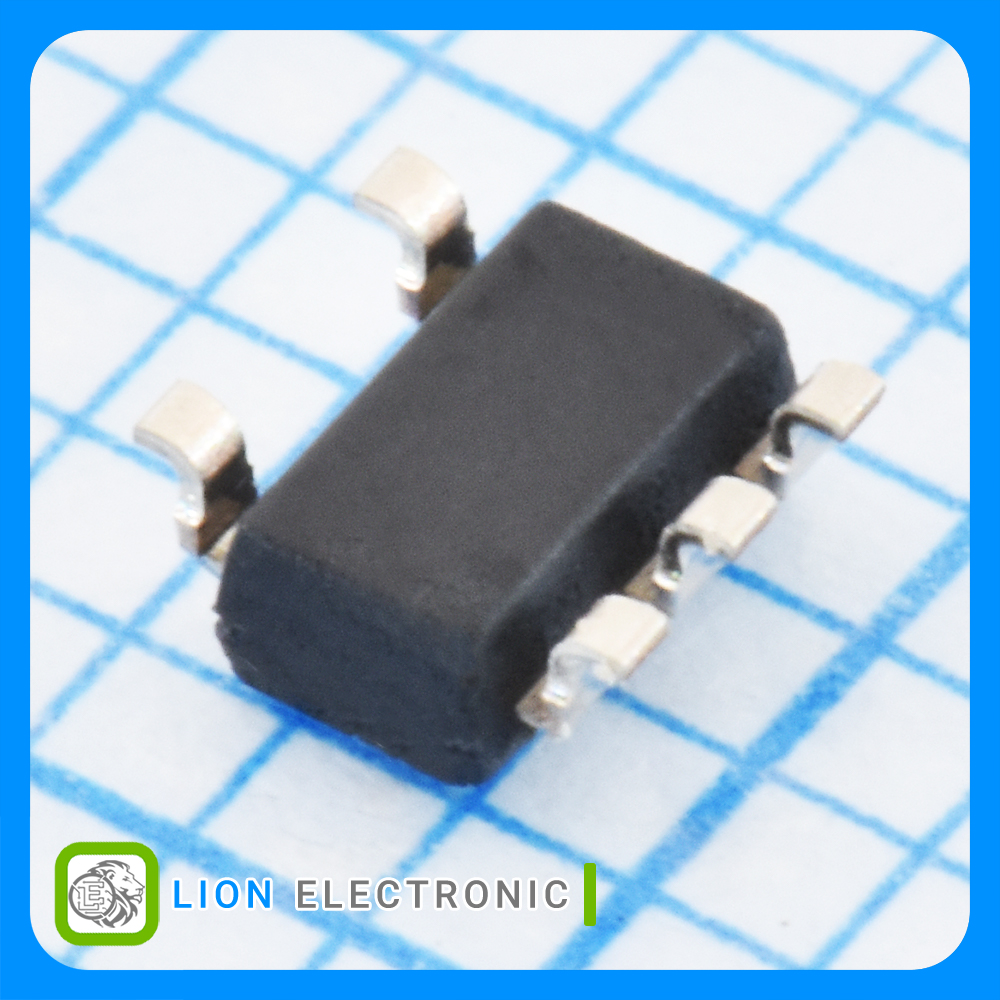

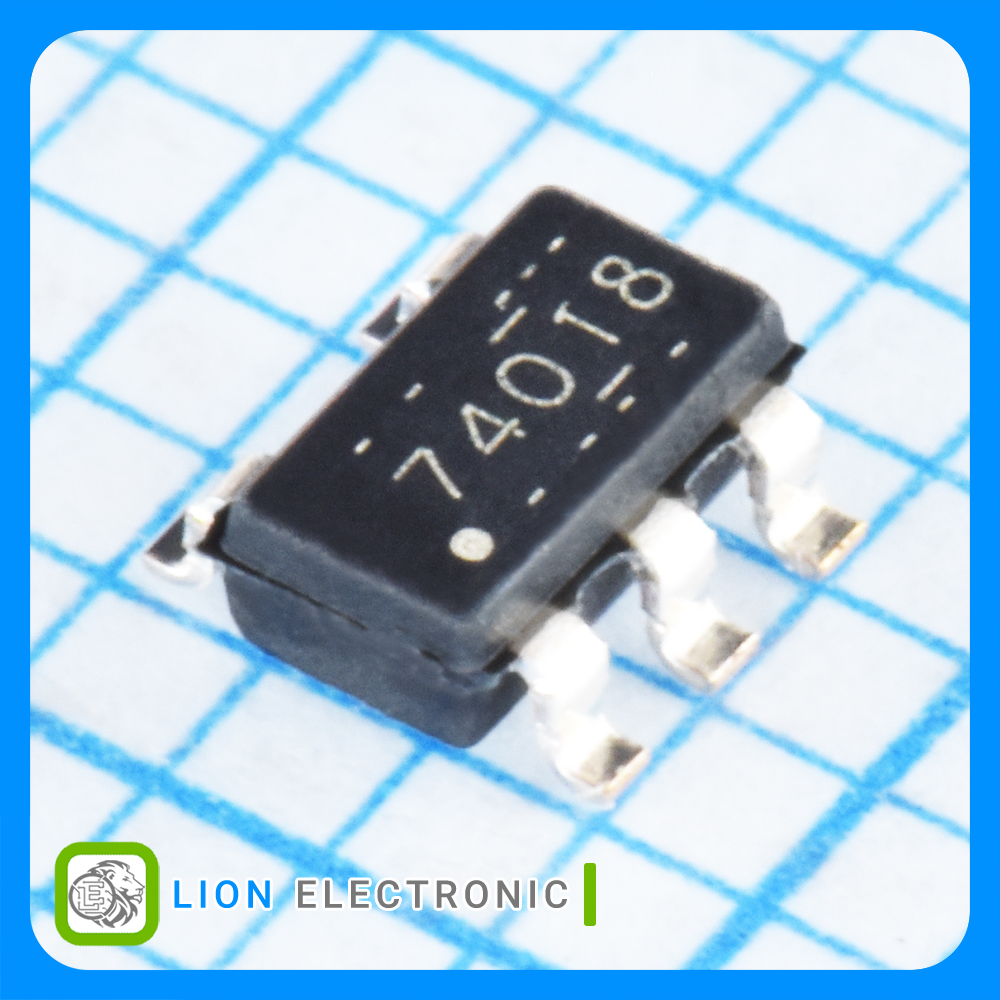

TLV74018PDBVR
TLV74018PDBVR
Part Number
4969
Lion Part
Datasheet
Texas Instruments Manufacture
رگولاتور LDO ثابت 1.8 ولت 300 میلیآمپر با پکیج SOT-23-5
Fixed LDO Voltage Regulator 1.8V, 300mA with SOT-23-5 Package
معرفی
رگولاتور LDO ثابت 1.8 ولت 300 میلیآمپر با پکیج SOT-23-5
Fixed LDO Voltage Regulator 1.8V, 300mA with SOT-23-5 Package
Specifications
- Polarity: Positive
- Output Type: Fixed
- Package/Case: SOT-23-5
- Output Voltage: 1.8V
- Output Current: 300mA
- Dropout Voltage: 700mV
- Input Voltage Min: 1.4V
- Input Voltage Max: 5.5V
- PSRR / Ripple Rejection - Typ: 67dB
- Quiescent Current: 50uA
- Mounting Style: SMD/SMT
- Number of Outputs: 1
- Minimum Operating Temperature: -40C
- Maximum Operating Temperature: +85C
- Packaging: Reel
مشخصات رگولاتور(LDO) TLV74018PDBVR
رگولاتور(LDO) TLV74018PDBVR
Part Number
1
Number of Outputs
Reel
Packaging
-40C
Minimum Operating Temperature
Positive
Polarity
5.5V
Input Voltage Max
SMD/SMT
Mounting Style
+85C
Maximum Operating Temperature
Fixed
Output Type
67dB
PSRR - Ripple Rejection - Typ
1.4V
Input Voltage Min
50uA
Quiescent Current
700mV
Dropout Voltage
300mA
Output Current
1.8V
Output Voltage
SOT-23-5
Package-Case
