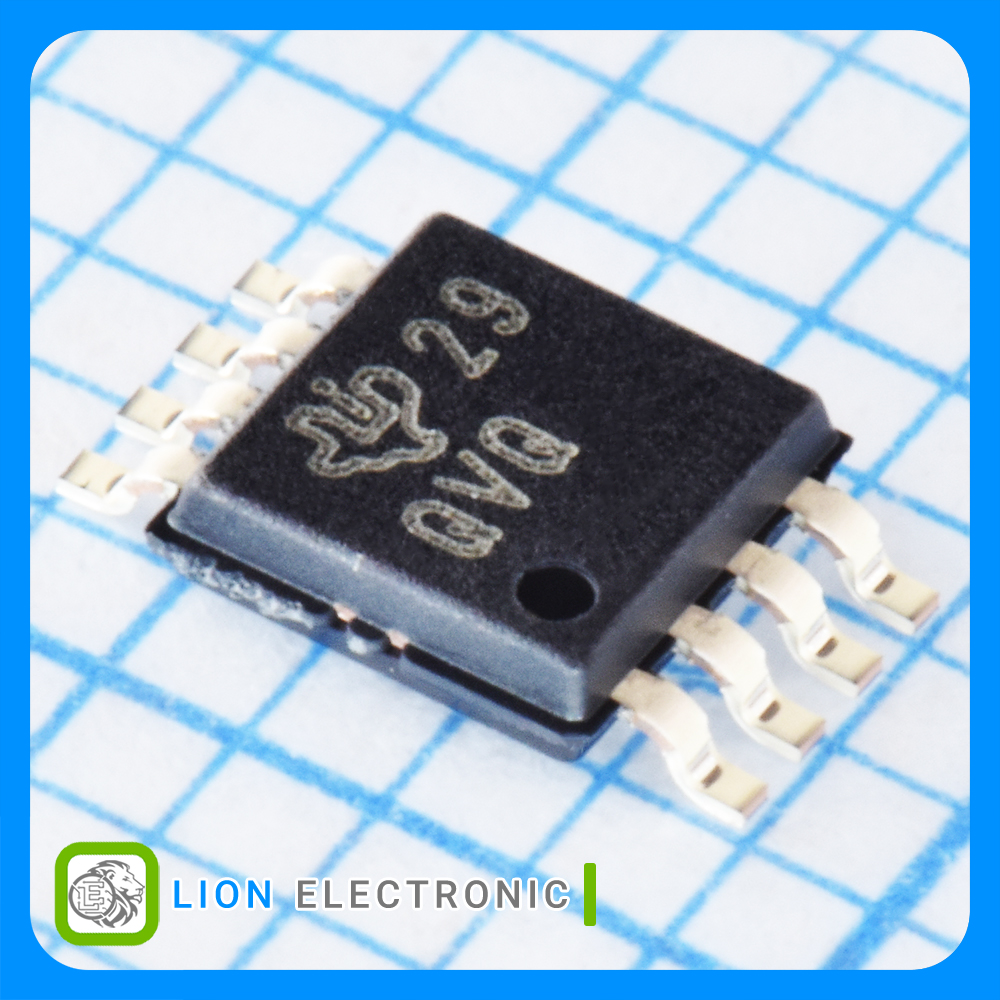

TPS7A4001DGNR
TPS7A4001DGNR
Part Number
5233
Lion Part
Datasheet
Texas Instruments Manufacture
رگولاتور خطی LDO قابل تنظیم مثبت، ورودی تا 100 ولت، 50 میلیآمپر با پکیج MSOP-8
Adjustable Positive LDO Linear Voltage Regulator, 100V Input, 50mA, Very High Voltage, with MSOP-8 Package
معرفی
رگولاتور خطی LDO قابل تنظیم مثبت، ورودی تا 100 ولت، 50 میلیآمپر با پکیج MSOP-8
Adjustable Positive LDO Linear Voltage Regulator, 100V Input, 50mA, Very High Voltage, with MSOP-8 Package
Specifications
- Polarity: Positive
- Output Type: Adjustable
- Package/Case: MSOP-8
- Output Voltage: Adjustable
- Output Current: 50mA
- Dropout Voltage: 290mV
- Input Voltage Min: 7V
- Input Voltage Max: 100V
- PSRR / Ripple Rejection - Typ: 65dB
- Quiescent Current: 25uA
- Mounting Style: SMD/SMT
- Number of Outputs: 1
- Minimum Operating Temperature: -40C
- Maximum Operating Temperature: +125C
- Packaging: Reel
مشخصات رگولاتور(LDO) TPS7A4001DGNR
رگولاتور(LDO) TPS7A4001DGNR
Part Number
Adjustable
Output Voltage
1
Number of Outputs
Reel
Packaging
Positive
Polarity
-40C
Minimum Operating Temperature
SMD/SMT
Mounting Style
Adjustable
Output Type
65dB
PSRR - Ripple Rejection - Typ
+125C
Maximum Operating Temperature
25uA
Quiescent Current
290mV
Dropout Voltage
50mA
Output Current
100V
Input Voltage Max
7V
Input Voltage Min
MSOP-8
Package-Case
