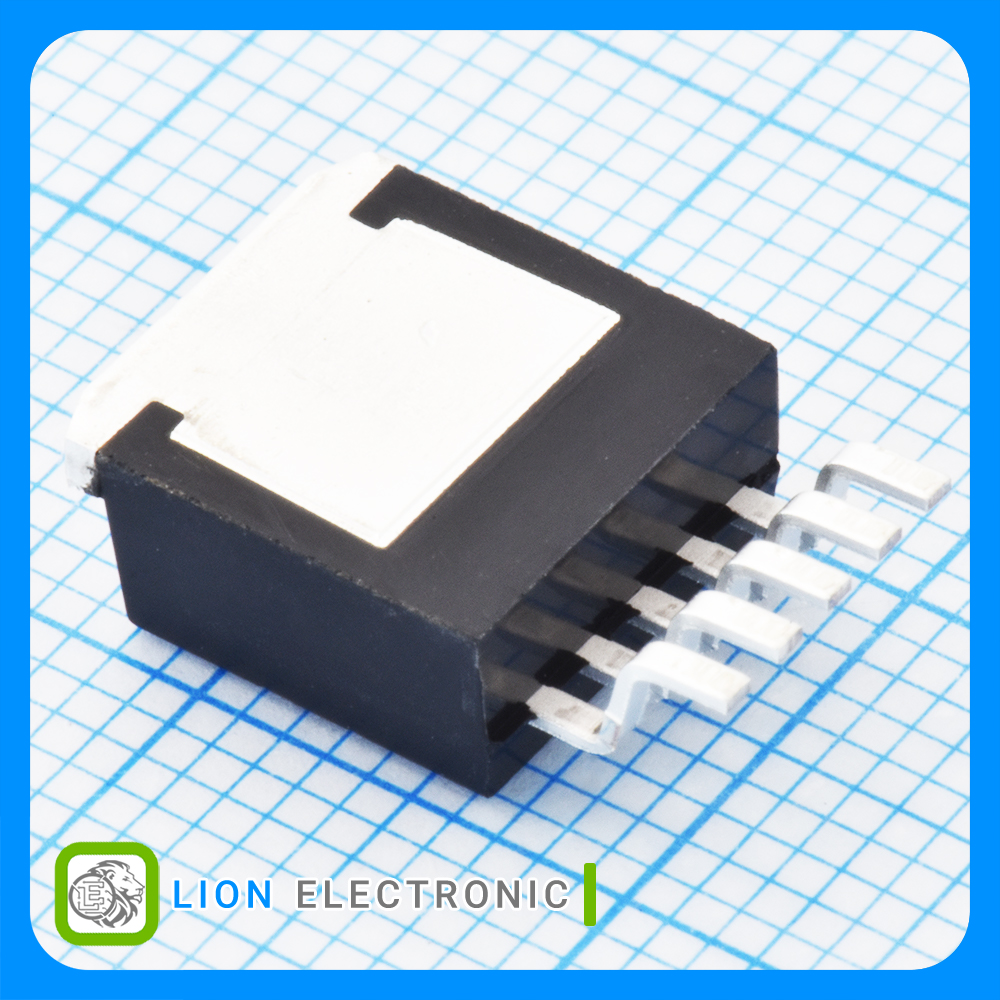

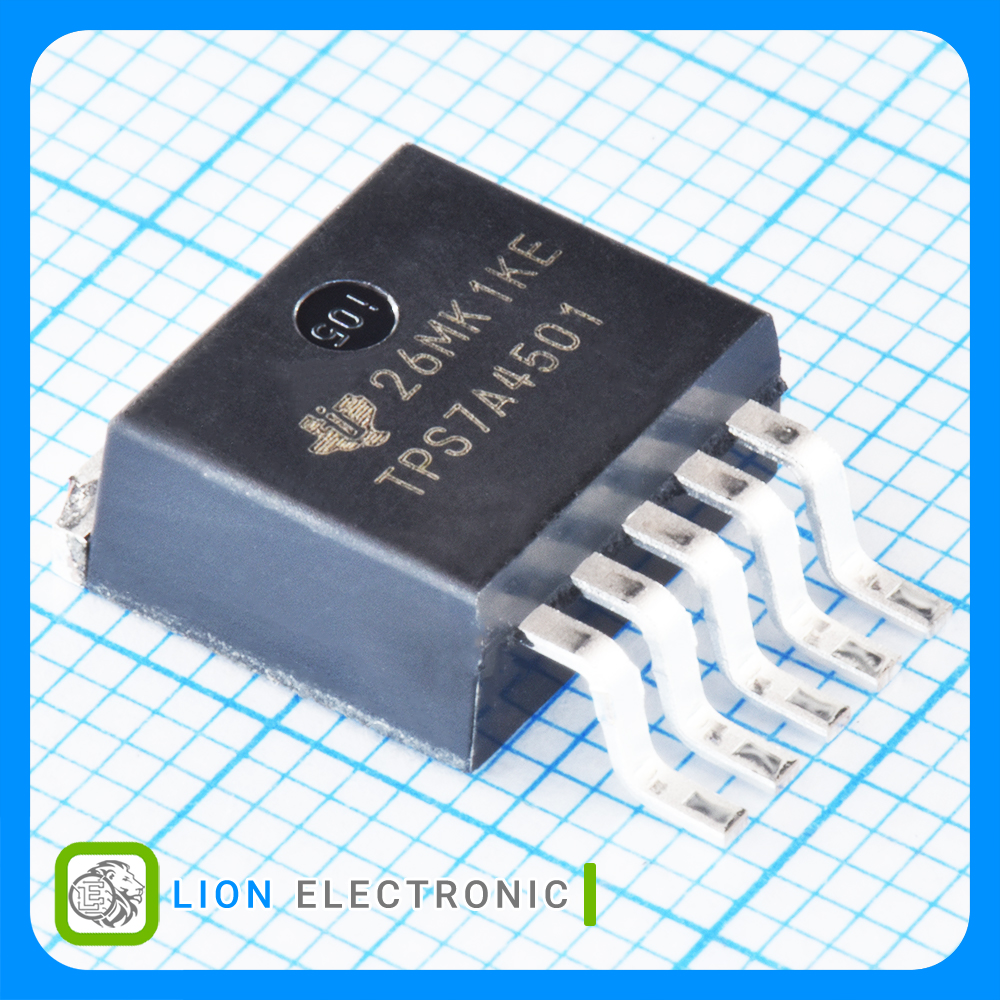

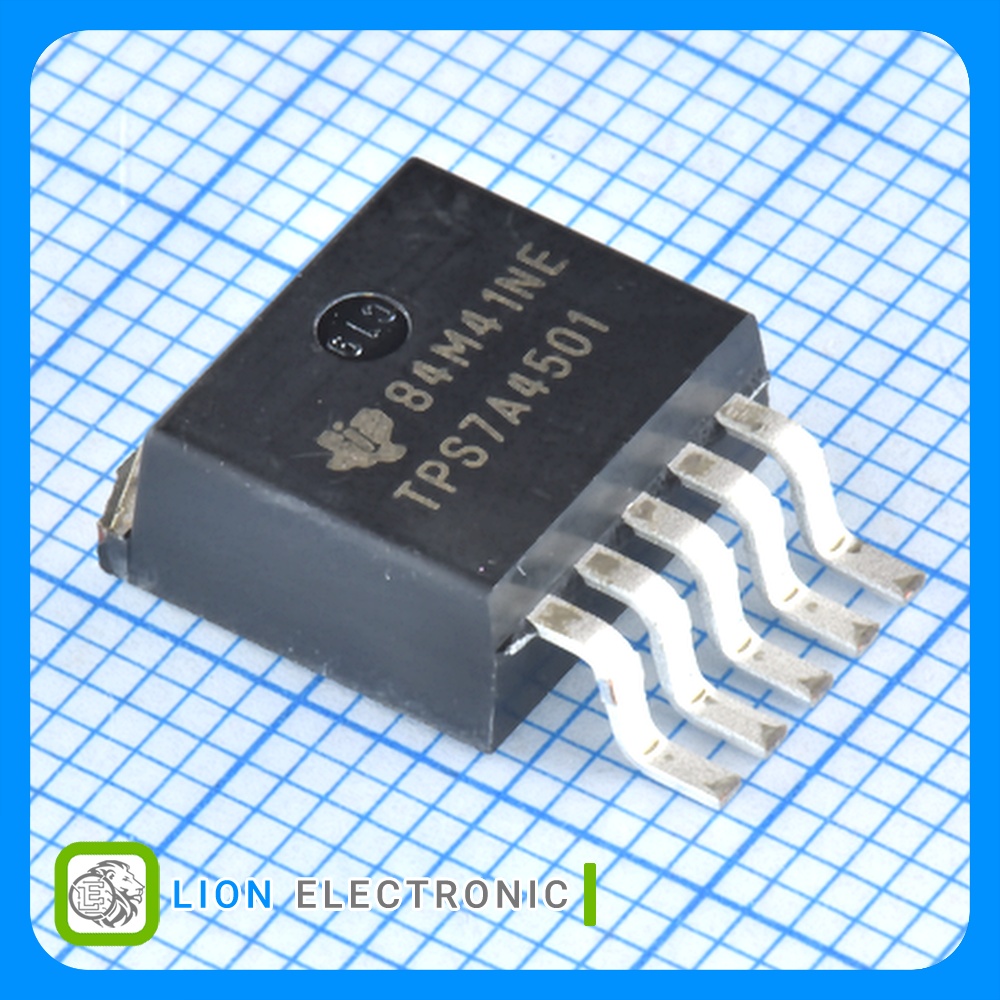

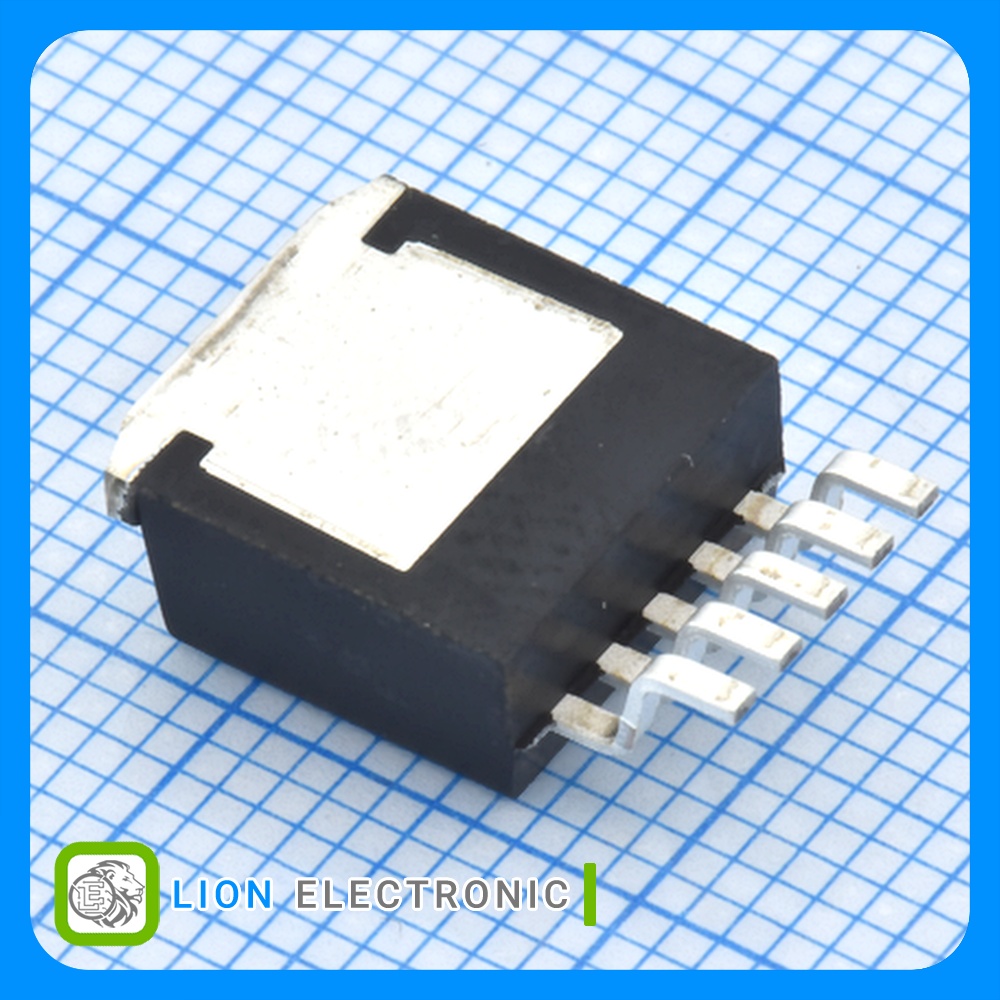

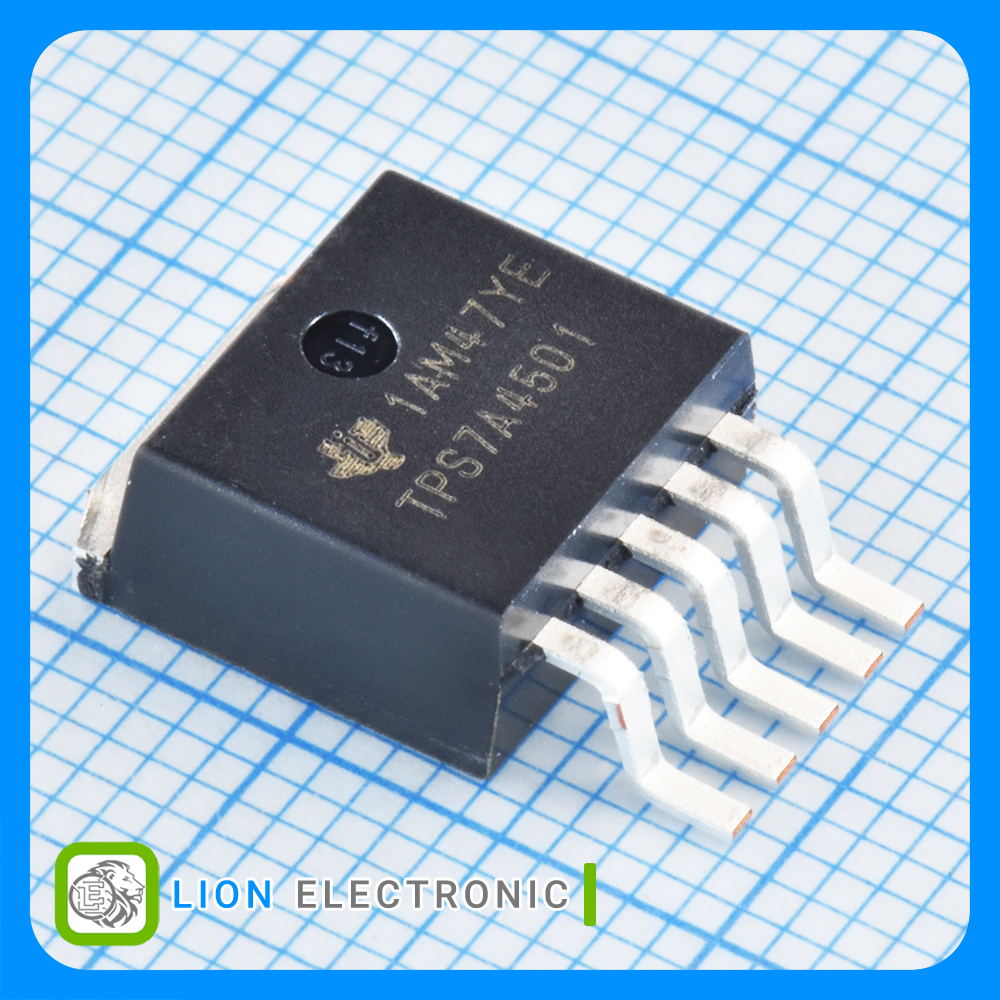

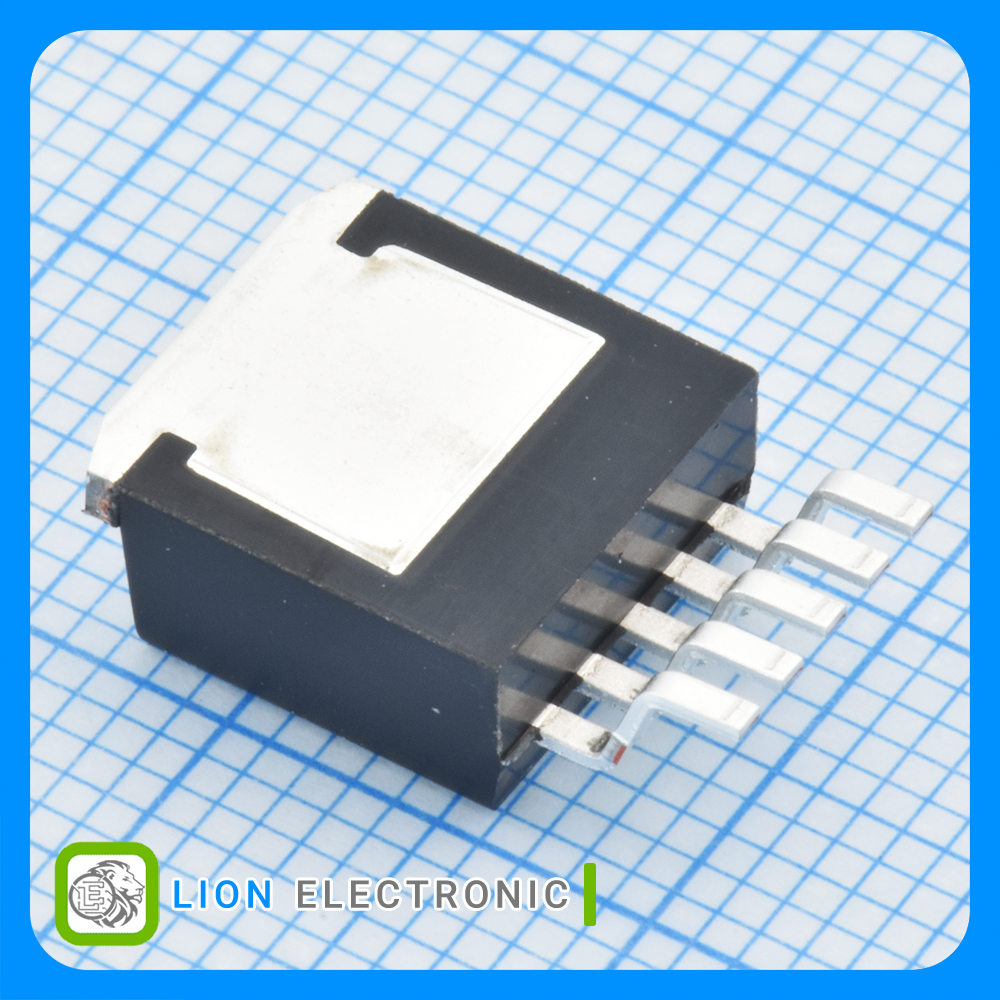

TPS7A4501KTTR
TPS7A4501KTTR
Part Number
5762
Lion Part
Datasheet
Texas Instruments Manufacture
رگولاتور LDO (افت ولتاژ کم) کمنویز با پاسخ گذرای سریع، خروجی قابل تنظیم 1.21 تا 20 ولت 1.5 آمپر با پکیج TO-263-5
Low-Noise Fast-Transient-Response low-dropout Adjustable LDO Voltage Regulator 1.21 - 20V, 1.5A with TO-263-5 Package
معرفی
رگولاتور LDO (افت ولتاژ کم) کمنویز با پاسخ گذرای سریع، خروجی قابل تنظیم 1.21 تا 20 ولت 1.5 آمپر با پکیج TO-263-5
Low-Noise Fast-Transient-Response low-dropout Adjustable LDO Voltage Regulator 1.21 - 20V, 1.5A with TO-263-5 Package
Specifications
- Polarity: Positive
- Output Type: Adjustable
- Package/Case: TO-263-5
- Output Voltage: 1.21 - 20V
- Output Current: 1.5A
- Dropout Voltage: 300mV
- Input Voltage Min: 1.9V
- Input Voltage Max: 20V
- PSRR / Ripple Rejection - Typ: 68dB
- Quiescent Current: 1mA
- Mounting Style: SMD/SMT
- Number of Outputs: 1
- Minimum Operating Temperature: -40C
- Maximum Operating Temperature: +125C
- Packaging: Reel
مشخصات رگولاتور TPS7A4501KTTR
رگولاتور TPS7A4501KTTR
Part Number
1
Number of Outputs
Reel
Packaging
-40C
Minimum Operating Temperature
Positive
Polarity
SMD/SMT
Mounting Style
Adjustable
Output Type
68dB
PSRR - Ripple Rejection - Typ
+125C
Maximum Operating Temperature
1.9V
Input Voltage Min
300mV
Dropout Voltage
20V
Input Voltage Max
1mA
Quiescent Current
1.5A
Output Current
1.21 - 20V
Output Voltage
TO-263-5
Package-Case
