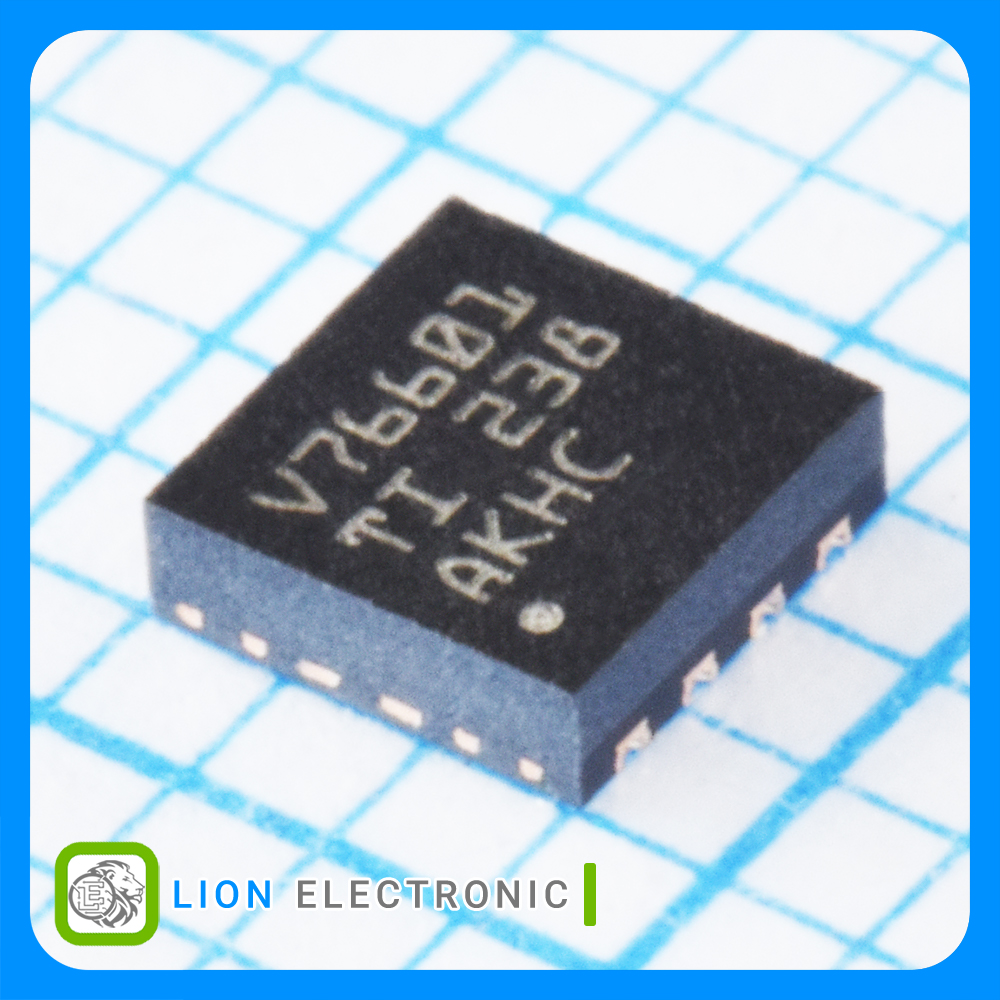

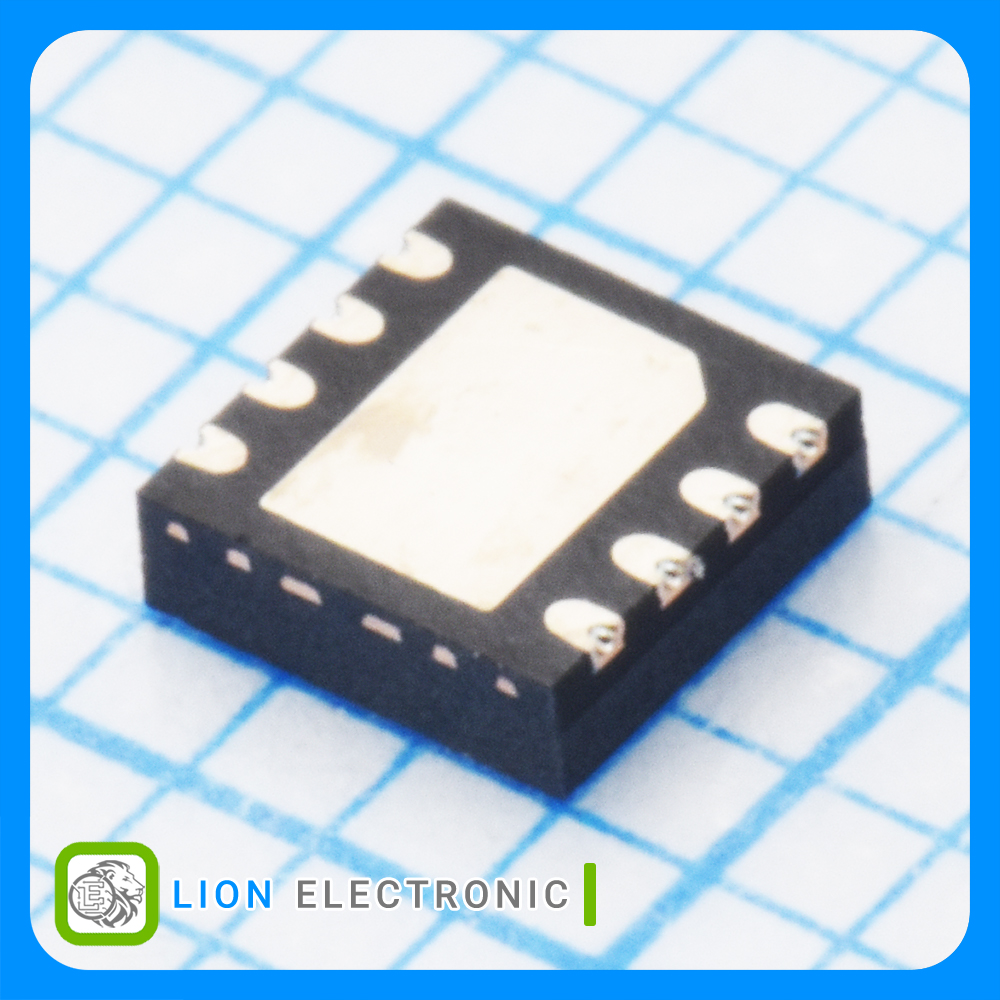

TLV76601QWDRBRQ1
TLV76601QWDRBRQ1
Part Number
5764
Lion Part
Datasheet
Texas Instruments Manufacture
رگولاتور خطی LDO (افت ولتاژ کم) قابل تنظیم 0.8 تا 14.6 ولت 500 میلیآمپر، ورودی 2.5 تا 16 ولت با پکیج WSON-8
Adjustable linear low-dropout LDO Voltage Regulator 0.8 - 14.6V, 500mA, 2.5 to 16V Input with WSON-8 Package
معرفی
رگولاتور خطی LDO (افت ولتاژ کم) قابل تنظیم 0.8 تا 14.6 ولت 500 میلیآمپر، ورودی 2.5 تا 16 ولت با پکیج WSON-8
Adjustable linear low-dropout LDO Voltage Regulator 0.8 - 14.6V, 500mA, 2.5 to 16V Input with WSON-8 Package
Specifications
- Polarity: Positive
- Output Type: Adjustable
- Package/Case: WSON-8
- Output Voltage: 0.8 - 14.6V
- Output Current: 500mA
- Dropout Voltage: 300mV
- Input Voltage Min: 2.5V
- Input Voltage Max: 16V
- PSRR / Ripple Rejection - Typ: 70dB
- Quiescent Current: 50uA
- Mounting Style: SMD/SMT
- Number of Outputs: 1
- Minimum Operating Temperature: -40C
- Maximum Operating Temperature: +125C
- Packaging: Reel
مشخصات رگولاتور TLV76601QWDRBRQ1
رگولاتور TLV76601QWDRBRQ1
Part Number
1
Number of Outputs
Reel
Packaging
Positive
Polarity
-40C
Minimum Operating Temperature
SMD/SMT
Mounting Style
Adjustable
Output Type
+125C
Maximum Operating Temperature
70dB
PSRR - Ripple Rejection - Typ
16V
Input Voltage Max
300mV
Dropout Voltage
50uA
Quiescent Current
2.5V
Input Voltage Min
0.8 - 14.6V
Output Voltage
500mA
Output Current
WSON-8
Package-Case
