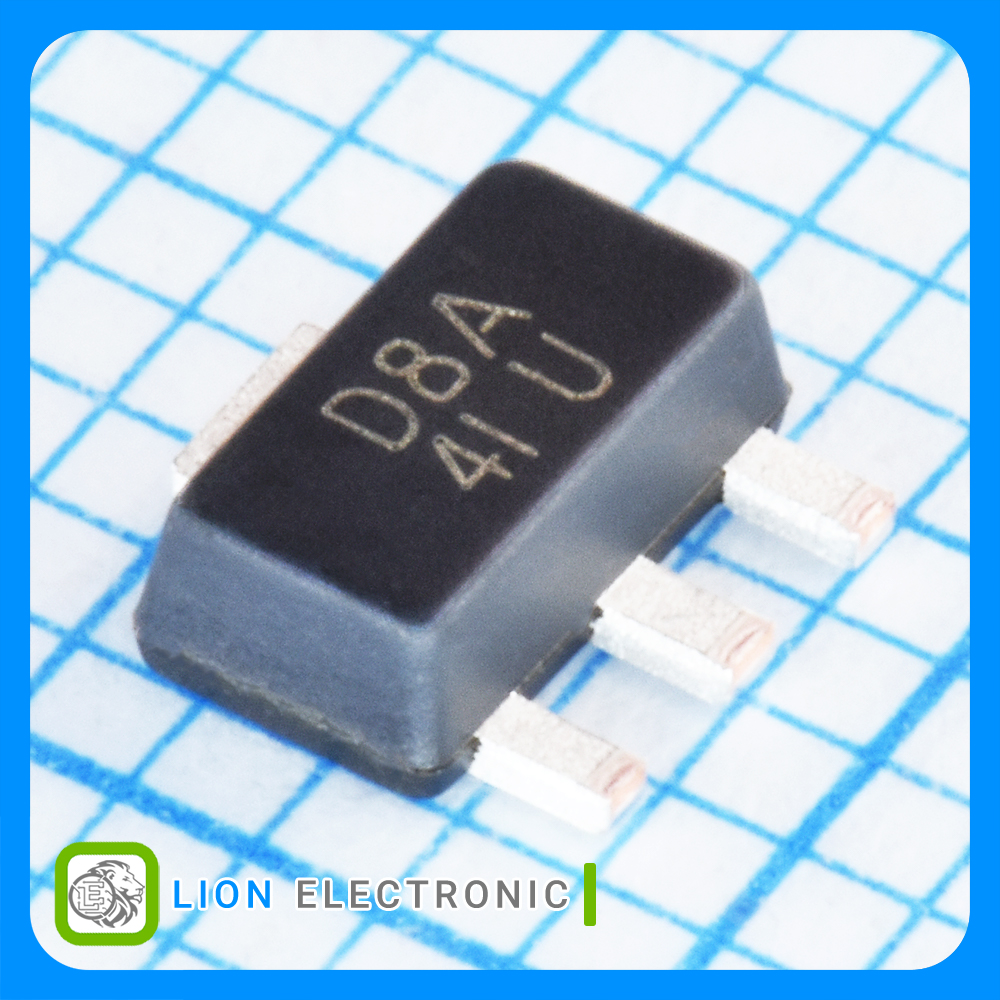

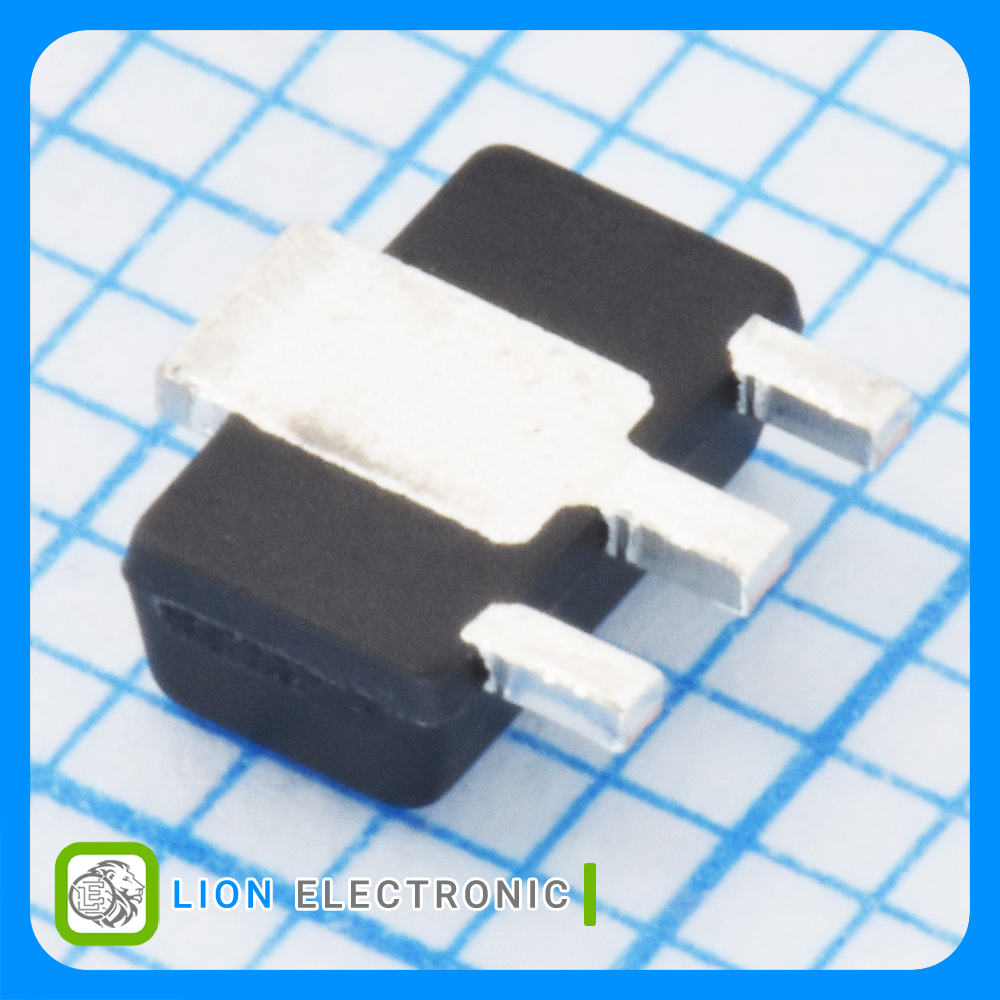

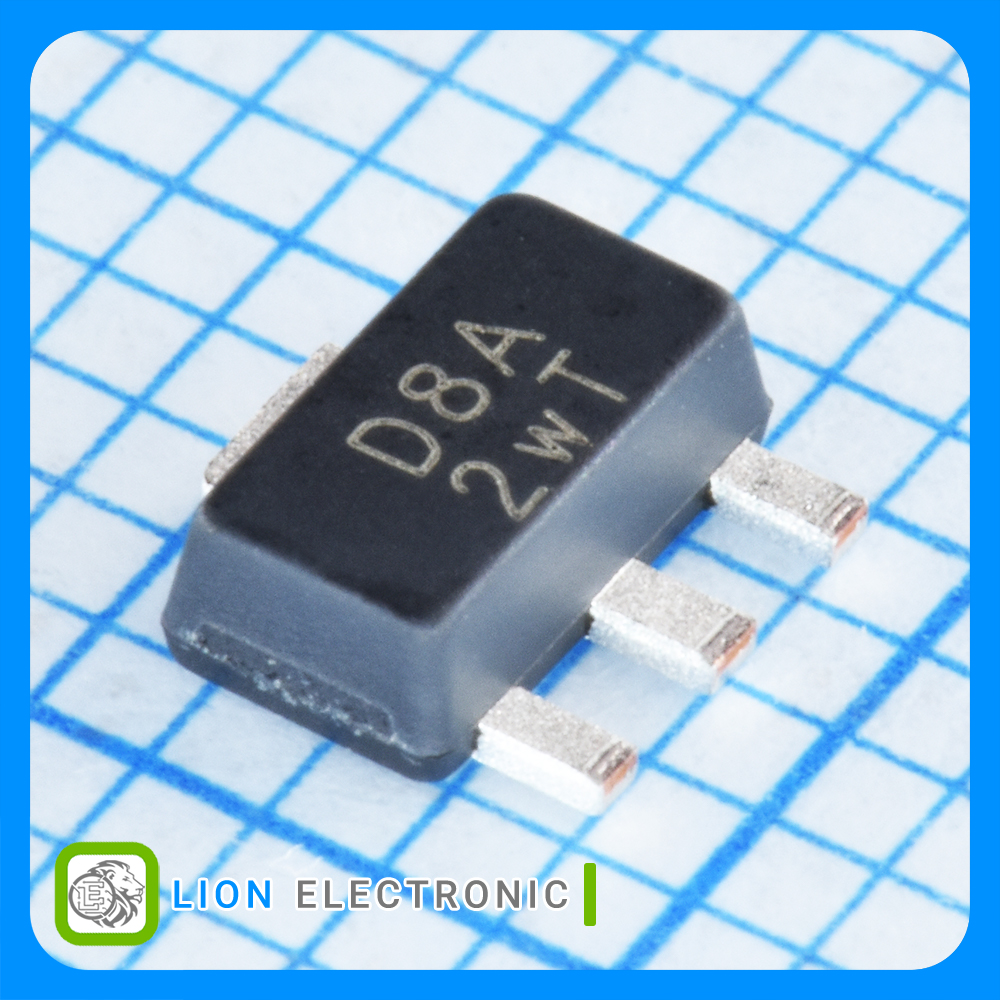

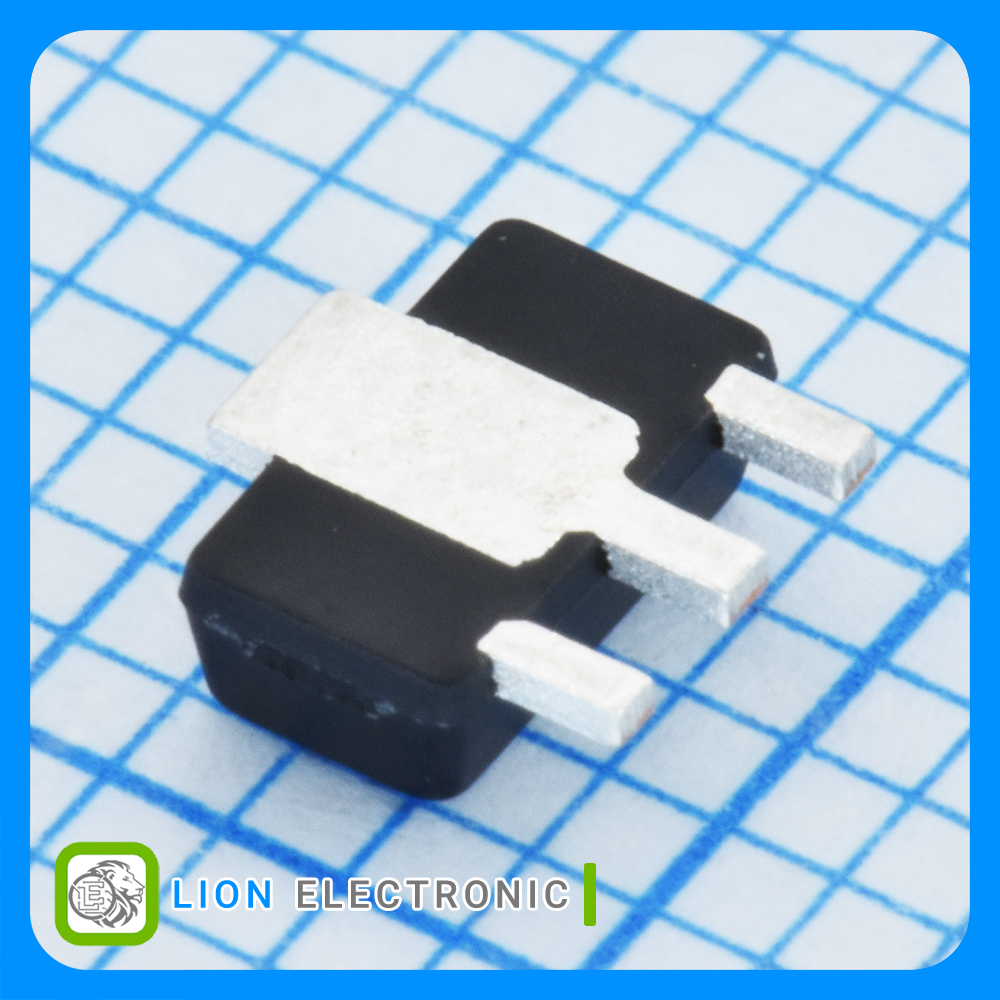

AP7380-33Y-13
AP7380-33Y-13
Part Number
5863
Lion Part
Datasheet
Diodes Incorporated Manufacture
رگولاتور LDO ثابت 3.3 ولت 150 میلیآمپر با پکیج SOT-89-3
Fixed LDO Voltage Regulator 3.3V, 150mA with SOT-89-3 Package
معرفی
رگولاتور LDO ثابت 3.3 ولت 150 میلیآمپر با پکیج SOT-89-3
Fixed LDO Voltage Regulator 3.3V, 150mA with SOT-89-3 Package
Specifications
- Polarity: Positive
- Output Type: Fixed
- Package/Case: SOT-89
- Output Voltage: 3.3V
- Output Current: 150mA
- Dropout Voltage: 1.05V
- Input Voltage Min: 3.5V
- Input Voltage Max: 24V
- Quiescent Current: 50uA
- Mounting Style: SMD/SMT
- Number of Outputs: 1
- Minimum Operating Temperature: -40C
- Maximum Operating Temperature: +125C
- Packaging: Reel
مشخصات AP7380-33Y-13
AP7380-33Y-13
Part Number
1
Number of Outputs
Reel
Packaging
Positive
Polarity
-40C
Minimum Operating Temperature
SMD/SMT
Mounting Style
Fixed
Output Type
+125C
Maximum Operating Temperature
50uA
Quiescent Current
N/A
PSRR - Ripple Rejection - Typ
24V
Input Voltage Max
150mA
Output Current
3.5V
Input Voltage Min
1.05V
Dropout Voltage
3.3V
Output Voltage
SOT-89
Package-Case
