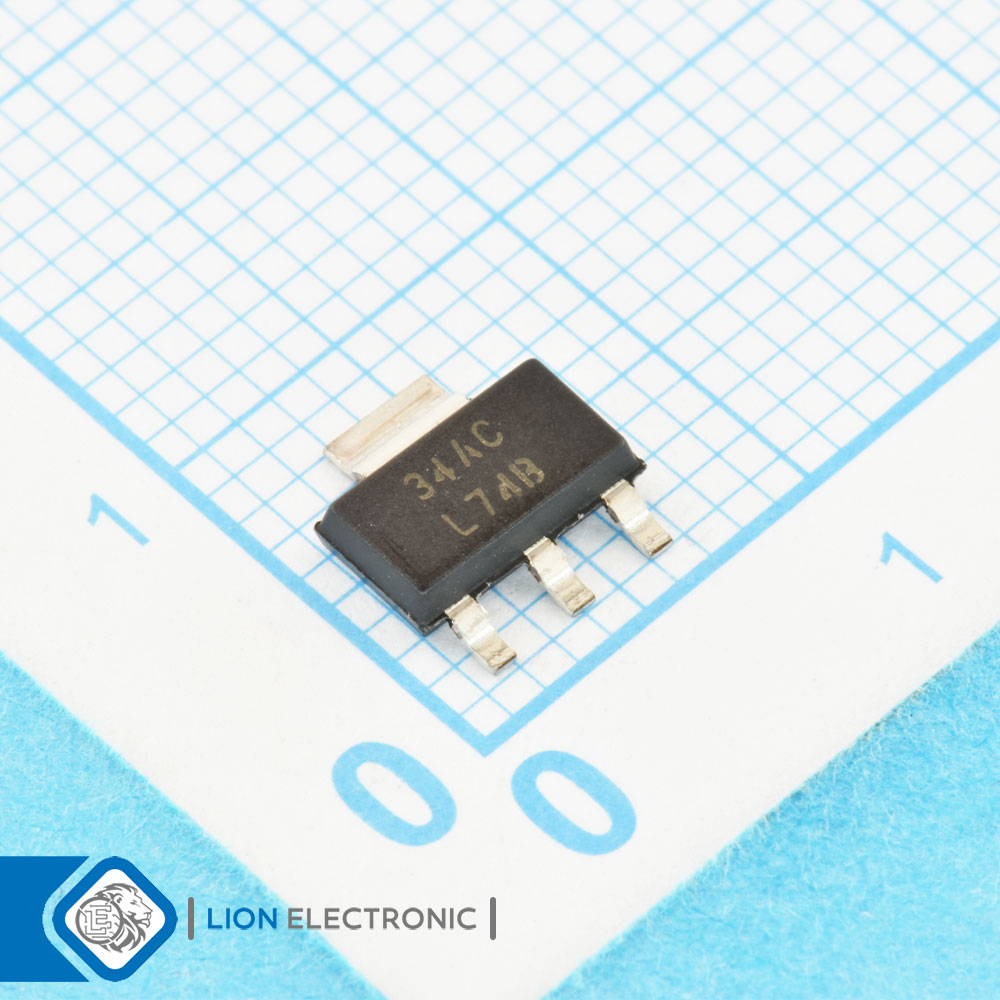

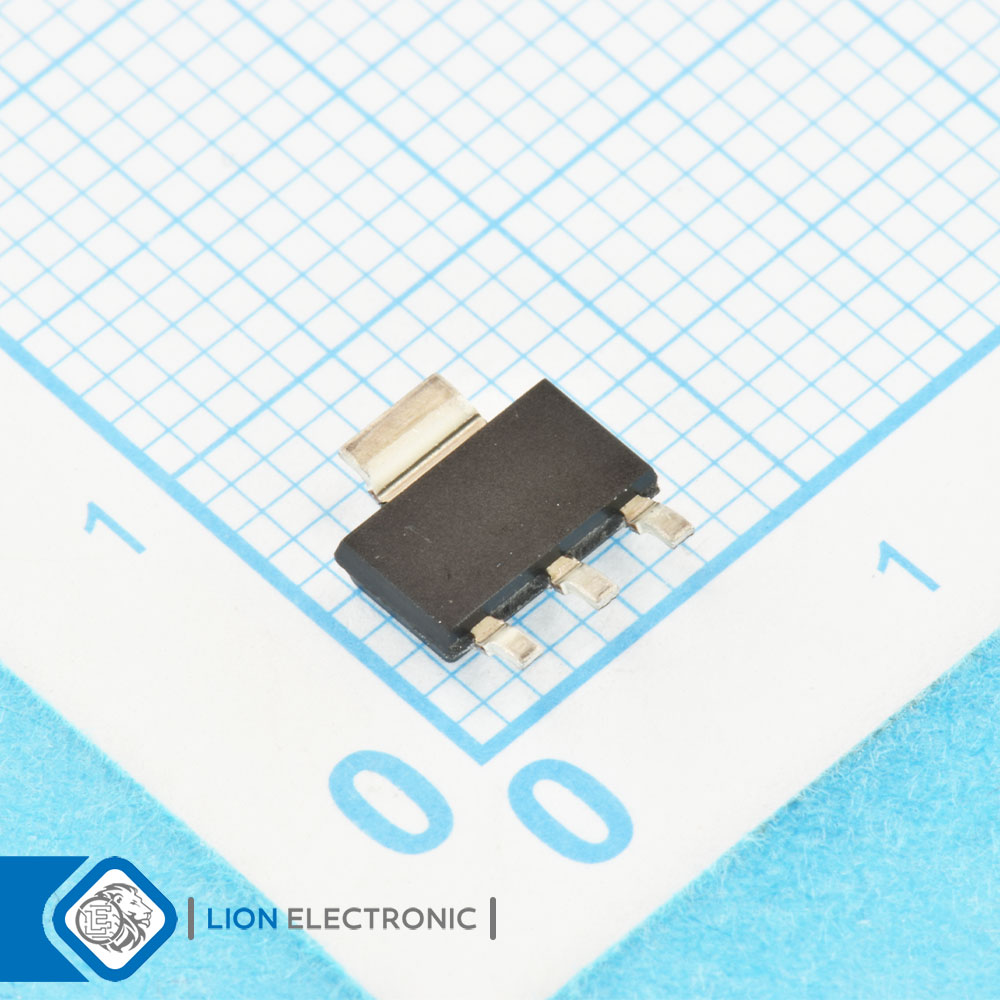

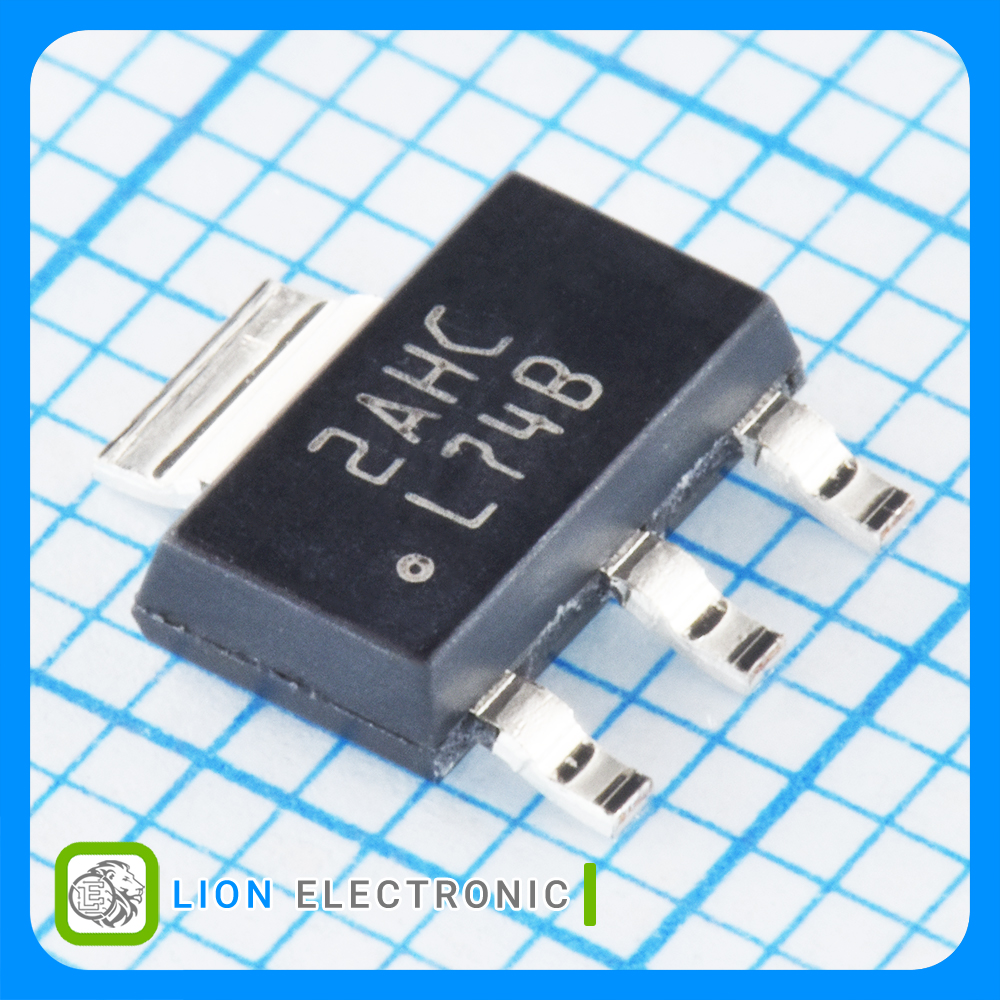

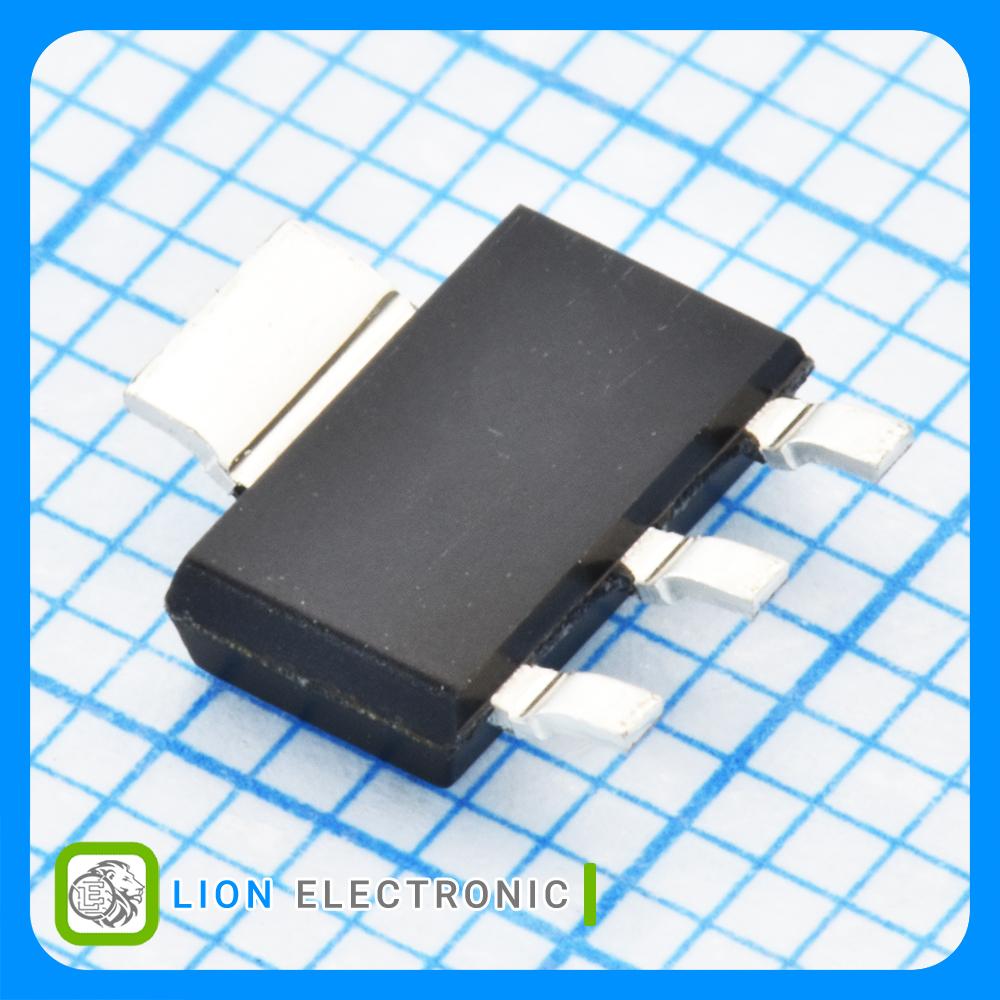

LM2937IMP-12
LM2937IMP-12
Part Number
865
Lion Part
Datasheet
Texas Instruments Manufacture
رگولاتور LDO ثابت 12 ولت 500 میلیآمپر با پکیج SOT-223-4
Fixed LDO Voltage Regulator 12V, 500mA with SOT-223-4 Package
معرفی
رگولاتور LDO ثابت 12 ولت 500 میلیآمپر با پکیج SOT-223-4
Fixed LDO Voltage Regulator 12V, 500mA with SOT-223-4 Package
Specifications
- Polarity: Positive
- Output Type: Fixed
- Package/Case: SOT-223-4
- Output Voltage: 12V
- Output Current: 500mA
- Dropout Voltage: 500mV
- Input Voltage Min: 13V
- Input Voltage Max: 26V
- PSRR / Ripple Rejection - Typ: 58dB
- Quiescent Current: 10mA
- Mounting Style: SMD/SMT
- Number of Outputs: 1
- Minimum Operating Temperature: -40C
- Maximum Operating Temperature: +125C
- Packaging: Reel
مشخصات LM2937IMP-12
LM2937IMP-12
Part Number
1
Number of Outputs
12mV
Load Regulation
Reel
Packaging
-40C
Minimum Operating Temperature
Positive
Polarity
36mV
Line Regulation
SMD/SMT
Mounting Style
58dB
PSRR - Ripple Rejection - Typ
Fixed
Output Type
+125C
Maximum Operating Temperature
26V
Input Voltage Max
500mV
Dropout Voltage
500mA
Output Current
10mA
Quiescent Current
13V
Input Voltage Min
12V
Output Voltage
SOT-223-4
Package-Case
