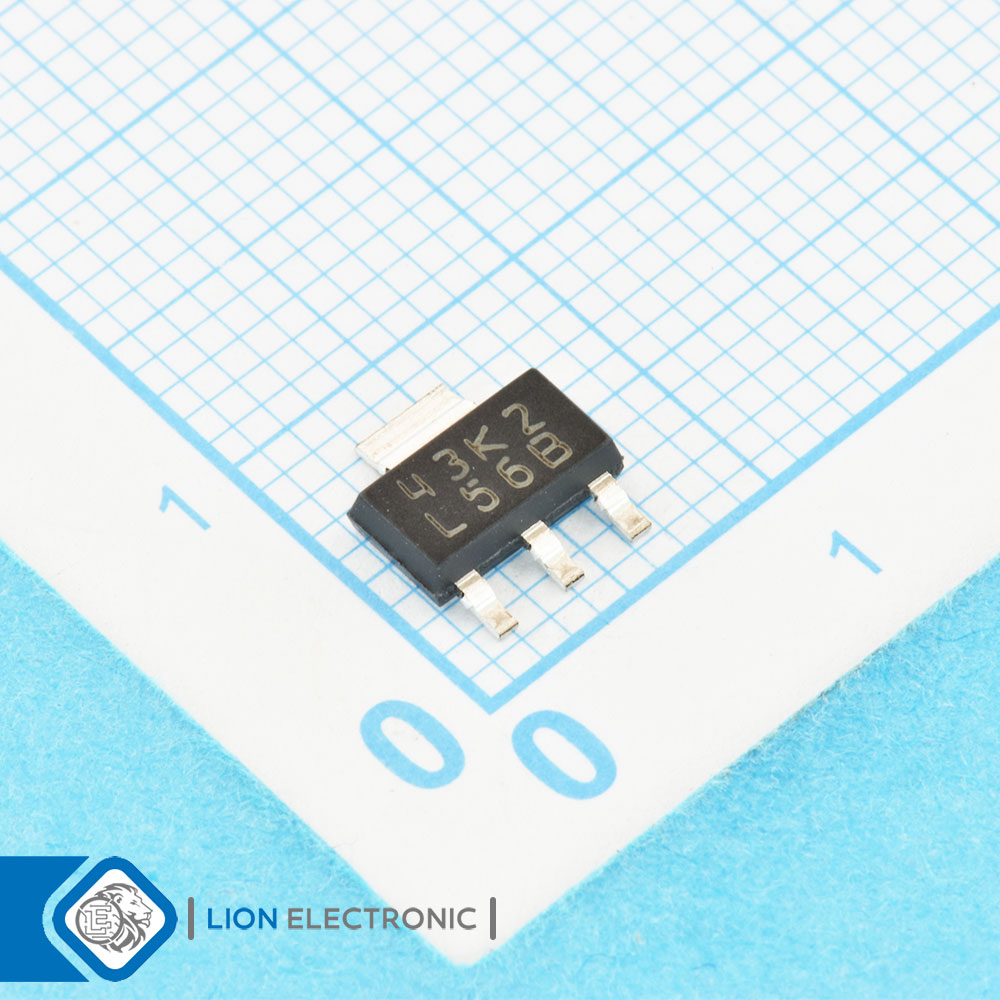

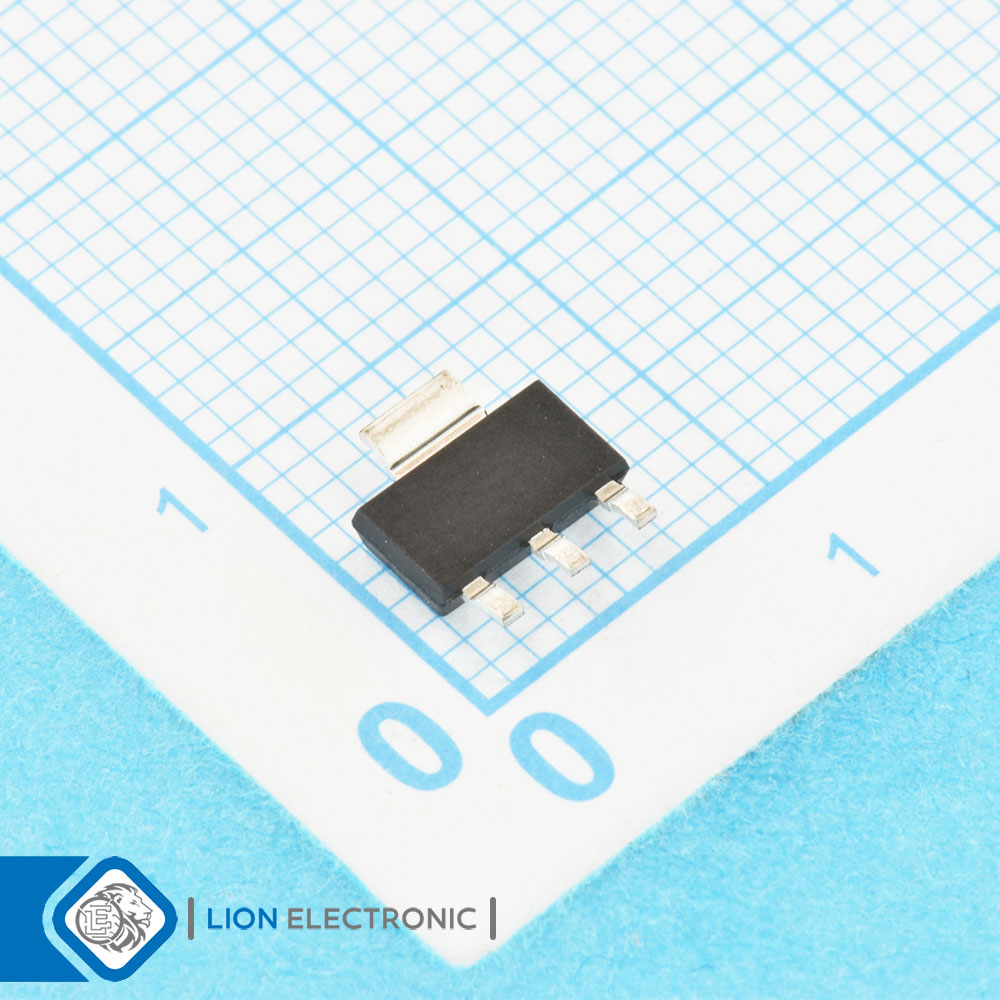

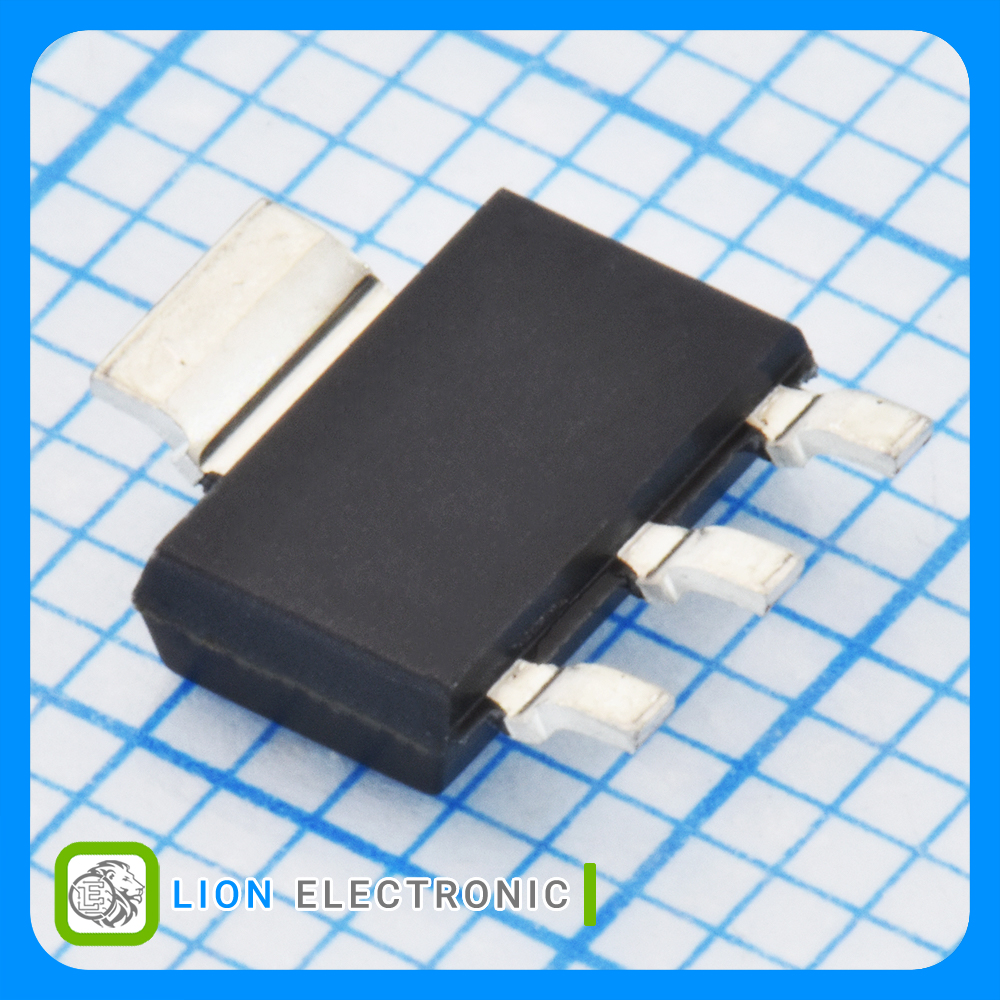

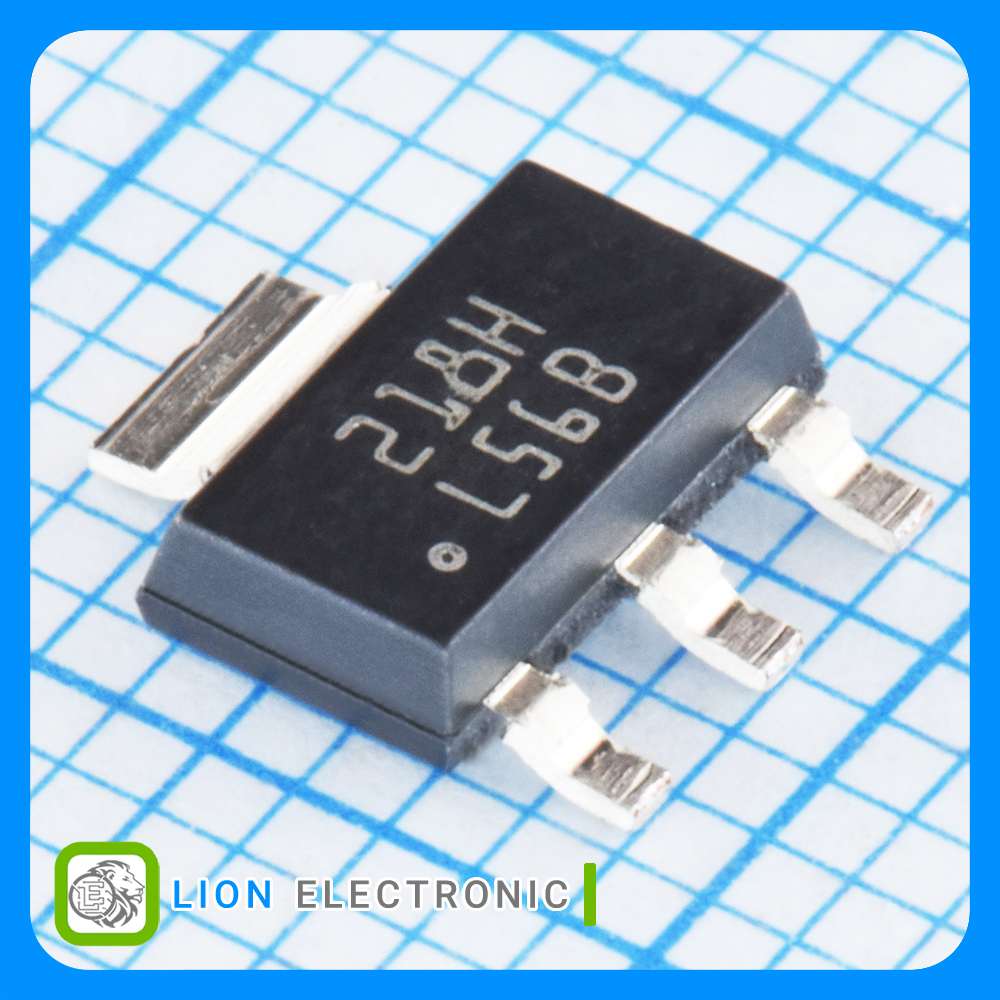

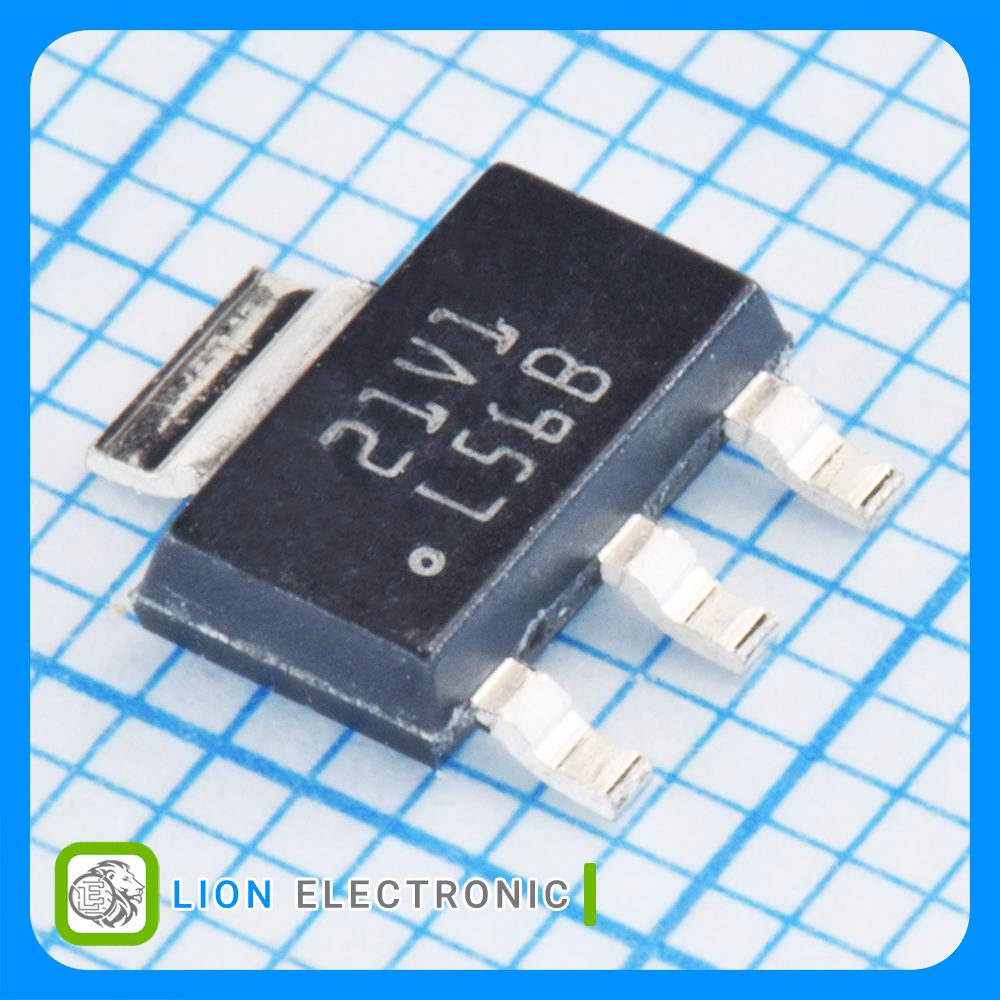

LM2940IMP-12
LM2940IMP-12
Part Number
866
Lion Part
Datasheet
Texas Instruments Manufacture
رگولاتور LDO ثابت 12 ولت 1 آمپر با پکیج SOT-223-4
Fixed LDO Voltage Regulator 12V, 1A with SOT-223-4 Package
معرفی
رگولاتور LDO ثابت 12 ولت 1 آمپر با پکیج SOT-223-4
Fixed LDO Voltage Regulator 12V, 1A with SOT-223-4 Package
Specifications
- Polarity: Positive
- Output Type: Fixed
- Package/Case: SOT-223-4
- Output Voltage: 12V
- Output Current: 1A
- Dropout Voltage: 500mV
- Input Voltage Min: 13.6V
- Input Voltage Max: 26V
- PSRR / Ripple Rejection - Typ: 66dB
- Quiescent Current: 15mA
- Mounting Style: SMD/SMT
- Number of Outputs: 1
- Minimum Operating Temperature: -40C
- Maximum Operating Temperature: +125C
- Packaging: Reel
مشخصات LM2940IMP-12
LM2940IMP-12
Part Number
1
Number of Outputs
Reel
Packaging
-40C
Minimum Operating Temperature
Positive
Polarity
SMD/SMT
Mounting Style
120mV
Line Regulation
66dB
PSRR - Ripple Rejection - Typ
Fixed
Output Type
120mV
Load Regulation
+125C
Maximum Operating Temperature
26V
Input Voltage Max
500mV
Dropout Voltage
15mA
Quiescent Current
1A
Output Current
13.6V
Input Voltage Min
12V
Output Voltage
SOT-223-4
Package-Case
