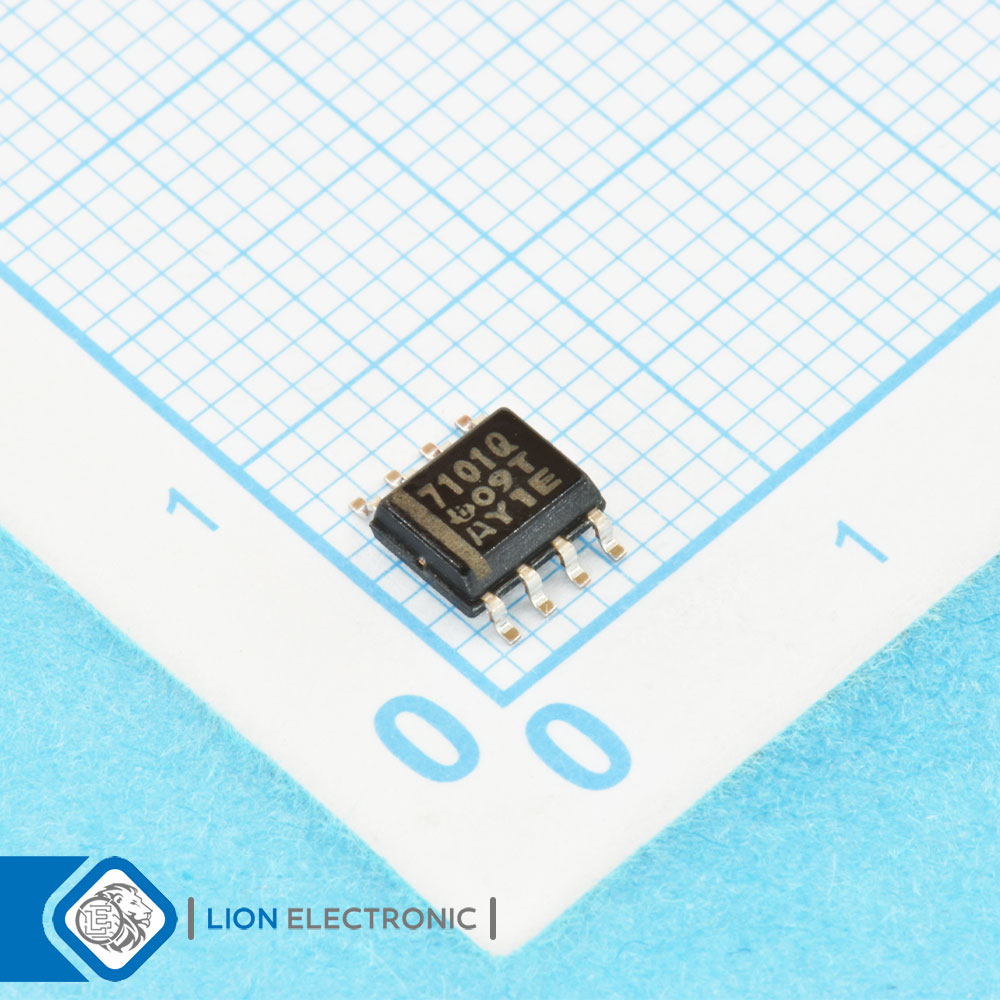

TPS7101QDR
TPS7101QDR
Part Number
872
Lion Part
Datasheet
Texas Instruments Manufacture
رگولاتور LDO مثبت قابل تنظیم 1.2 تا 9.75 ولت 500 میلیآمپر پر سرعت با نویز فوقالعاده کم با پکیج SOIC-8
Adjustable LDO Voltage Regulator 1.2 - 9.75V, 500mA High Speed, Extremely Low Noise with SOIC-8 Package
معرفی
رگولاتور LDO مثبت قابل تنظیم 1.2 تا 9.75 ولت 500 میلیآمپر پر سرعت با نویز فوقالعاده کم با پکیج SOIC-8
Adjustable LDO Voltage Regulator 1.2 - 9.75V, 500mA High Speed, Extremely Low Noise with SOIC-8 Package
Specifications
- Polarity: Positive
- Output Type: Adjustable
- Package/Case: SOIC-8
- Output Voltage: 1.2 - 9.75V
- Output Current: 500mA
- Dropout Voltage: 235mV
- Input Voltage Min: 2.5V
- Input Voltage Max: 10V
- PSRR / Ripple Rejection - Typ: 59dB
- Quiescent Current: 285uA
- Mounting Style: SMD/SMT
- Number of Outputs: 1
- Minimum Operating Temperature: -40C
- Maximum Operating Temperature: +125C
- Packaging: Reel
مشخصات TPS7101QDR
TPS7101QDR
Part Number
1
Number of Outputs
18mV
Line Regulation
Reel
Packaging
-40C
Minimum Operating Temperature
Positive
Polarity
22mV
Load Regulation
SMD/SMT
Mounting Style
Adjustable
Output Type
59dB
PSRR - Ripple Rejection - Typ
10V
Input Voltage Max
+125C
Maximum Operating Temperature
235mV
Dropout Voltage
2.5V
Input Voltage Min
285uA
Quiescent Current
500mA
Output Current
1.2 - 9.75V
Output Voltage
SOIC-8
Package-Case
