Ricoh
معرفی
رگولاتور LDO ثابت 2 ولت 35 میلیآمپر با پکیج SOT-89-3

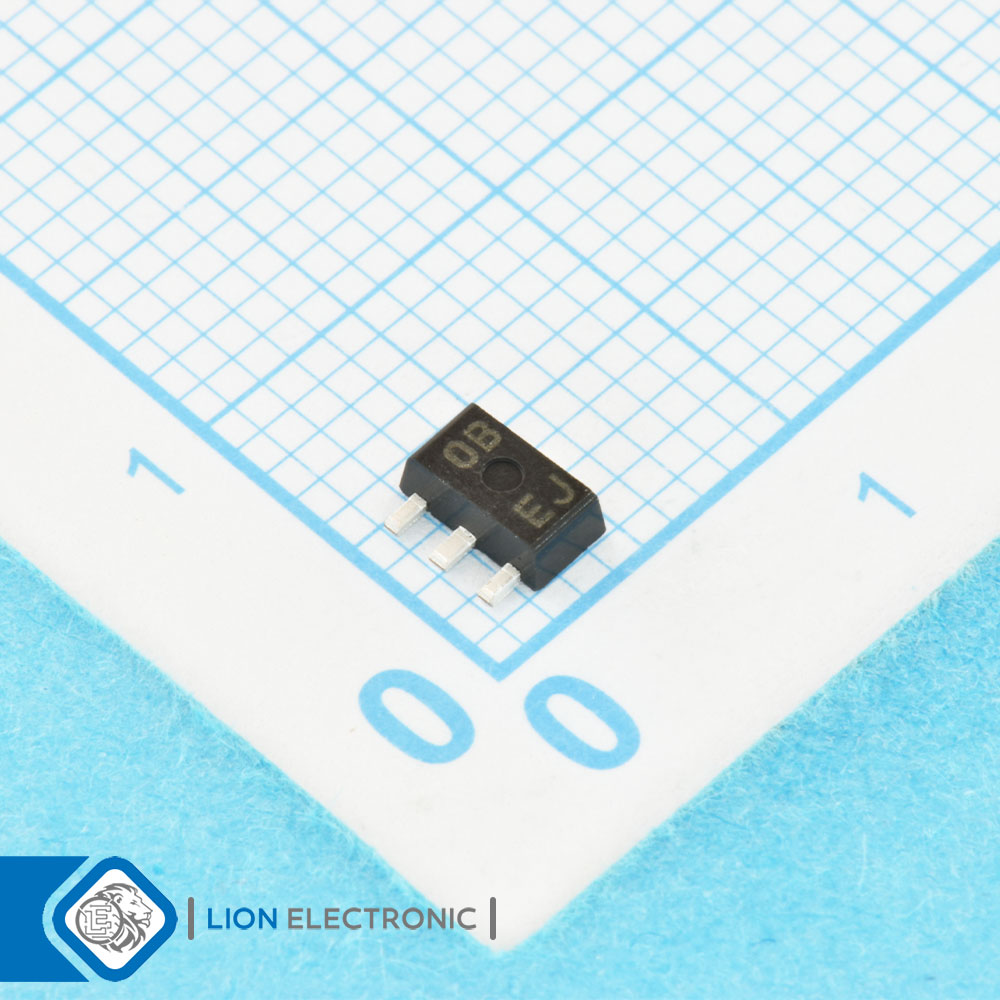

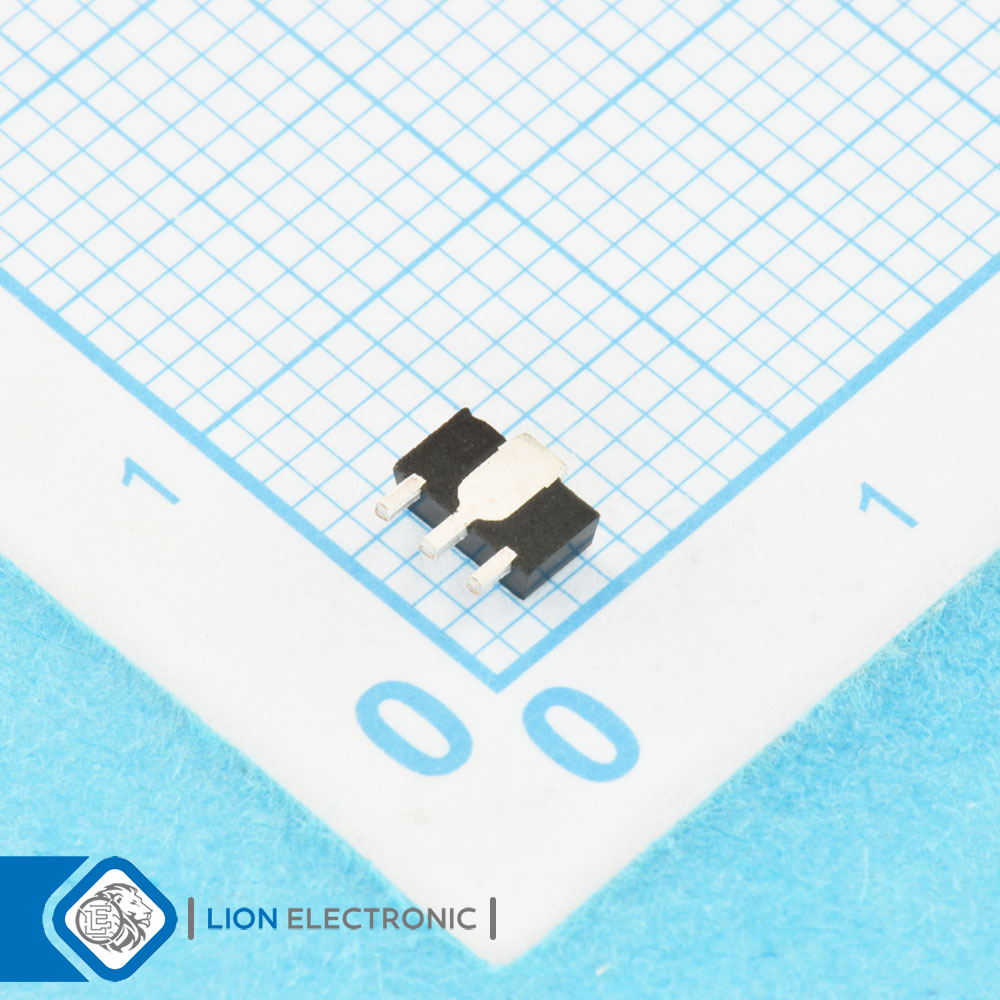

Fixed LDO Voltage Regulator 2V, 35mA with SOT-89-3 Package
Specifications
- Polarity: Positive
- Output Type: Fixed
- Package/Case: SOT-89
- Output Voltage: 2V
- Output Current: 35mA
- Dropout Voltage: 60mV
- Input Voltage Min: 2.06V
- Input Voltage Max: 10V
- Quiescent Current: 1uA
- Mounting Style: SMD/SMT
- Number of Outputs: 1
- Minimum Operating Temperature: -40C
- Maximum Operating Temperature: +85C
- Packaging: Reel
مشخصات RH5RL20AA
RH5RL20AA
Part Number
1
Number of Outputs
60mV
Dropout Voltage
Reel
Packaging
-40C
Minimum Operating Temperature
Positive
Polarity
1uA
Quiescent Current
SMD/SMT
Mounting Style
30mV
Load Regulation
+85C
Maximum Operating Temperature
Fixed
Output Type
10V
Input Voltage Max
35mA
Output Current
N/A
PSRR - Ripple Rejection - Typ
2.06V
Input Voltage Min
0.05%/V
Line Regulation
2V
Output Voltage
SOT-89
Package-Case
