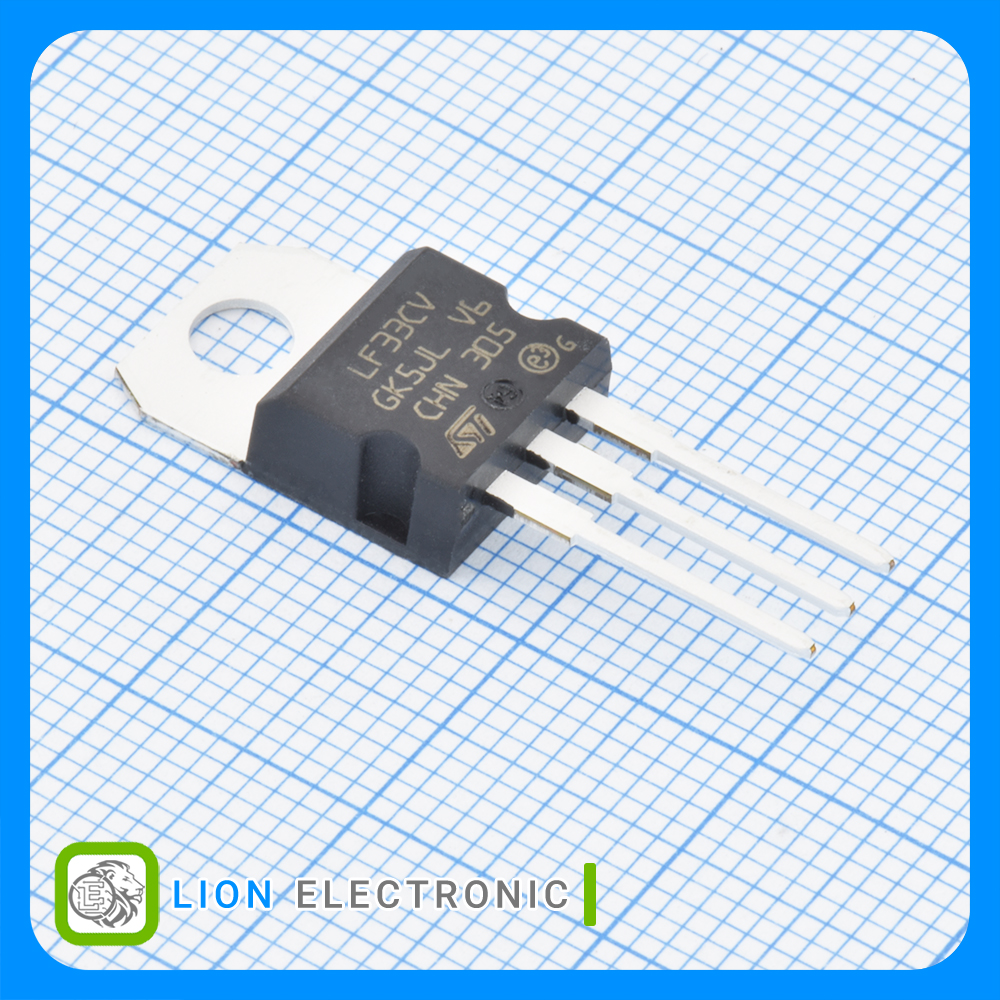

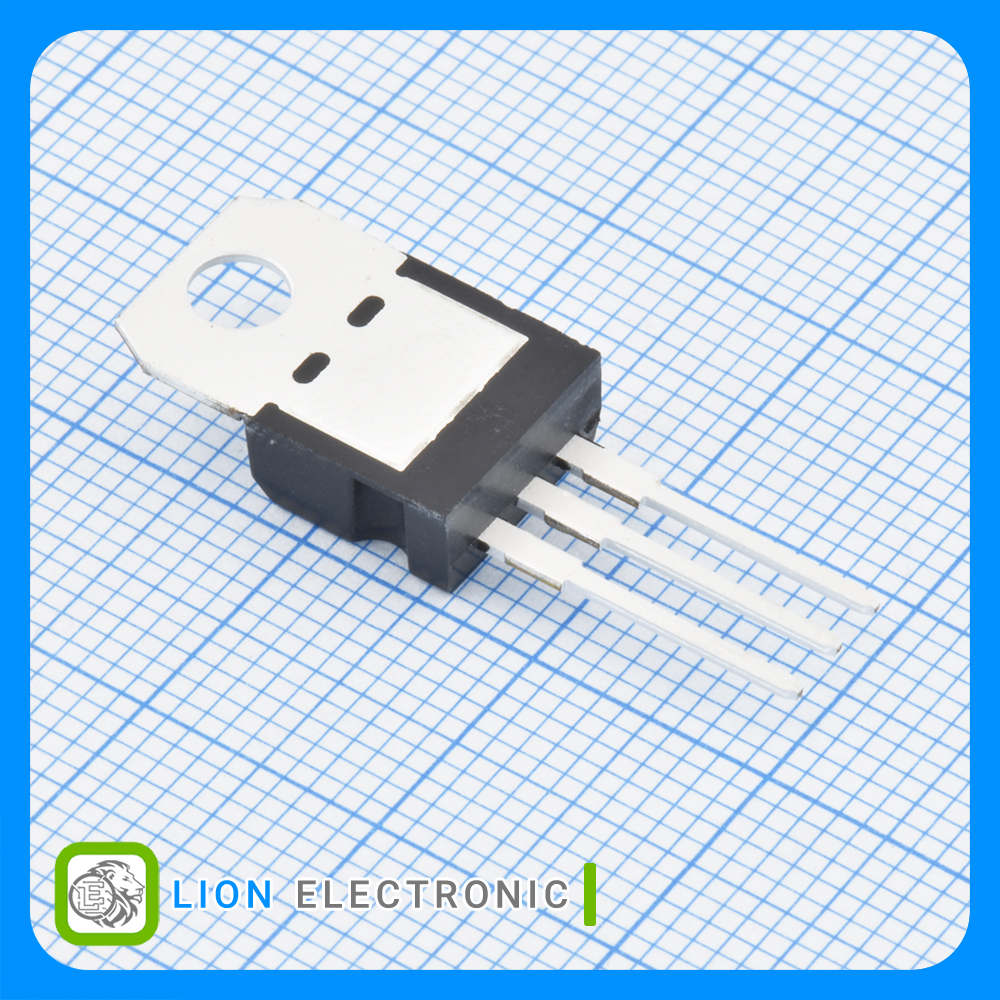

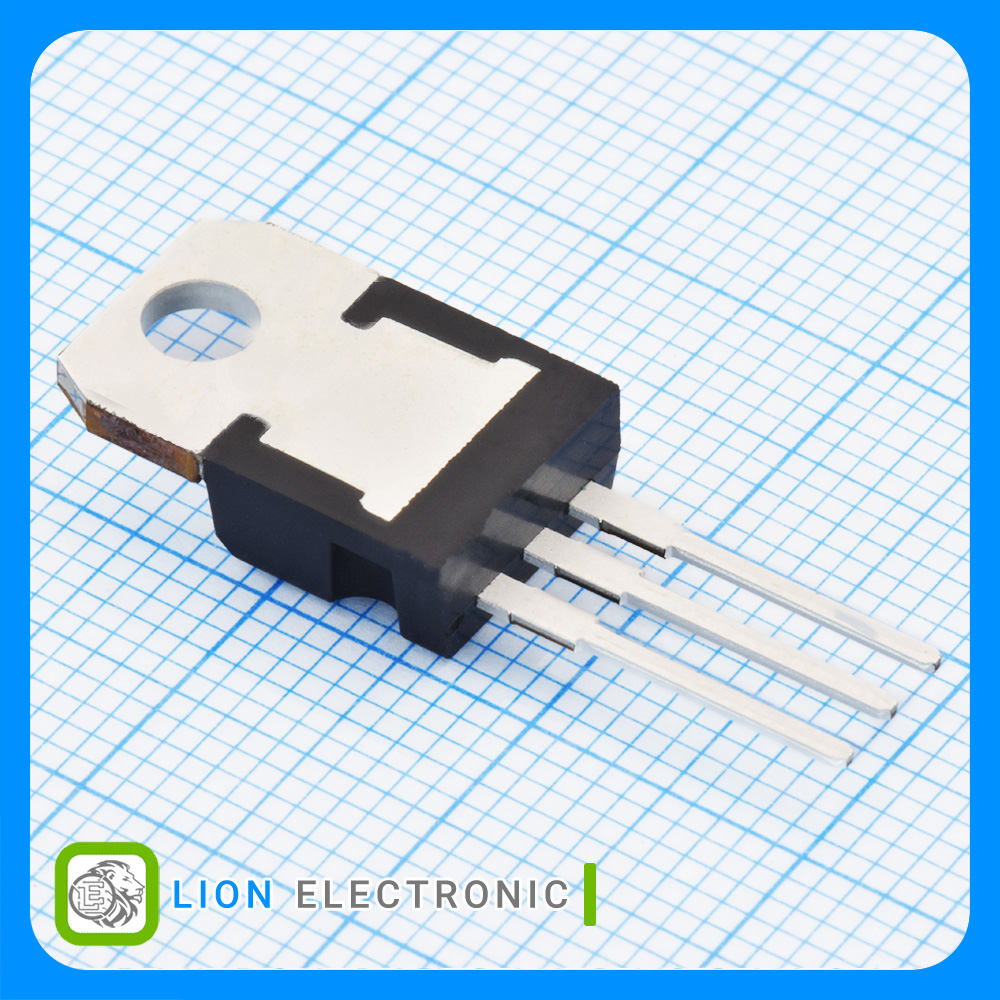

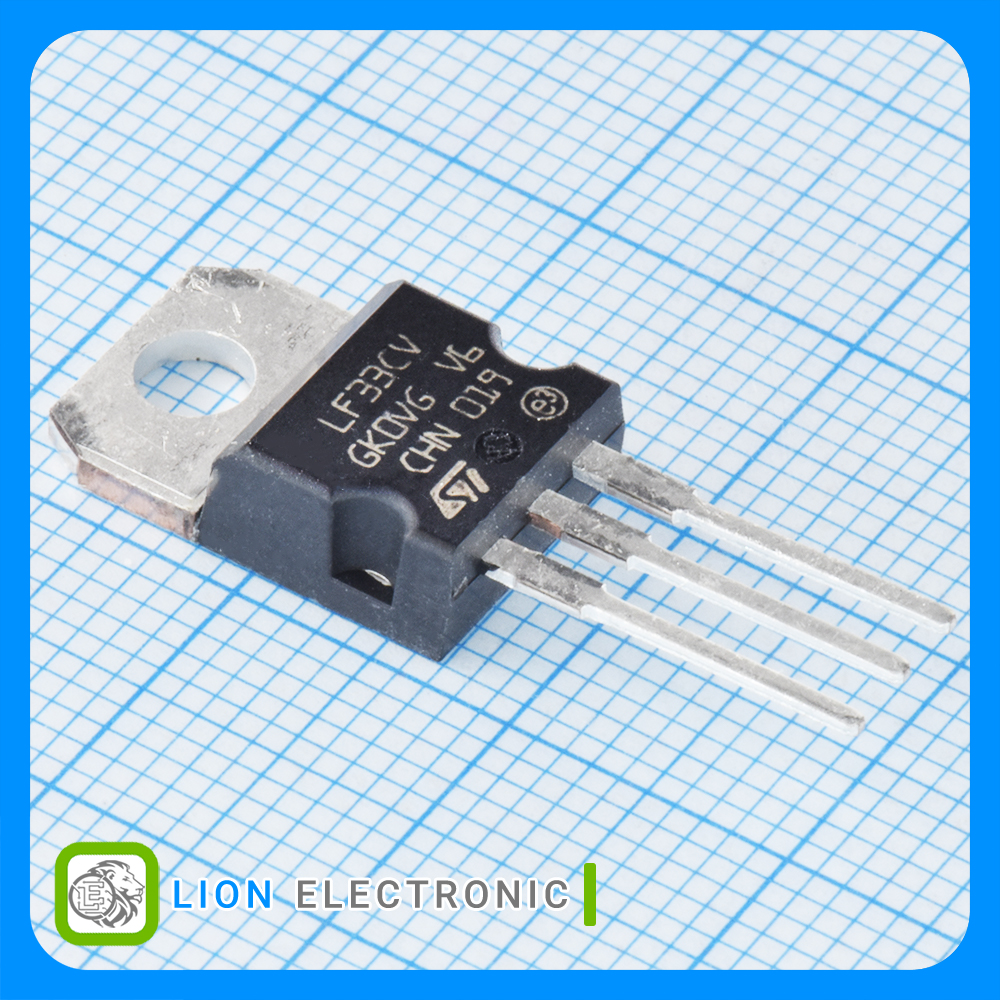

LF33CV
LF33CV
Part Number
882
Lion Part
Datasheet
STMicroelectronics Manufacture
رگولاتور LDO ثابت 3.3 ولت 500 میلیآمپر با پکیج TO-220-3
Fixed LDO Voltage Regulator 3.3V, 500mA with TO-220-3 Package
معرفی
رگولاتور LDO ثابت 3.3 ولت 500 میلیآمپر با پکیج TO-220-3
Fixed LDO Voltage Regulator 3.3V, 500mA with TO-220-3 Package
Specifications
- Polarity: Positive
- Output Type: Fixed
- Package/Case: TO-220-3
- Output Voltage: 3.3V
- Output Current: 500mA
- Dropout Voltage: 200mV
- Input Voltage Min: 2.5V
- Input Voltage Max: 16V
- PSRR / Ripple Rejection - Typ: 80dB
- Quiescent Current: 50uA
- Mounting Style: Through Hole
- Number of Outputs: 1
- Minimum Operating Temperature: -40C
- Maximum Operating Temperature: +125C
- Packaging: Tube
مشخصات LF33CV
LF33CV
Part Number
1
Number of Outputs
16mV
Line Regulation
16mV
Load Regulation
-40C
Minimum Operating Temperature
Positive
Polarity
Tube
Packaging
Through Hole
Mounting Style
200mV
Dropout Voltage
Fixed
Output Type
+125C
Maximum Operating Temperature
16V
Input Voltage Max
80dB
PSRR - Ripple Rejection - Typ
50uA
Quiescent Current
2.5V
Input Voltage Min
500mA
Output Current
3.3V
Output Voltage
TO-220-3
Package-Case
