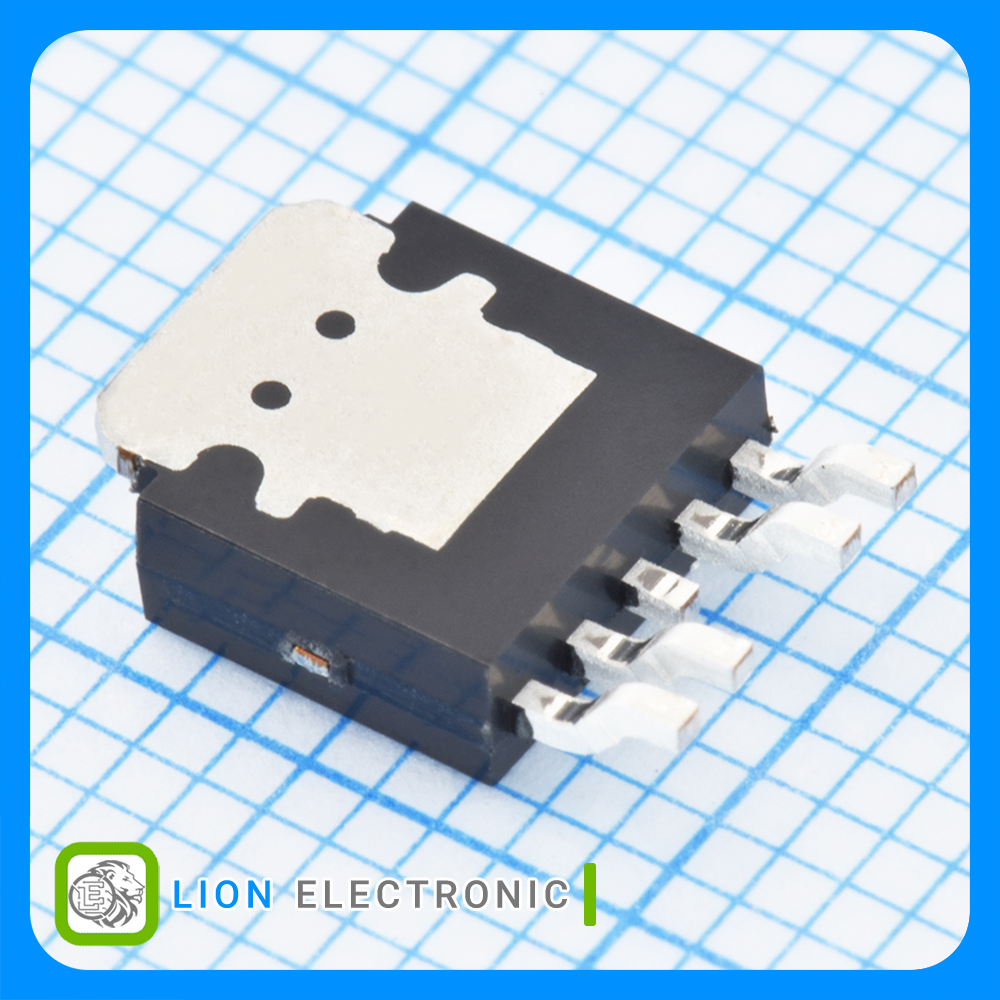

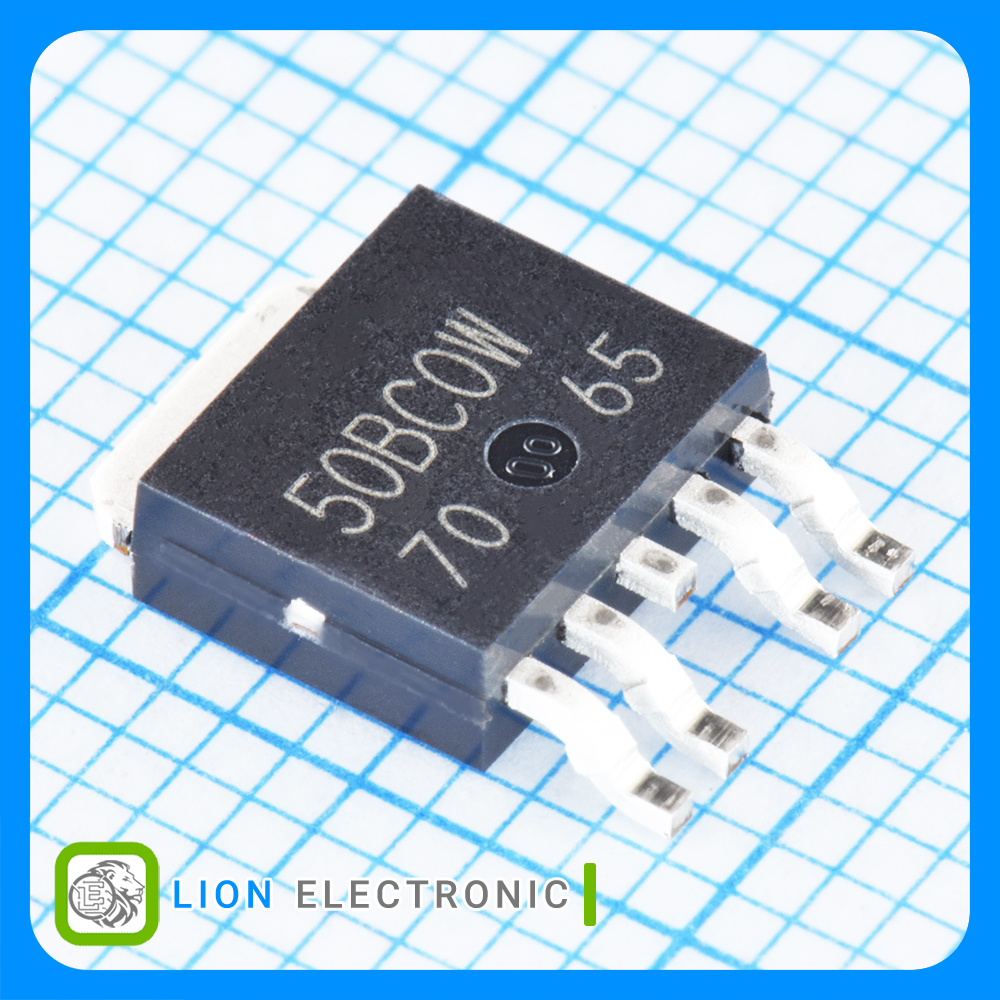

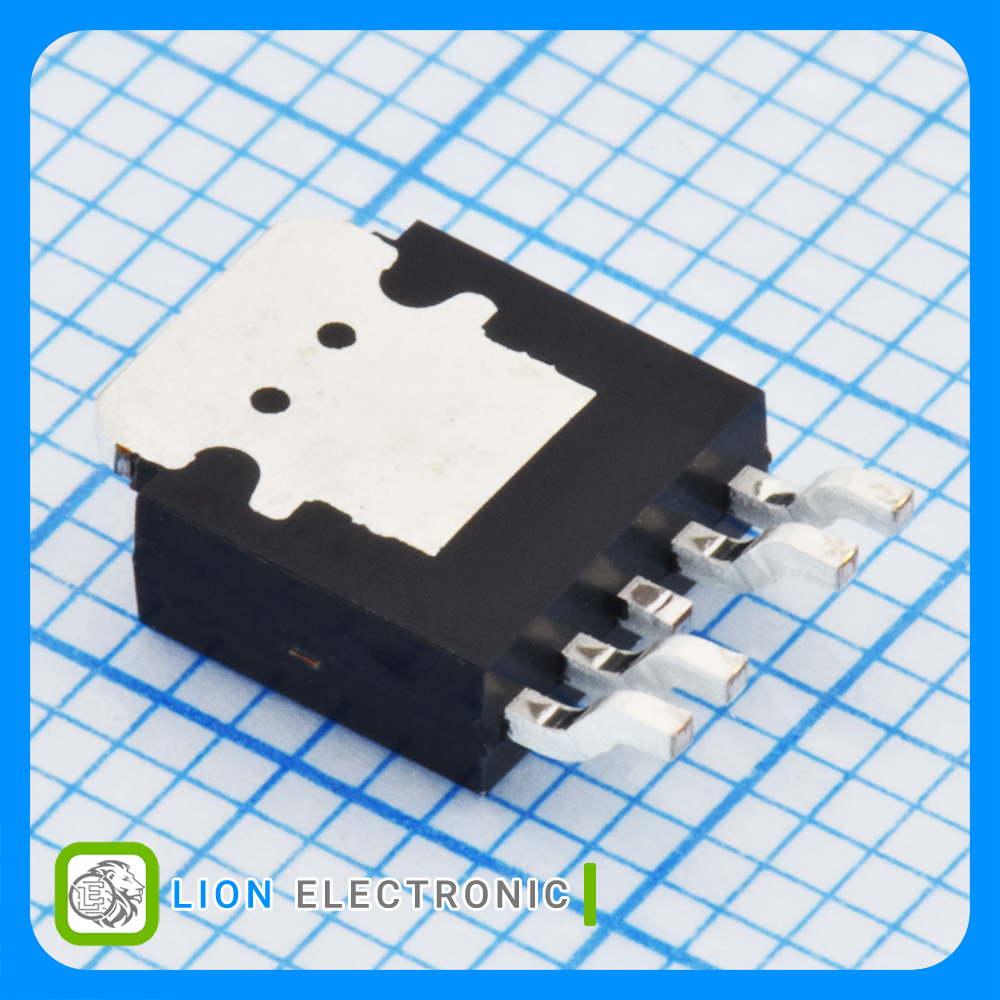

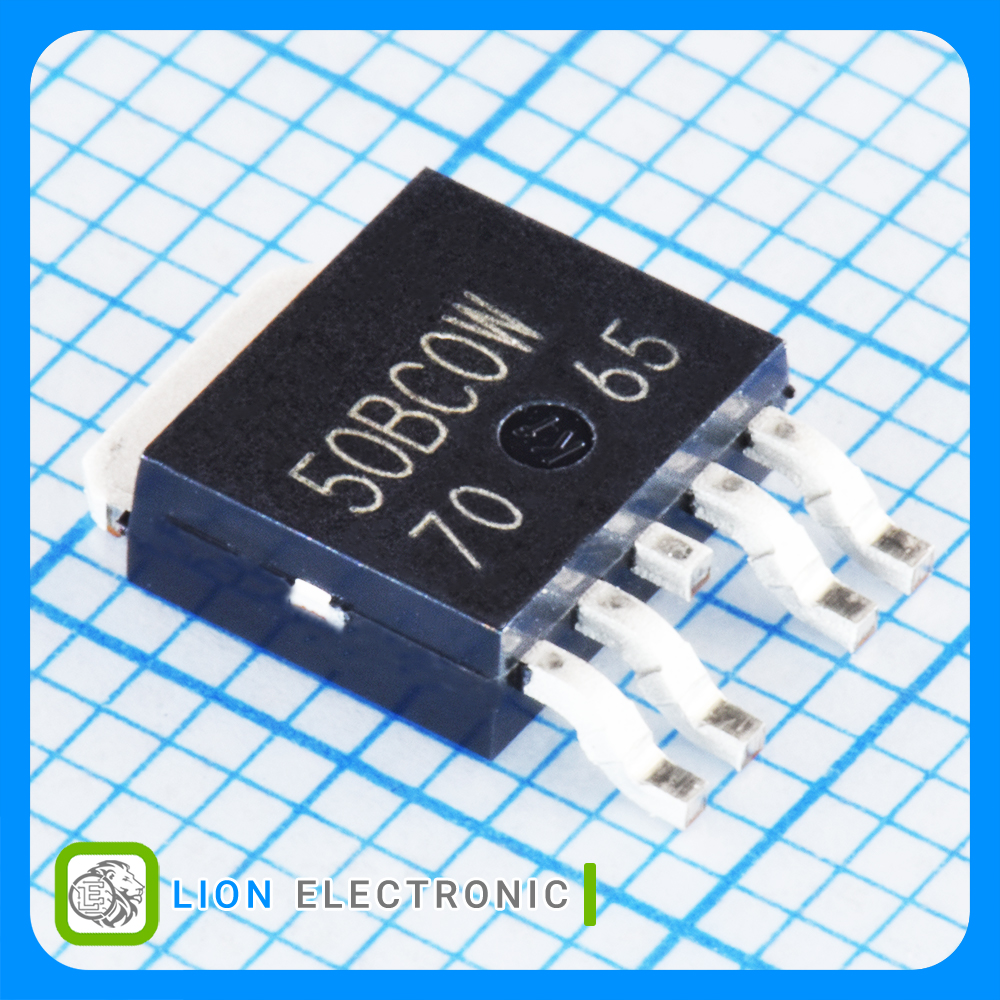

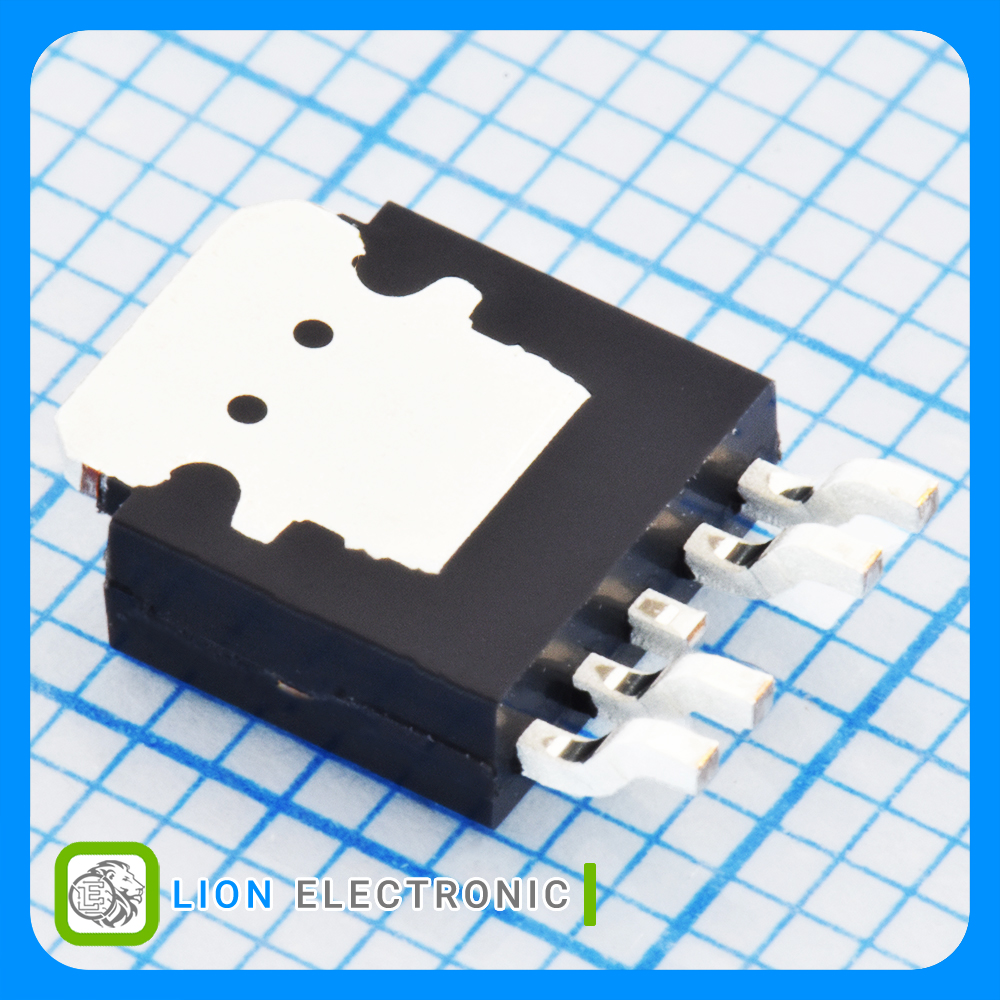

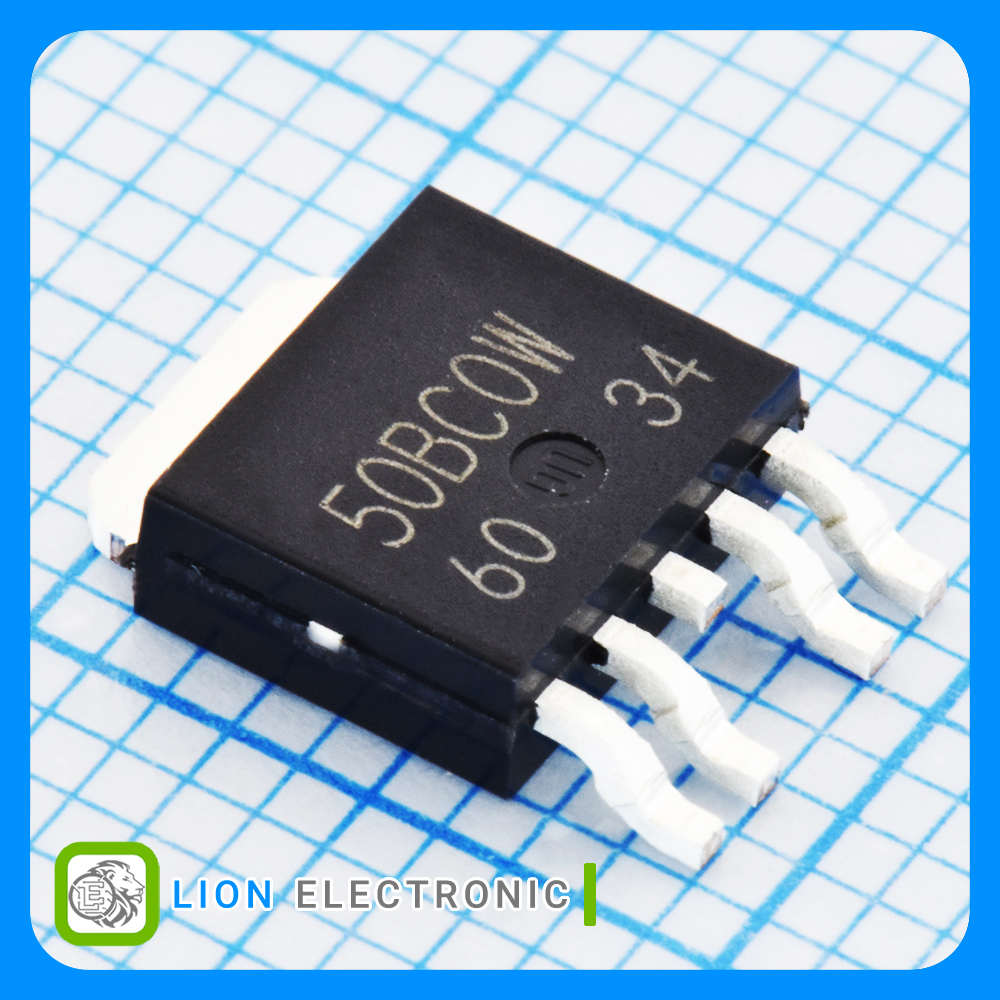

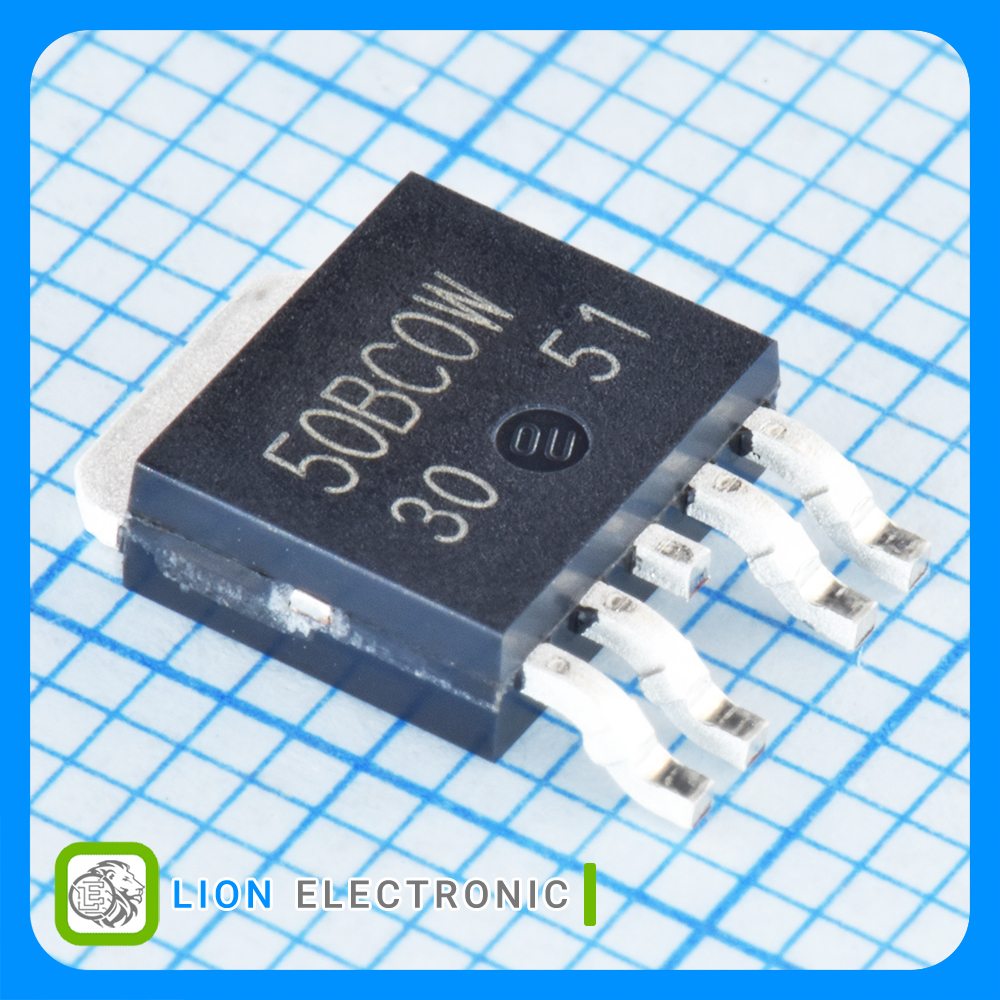

BA50BC0WFP-E2
BA50BC0WFP-E2
Part Number
887
Lion Part
Datasheet
ROHM Semiconductor Manufacture
رگولاتور LDO ثابت 5 ولت 1 آمپر با پکیج TO-252-5
Fixed LDO Voltage Regulator 5V, 1A with TO-252-5 Package
معرفی
رگولاتور LDO ثابت 5 ولت 1 آمپر با پکیج TO-252-5
Fixed LDO Voltage Regulator 5V, 1A with TO-252-5 Package
Specifications
- Polarity: Positive
- Output Type: Fixed
- Package/Case: DPAK
- Output Voltage: 5V
- Output Current: 1A
- Dropout Voltage: 600mV
- Input Voltage Min: 6V
- Input Voltage Max: 16V
- PSRR / Ripple Rejection - Typ: 55dB
- Mounting Style: SMD/SMT
- Number of Outputs: 1
- Minimum Operating Temperature: -40C
- Maximum Operating Temperature: +105C
- Packaging: Reel
مشخصات BA50BC0WFP-E2
BA50BC0WFP-E2
Part Number
---
Quiescent Current
1
Number of Outputs
1.28V
Reference Voltage
Reel
Packaging
-40C
Minimum Operating Temperature
Positive
Polarity
35mV
Line Regulation
55dB
PSRR - Ripple Rejection - Typ
SMD/SMT
Mounting Style
+105C
Maximum Operating Temperature
75mV
Load Regulation
Fixed
Output Type
16V
Input Voltage Max
600mV
Dropout Voltage
6V
Input Voltage Min
1A
Output Current
1.3W
Pd - Power Dissipation
DPAK
Package-Case
5V
Output Voltage
