MaxLinear
معرفی

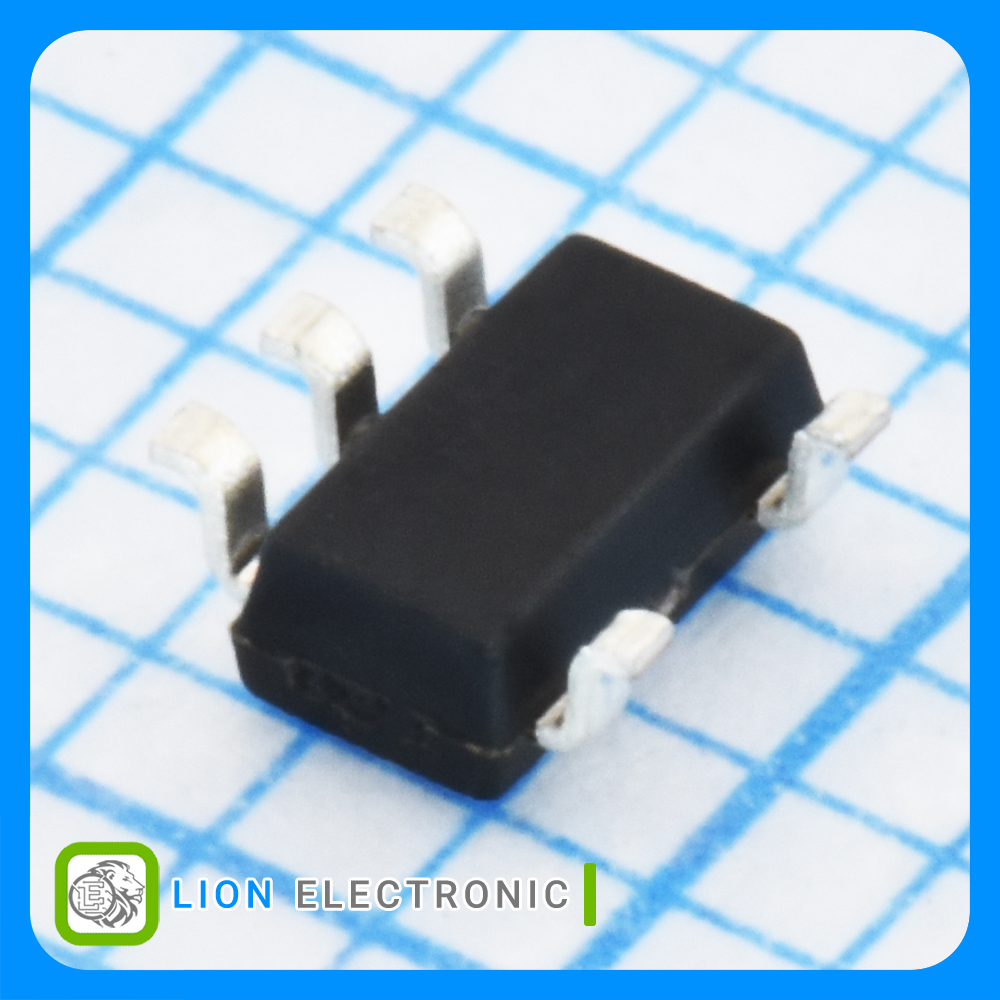

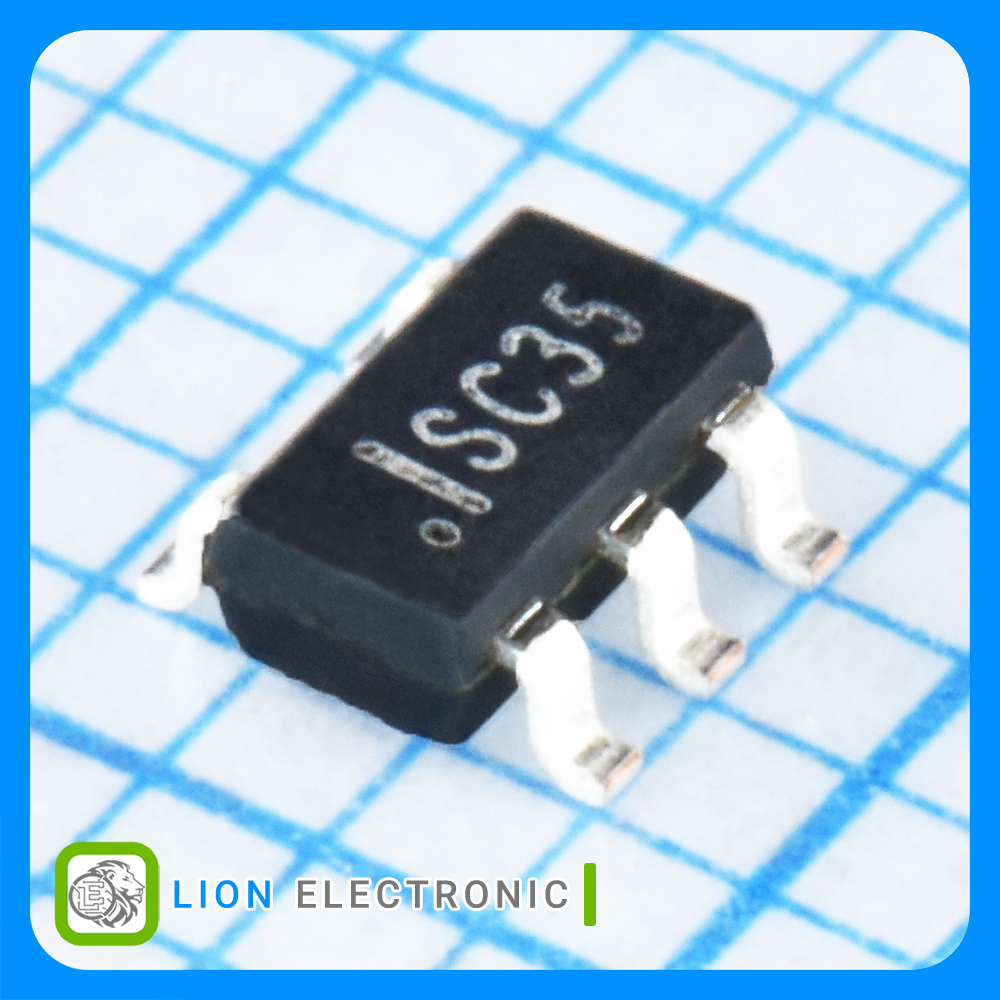

رگولاتور LDO ثابت 5 ولت 150 میلیآمپر با پکیج SOT-23-5
Fixed LDO Voltage Regulator 5V, 150mA with SOT-23-5 Package
Specifications
- Polarity: Positive
- Output Type: Fixed
- Package/Case: SOT-23-5
- Output Voltage: 5V
- Output Current: 150mA
- Dropout Voltage: 210mV
- Input Voltage Min: 2.5V
- Input Voltage Max: 16V
- PSRR / Ripple Rejection - Typ: 70dB
- Quiescent Current: 70uA
- Mounting Style: SMD/SMT
- Number of Outputs: 1
- Minimum Operating Temperature: -40C
- Maximum Operating Temperature: +85C
- Packaging: Reel
مشخصات SPX5205M5-L-5-0

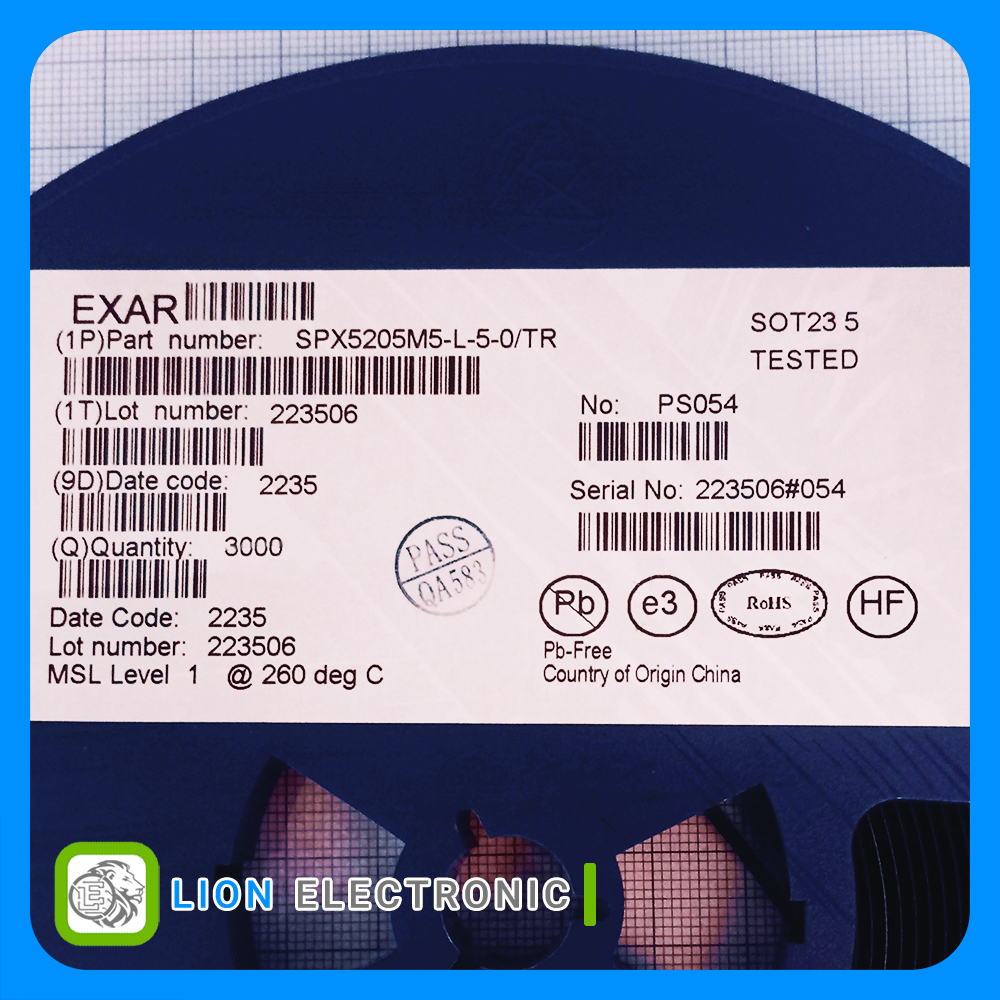

SPX5205M5-L-5-0
Part Number
1
Number of Outputs
1%
Voltage Regulation Accuracy
Reel
Packaging
-40C
Minimum Operating Temperature
Positive
Polarity
SMD/SMT
Mounting Style
+85C
Maximum Operating Temperature
Fixed
Output Type
210mV
Dropout Voltage
70dB
PSRR - Ripple Rejection - Typ
16V
Input Voltage Max
70uA
Quiescent Current
0.5%
Load Regulation
2.5V
Input Voltage Min
0.2%/V
Line Regulation
150mA
Output Current
5V
Output Voltage
SOT-23-5
Package-Case
