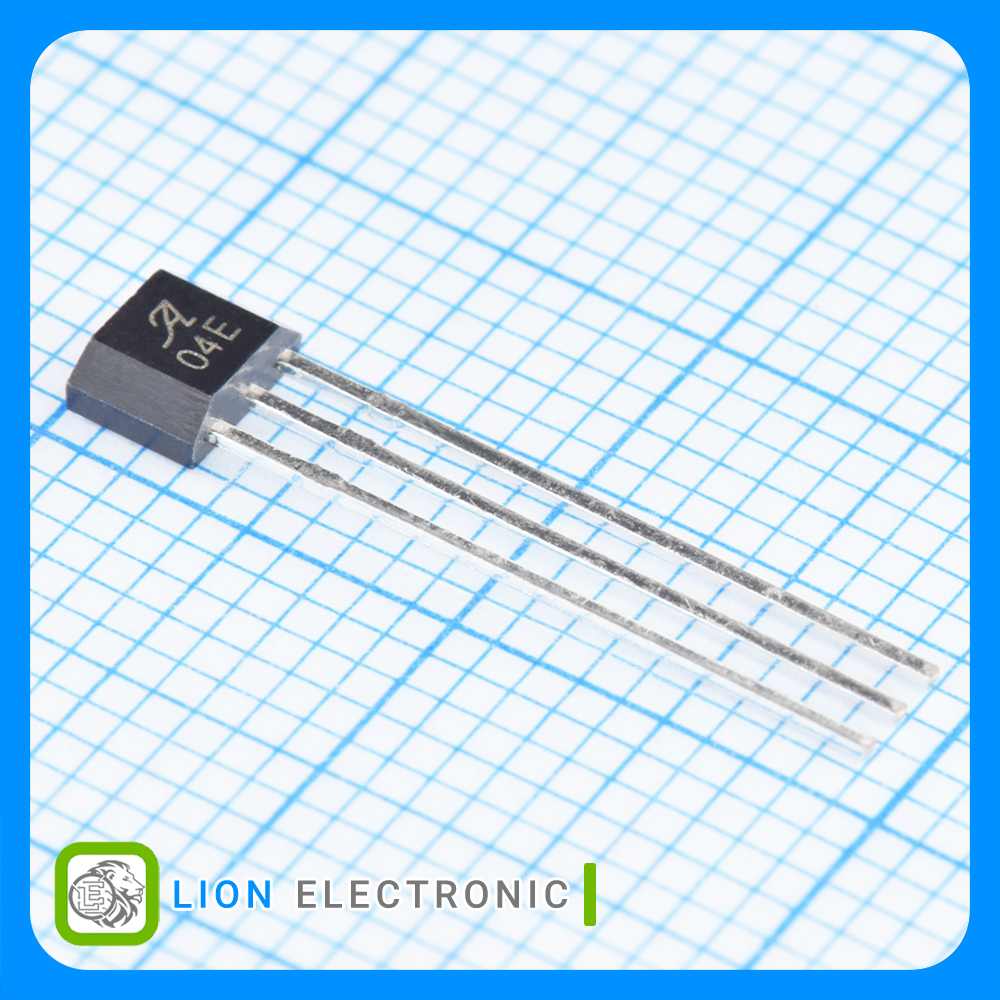

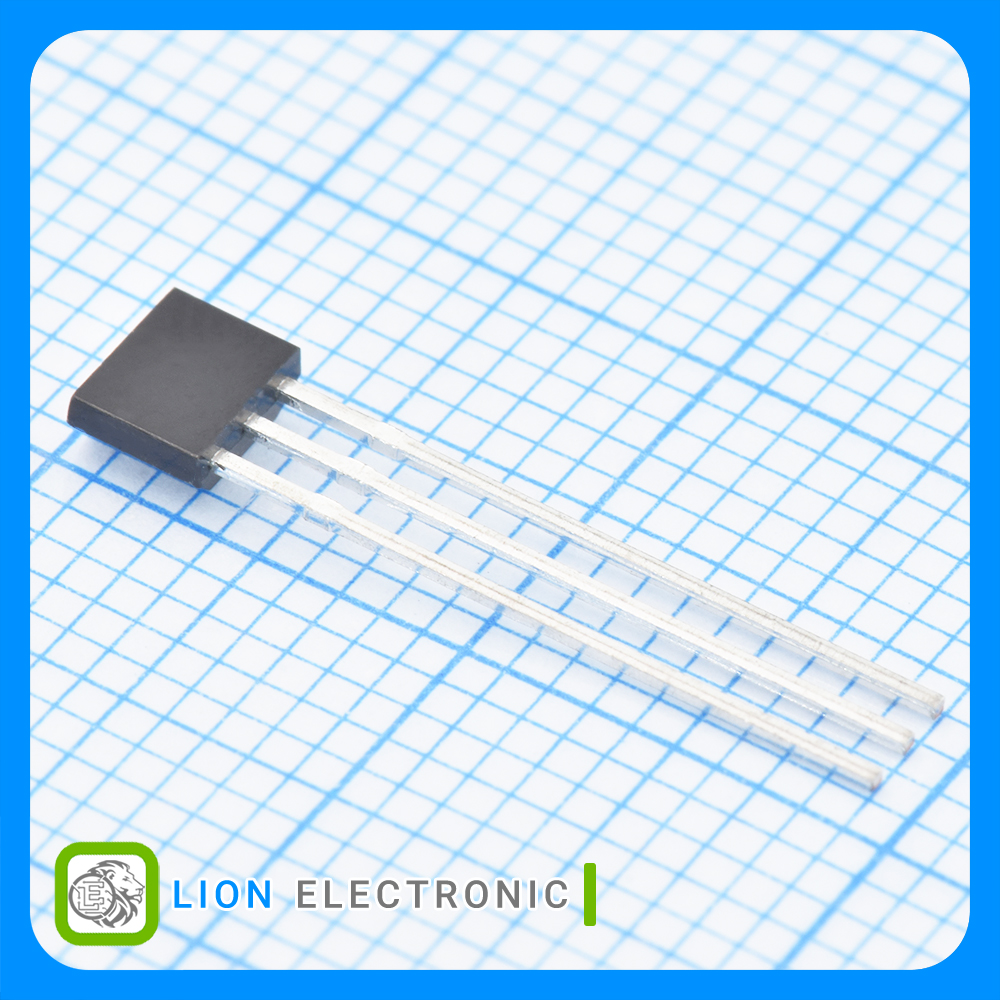

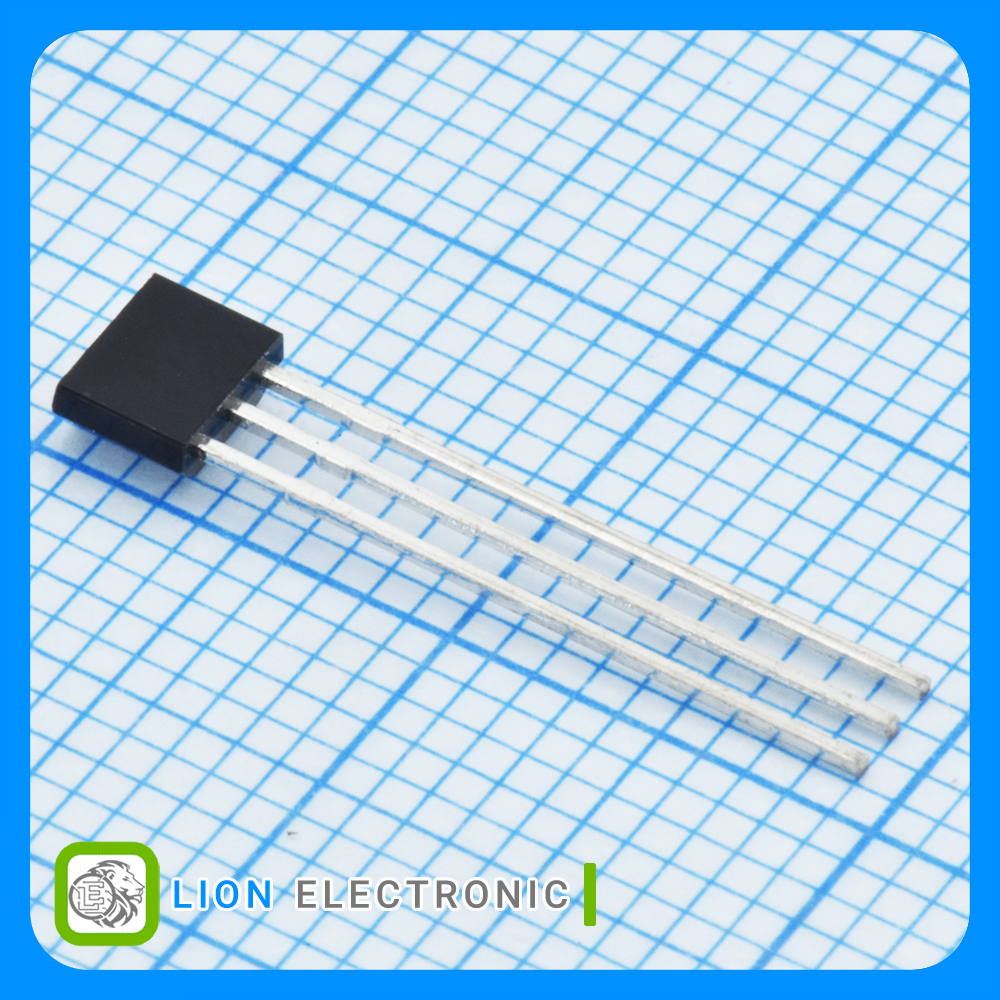

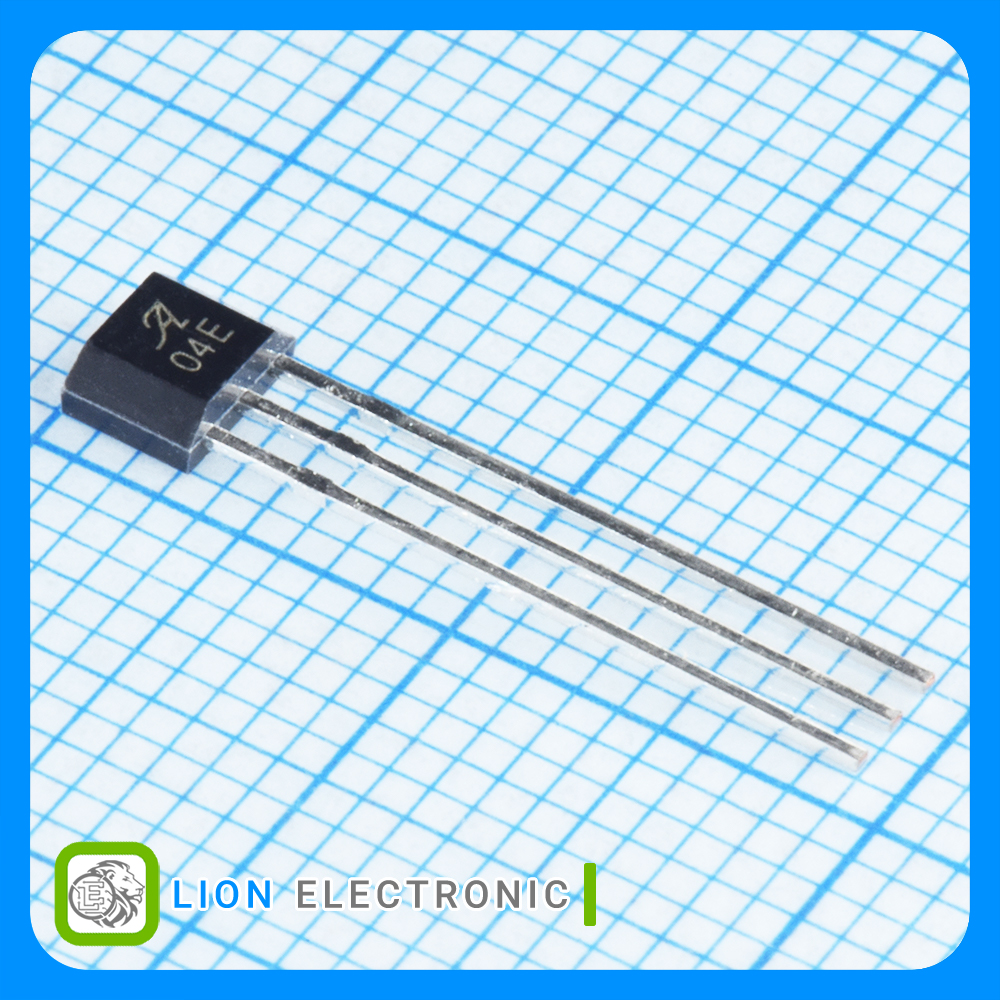

A1104EUA-T
A1104EUA-T
Part Number
1068
Lion Part
Datasheet
Allegro MicroSystems Manufacture
سوئیچ اثر هال تکقطبی مخصوص استاندارد خودرویی AEC-Q100 با ولتاژ 3.8 تا 24 ولت و نقطه عملکرد 70G تا 350G با پکیج SIP-3
Continuous-Time Hall Effect Switch Unipolar, AEC-Q100 automotive qualified, 3.8 - 24V, Operating Point 70G to 350G with SIP-3 Package
معرفی
سوئیچ اثر هال تکقطبی مخصوص استاندارد خودرویی AEC-Q100 با ولتاژ 3.8 تا 24 ولت و نقطه عملکرد 70G تا 350G با پکیج SIP-3
Continuous-Time Hall Effect Switch Unipolar, AEC-Q100 automotive qualified, 3.8 - 24V, Operating Point 70G to 350G with SIP-3 Package
Specifications
- Type: Unipolar
- Operating Point Min/Max: 70G to 350G
- Release Point Min/Max (Brp): 50G to 330G
- Operating Supply Voltage: 3.8 - 24V
- Operating Supply Current: 4.1mA
- Maximum Output Current: 25mA
- Mounting Style: Through Hole
- Package/Case: SIP-3
- Minimum Operating Temperature: -40C
- Maximum Operating Temperature: +85C
- Packaging: Bulk
مشخصات A1104EUA-T
A1104EUA-T
Part Number
--- SIP-3
Package-Case
--- Unipolar
Type
--- Bulk
Packaging
--- +85C
Maximum Operating Temperature
--- 50G to 330G
Release Point Min-Max (Brp)
--- -40C
Minimum Operating Temperature
--- 25mA
Maximum Output Current
--- Through Hole
Mounting Style
--- 70G to 350G
Operating Point Min-Max
--- 4.1mA
Operating Supply Current
--- 3.8 - 24V
Operating Supply Voltage
