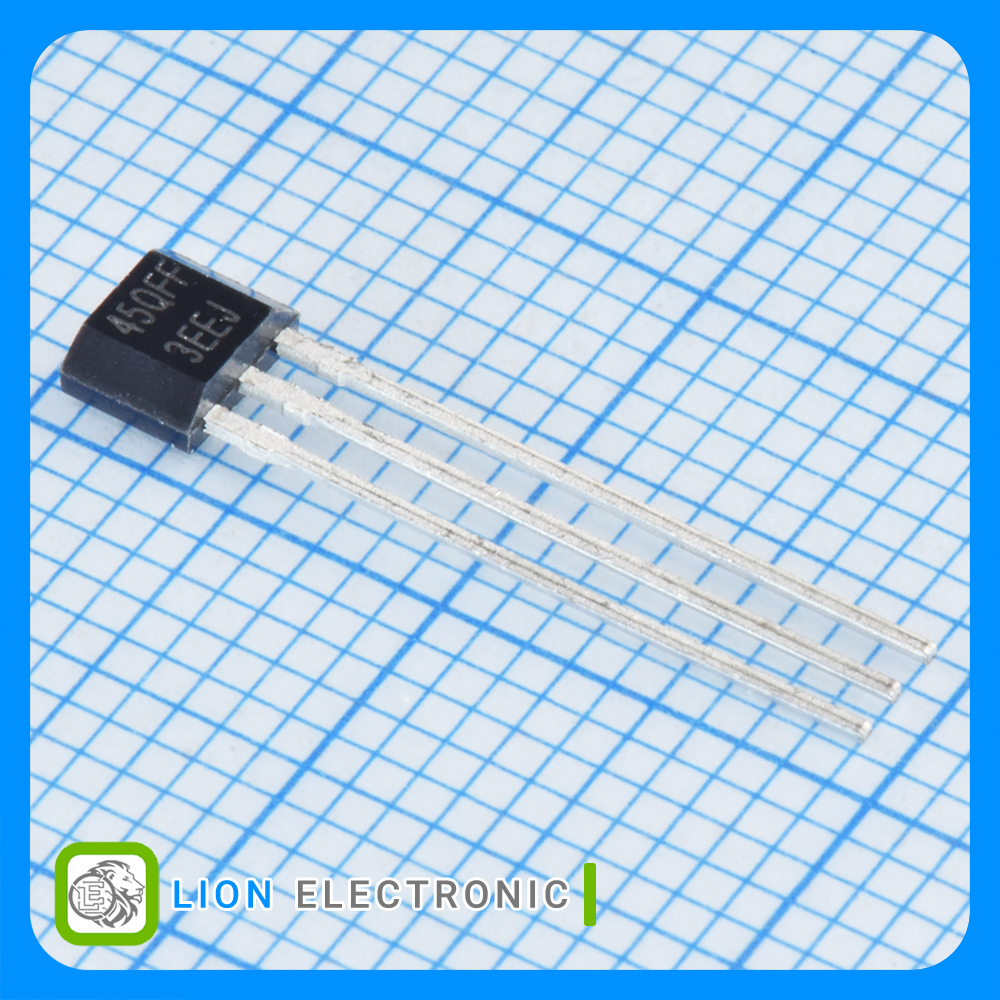

TMAG5213ADQLPG
TMAG5213ADQLPG
Part Number
6698
Lion Part
Datasheet
Texas Instruments Manufacture
سنسور اثر هال لاتچ سه سیمه پهنای باند بالا و ولتاژ بالا با گزینههای حساسیت متعدد، تغذیه 2.5 تا 28 ولت، پکیج TO-92
High-bandwidth, High-voltage Hall-effect Latch Sensor with Multiple sensitivity options, 2.5V - 28V, with TO-92 Package
معرفی
سنسور اثر هال لاتچ سه سیمه پهنای باند بالا و ولتاژ بالا با گزینههای حساسیت متعدد، تغذیه 2.5 تا 28 ولت، پکیج TO-92
High-bandwidth, High-voltage Hall-effect Latch Sensor with Multiple sensitivity options, 2.5V - 28V, with TO-92 Package
Specifications
- Type: Bipolar
- Operating Point Min/Max: 0.83mT to 5.23mT
- Release Point Min/Max (Brp): -5.23mT to -0.83mT
- Operating Supply Voltage: 2.5V - 28V
- Operating Supply Current: 3.5mA
- Maximum Output Current: 30mA
- Mounting Style: SMD/SMT
- Package/Case: TO-92
- Minimum Operating Temperature: -40C
- Maximum Operating Temperature: +125C
مشخصات TMAG5213ADQLPG
TMAG5213ADQLPG
Part Number
---
Packaging
-5.23mT to -0.83mT
Release Point Min-Max (Brp)
-40C
Minimum Operating Temperature
SMD/SMT
Mounting Style
30mA
Maximum Output Current
0.83mT to 5.23mT
Operating Point Min-Max
Bipolar
Type
+125C
Maximum Operating Temperature
2.5V - 28V
Operating Supply Voltage
3.5mA
Operating Supply Current
TO-92
Package-Case
