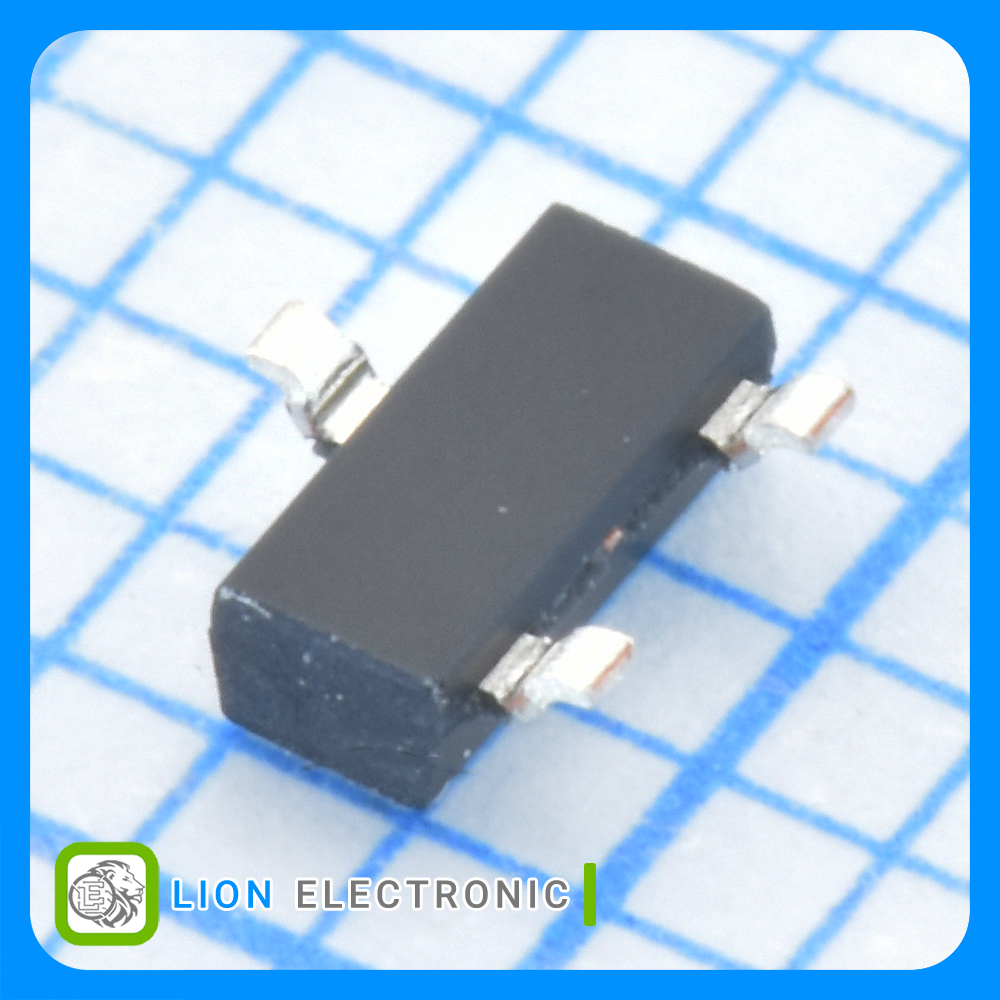

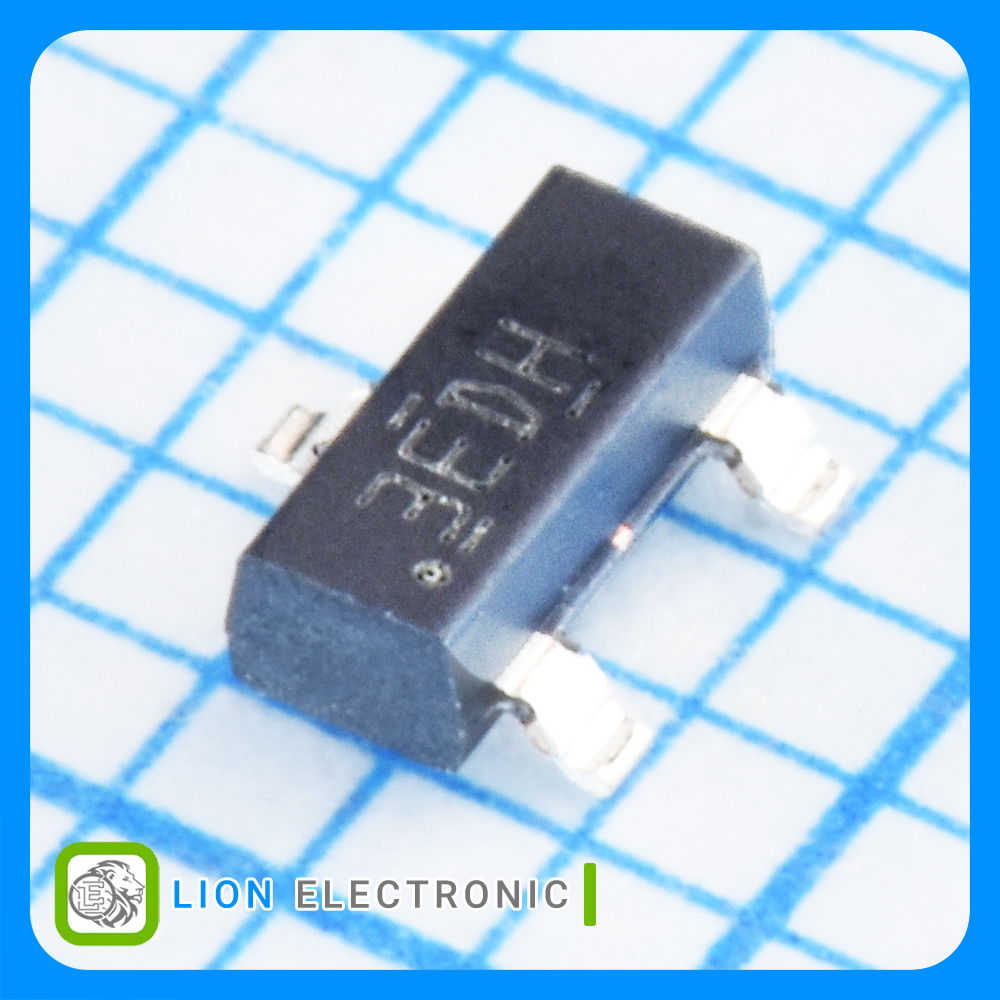

TMAG5213AGQDBZR
TMAG5213AGQDBZR
Part Number
6699
Lion Part
Datasheet
Texas Instruments Manufacture
سنسور اثر هال دو قطبی 2.5 تا 28 ولت با پکیج SOT-23-3
Bipolar Hall-Effect Sensor, 2.5-28V, 3.5mA with SOT-23-3 Package
معرفی
سنسور اثر هال دو قطبی 2.5 تا 28 ولت با پکیج SOT-23-3
Bipolar Hall-Effect Sensor, 2.5-28V, 3.5mA with SOT-23-3 Package
Specifications
- Type: Bipolar
- Operating Point Min/Max: 2.7mT to 9.3mT
- Release Point Min/Max (Brp): -9.3mT to -2.7mT
- Operating Supply Voltage: 2.5V - 28V
- Operating Supply Current: 3.5mA
- Maximum Output Current: 30mA
- Mounting Style: SMD/SMT
- Package/Case: SOT-23-3
- Minimum Operating Temperature: -40C
- Maximum Operating Temperature: +125C
مشخصات TMAG5213AGQDBZR
TMAG5213AGQDBZR
Part Number
---
Packaging
-40C
Minimum Operating Temperature
-9.3mT to -2.7mT
Release Point Min-Max (Brp)
SMD/SMT
Mounting Style
30mA
Maximum Output Current
2.7mT to 9.3mT
Operating Point Min-Max
Bipolar
Type
+125C
Maximum Operating Temperature
2.5V - 28V
Operating Supply Voltage
3.5mA
Operating Supply Current
SOT-23-3
Package-Case
