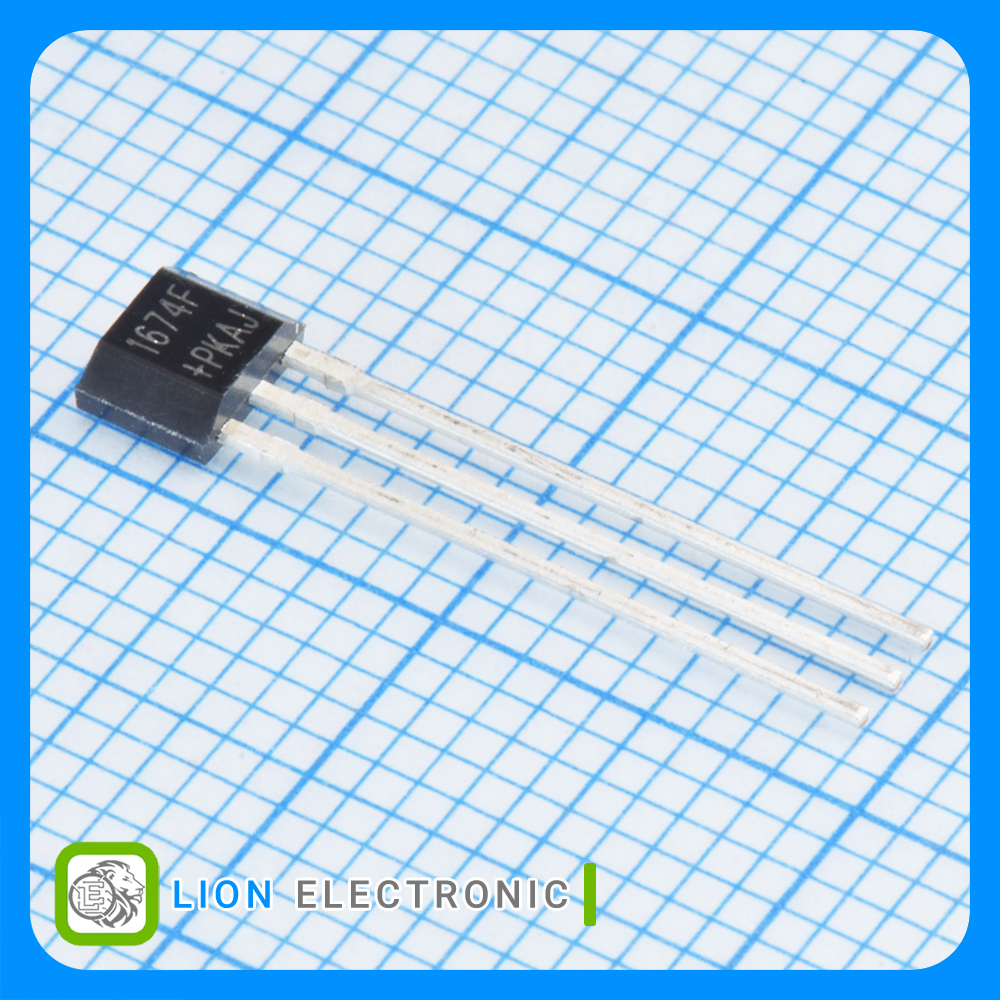

DRV5023AJQLPGMQ1
DRV5023AJQLPGMQ1
Part Number
6705
Lion Part
Datasheet
Texas Instruments Manufacture
سوئیچ اثر هال مخصوص استاندارد خودرویی، ولتاژ 2.7 تا 38 ولت، نقطه عملکرد 3mT تا 12mT، پکیج TO-92-3
Automotive Digital Unipolar-Switch Hall Sensor with Inverse Output Option (FI), Qualified for Automotive Applications, 2.7V - 38V, Operating Point 3mT to 12mT, TO-92-3 Package
معرفی
سوئیچ اثر هال مخصوص استاندارد خودرویی، ولتاژ 2.7 تا 38 ولت، نقطه عملکرد 3mT تا 12mT، پکیج TO-92-3
Automotive Digital Unipolar-Switch Hall Sensor with Inverse Output Option (FI), Qualified for Automotive Applications, 2.7V - 38V, Operating Point 3mT to 12mT, TO-92-3 Package
Specifications
- Type: Hall-Effect Switch
- Operating Point Min/Max: 3mT to 12mT
- Release Point Min/Max (Brp): 1mT to 5mT
- Operating Supply Voltage: 2.7V - 38V
- Operating Supply Current: 3.5mA
- Maximum Output Current: 30mA
- Mounting Style: SMD/SMT
- Package/Case: TO-92-3
- Minimum Operating Temperature: -40C
- Maximum Operating Temperature: +125C
- Packaging: Box
مشخصات DRV5023AJQLPGMQ1
DRV5023AJQLPGMQ1
Part Number
---
Package-Case
--- Hall-Effect Switch
Type
--- Box
Packaging
--- 1mT to 5mT
Release Point Min-Max (Brp)
--- +125C
Maximum Operating Temperature
--- -40C
Minimum Operating Temperature
--- 30mA
Maximum Output Current
--- SMD/SMT
Mounting Style
--- 3mT to 12mT
Operating Point Min-Max
--- 3.5mA
Operating Supply Current
--- 2.7V - 38V
Operating Supply Voltage
