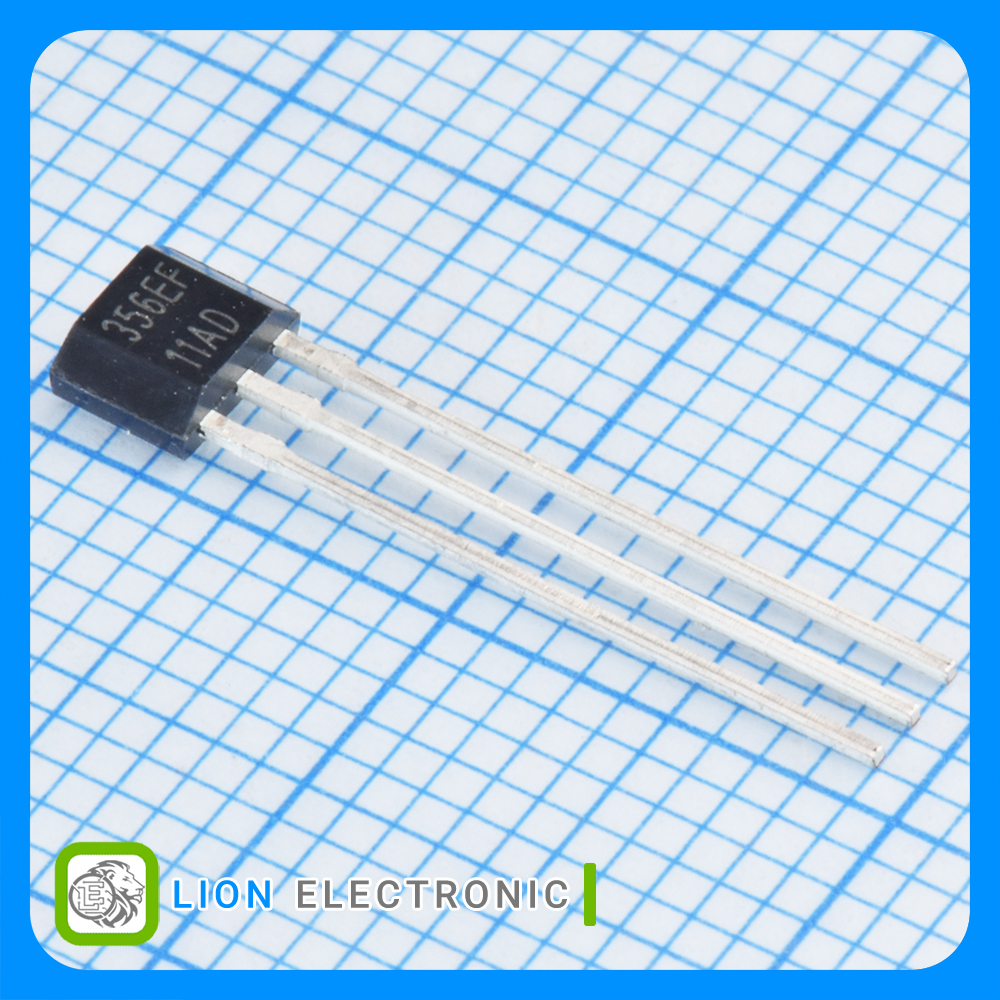

DRV5011ADLPGM
DRV5011ADLPGM
Part Number
6703
Lion Part
Datasheet
Texas Instruments Manufacture
سنسور اثر هال لاتچ دیجیتال ولتاژ پایین با خروجی پوش-پول CMOS و پهنای باند حسگری سریع، تغذیه 2.5 تا 5.5 ولت، پکیج TO-92-3
Low-Voltage Digital-Latch Hall Effect Sensor with Push-Pull CMOS output and Fast sensing bandwidth, 2.5 - 5.5V, with TO-92-3 Package
معرفی
سنسور اثر هال لاتچ دیجیتال ولتاژ پایین با خروجی پوش-پول CMOS و پهنای باند حسگری سریع، تغذیه 2.5 تا 5.5 ولت، پکیج TO-92-3
Low-Voltage Digital-Latch Hall Effect Sensor with Push-Pull CMOS output and Fast sensing bandwidth, 2.5 - 5.5V, with TO-92-3 Package
Specifications
- Type: Hall Effect Sensor
- Operating Point Min/Max: 0.6mT to 3.8mT
- Release Point Min/Max (Brp): -3.8mT to -0.6mT
- Operating Supply Voltage: 2.5 - 5.5V
- Operating Supply Current: 3mA
- Maximum Output Current: 5mA
- Mounting Style: SMD/SMT
- Package/Case: TO-92-3
- Minimum Operating Temperature: -40C
- Maximum Operating Temperature: +135C
- Packaging: Bag
مشخصات DRV5011ADLPGM
DRV5011ADLPGM
Part Number
Bag
Packaging
5mA
Maximum Output Current
-40C
Minimum Operating Temperature
SMD/SMT
Mounting Style
0.6mT to 3.8mT
Operating Point Min-Max
-3.8mT to -0.6mT
Release Point Min-Max (Brp)
+135C
Maximum Operating Temperature
2.5 - 5.5V
Operating Supply Voltage
3mA
Operating Supply Current
Hall Effect Sensor
Type
