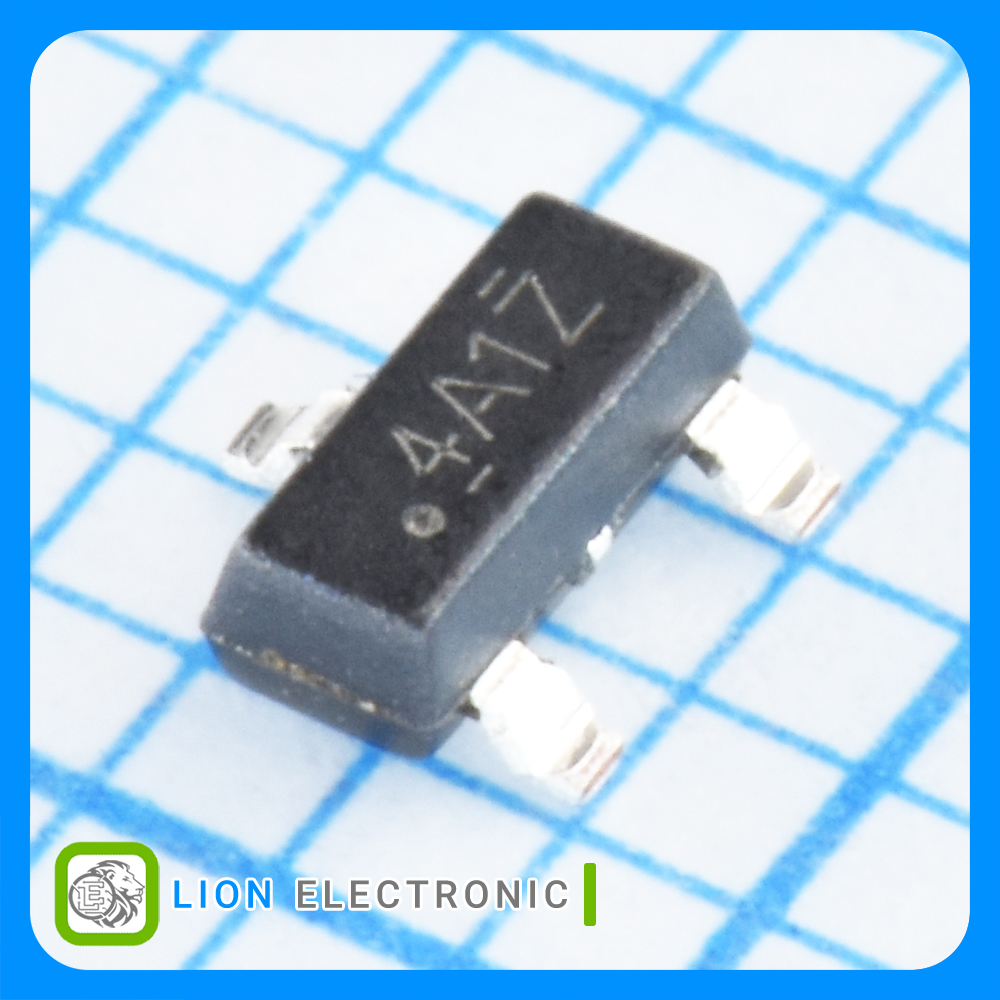

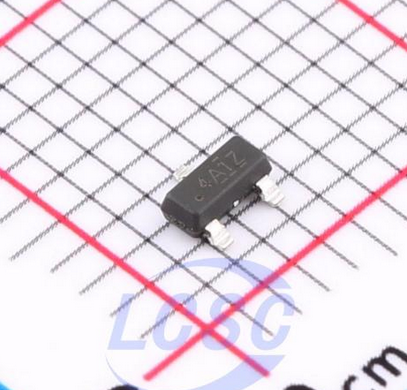

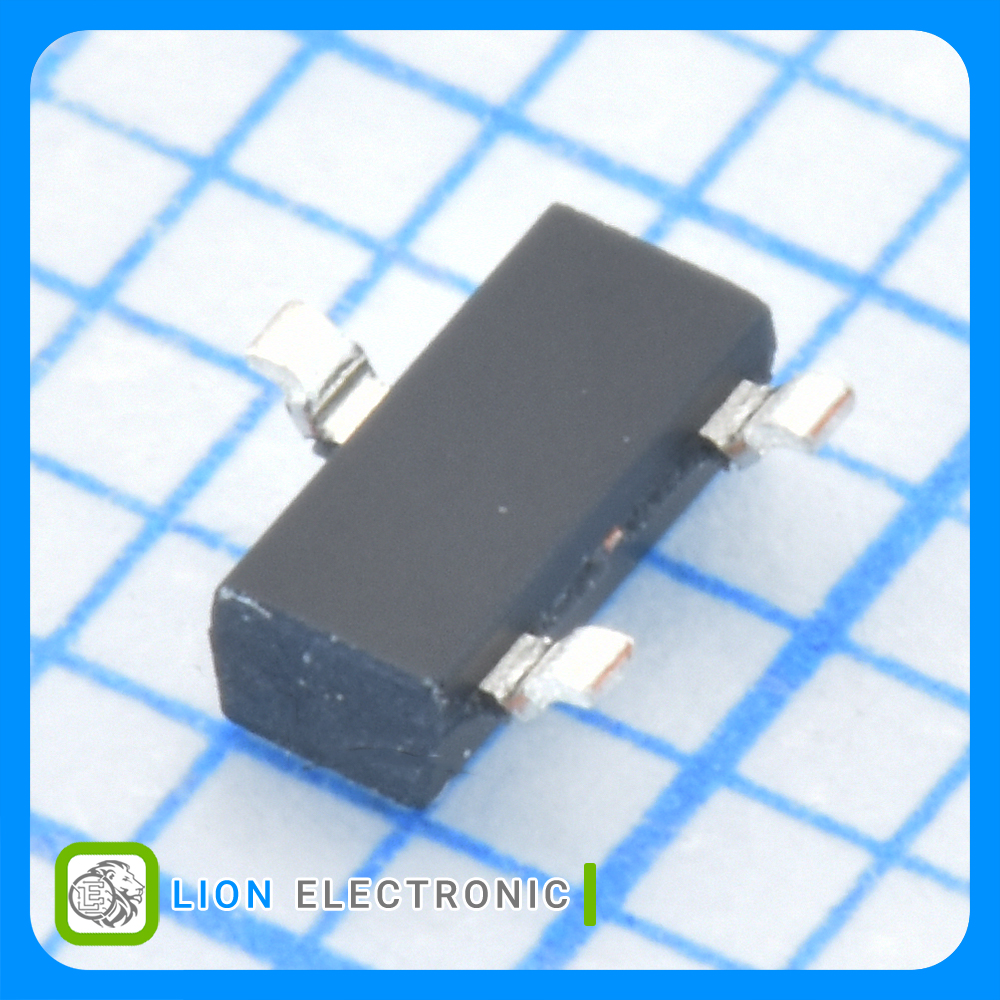

TMAG5124A1CEDBZRQ1
TMAG5124A1CEDBZRQ1
Part Number
6700
Lion Part
Datasheet
Texas Instruments Manufacture
سنسور کلید اثر هال دو سیمه خودرویی ولتاژ بالا تا 38 ولت با دقت بالا، تغذیه 2.7 تا 38 ولت، پکیج SOT-23-3
Automotive 2-wire High-voltage (up to 38 V) high-precision Hall-Effect Switch, 2.7V - 38V, with SOT-23-3 Package
معرفی
سنسور کلید اثر هال دو سیمه خودرویی ولتاژ بالا تا 38 ولت با دقت بالا، تغذیه 2.7 تا 38 ولت، پکیج SOT-23-3
Automotive 2-wire High-voltage (up to 38 V) high-precision Hall-Effect Switch, 2.7V - 38V, with SOT-23-3 Package
Specifications
- Type: Hall-Effect Switch
- Operating Point Min/Max: 3mT to 5mT
- Release Point Min/Max (Brp): 1mT to 3mT
- Operating Supply Voltage: 2.7V - 38V
- Operating Supply Current: 18mA
- Maximum Output Current: 3.5mA
- Mounting Style: SMD/SMT
- Package/Case: SOT-23-3
- Minimum Operating Temperature: -40C
- Maximum Operating Temperature: +150C
- Packaging: Reel
مشخصات TMAG5124A1CEDBZRQ1
TMAG5124A1CEDBZRQ1
Part Number
3.5mA
Maximum Output Current
Reel
Packaging
-40C
Minimum Operating Temperature
SMD/SMT
Mounting Style
1mT to 3mT
Release Point Min-Max (Brp)
3mT to 5mT
Operating Point Min-Max
+150C
Maximum Operating Temperature
Hall-Effect Switch
Type
2.7V - 38V
Operating Supply Voltage
18mA
Operating Supply Current
SOT-23-3
Package-Case
