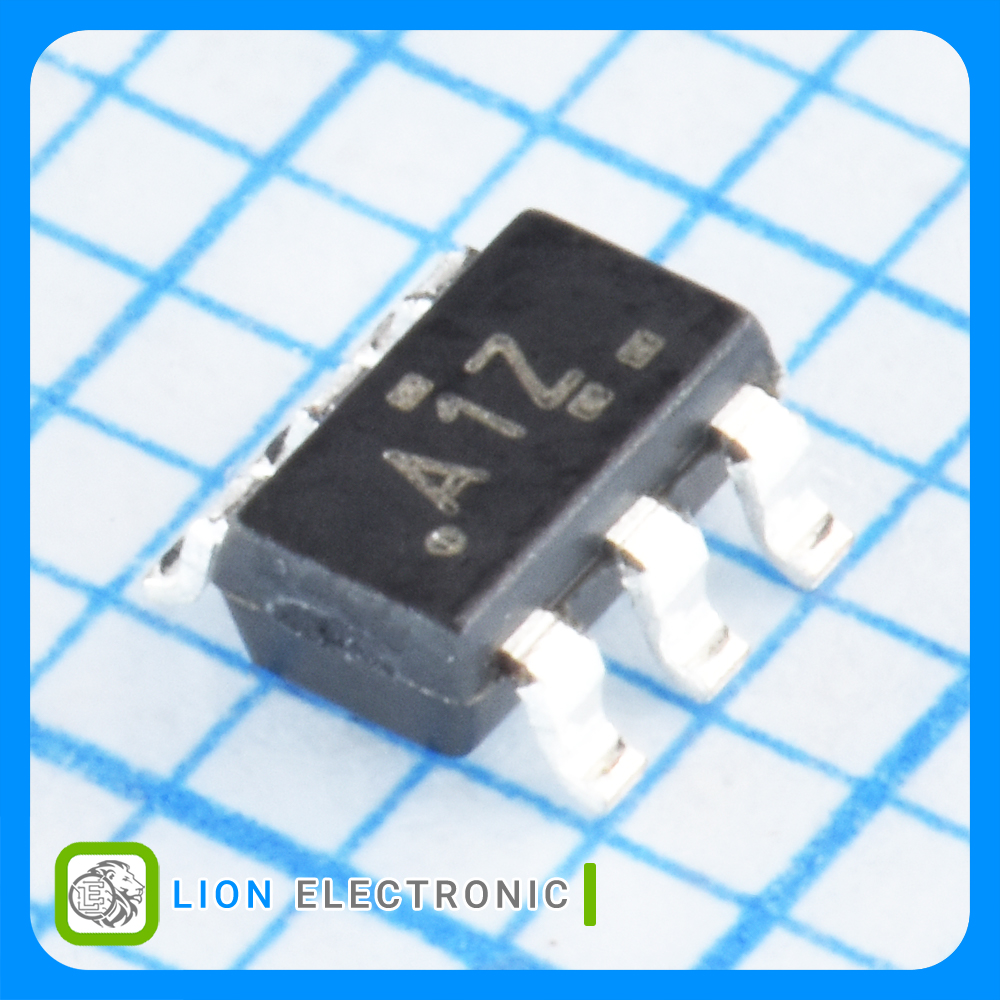

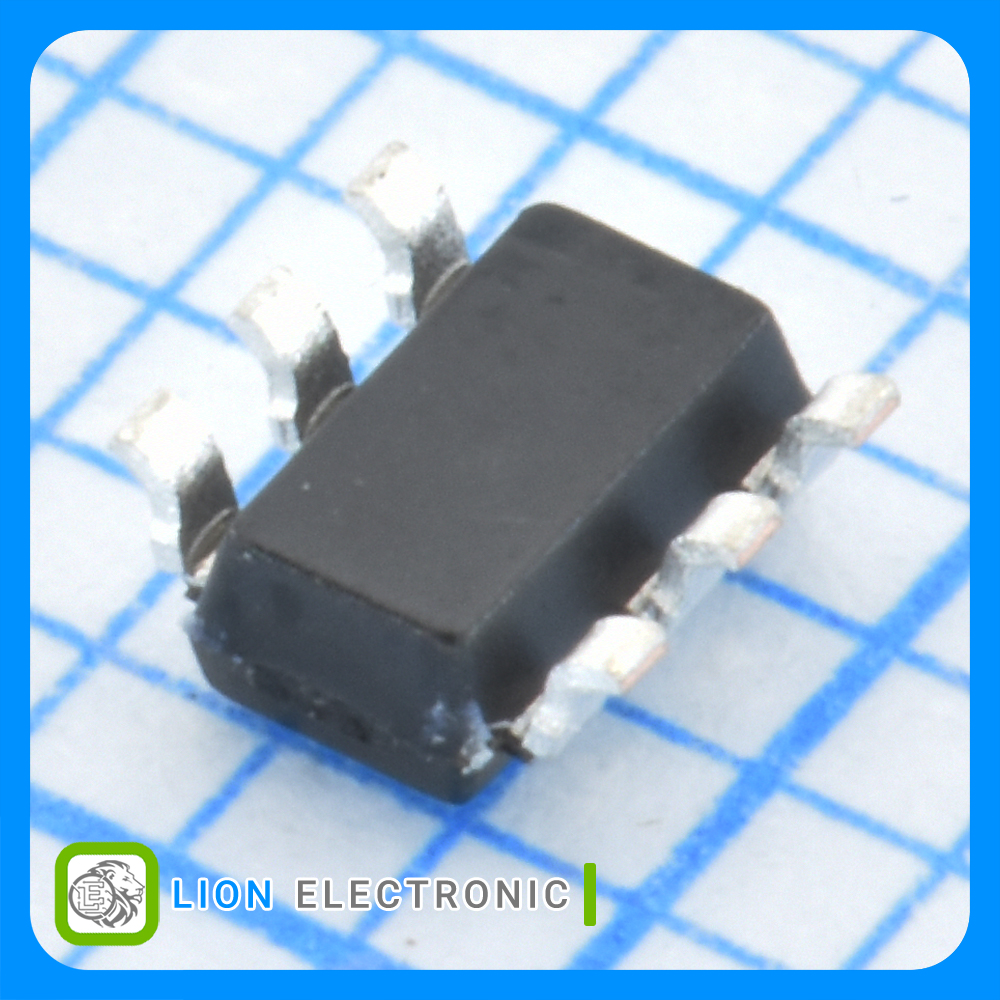

TMAG5328A1ZQDBVR
TMAG5328A1ZQDBVR
Part Number
6702
Lion Part
Datasheet
Texas Instruments Manufacture
سوئیچ اثر هال کم مصرف با ولتاژ و مقاومت قابل تنظیم، ولتاژ 1.65 تا 5.5 ولت و نقطه عملکرد ±2mT تا ±15mT با پکیج SOT-23-6
Low-Power Resistor and Voltage Adjustable Hall Effect Switch, 1.65 - 5.5V, Operating Point ±2mT to ±15mT with SOT-23-6 Package
معرفی
سوئیچ اثر هال کم مصرف با ولتاژ و مقاومت قابل تنظیم، ولتاژ 1.65 تا 5.5 ولت و نقطه عملکرد ±2mT تا ±15mT با پکیج SOT-23-6
Low-Power Resistor and Voltage Adjustable Hall Effect Switch, 1.65 - 5.5V, Operating Point ±2mT to ±15mT with SOT-23-6 Package
Specifications
- Type: Hall-Effect Switch
- Operating Point Min/Max: ±2mT to ±15mT
- Release Point Min/Max (Brp): ±1.5mT to ±14.5mT
- Operating Supply Voltage: 1.65 - 5.5V
- Operating Supply Current: 2.1mA
- Maximum Output Current: 5mA
- Mounting Style: SMD/SMT
- Package/Case: SOT-23-6
- Minimum Operating Temperature: -65C
- Maximum Operating Temperature: +150C
- Packaging: Reel
مشخصات TMAG5328A1ZQDBVR
TMAG5328A1ZQDBVR
Part Number
--- Hall-Effect Switch
Type
--- Reel
Packaging
--- +150C
Maximum Operating Temperature
--- ±1.5mT to ±14.5mT
Release Point Min-Max (Brp)
--- -65C
Minimum Operating Temperature
--- 5mA
Maximum Output Current
--- SMD/SMT
Mounting Style
--- ±2mT to ±15mT
Operating Point Min-Max
--- 2.1mA
Operating Supply Current
--- 1.65 - 5.5V
Operating Supply Voltage
--- SOT-23-6
Package-Case
