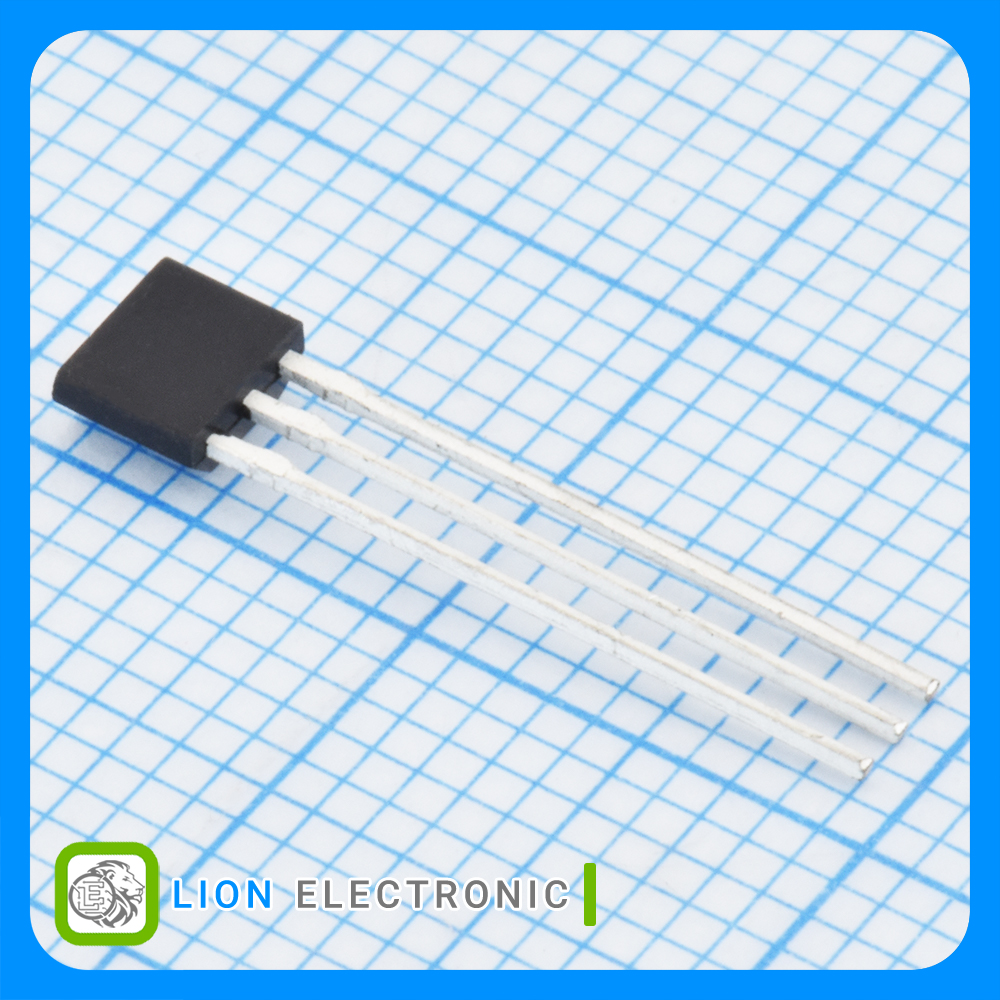

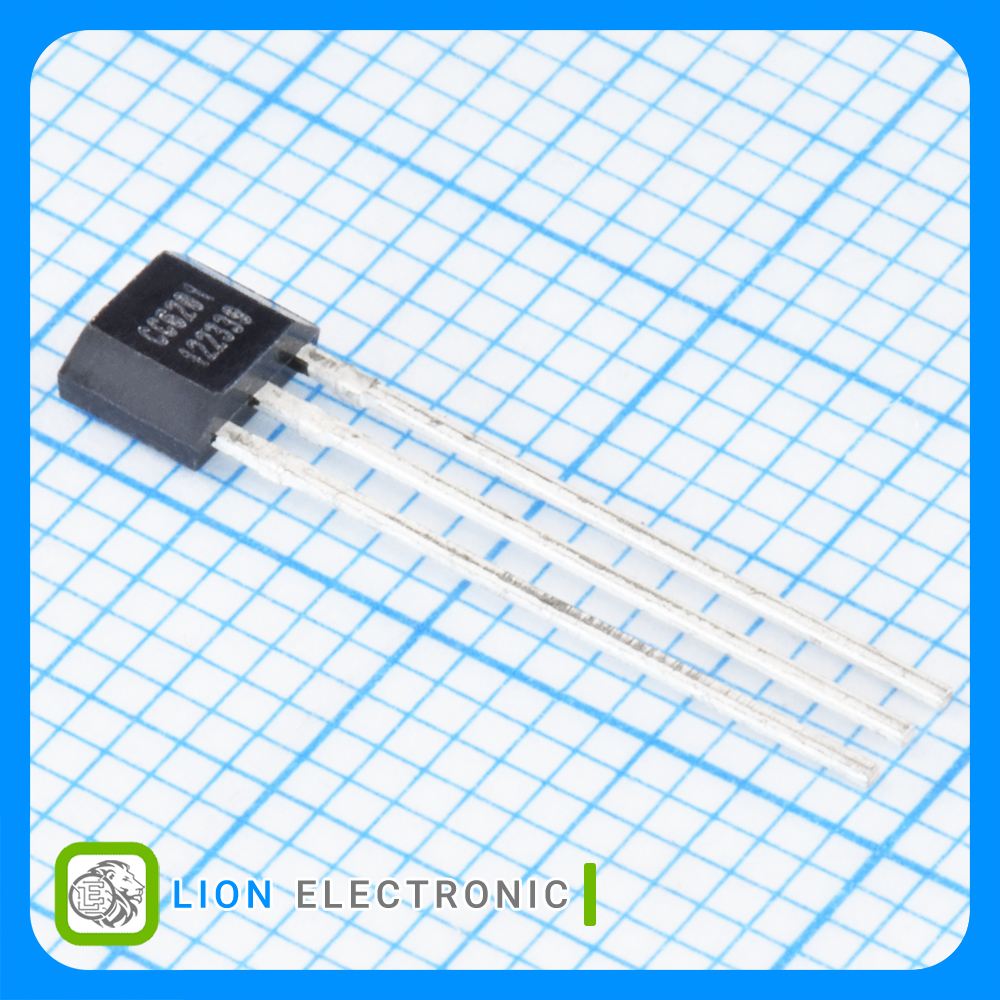

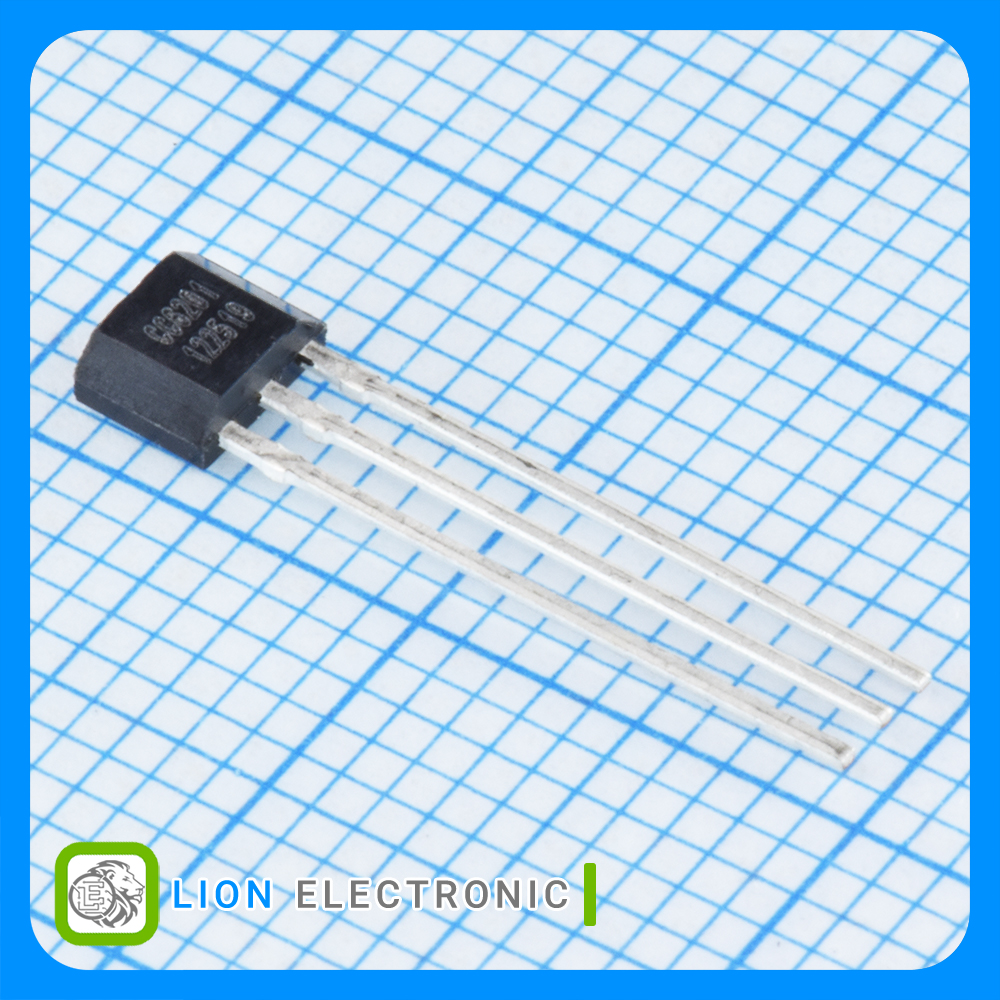

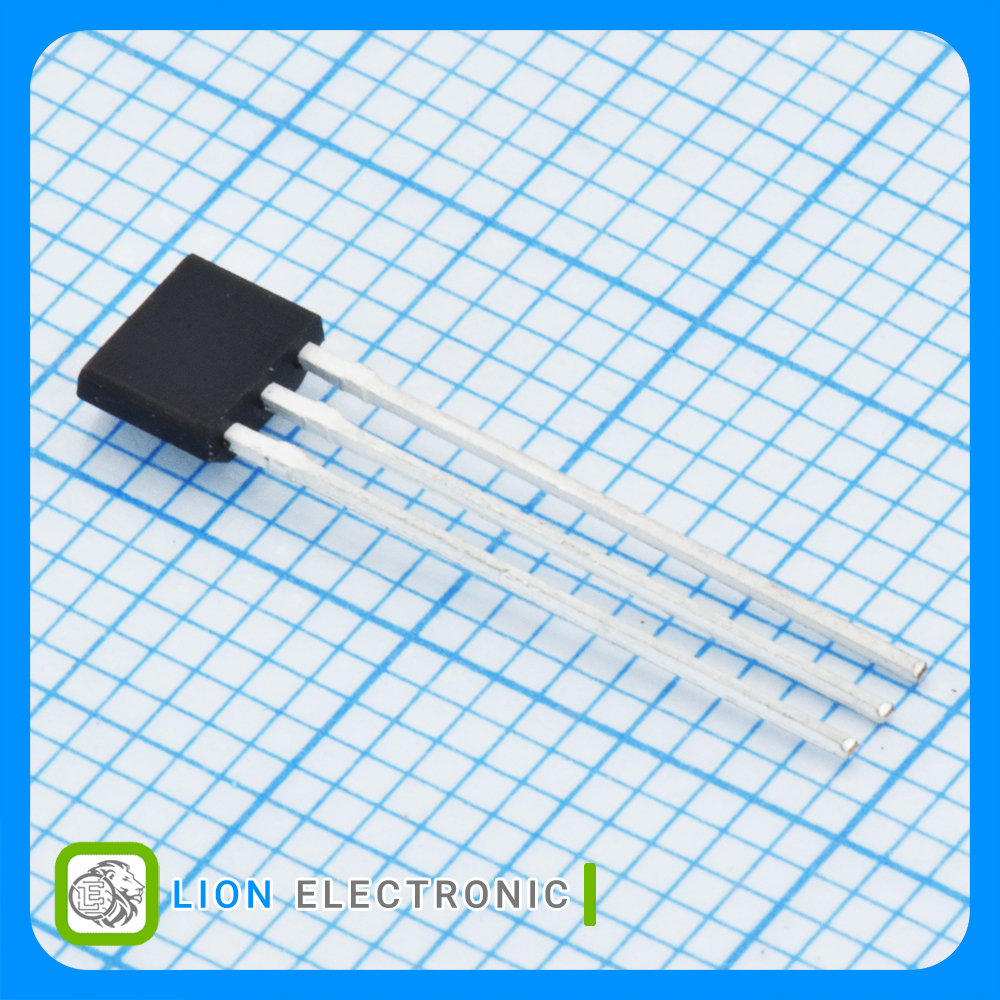

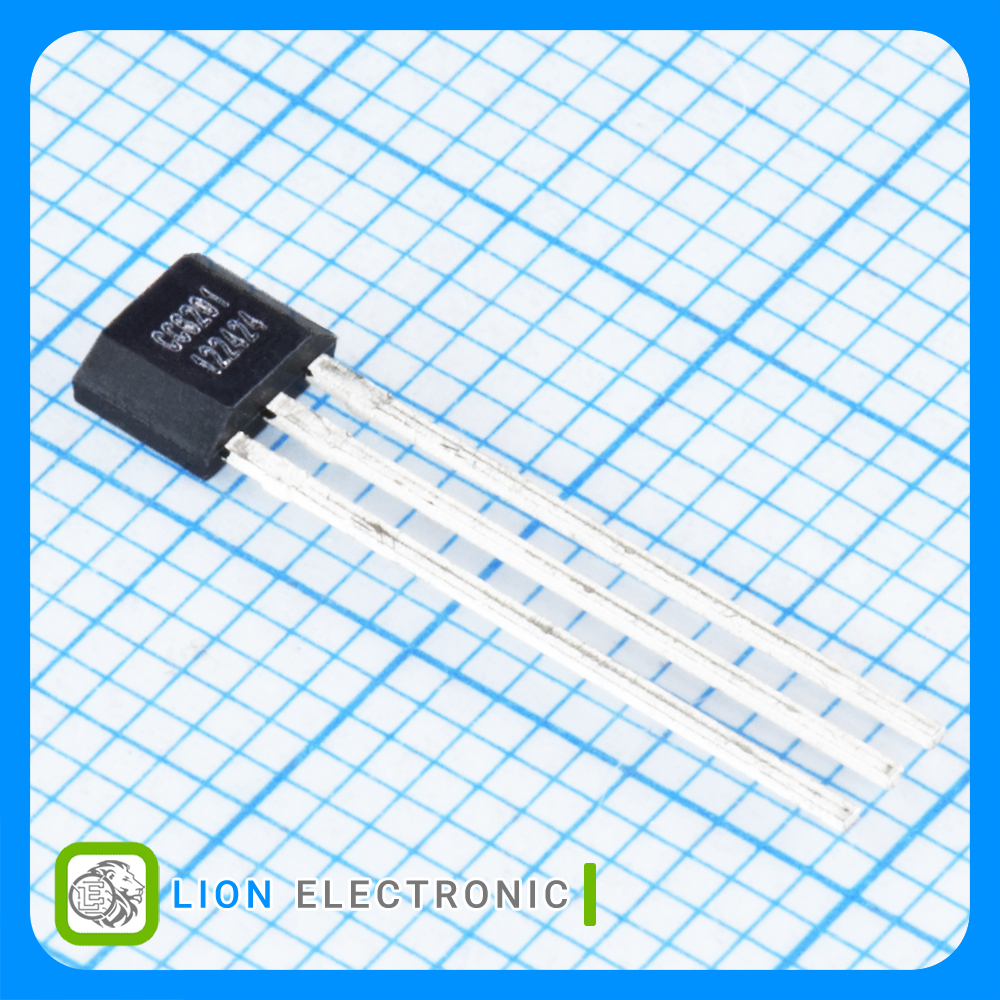

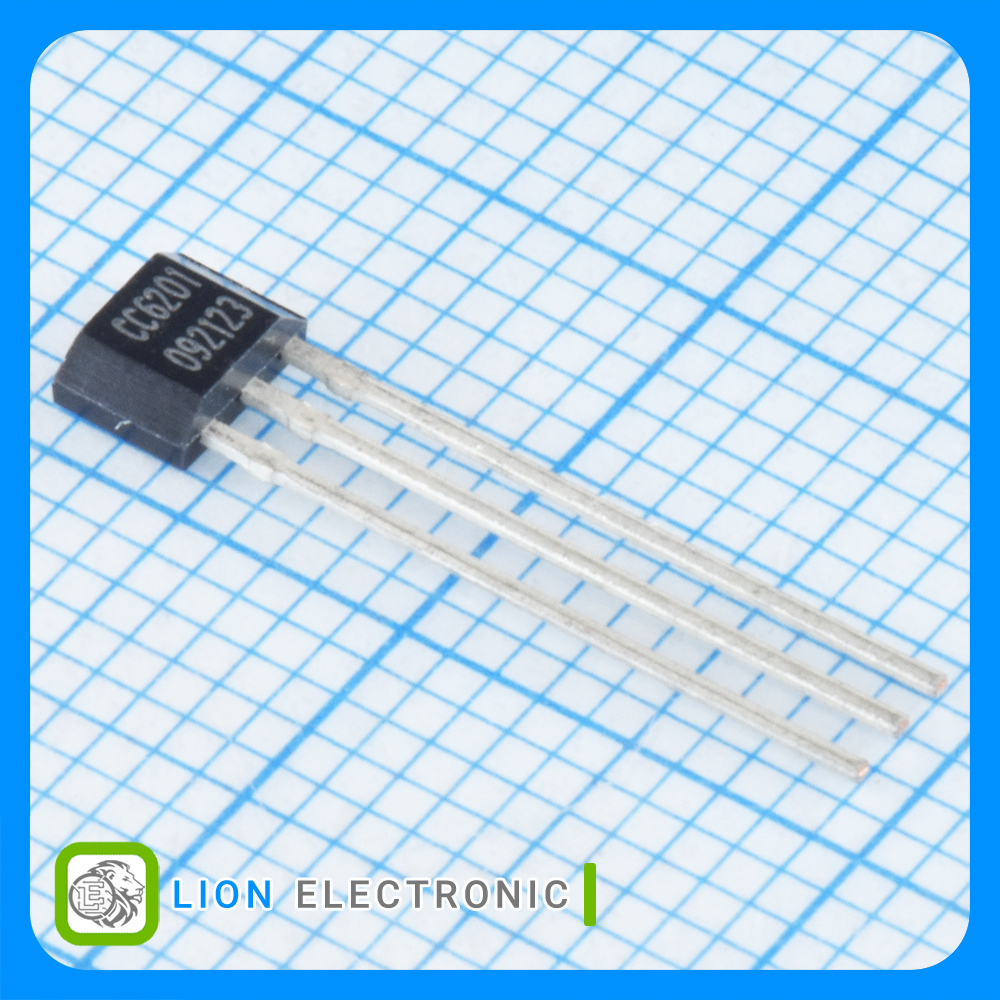

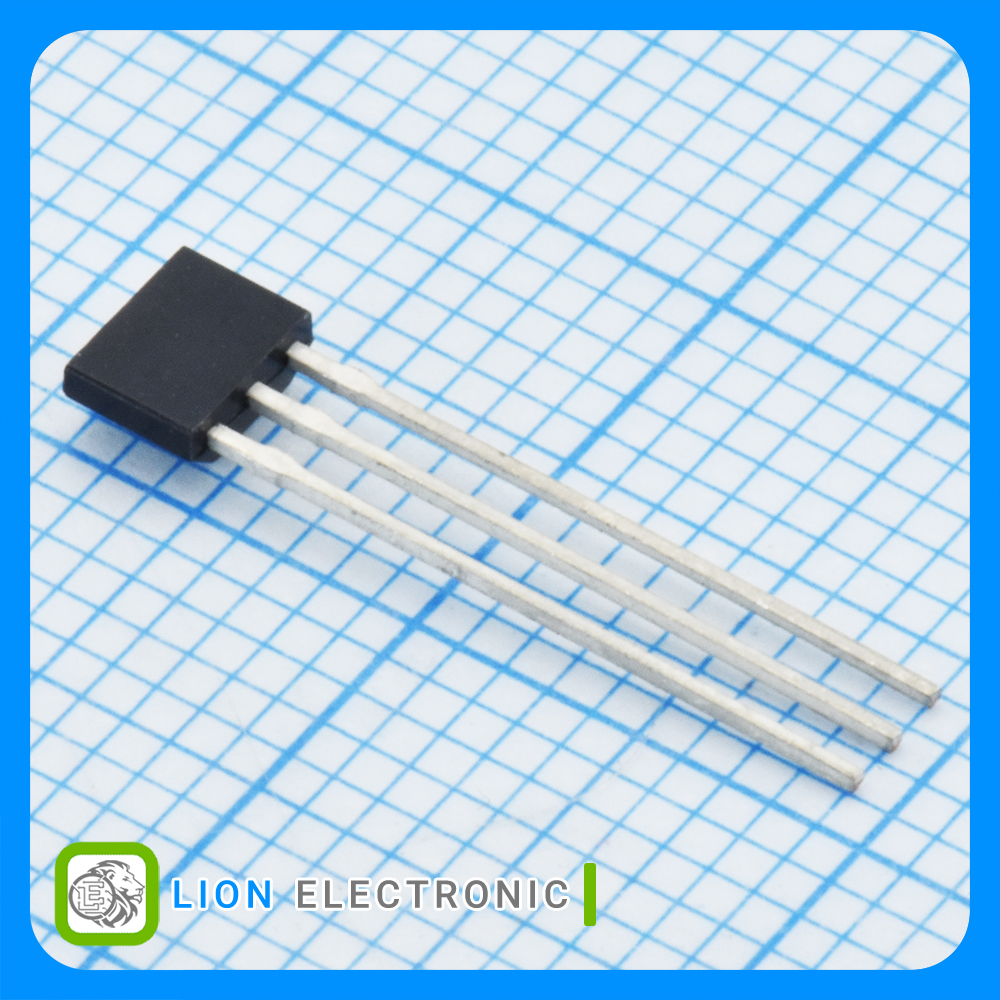

CC6201TO
CC6201TO
Part Number
6006
Lion Part
Datasheet
Cross chip Manufacture
سوئیچ اثر هال با ولتاژ 2 تا 5 ولت و نقطه عملکرد ±40G با پکیج TO-92-Flat-3
Hall Effect Switch Hall-Effect Switch, 2 - 5V, Operating Point ±40G with TO-92-Flat-3 Package
معرفی
سوئیچ اثر هال با ولتاژ 2 تا 5 ولت و نقطه عملکرد ±40G با پکیج TO-92-Flat-3
Hall Effect Switch Hall-Effect Switch, 2 - 5V, Operating Point ±40G with TO-92-Flat-3 Package
Specifications
- Type: Hall-Effect Switch
- Operating Point Min/Max: ±40G
- Release Point Min/Max (Brp): ±32G
- Operating Supply Voltage: 2 - 5V
- Operating Supply Current: 2mA
- Mounting Style: Through Hole
- Package/Case: TO-92-Flat-3
- Minimum Operating Temperature: -40C
- Maximum Operating Temperature: +150C
- Packaging: Bulk
مشخصات هال سوئیچ CC6201TO
هال سوئیچ CC6201TO
Part Number
--- Hall-Effect Switch
Type
--- Bulk
Packaging
--- +150C
Maximum Operating Temperature
--- ±32G
Release Point Min-Max (Brp)
--- -40C
Minimum Operating Temperature
--- N/A
Maximum Output Current
--- Through Hole
Mounting Style
--- ±40G
Operating Point Min-Max
--- 2mA
Operating Supply Current
--- 2 - 5V
Operating Supply Voltage
--- TO-92-Flat-3
Package-Case
