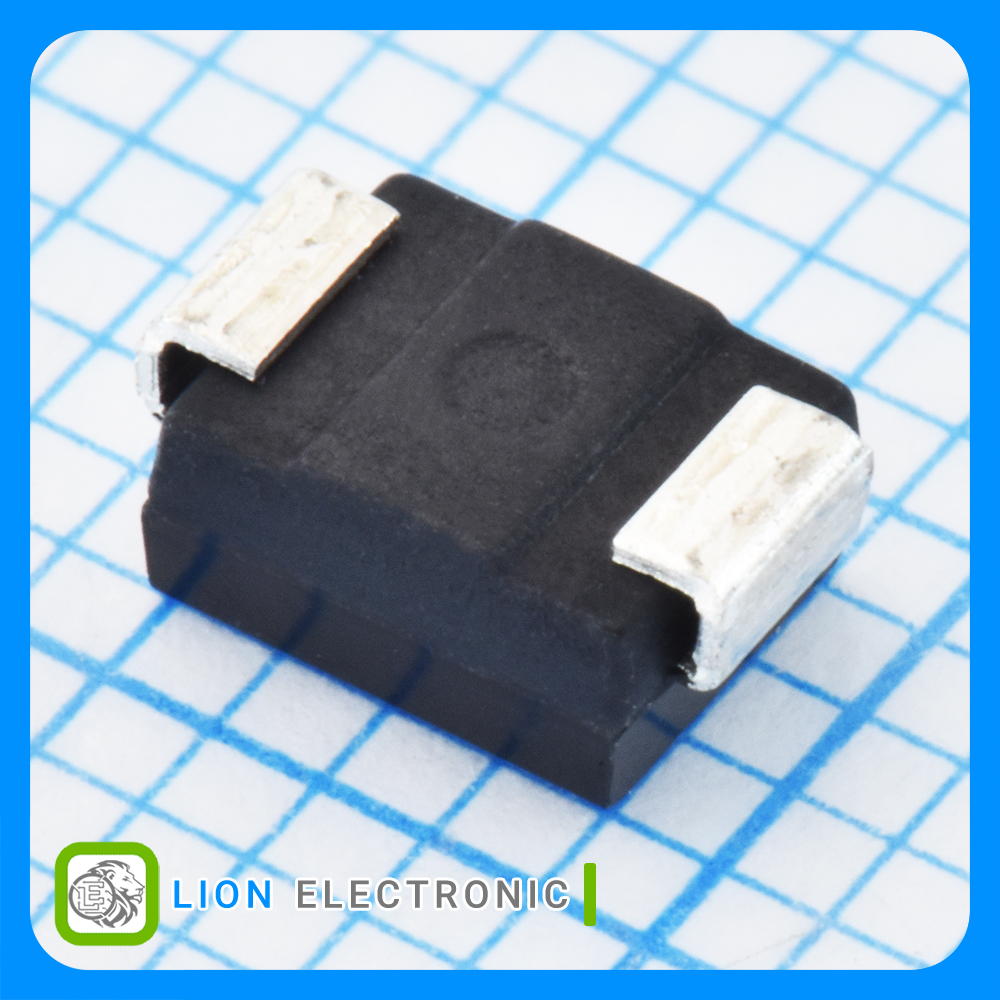

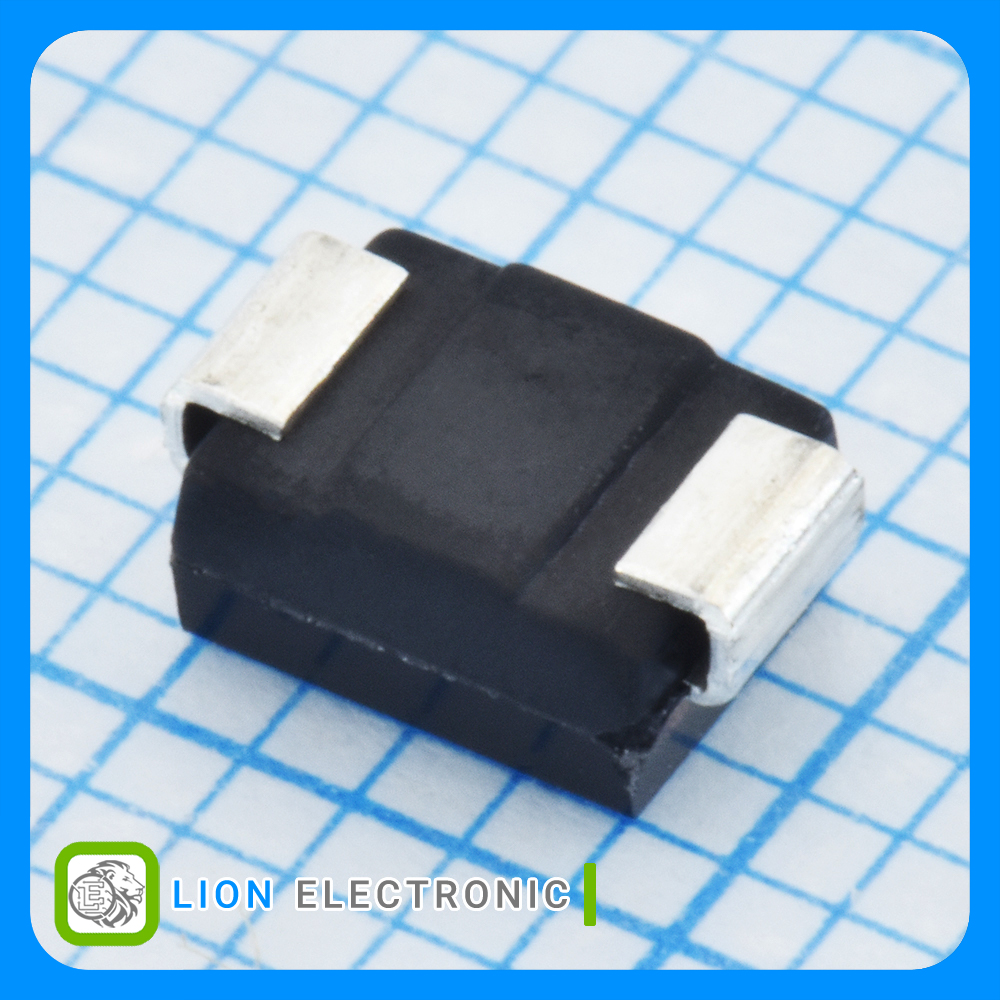

SMBJ15A
SMBJ15A
Part Number
115
Lion Part
Datasheet
Vishay Semiconductors Manufacture
دیود TVS یکطرفه 15 ولت 600 وات با بیشینه پالس جریان 24.6 آمپر با پکیج DO-214AA (SMB)
TVS Diode Uni-directional 15V, 600W, Peak Pulse Current 24.6A with DO-214AA (SMB) Package
معرفی
دیود TVS یکطرفه 15 ولت 600 وات با بیشینه پالس جریان 24.6 آمپر با پکیج DO-214AA (SMB)
TVS Diode Uni-directional 15V, 600W, Peak Pulse Current 24.6A with DO-214AA (SMB) Package
Specifications
- Product Type: TVS Diodes
- Polarity: Unidirectional
- Number of Channels: 1
- Working Voltage: 15V
- Breakdown Voltage: 18.5V
- Clamping Voltage: 24.4V
- Pppm - Peak Pulse Power Dissipation: 600W
- Ipp - Peak Pulse Current: 24.6A
- Termination style: SMD/SMT
- Package/Case: DO-214AA (SMB)
- Minimum Operating Temperature: -55C
- Maximum Operating Temperature: +150C
- Packaging: Reel
مشخصات SMBJ15A
SMBJ15A
Part Number
1
Number of Channels
-55C
Minimum Operating Temperature
N/A
Vesd - Voltage ESD Air Gap
SMD/SMT
Termination style
Reel
Packaging
N/A
Vesd - Voltage ESD Contact
Unidirectional
Polarity
600W
Pppm - Peak Pulse Power Dissipation
15V
Working Voltage
+150C
Maximum Operating Temperature
24.4V
Clamping Voltage
N/A
Cd - Diode Capacitance
18.5V
Breakdown Voltage
24.6A
Ipp - Peak Pulse Current
TVS Diodes
Product Type
DO-214AA (SMB)
Package-Case
