MDD
معرفی

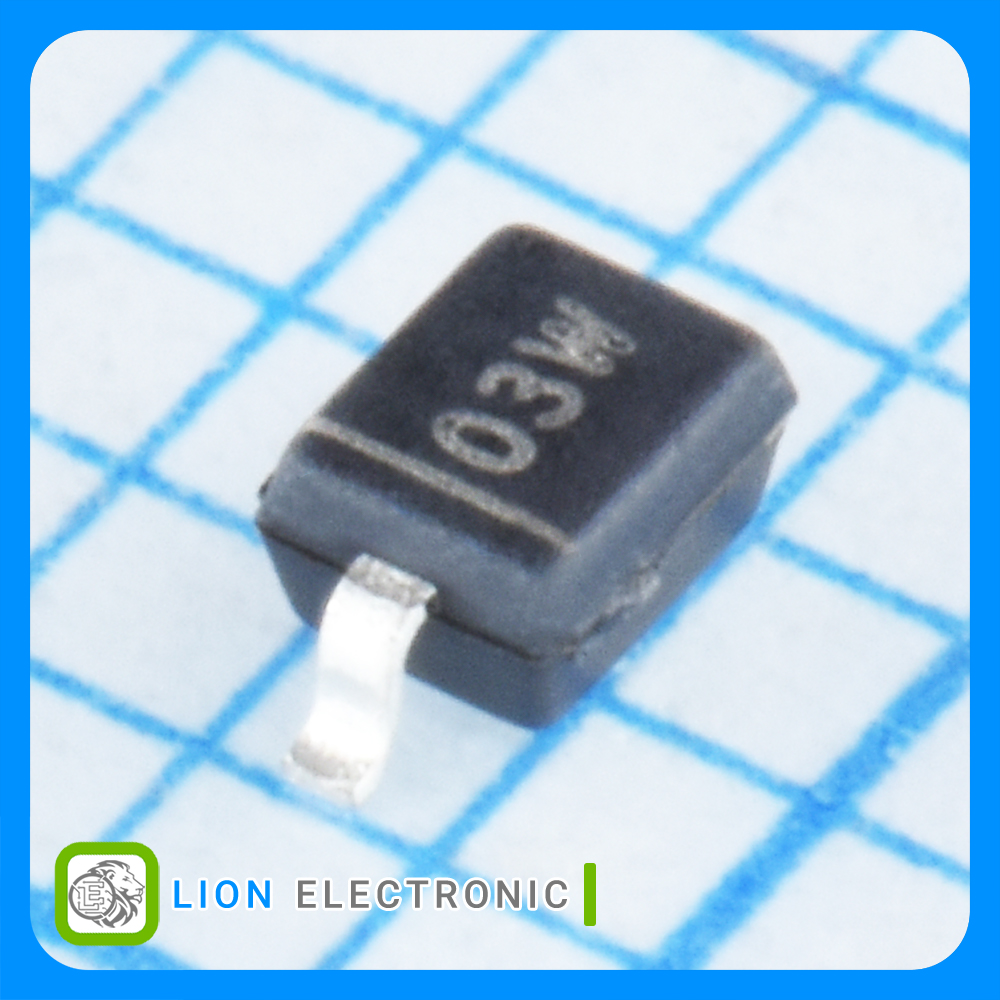

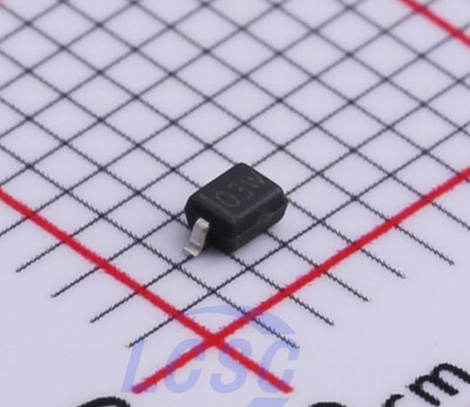

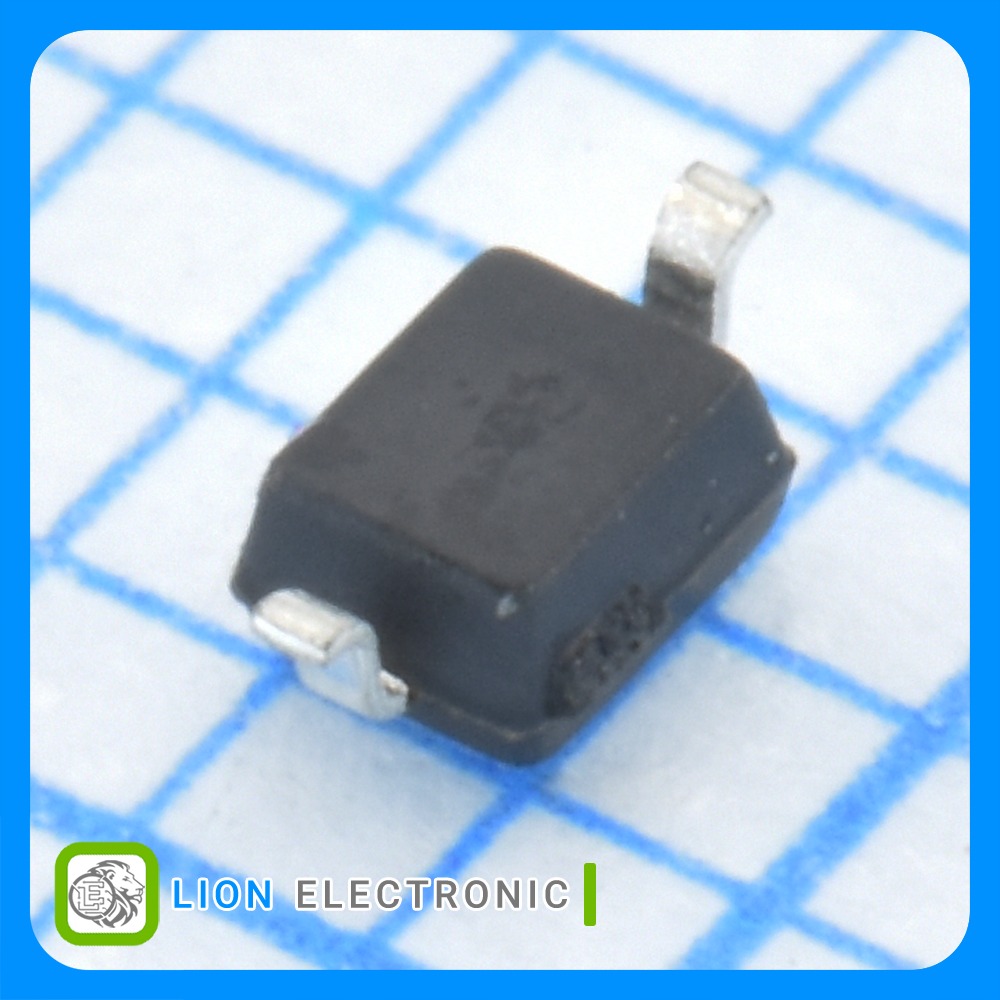

دیود TVS یکطرفه 3.3 ولت با بیشینه پالس جریان 20 آمپر و توان پالس 350 وات، پکیج SOD-323
TVS Diode Uni-directional 3.3V, 20A Peak Pulse Current, 350W, with SOD-323 Package
Specifications
- Product Type: TVS Diodes
- Polarity: Unidirectional
- Number of Channels: 1
- Working Voltage: 3.3V
- Breakdown Voltage: 4V
- Clamping Voltage: 16V
- Pppm - Peak Pulse Power Dissipation: 350W
- Vesd - Voltage ESD Contact: 30kV
- Vesd - Voltage ESD Air Gap: 30kV
- Cd - Diode Capacitance: 450pF
- Ipp - Peak Pulse Current: 20A
- Termination style: SMD/SMT
- Package/Case: SOD-323
- Minimum Operating Temperature: -55C
- Maximum Operating Temperature: +150C

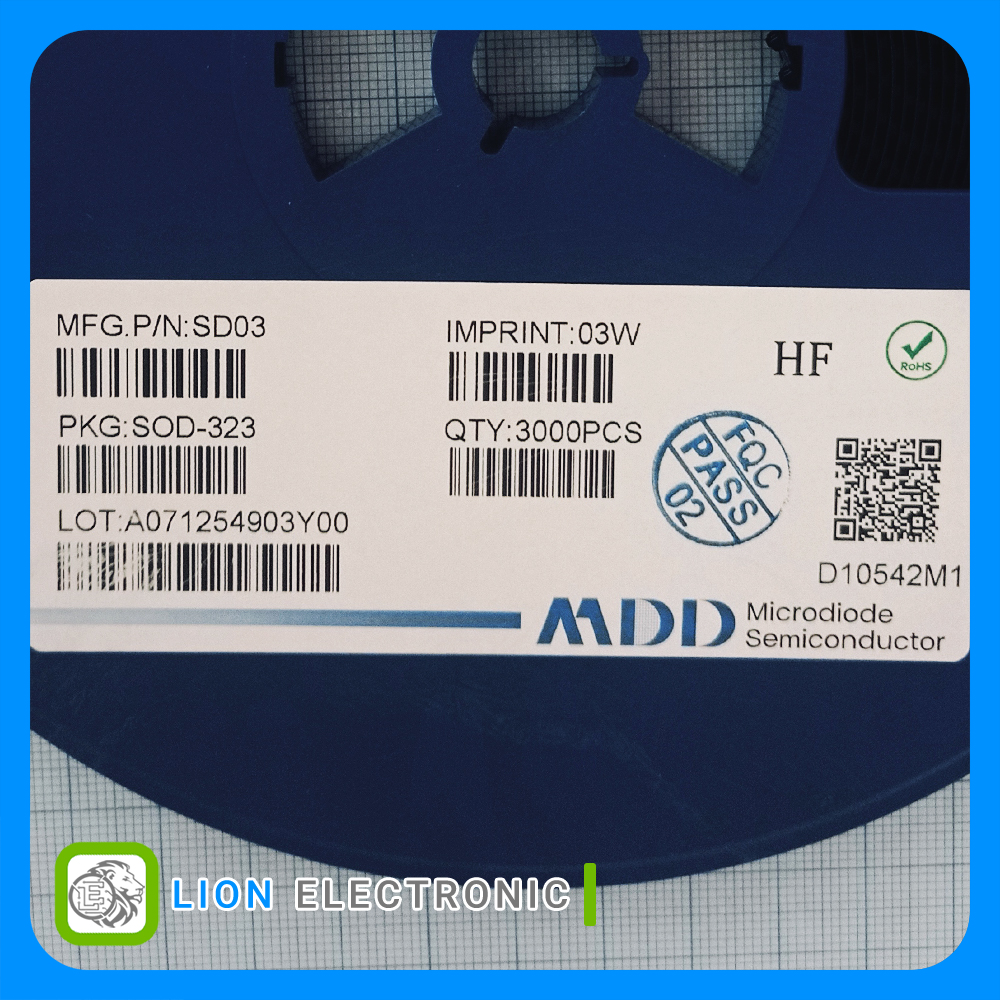

- Packaging: Reel
مشخصات SD03
SD03
Part Number
1
Number of Channels
4V
Breakdown Voltage
3.3V
Working Voltage
-55C
Minimum Operating Temperature
30kV
Vesd - Voltage ESD Air Gap
SMD/SMT
Termination style
Reel
Packaging
30kV
Vesd - Voltage ESD Contact
Unidirectional
Polarity
350W
Pppm - Peak Pulse Power Dissipation
+150C
Maximum Operating Temperature
16V
Clamping Voltage
450pF
Cd - Diode Capacitance
20A
Ipp - Peak Pulse Current
TVS Diodes
Product Type
SOD-323
Package-Case
