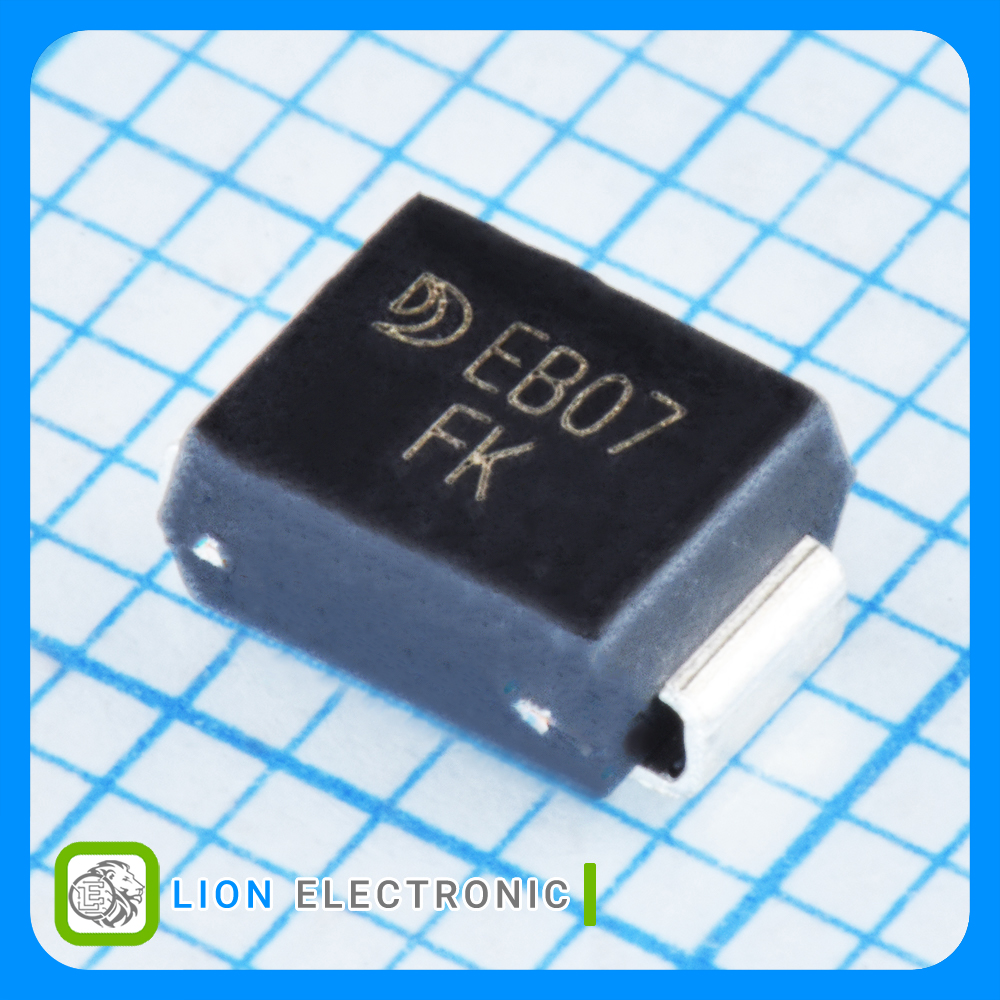

SMBJ400CA
SMBJ400CA
Part Number
6436
Lion Part
Datasheet
Jingdao Microelectronics Manufacture
دیود TVS دوطرفه 400 ولت 600 وات با بیشینه پالس جریان 900 میلیآمپر با پکیج DO-214AA (SMB)
TVS Diode Bidirectional 400V, 600W, Peak Pulse Current 900mA with DO-214AA (SMB) Package
معرفی
دیود TVS دوطرفه 400 ولت 600 وات با بیشینه پالس جریان 900 میلیآمپر با پکیج DO-214AA (SMB)
TVS Diode Bidirectional 400V, 600W, Peak Pulse Current 900mA with DO-214AA (SMB) Package
Specifications
- Product Type: TVS Diodes
- Polarity: Bidirectional
- Number of Channels: 1
- Working Voltage: 400V
- Breakdown Voltage: 447V
- Clamping Voltage: 648V
- Pppm - Peak Pulse Power Dissipation: 600W
- Vesd - Voltage ESD Contact: 30kV
- Vesd - Voltage ESD Air Gap: 30kV
- Cd - Diode Capacitance: 0.05pF
- Ipp - Peak Pulse Current: 900mA
- Termination style: SMD/SMT
- Package/Case: DO-214AA (SMB)
- Minimum Operating Temperature: -65C
- Maximum Operating Temperature: +150C
- Packaging: Reel
مشخصات SMBJ400CA
SMBJ400CA
Part Number
1
Number of Channels
0.05pF
Cd - Diode Capacitance
Bidirectional
Polarity
-65C
Minimum Operating Temperature
900mA
Ipp - Peak Pulse Current
30kV
Vesd - Voltage ESD Air Gap
SMD/SMT
Termination style
Reel
Packaging
30kV
Vesd - Voltage ESD Contact
600W
Pppm - Peak Pulse Power Dissipation
+150C
Maximum Operating Temperature
400V
Working Voltage
648V
Clamping Voltage
447V
Breakdown Voltage
TVS Diodes
Product Type
DO-214AA (SMB)
Package-Case
