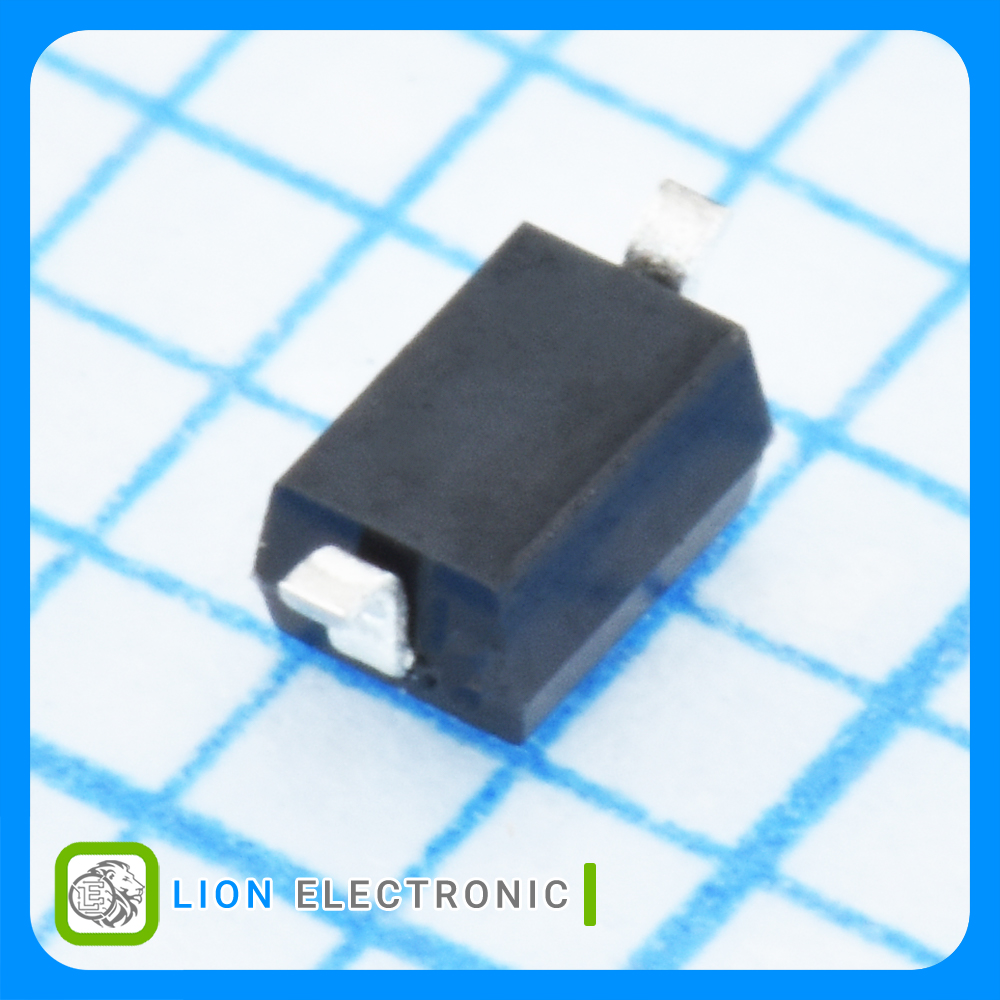

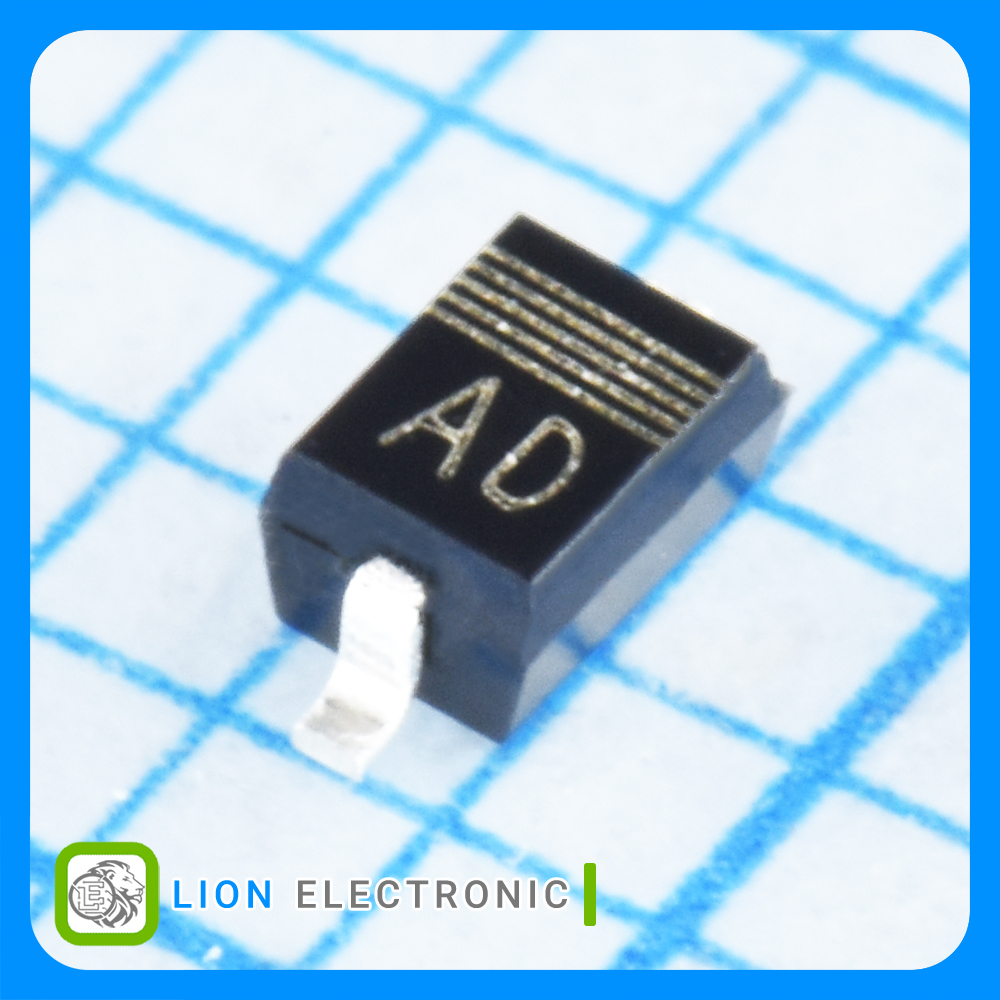

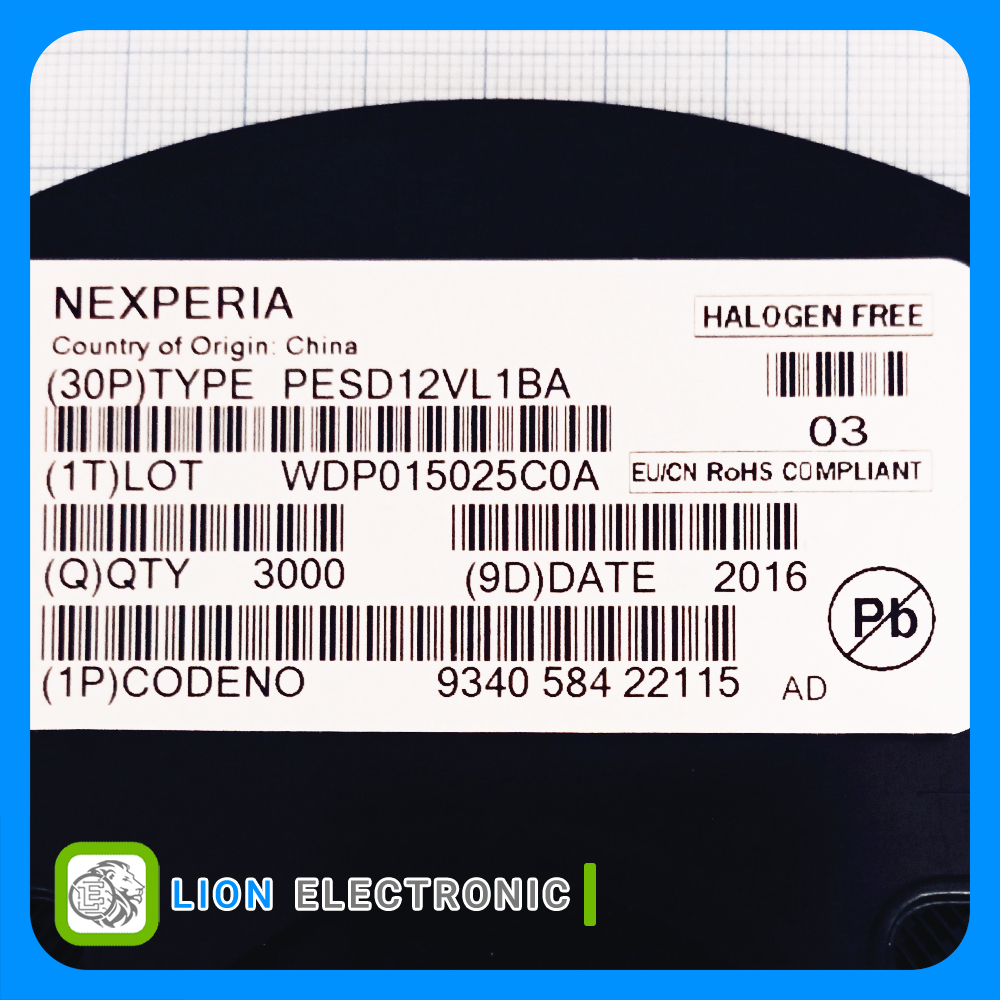

PESD12VL1BA
Nexperia
معرفی
دیود محافظ ESD دو طرفه با ظرفیت پایین، ولتاژ کاری 12 ولت، ولتاژ شکست 15.9 ولت، توان 200 وات با پکیج SOD-323
Low Capacitance Bidirectional ESD Protection TVS Diode, 12V Working, 15.9V Breakdown, 200W with SOD-323 Package
Specifications
- Product Type: ESD Suppressors
- Polarity: Bidirectional
- Number of Channels: 1
- Working Voltage: 12V
- Breakdown Voltage: 15.9V
- Clamping Voltage: 37V
- Pppm - Peak Pulse Power Dissipation: 200W
- Vesd - Voltage ESD Contact: 30kV
- Vesd - Voltage ESD Air Gap: 15kV
- Cd - Diode Capacitance: 19pF
- Ipp - Peak Pulse Current: 5A
- Termination style: SMD/SMT
- Package/Case: SOD-323
- Minimum Operating Temperature: -65C
- Maximum Operating Temperature: +150C
- Packaging: Reel
مشخصات PESD12VL1BA
PESD12VL1BA
Part Number
Bidirectional
Polarity
1
Number of Channels
15kV
Vesd - Voltage ESD Air Gap
-65C
Minimum Operating Temperature
SMD/SMT
Termination style
Reel
Packaging
30kV
Vesd - Voltage ESD Contact
200W
Pppm - Peak Pulse Power Dissipation
12V
Working Voltage
19pF
Cd - Diode Capacitance
5A
Ipp - Peak Pulse Current
+150C
Maximum Operating Temperature
ESD Suppressors
Product Type
15.9V
Breakdown Voltage
37V
Clamping Voltage
SOD-323
Package-Case
