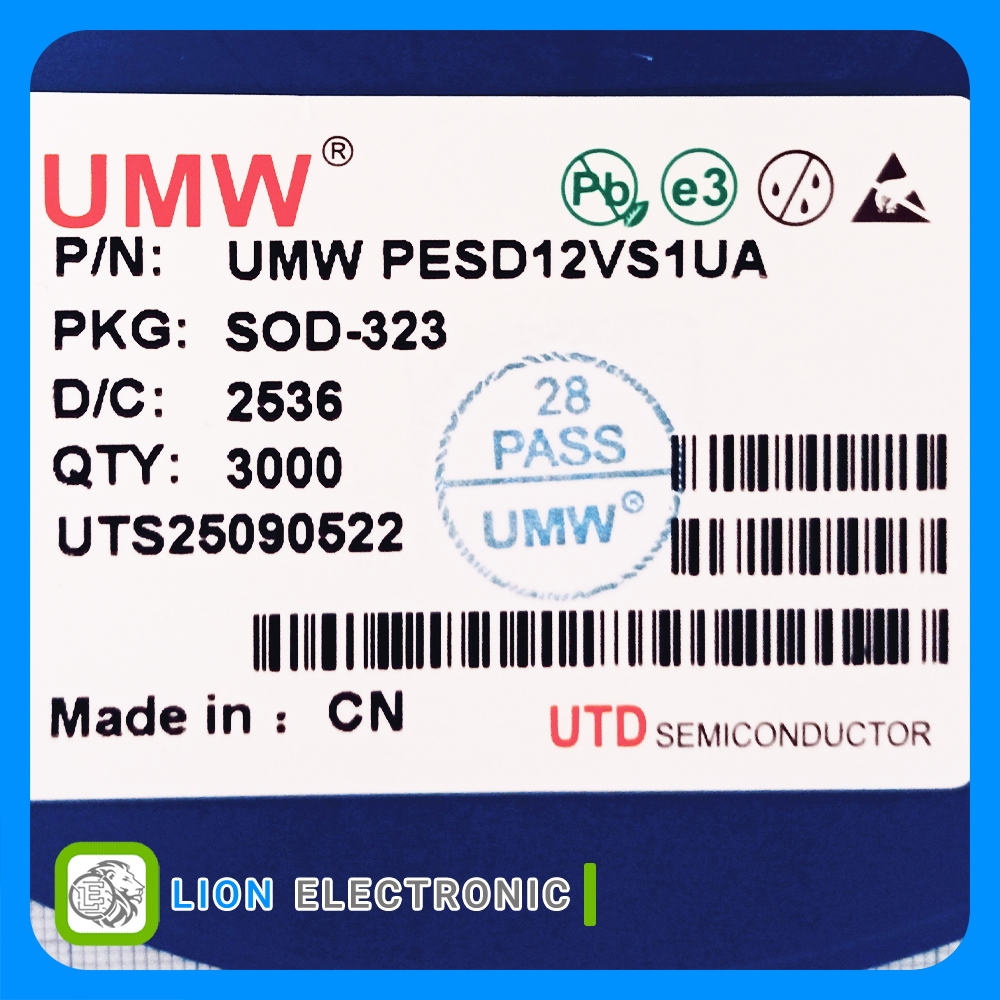

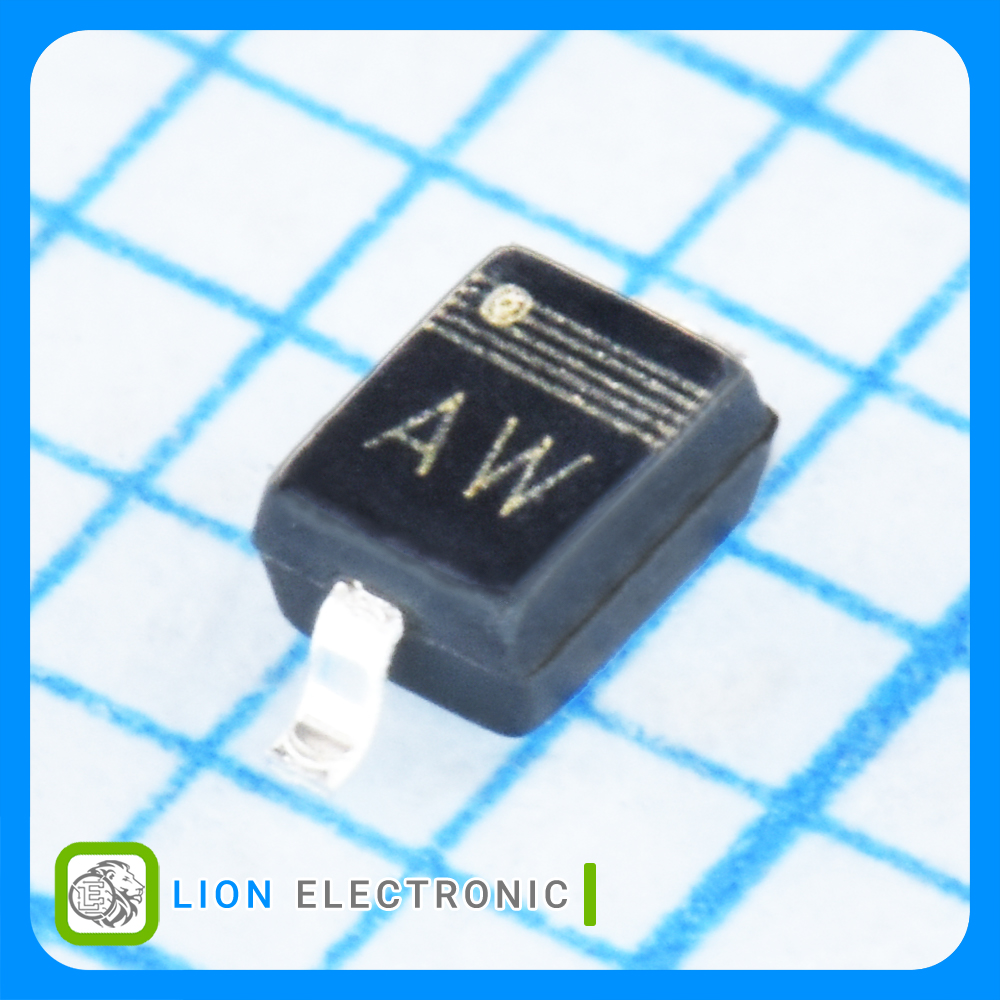

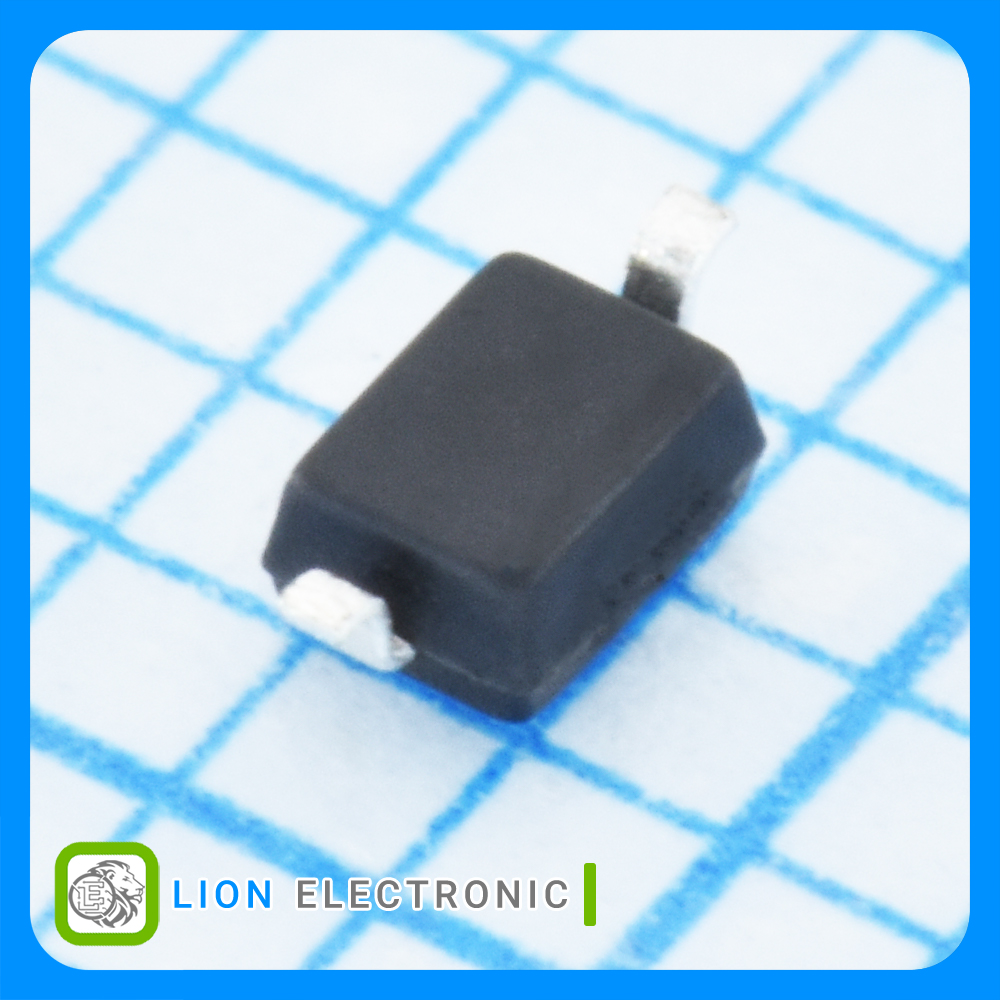

PESD12VS1UA
PESD12VS1UA
Part Number
6409
Lion Part
Datasheet
Nexperia Manufacture
دیود TVS محافظ ESD یکطرفه با ولتاژ کاری 12 ولت، ولتاژ شکست 14.5 ولت، ولتاژ کلمپ 27 ولت و توان پالس 600 وات با پکیج SOD-323
TVS Diode Unidirectional ESD Protection for Transient Voltage Suppression, 12V Working, 14.5V Breakdown, 27V Clamping, 600W with SOD-323 Package
معرفی
دیود TVS محافظ ESD یکطرفه با ولتاژ کاری 12 ولت، ولتاژ شکست 14.5 ولت، ولتاژ کلمپ 27 ولت و توان پالس 600 وات با پکیج SOD-323
TVS Diode Unidirectional ESD Protection for Transient Voltage Suppression, 12V Working, 14.5V Breakdown, 27V Clamping, 600W with SOD-323 Package
Specifications
- Product Type: ESD Suppressors
- Polarity: Unidirectional
- Number of Channels: 1
- Working Voltage: 12V
- Breakdown Voltage: 14.5V
- Clamping Voltage: 27V
- Pppm - Peak Pulse Power Dissipation: 600W
- Vesd - Voltage ESD Contact: 30kV
- Vesd - Voltage ESD Air Gap: 15kV
- Cd - Diode Capacitance: 160pF
- Ipp - Peak Pulse Current: 22.5A
- Termination style: SMD/SMT
- Package/Case: SOD-323
- Minimum Operating Temperature: -55C
- Maximum Operating Temperature: +150C
- Packaging: Reel
مشخصات PESD12VS1UA
PESD12VS1UA
Part Number
1
Number of Channels
15kV
Vesd - Voltage ESD Air Gap
-55C
Minimum Operating Temperature
SMD/SMT
Termination style
Reel
Packaging
30kV
Vesd - Voltage ESD Contact
Unidirectional
Polarity
12V
Working Voltage
600W
Pppm - Peak Pulse Power Dissipation
+150C
Maximum Operating Temperature
ESD Suppressors
Product Type
160pF
Cd - Diode Capacitance
27V
Clamping Voltage
14.5V
Breakdown Voltage
22.5A
Ipp - Peak Pulse Current
SOD-323
Package-Case
