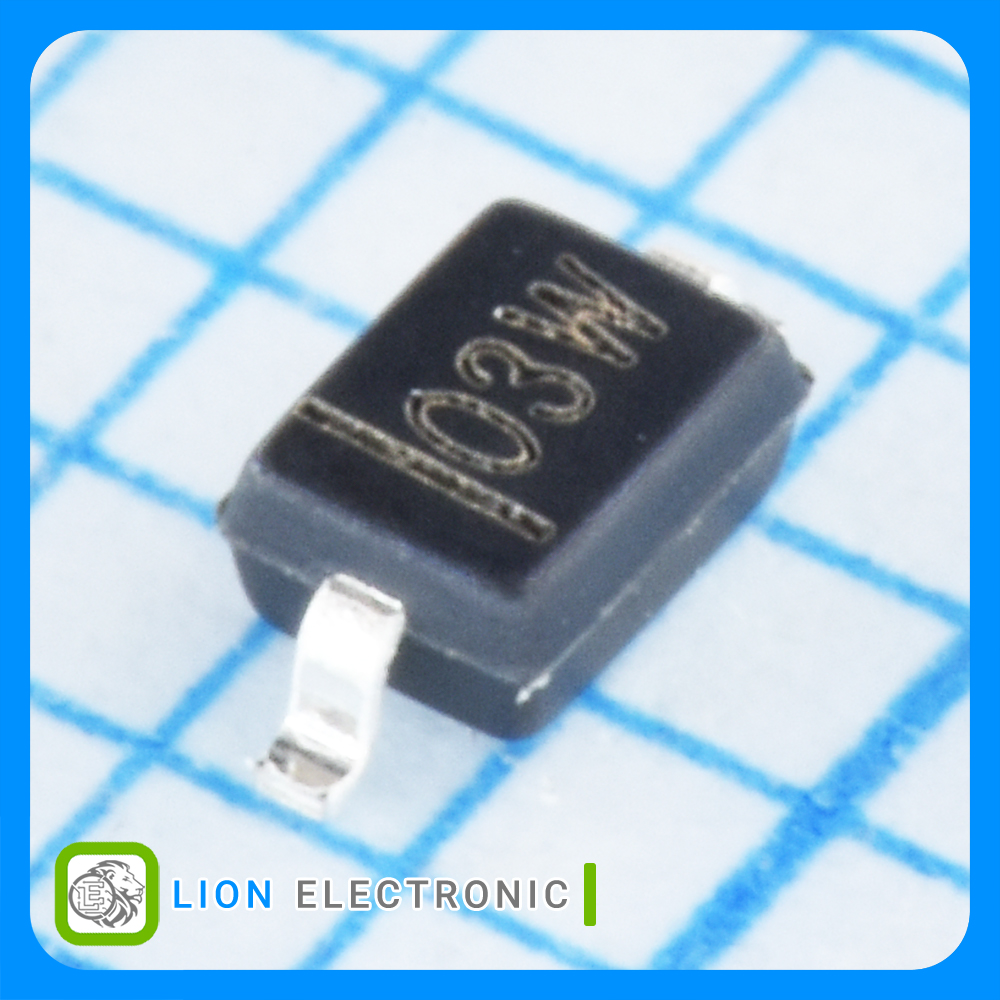

PESD3V3U1UA,115-JSM
PESD3V3U1UA,115-JSM
Part Number
6868
Lion Part
Datasheet
JSMSEMI Manufacture
دیود TVS یکطرفه (Uni-directional) با ولتاژ کاری 3.3 ولت، ولتاژ شکست 5.3 ولت، ولتاژ کلمپ 18 ولت، توان پالس 800 وات و جریان پالس 40 آمپر با پکیج SOD-323
TVS Diode Uni-directional, 3.3V working voltage, 5.3V breakdown, 18V clamping, 800W peak pulse power, 40A peak pulse current, with SOD-323 Package
معرفی
دیود TVS یکطرفه (Uni-directional) با ولتاژ کاری 3.3 ولت، ولتاژ شکست 5.3 ولت، ولتاژ کلمپ 18 ولت، توان پالس 800 وات و جریان پالس 40 آمپر با پکیج SOD-323
TVS Diode Uni-directional, 3.3V working voltage, 5.3V breakdown, 18V clamping, 800W peak pulse power, 40A peak pulse current, with SOD-323 Package
Specifications
- Product Type: TVS Diodes
- Polarity: Unidirectional
- Number of Channels: 1
- Working Voltage: 3.3V
- Breakdown Voltage: 5.3V
- Clamping Voltage: 18V
- Pppm - Peak Pulse Power Dissipation: 800W
- Vesd - Voltage ESD Contact: 30kV
- Vesd - Voltage ESD Air Gap: 30kV
- Cd - Diode Capacitance: 2.3pF
- Ipp - Peak Pulse Current: 40A
- Termination style: SMD/SMT
- Package/Case: SOD-323
- Minimum Operating Temperature: -55C
- Maximum Operating Temperature: +150C
- Packaging: Tape&Reel
مشخصات PESD3V3U1UA,115-JSM
PESD3V3U1UA,115-JSM
Part Number
1
Number of Channels
3.3V
Working Voltage
-55C
Minimum Operating Temperature
30kV
Vesd - Voltage ESD Air Gap
SMD/SMT
Termination style
30kV
Vesd - Voltage ESD Contact
5.3V
Breakdown Voltage
Unidirectional
Polarity
Tape&Reel
Packaging
2.3pF
Cd - Diode Capacitance
800W
Pppm - Peak Pulse Power Dissipation
+150C
Maximum Operating Temperature
18V
Clamping Voltage
40A
Ipp - Peak Pulse Current
TVS Diodes
Product Type
SOD-323
Package-Case
