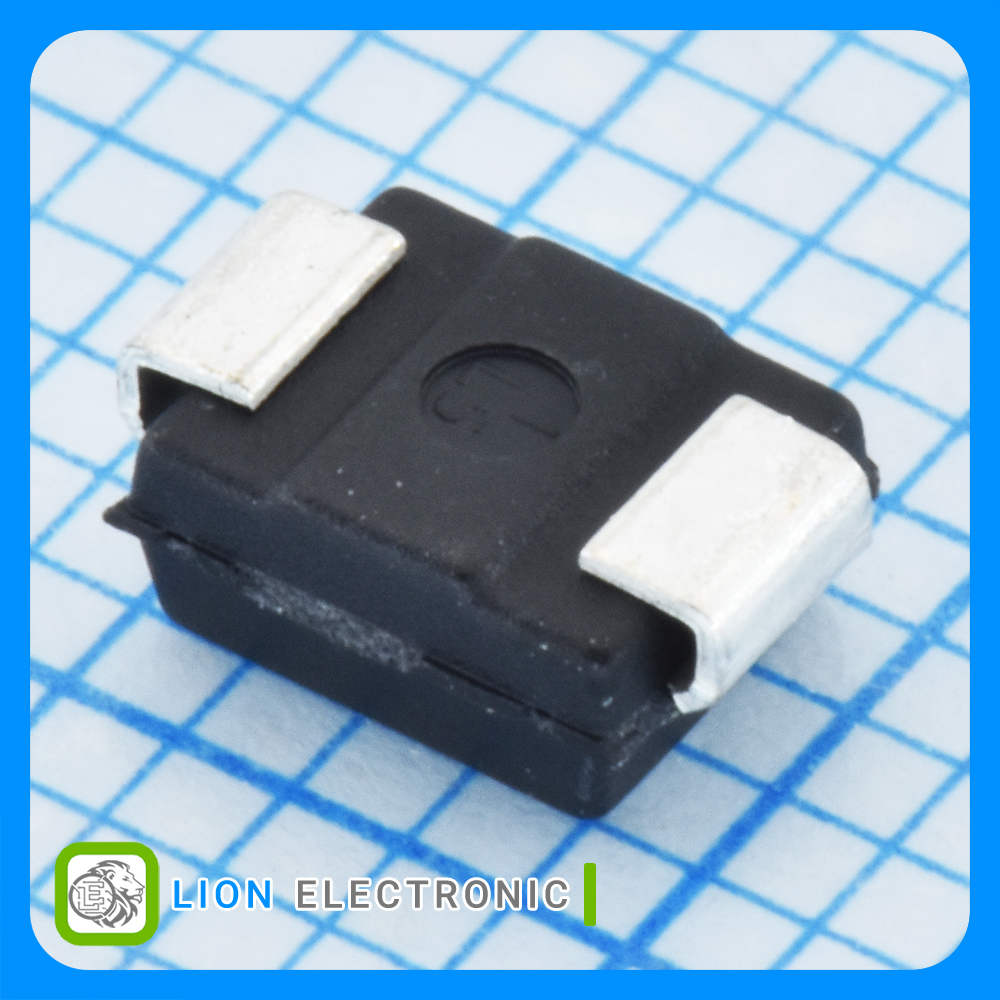

SMBJ18A
SMBJ18A
Part Number
116
Lion Part
Datasheet
Littelfuse Manufacture
دیود TVS یکطرفه 18 ولت 600 وات با بیشینه پالس جریان 20.6 آمپر با پکیج DO-214AA (SMB)

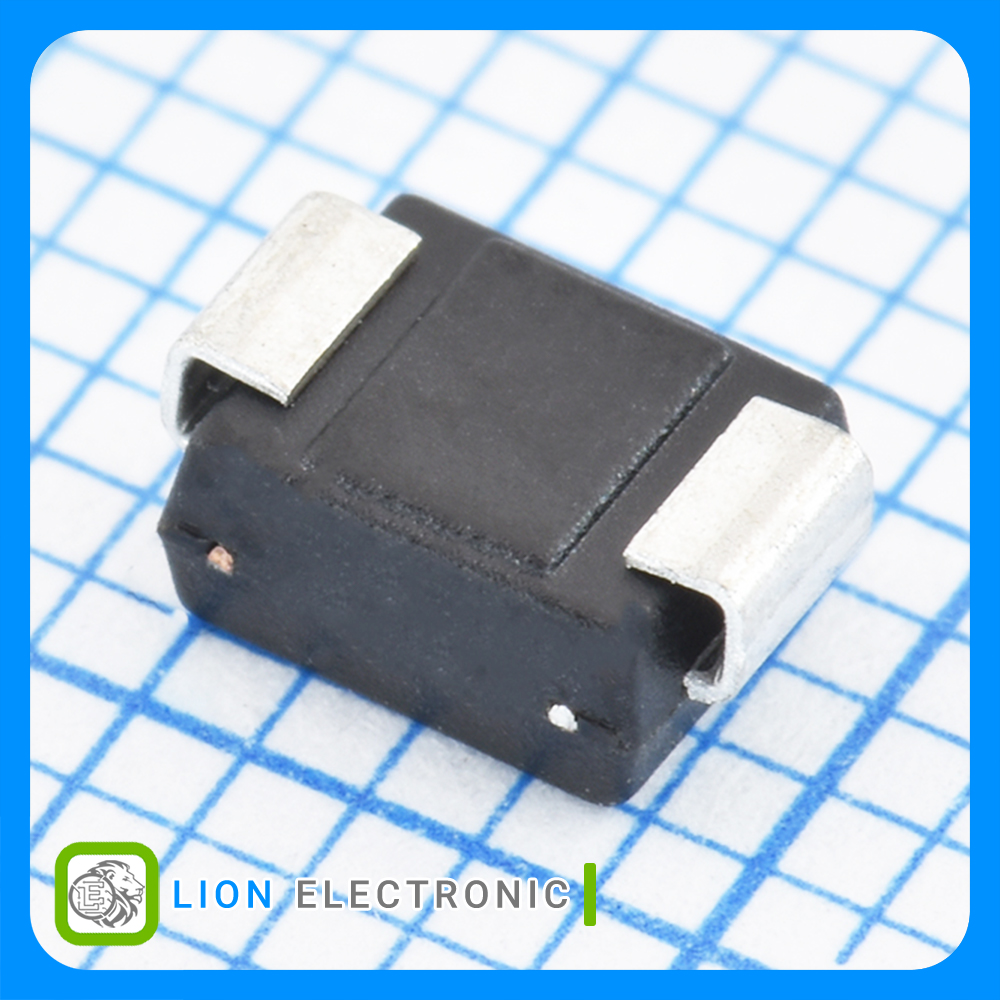

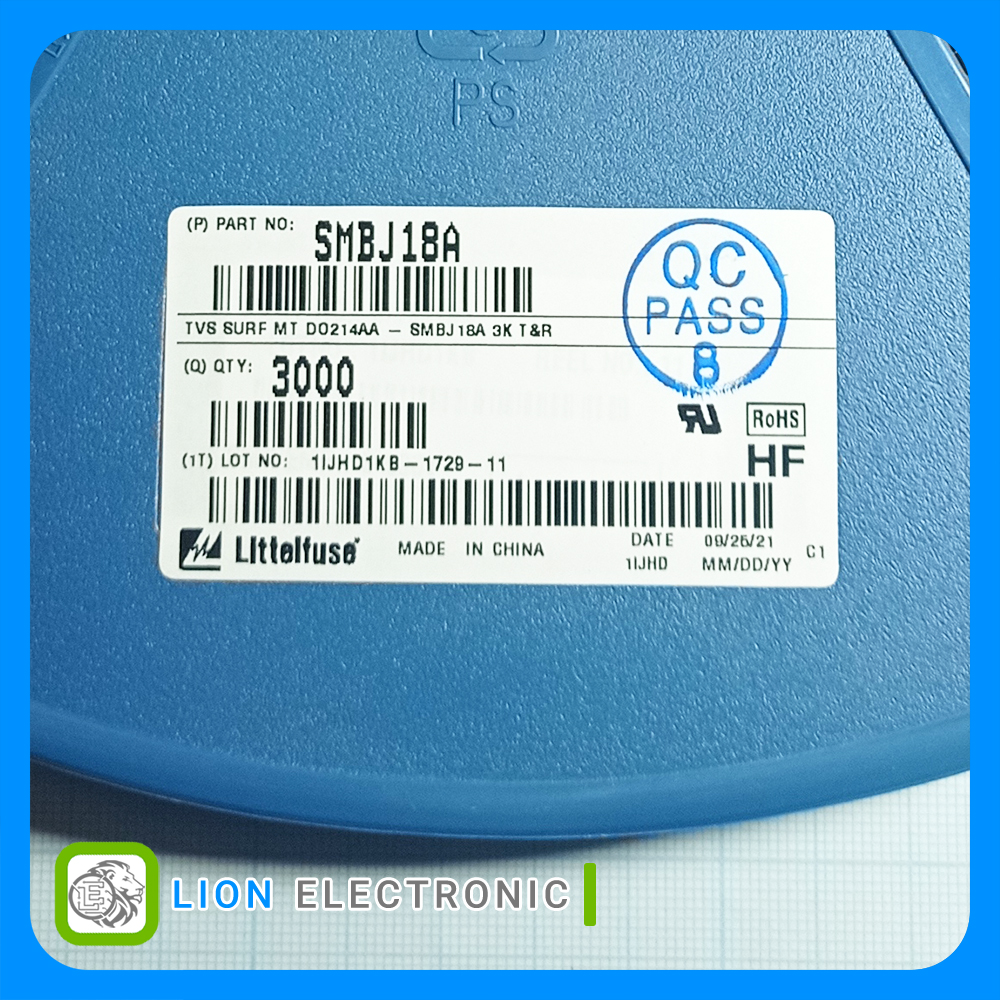

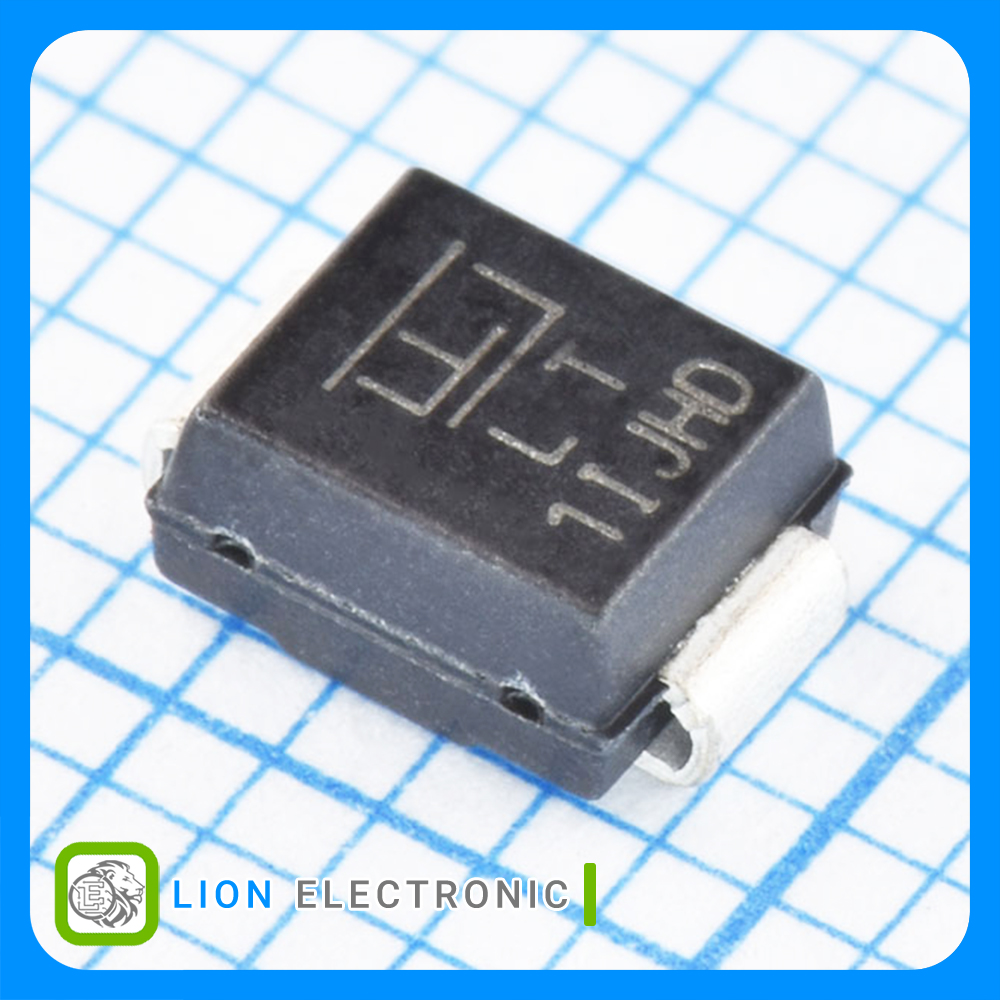

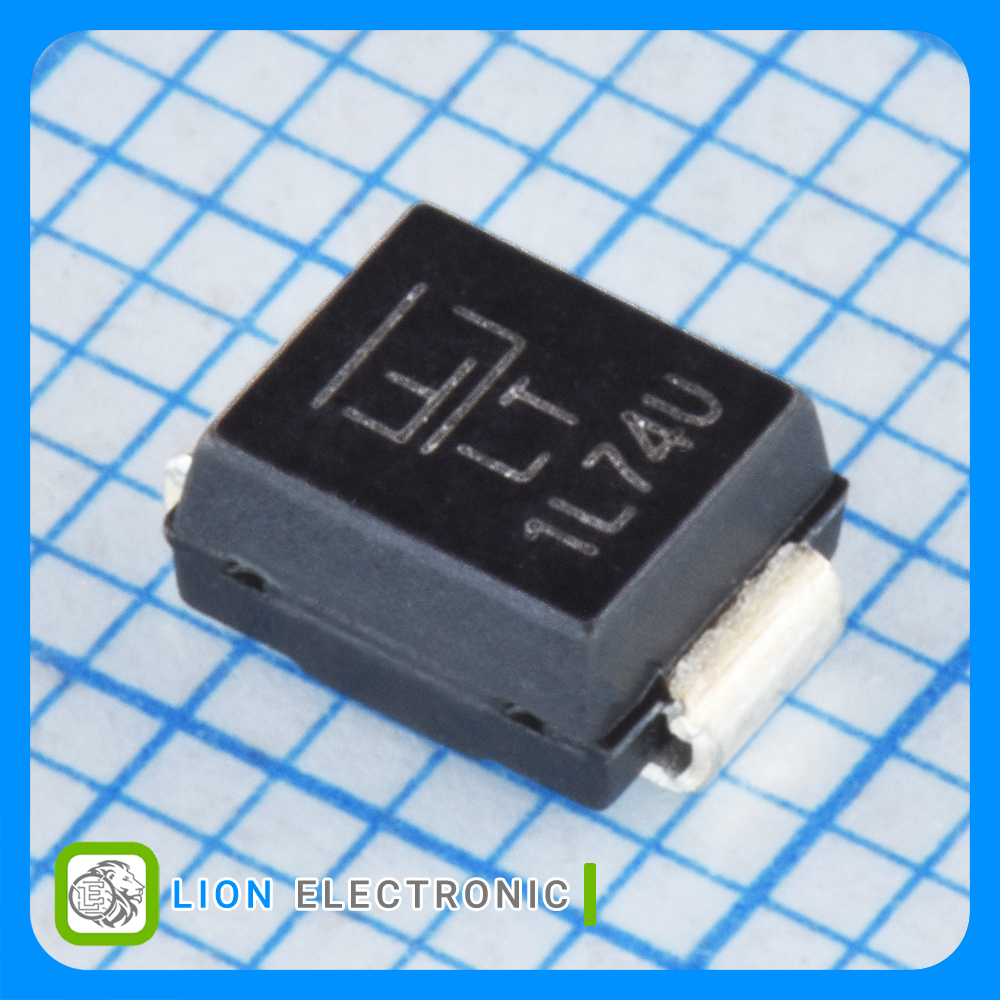

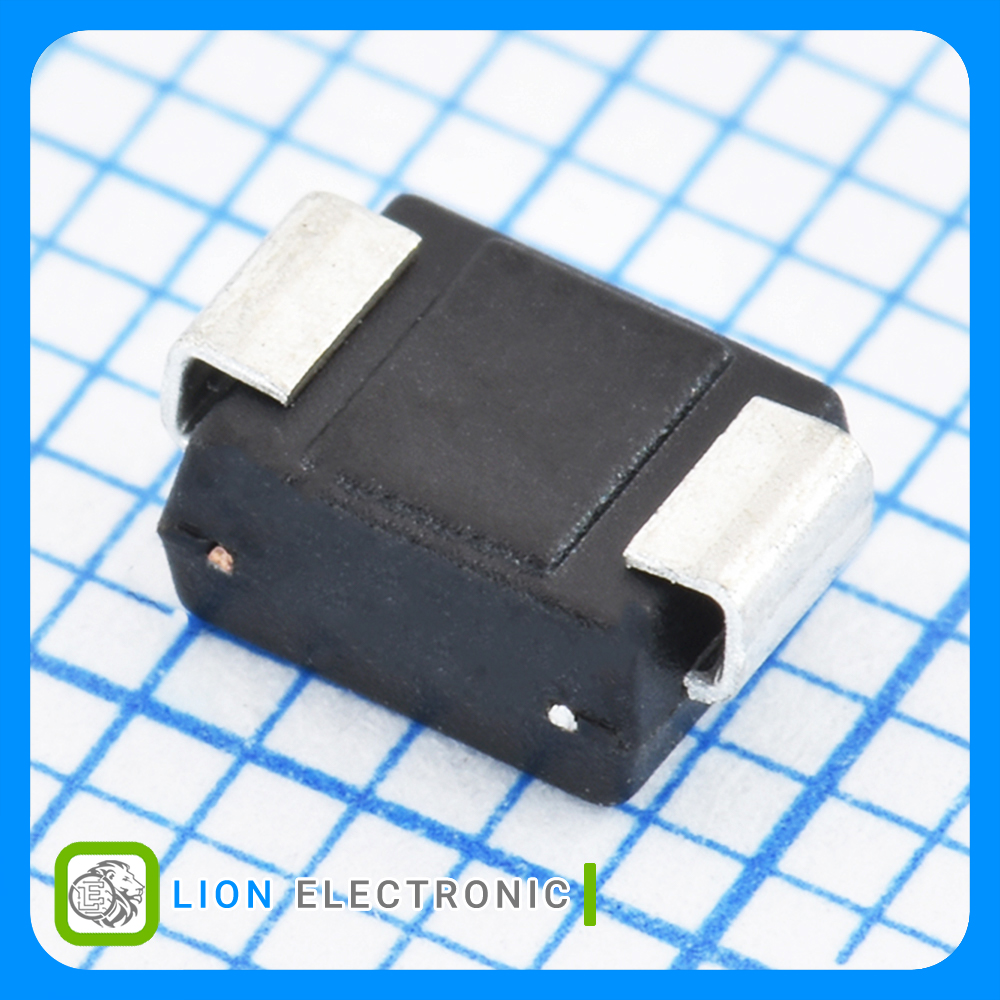

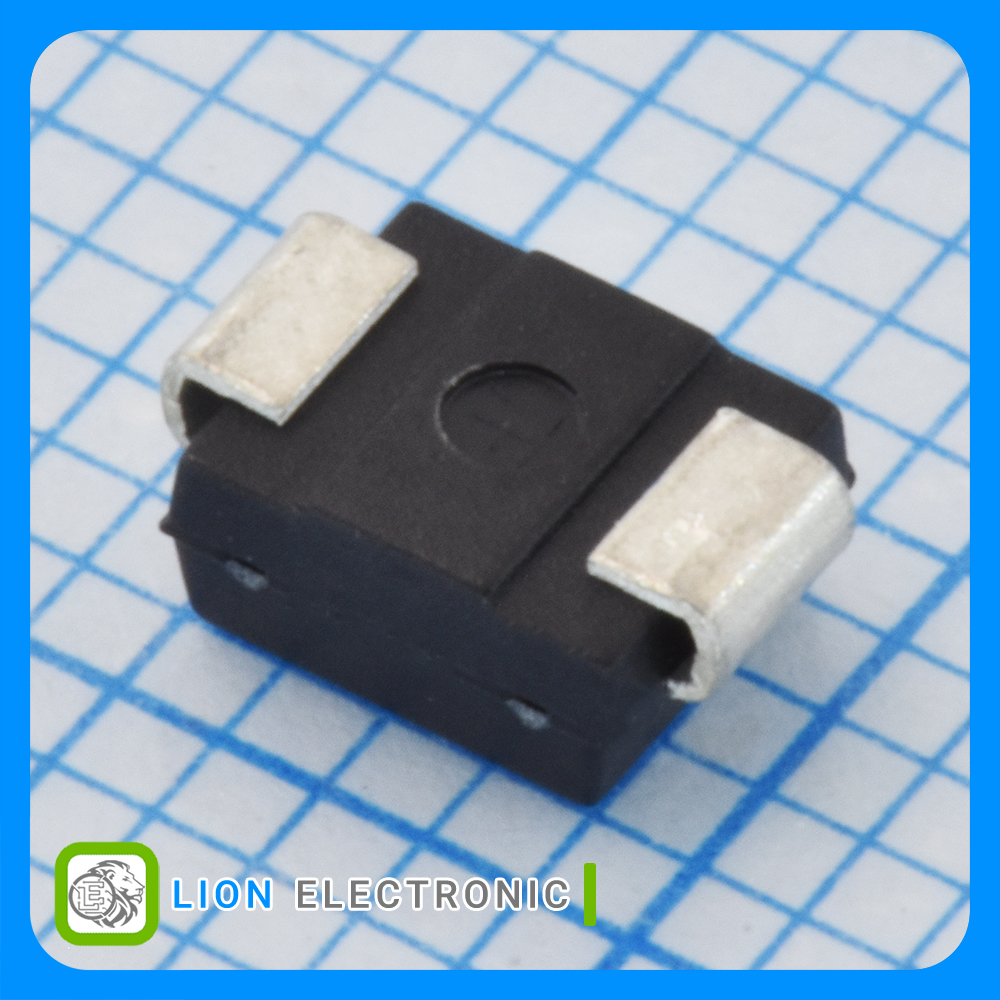

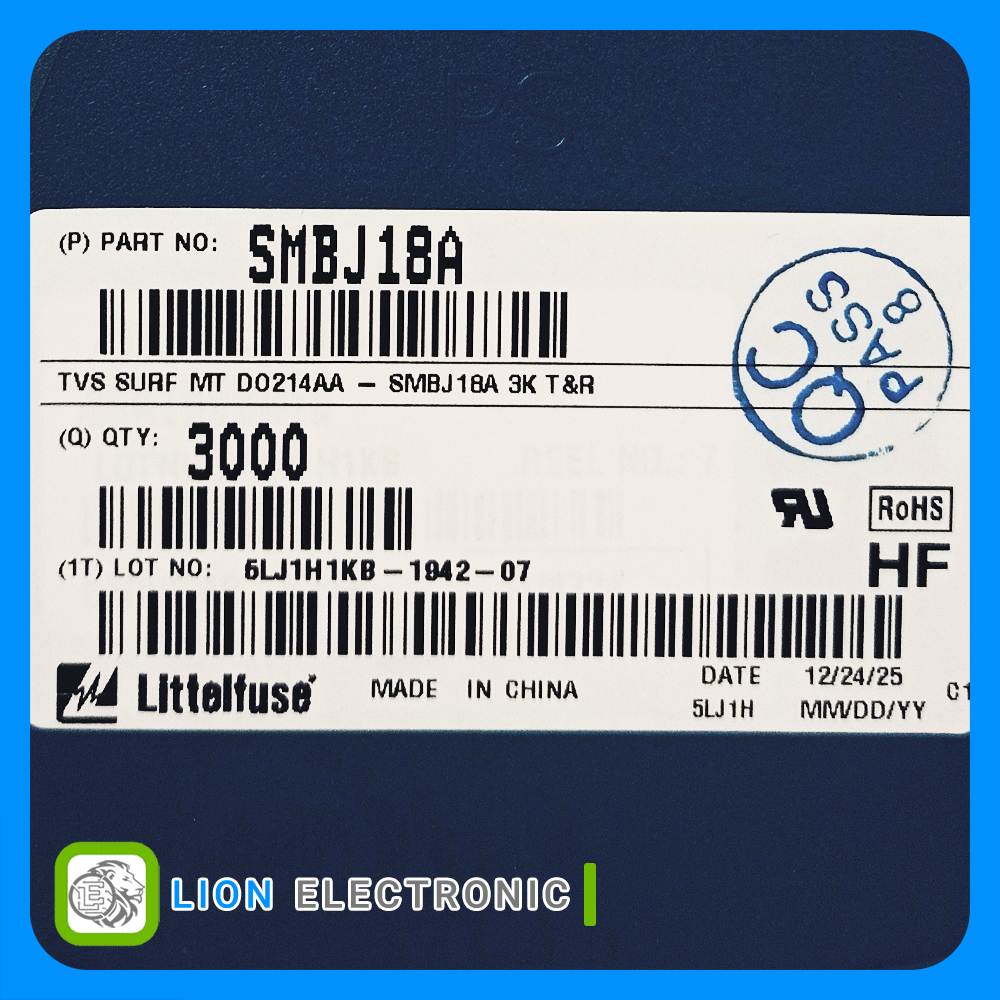

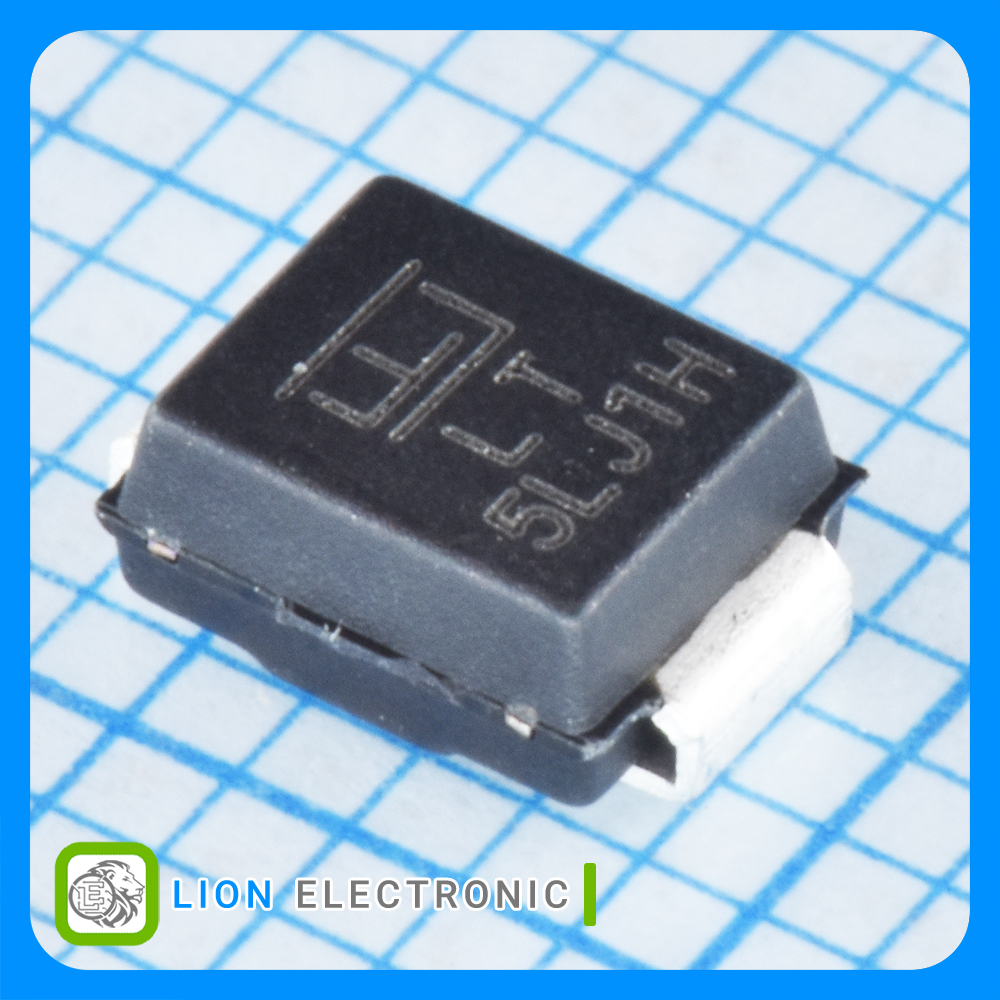

TVS Diode Uni-directional 18V, 600W, Peak Pulse Current 20.6A with DO-214AA (SMB) Package
معرفی
دیود TVS یکطرفه 18 ولت 600 وات با بیشینه پالس جریان 20.6 آمپر با پکیج DO-214AA (SMB)
TVS Diode Uni-directional 18V, 600W, Peak Pulse Current 20.6A with DO-214AA (SMB) Package
Specifications
- Product Type: TVS Diodes
- Polarity: Unidirectional
- Number of Channels: 1
- Working Voltage: 18V
- Breakdown Voltage: 22.1V
- Clamping Voltage: 29.2V
- Pppm - Peak Pulse Power Dissipation: 600W
- Vesd - Voltage ESD Contact: 30kV
- Vesd - Voltage ESD Air Gap: 30kV
- Ipp - Peak Pulse Current: 20.6A
- Termination style: SMD/SMT
- Package/Case: DO-214AA (SMB)
- Minimum Operating Temperature: -55C
- Maximum Operating Temperature: +150C
- Packaging: Reel
مشخصات SMBJ18A
SMBJ18A
Part Number
1
Number of Channels
-55C
Minimum Operating Temperature
30kV
Vesd - Voltage ESD Air Gap
SMD/SMT
Termination style
30kV
Vesd - Voltage ESD Contact
Reel
Packaging
Unidirectional
Polarity
600W
Pppm - Peak Pulse Power Dissipation
+150C
Maximum Operating Temperature
18V
Working Voltage
29.2V
Clamping Voltage
N/A
Cd - Diode Capacitance
22.1V
Breakdown Voltage
20.6A
Ipp - Peak Pulse Current
TVS Diodes
Product Type
DO-214AA (SMB)
Package-Case
