SMA5J6.5CA
SMA5J6.5CA
Part Number
122
Lion Part
Datasheet
Vishay Semiconductors Manufacture
دیود TVS دوطرفه 6.5 ولت 500 وات با بیشینه پالس جریان 44.6 آمپر با پکیج DO-214AC (SMA)

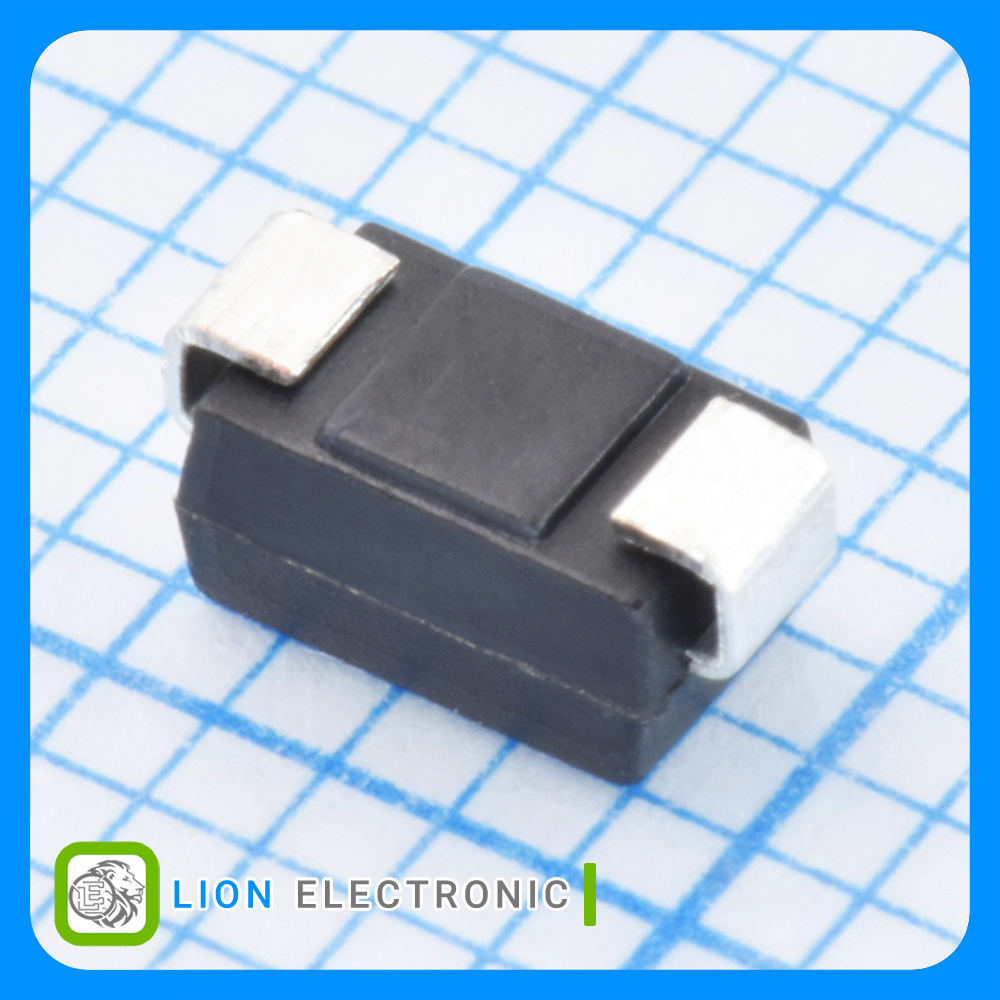

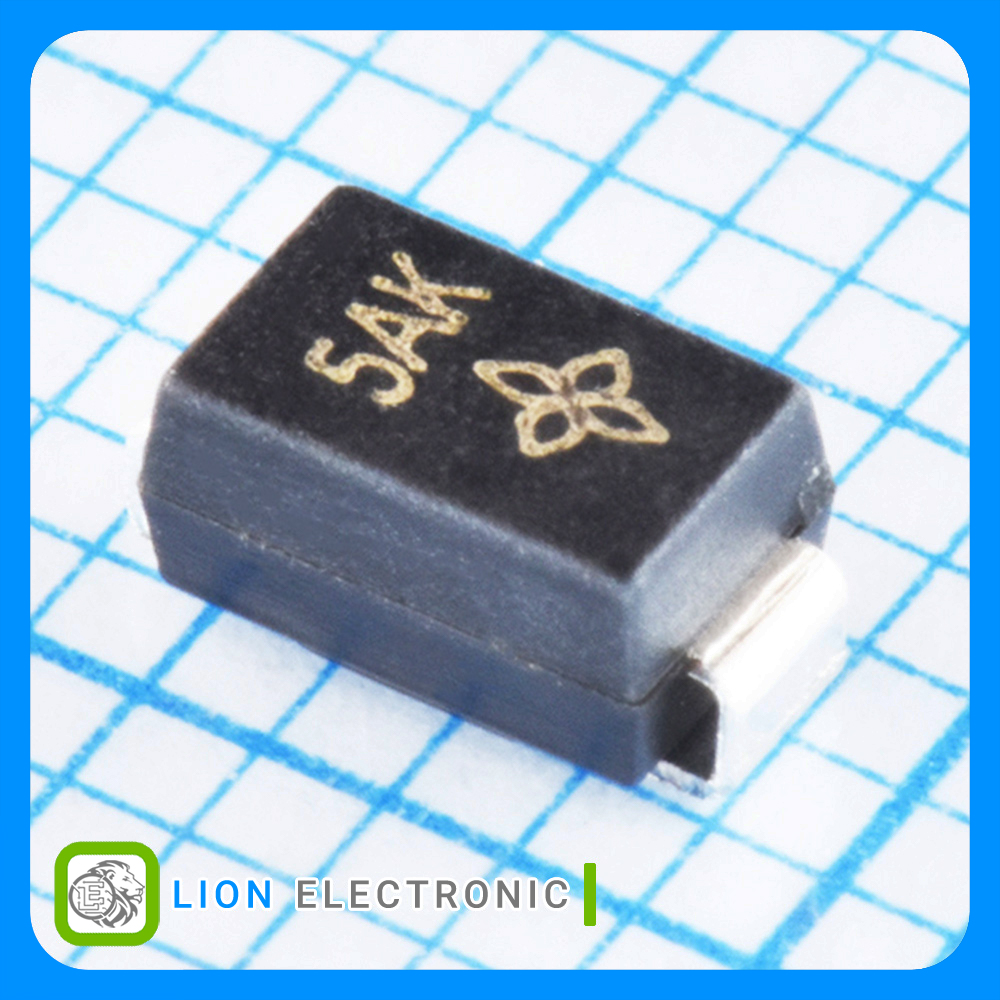

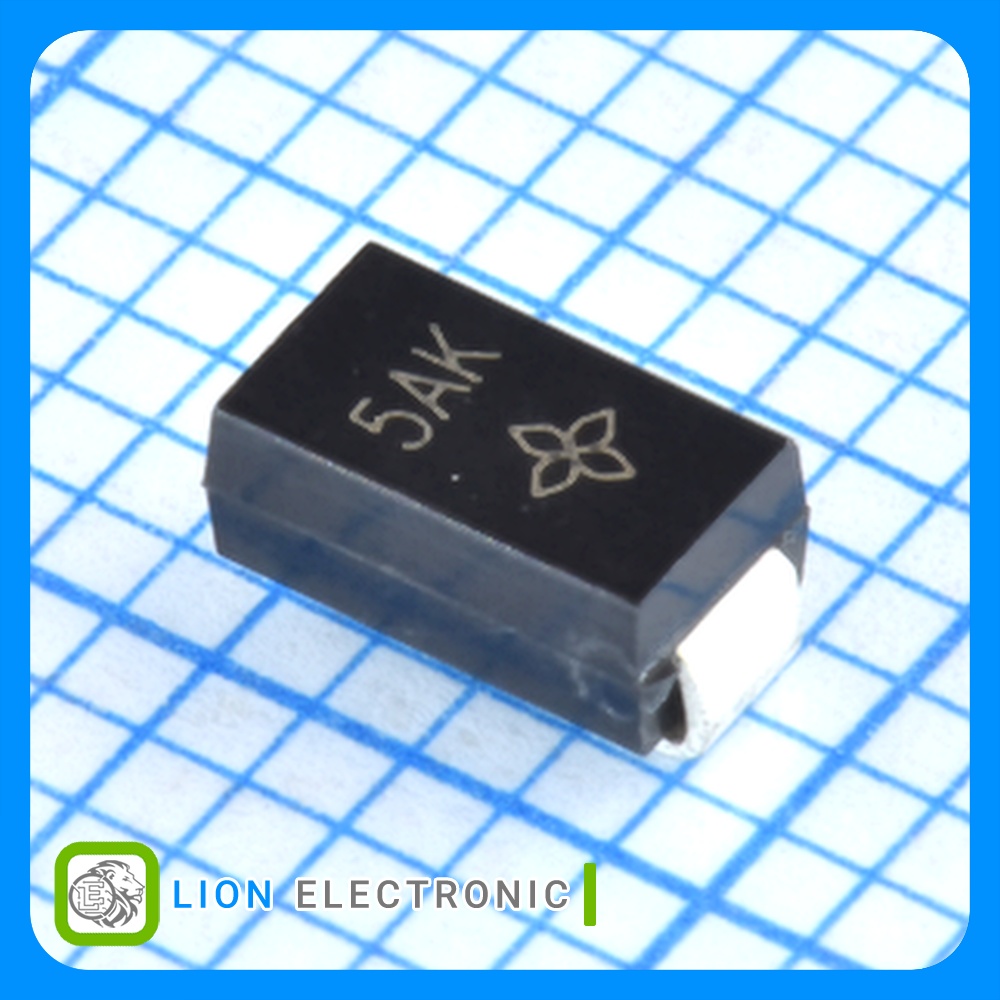

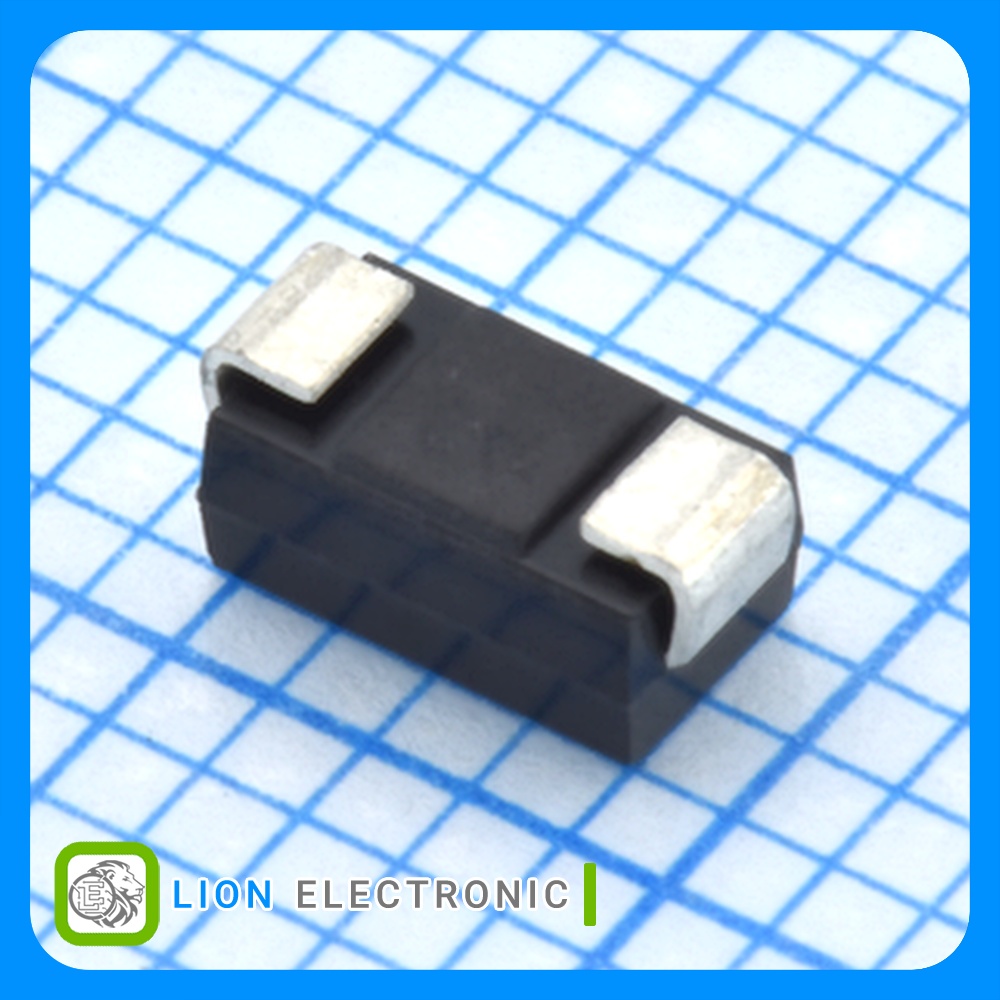

TVS Diode Bidirectional 6.5V, 500W, Peak Pulse Current 44.6A with DO-214AC (SMA) Package
معرفی
دیود TVS دوطرفه 6.5 ولت 500 وات با بیشینه پالس جریان 44.6 آمپر با پکیج DO-214AC (SMA)
TVS Diode Bidirectional 6.5V, 500W, Peak Pulse Current 44.6A with DO-214AC (SMA) Package
Specifications
- Product Type: TVS Diodes
- Polarity: Bidirectional
- Number of Channels: 1
- Working Voltage: 6.5V
- Breakdown Voltage: 7.22V
- Clamping Voltage: 11.2V
- Pppm - Peak Pulse Power Dissipation: 500W
- Ipp - Peak Pulse Current: 44.6A
- Termination style: SMD/SMT
- Package/Case: DO-214AC (SMA)
- Minimum Operating Temperature: -55C
- Maximum Operating Temperature: +150C
- Packaging: Reel
مشخصات SMA5J6.5CA
SMA5J6.5CA
Part Number
1
Number of Channels
Bidirectional
Polarity
-55C
Minimum Operating Temperature
SMD/SMT
Termination style
Reel
Packaging
N/A
Vesd - Voltage ESD Air Gap
N/A
Vesd - Voltage ESD Contact
6.5V
Working Voltage
11.2V
Clamping Voltage
500W
Pppm - Peak Pulse Power Dissipation
+150C
Maximum Operating Temperature
7.22V
Breakdown Voltage
N/A
Cd - Diode Capacitance
44.6A
Ipp - Peak Pulse Current
TVS Diodes
Product Type
DO-214AC (SMA)
Package-Case
