Nexperia
معرفی

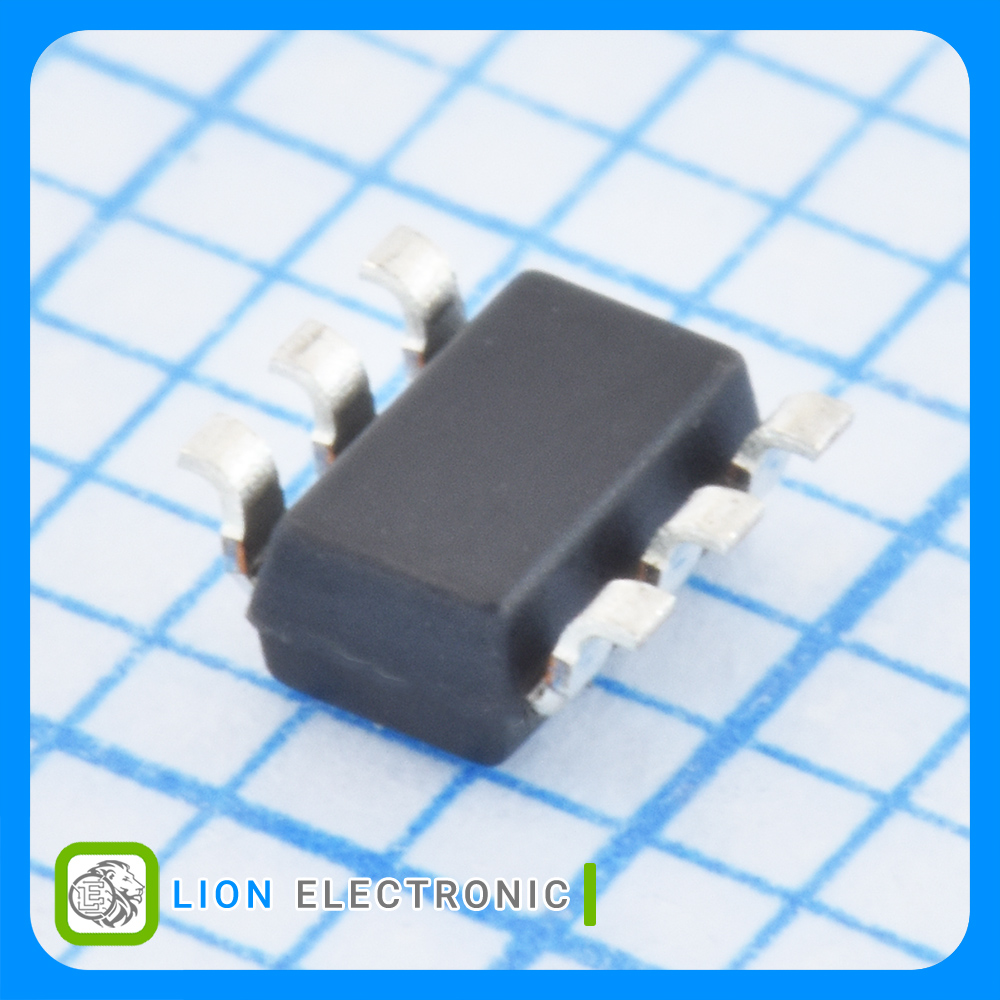

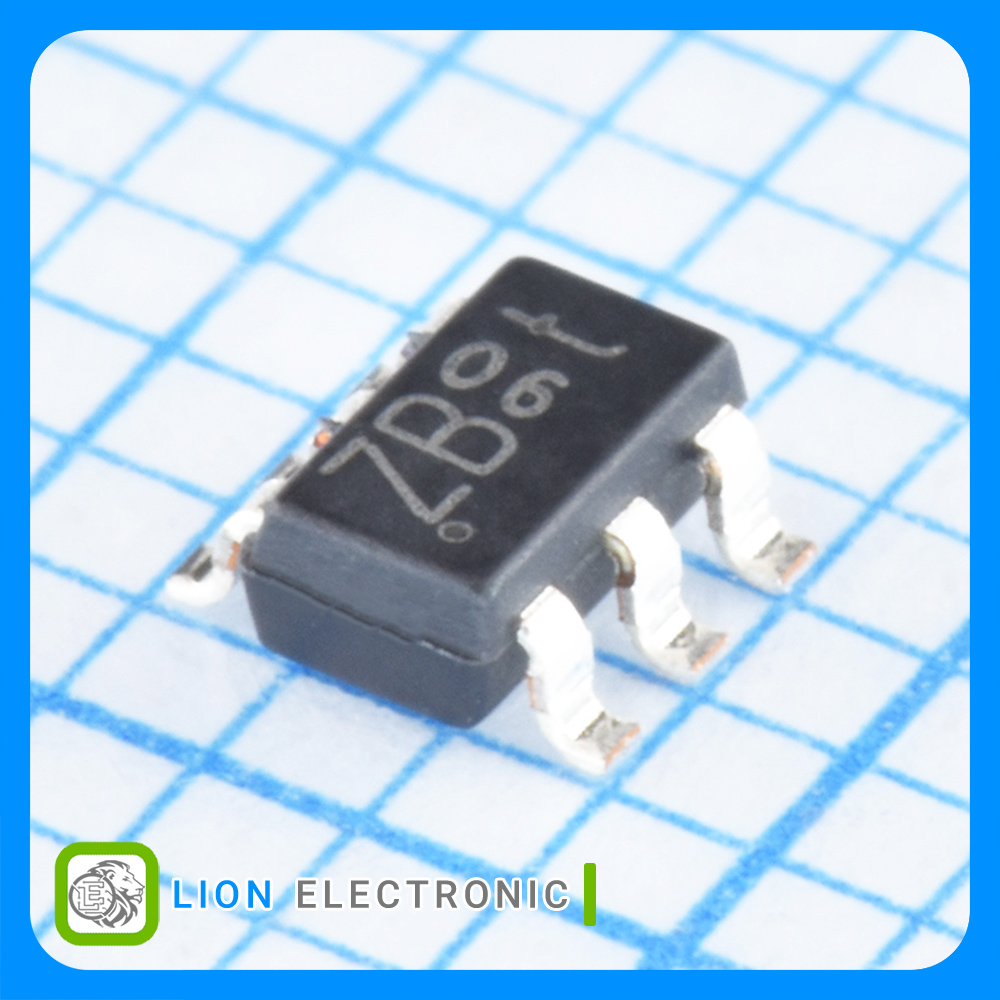

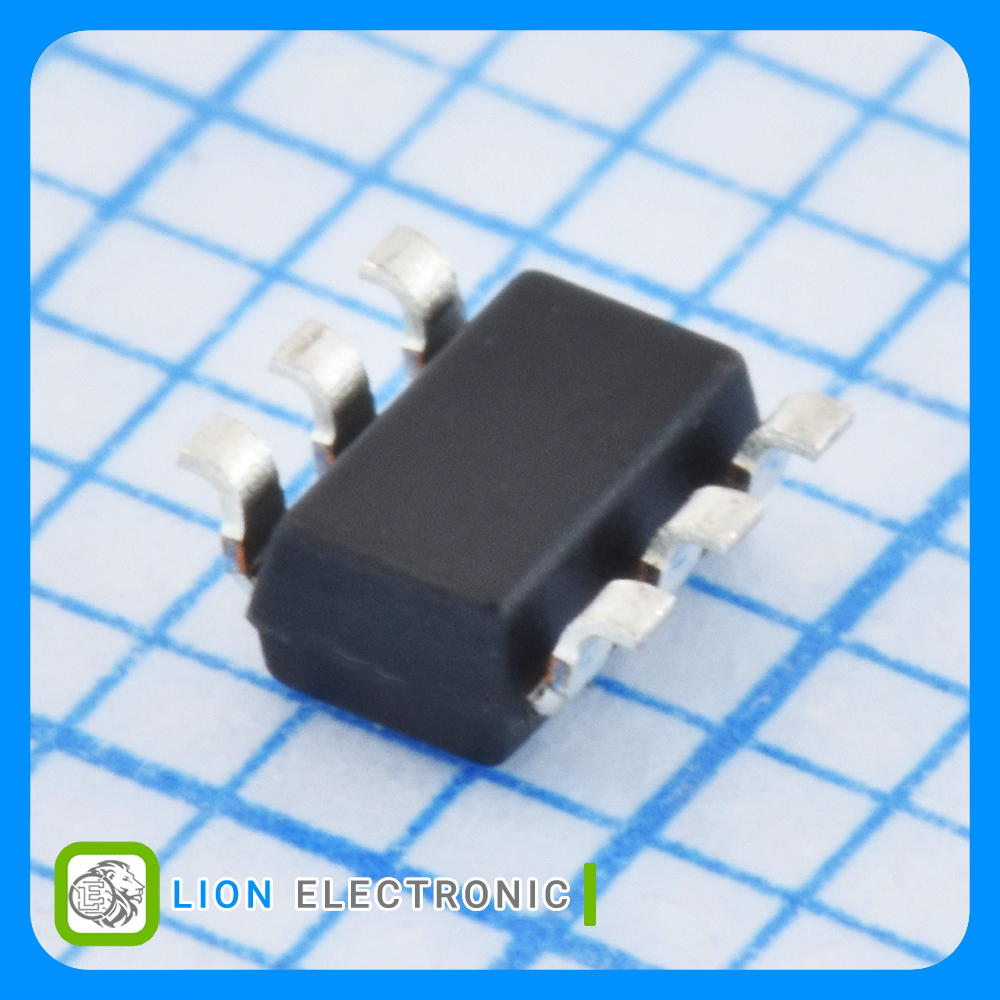

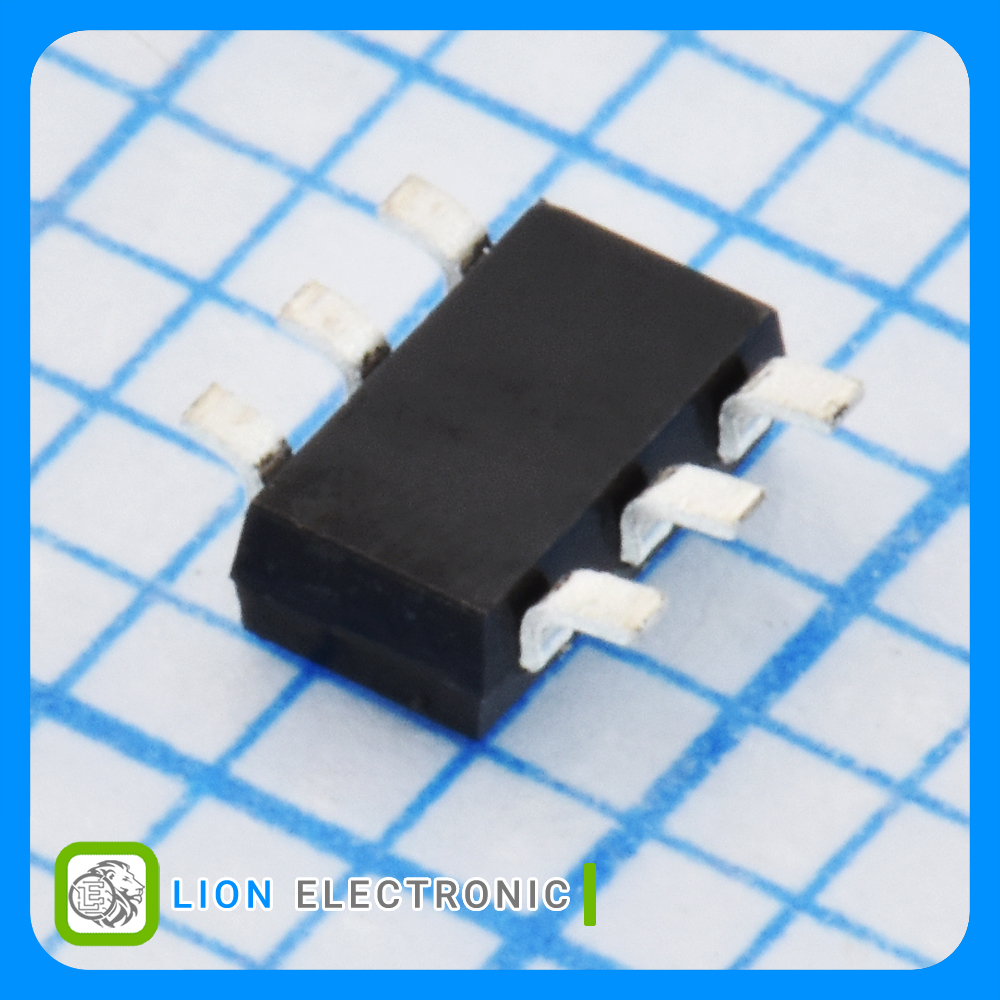

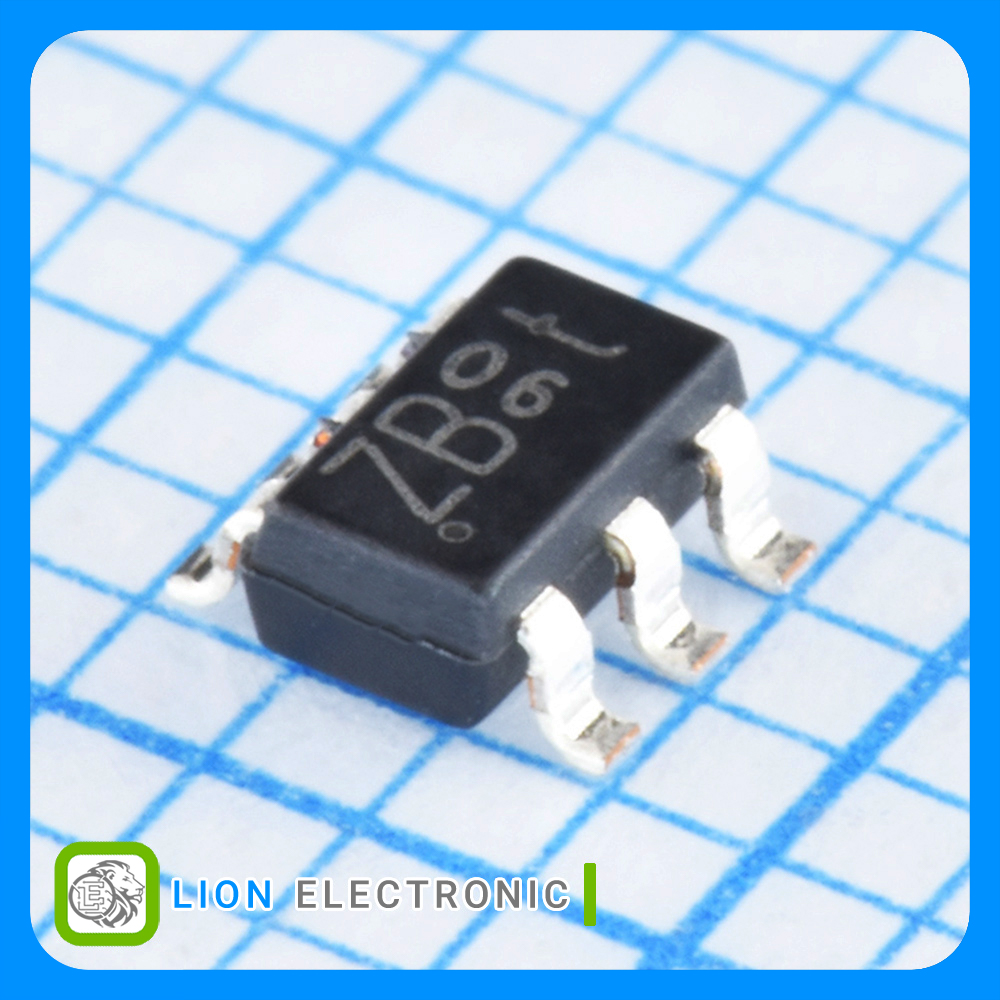

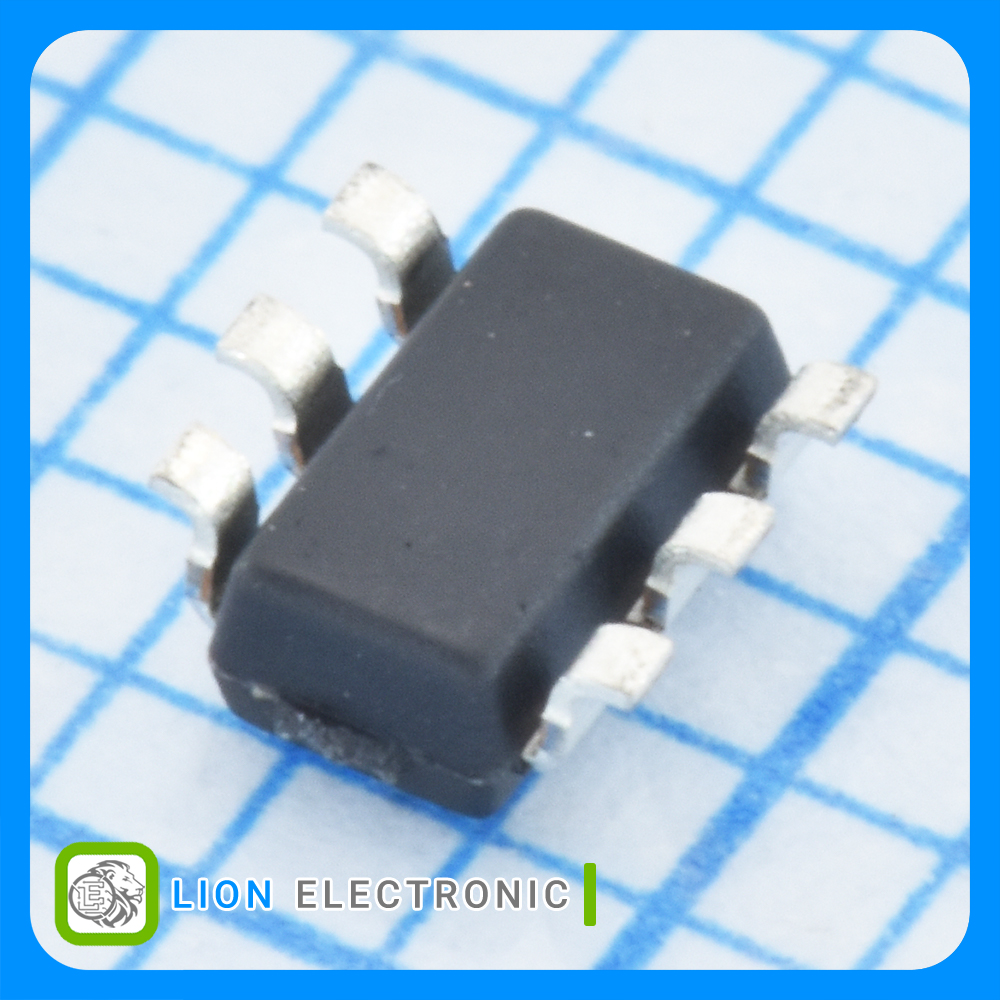

دیود TVS دو جهته 5.5 ولت 2 کاناله با سرعت بالا با پکیج SC-74
Bidirectional TVS Diode 5.5V, 2-channel, Hi-Speed ESD Protection of Two Data Lines or High-frequency Signal Lines with SC-74 Package
Specifications
- Product Type: TVS Diodes
- Polarity: Bidirectional
- Number of Channels: 2
- Working Voltage: 5.5V
- Breakdown Voltage: 9V
- Vesd - Voltage ESD Contact: 8kV
- Vesd - Voltage ESD Air Gap: 8kV
- Cd - Diode Capacitance: 1pF
- Termination style: SMD/SMT
- Package/Case: SC-74
- Minimum Operating Temperature: -40C
- Maximum Operating Temperature: +85C

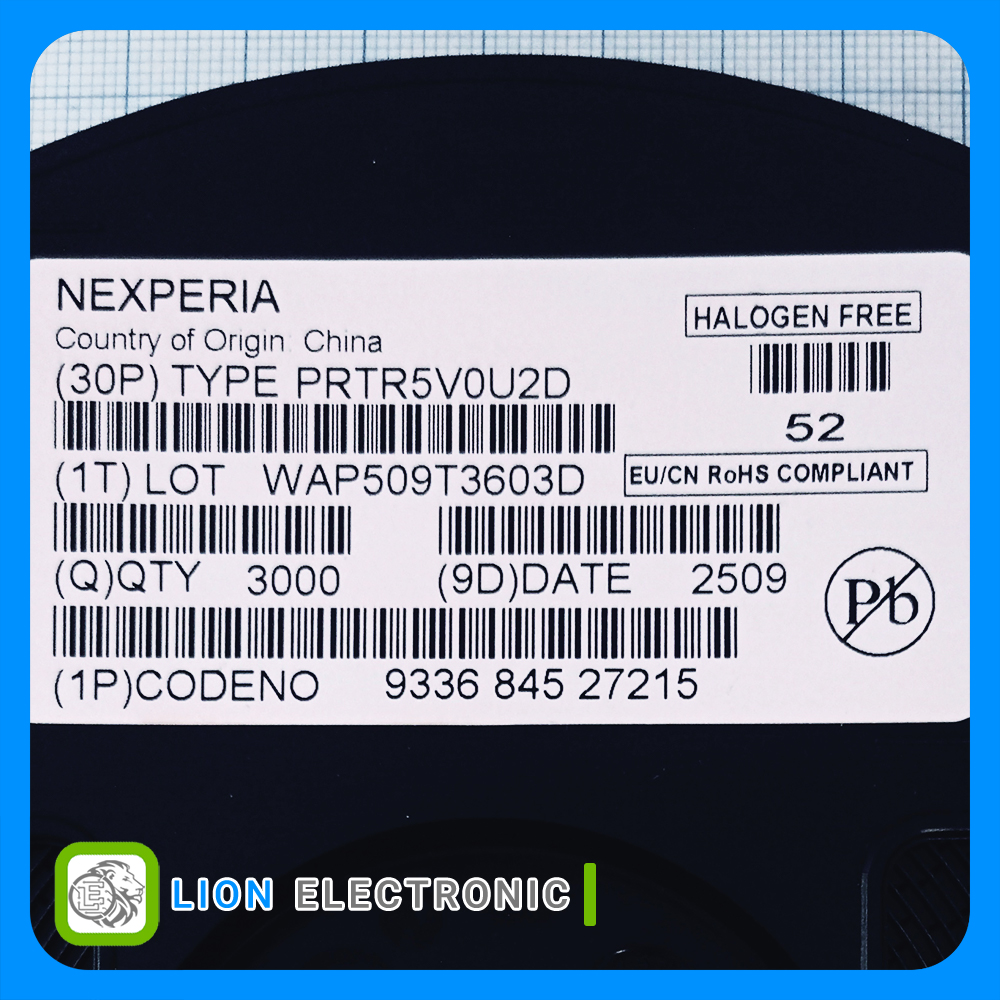

- Packaging: Reel
مشخصات PRTR5V0U2D

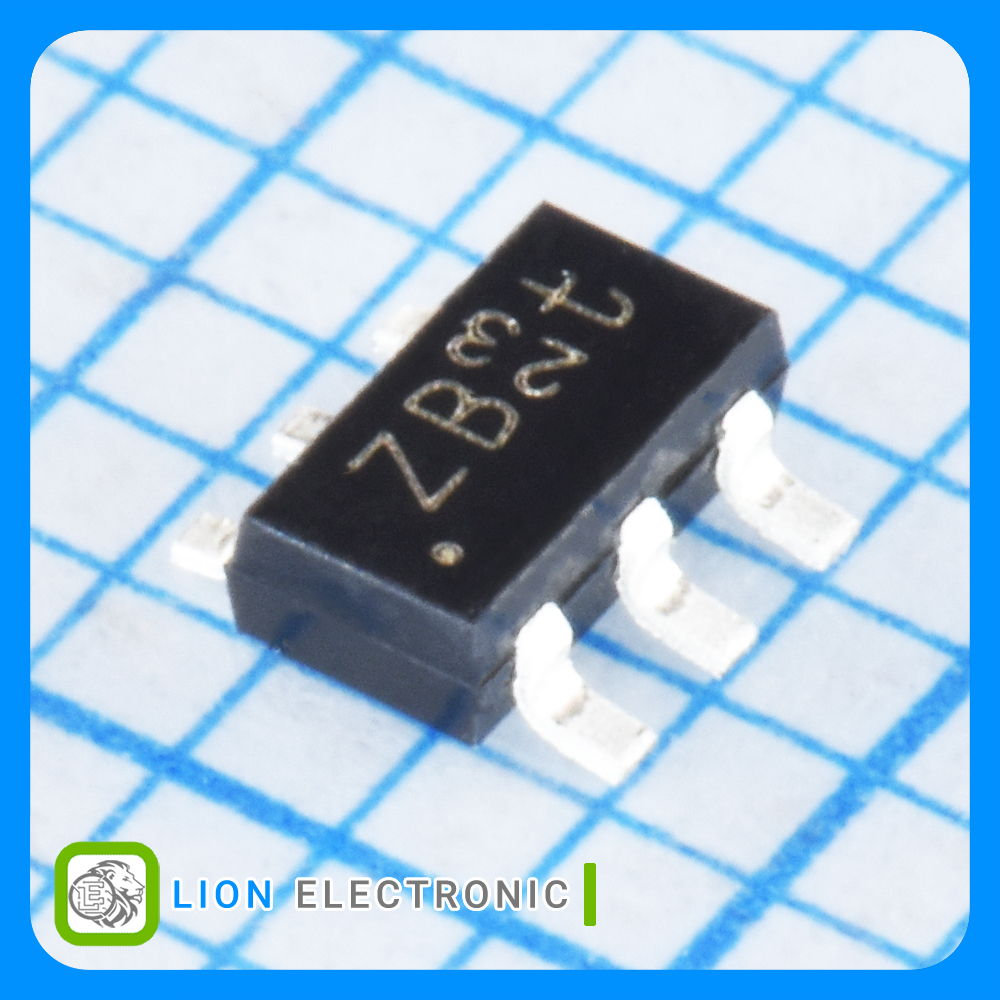

PRTR5V0U2D
Part Number
8kV
Vesd - Voltage ESD Air Gap
8kV
Vesd - Voltage ESD Contact
Bidirectional
Polarity
2
Number of Channels
SMD/SMT
Termination style
Reel
Packaging
-40C
Minimum Operating Temperature
5.5V
Working Voltage
1pF
Cd - Diode Capacitance
+85C
Maximum Operating Temperature
N/A
Pppm - Peak Pulse Power Dissipation
9V
Breakdown Voltage
N/A
Clamping Voltage
N/A
Ipp - Peak Pulse Current
TVS Diodes
Product Type
SC-74
Package-Case
