ESD5V0S1U-03W
ESD5V0S1U-03W
Part Number
127
Lion Part
Datasheet
Semitehelec Manufacture
دیود TVS یکطرفه 5 ولت 250 وات با بیشنه پالس جریان 24 آمپر با پکیج SOD-323

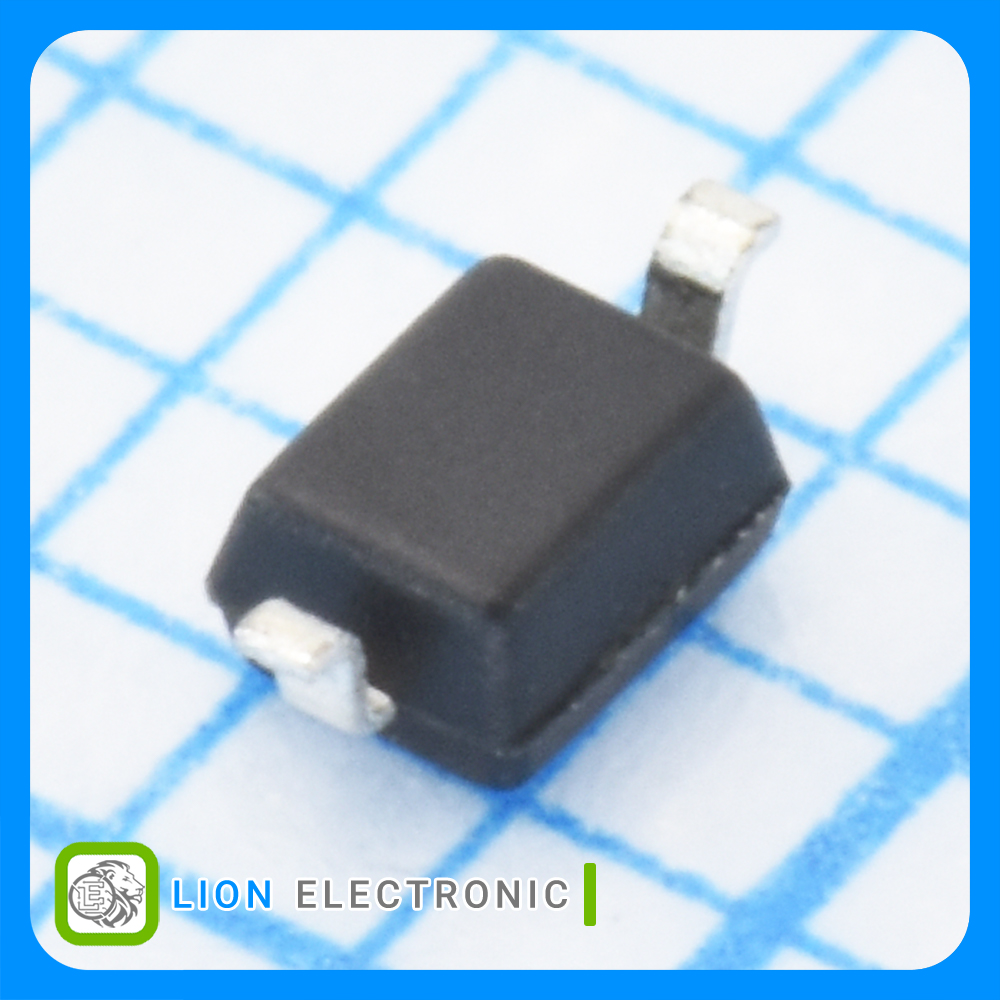

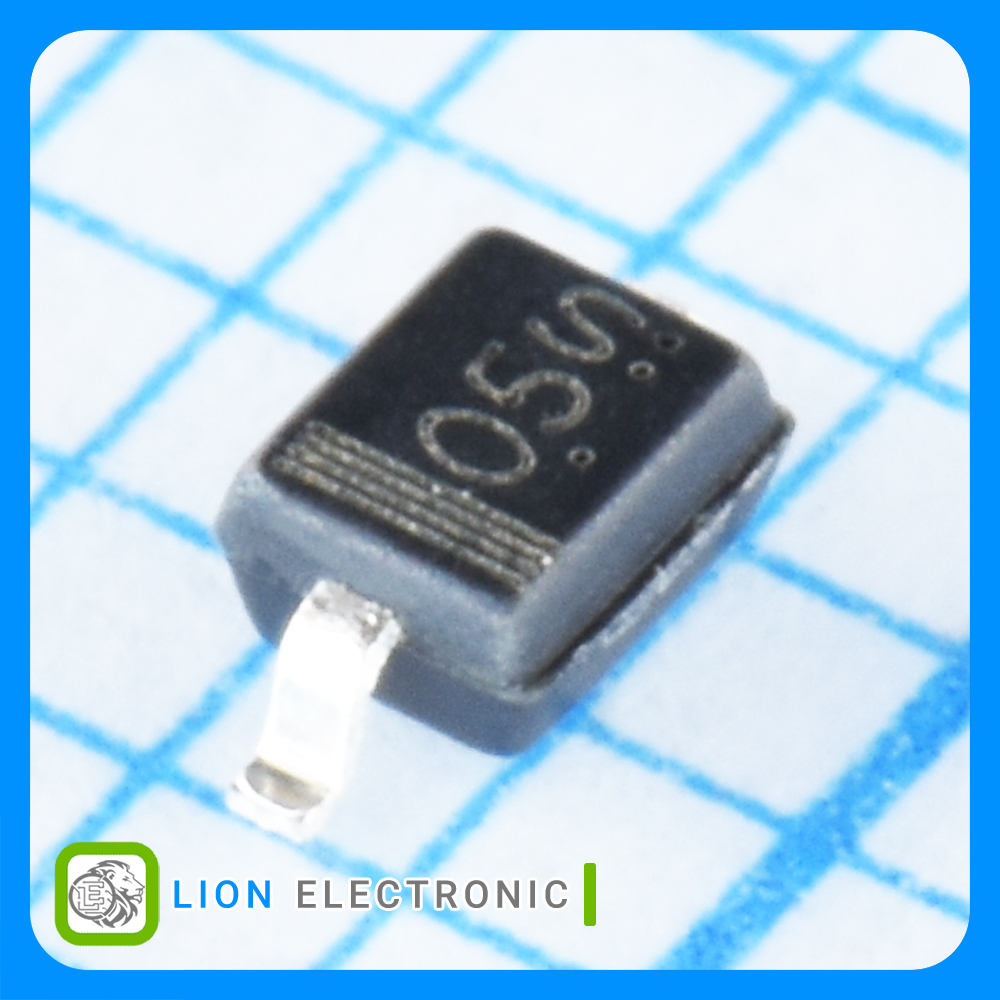

TVS Diode Uni-directional 5V, 250W, Peak Pulse Current 24A with SOD-323 Package
معرفی
دیود TVS یکطرفه 5 ولت 250 وات با بیشنه پالس جریان 24 آمپر با پکیج SOD-323
TVS Diode Uni-directional 5V, 250W, Peak Pulse Current 24A with SOD-323 Package
Specifications
- Product Type: TVS Diodes
- Polarity: Unidirectional
- Number of Channels: 1
- Working Voltage: 5V
- Breakdown Voltage: 6V
- Clamping Voltage: 10.5V
- Pppm - Peak Pulse Power Dissipation: 250W
- Vesd - Voltage ESD Contact: 8kV
- Vesd - Voltage ESD Air Gap: 15kV
- Cd - Diode Capacitance: 350pF
- Ipp - Peak Pulse Current: 24A
- Termination style: SMD/SMT
- Package/Case: SOD-323
- Minimum Operating Temperature: -55C
- Maximum Operating Temperature: +125C
- Packaging: Reel
مشخصات دیود(TVS) ESD5V0S1U-03W
دیود(TVS) ESD5V0S1U-03W
Part Number
1
Number of Channels
8kV
Vesd - Voltage ESD Contact
15kV
Vesd - Voltage ESD Air Gap
-55C
Minimum Operating Temperature
5V
Working Voltage
SMD/SMT
Termination style
Reel
Packaging
Unidirectional
Polarity
6V
Breakdown Voltage
10.5V
Clamping Voltage
250W
Pppm - Peak Pulse Power Dissipation
+125C
Maximum Operating Temperature
350pF
Cd - Diode Capacitance
24A
Ipp - Peak Pulse Current
TVS Diodes
Product Type
SOD-323
Package-Case
