Lite-On
معرفی

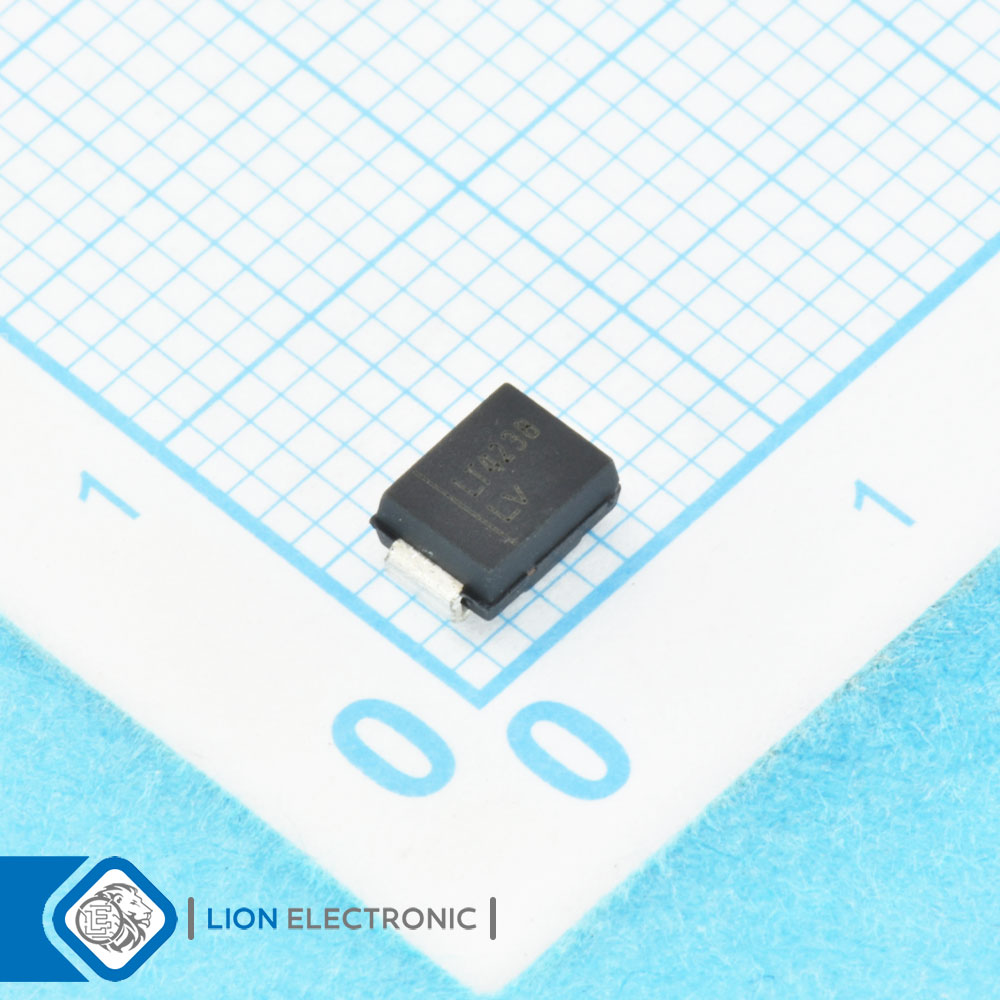

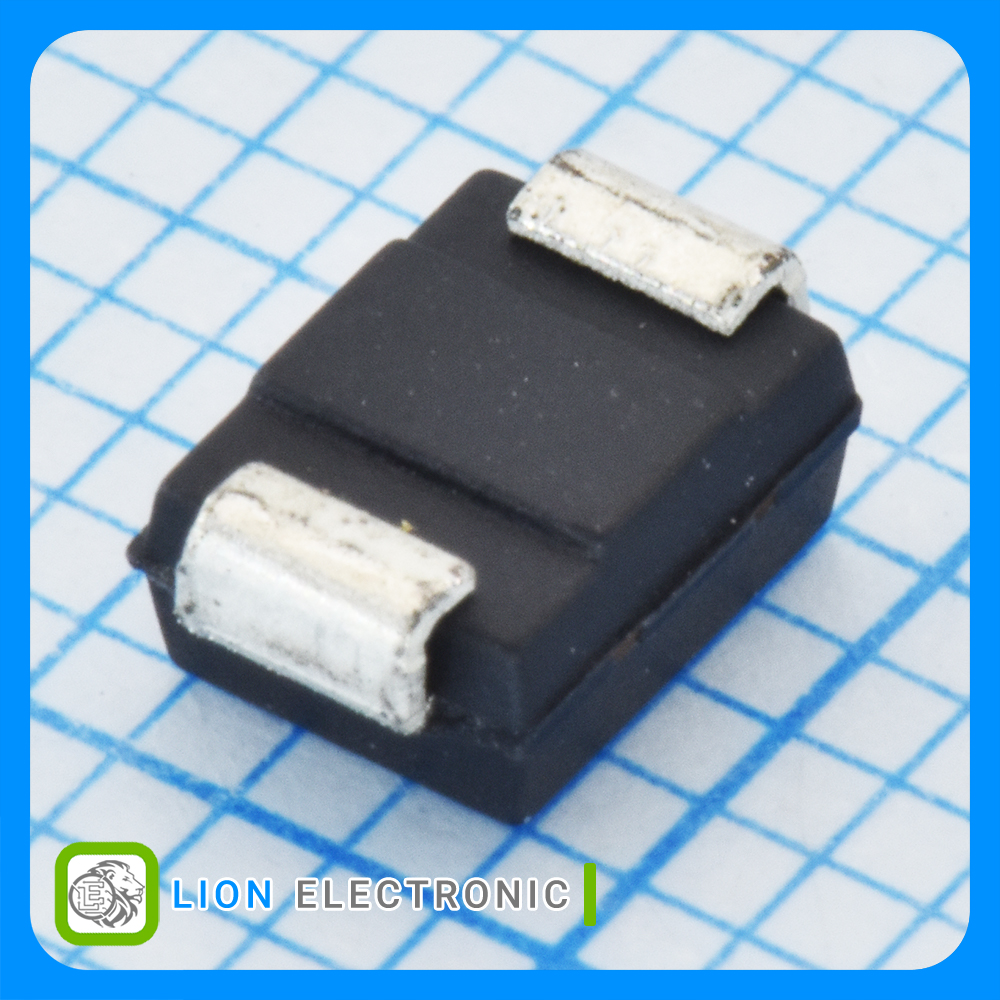

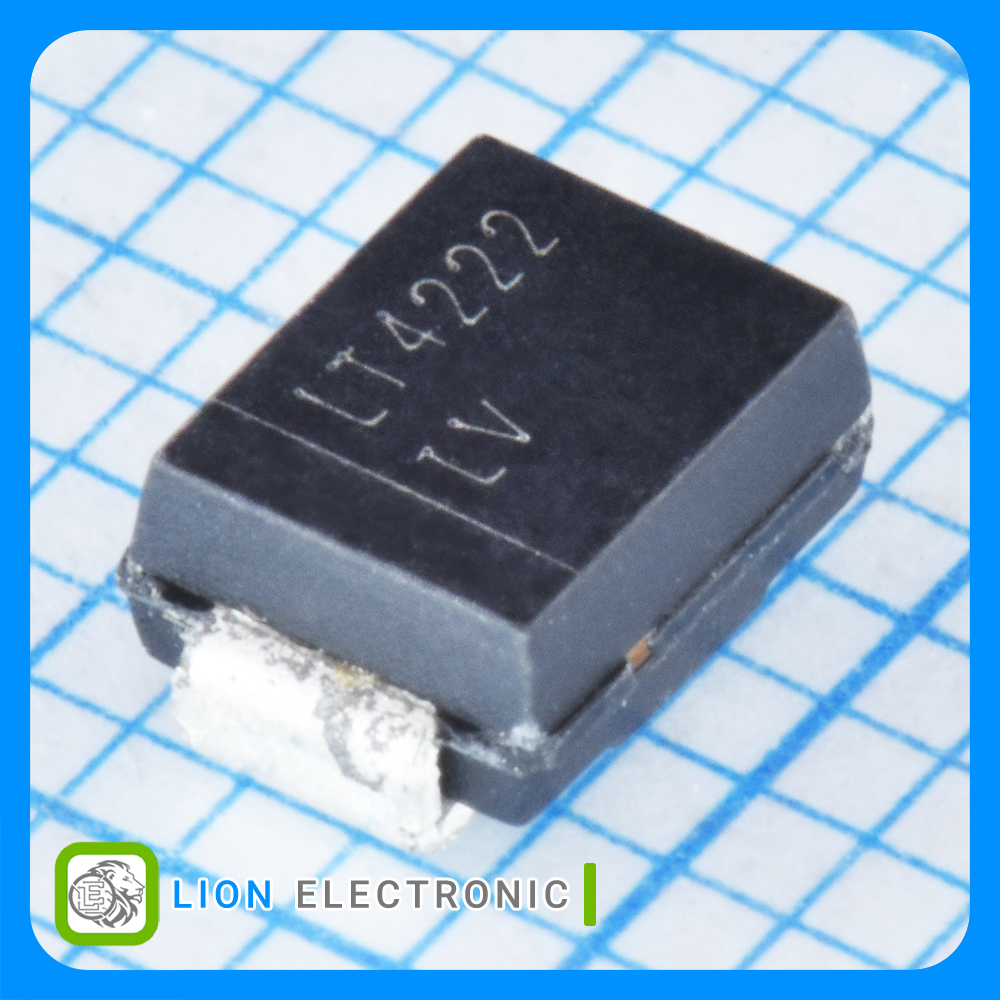

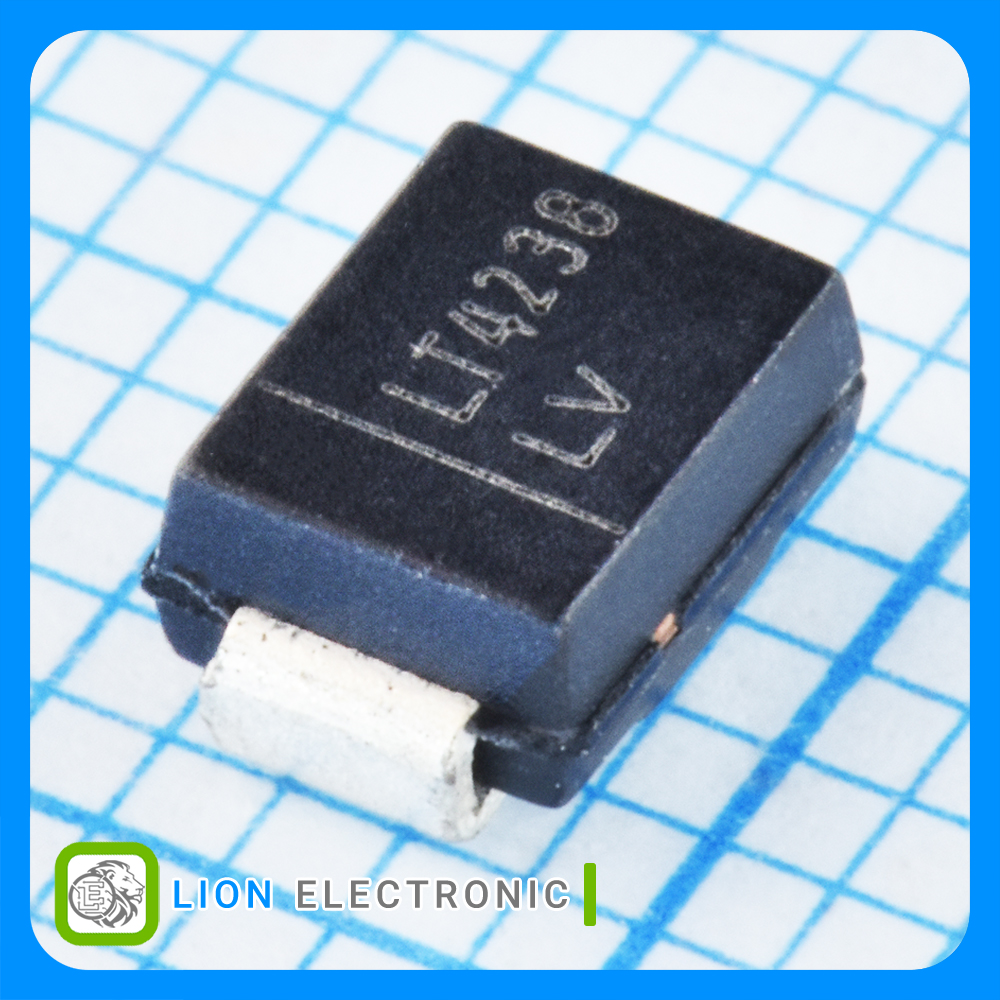

دیود TVS یکطرفه 20 ولت 600 وات با بیشینه پالس جریان 18.5 آمپر با پکیج DO-214AA (SMB)
TVS Diode Uni-directional 20V, 600W, Peak Pulse Current 18.5A with DO-214AA (SMB) Package
Specifications
- Product Type: TVS Diodes
- Polarity: Unidirectional
- Number of Channels: 1
- Working Voltage: 20V
- Breakdown Voltage: 24.5V
- Clamping Voltage: 32.4V
- Pppm - Peak Pulse Power Dissipation: 600W
- Ipp - Peak Pulse Current: 18.5A
- Termination style: SMD/SMT
- Package/Case: DO-214AA (SMB)
- Minimum Operating Temperature: -55C
- Maximum Operating Temperature: +175C
- Packaging: Reel
مشخصات SMBJ20A
SMBJ20A
Part Number
1
Number of Channels
-55C
Minimum Operating Temperature
N/A
Vesd - Voltage ESD Air Gap
SMD/SMT
Termination style
Reel
Packaging
N/A
Vesd - Voltage ESD Contact
Unidirectional
Polarity
600W
Pppm - Peak Pulse Power Dissipation
+175C
Maximum Operating Temperature
20V
Working Voltage
32.4V
Clamping Voltage
N/A
Cd - Diode Capacitance
24.5V
Breakdown Voltage
18.5A
Ipp - Peak Pulse Current
TVS Diodes
Product Type
DO-214AA (SMB)
Package-Case
