SMBJ28CA
SMBJ28CA
Part Number
1513
Lion Part
Datasheet
Littelfuse Manufacture
دیود TVS دوطرفه ولتاژ کاری 28 ولت، ولتاژ شکست 34.4 ولت، ولتاژ کلمپ 45.4 ولت، 600 وات، بیشینه پالس جریان 13.2 آمپر با پکیج DO-214AA (SMB)

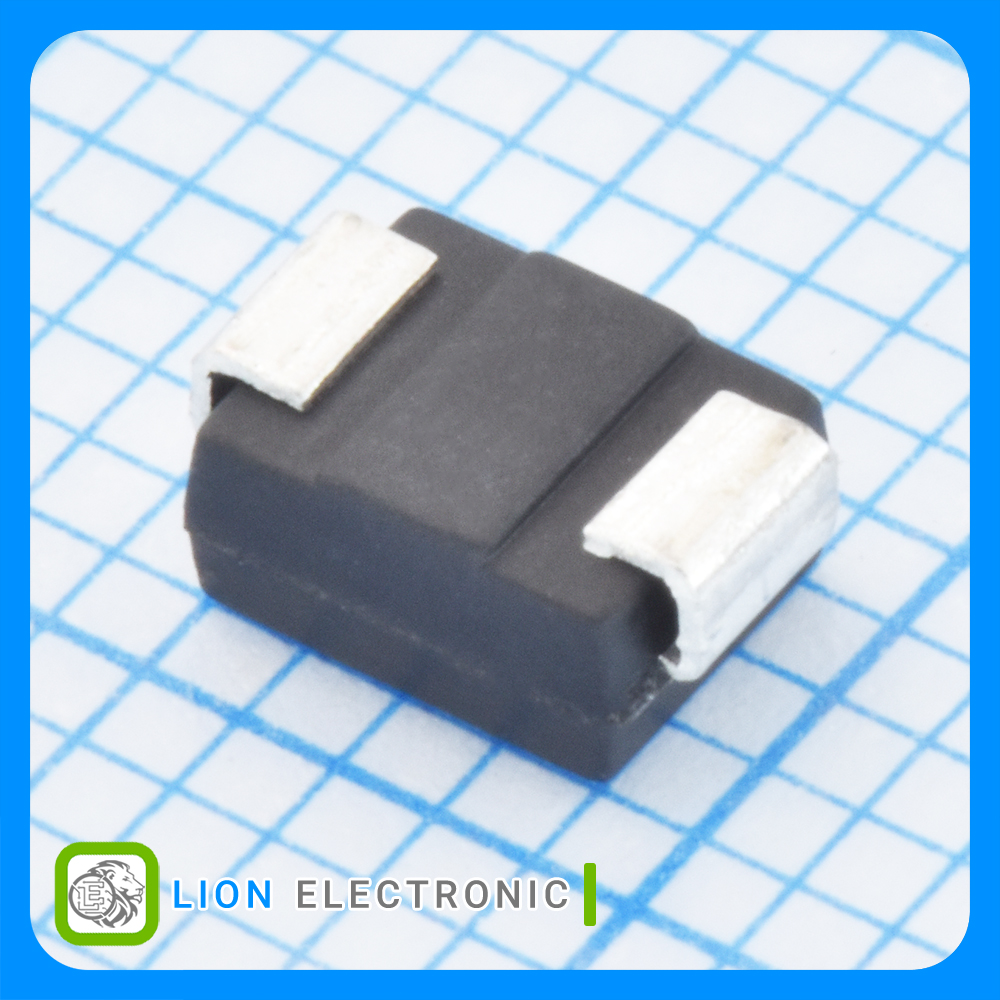

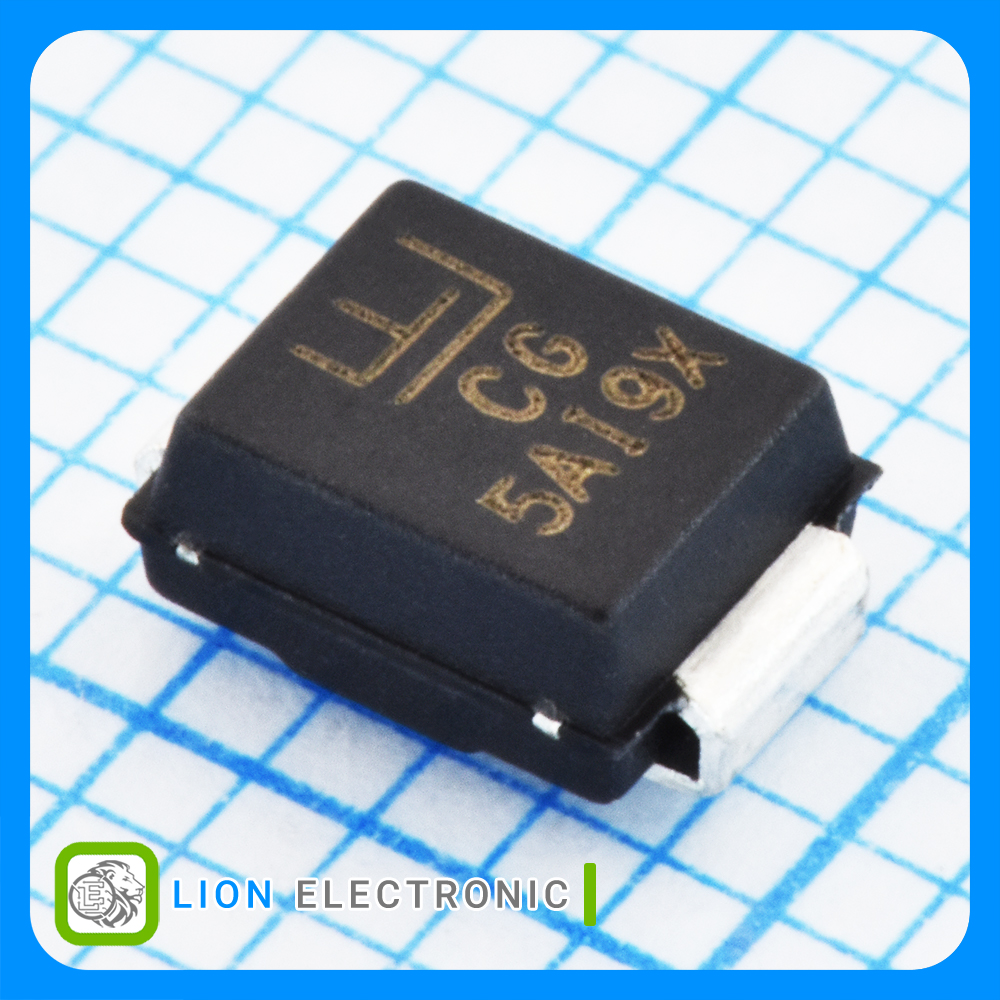

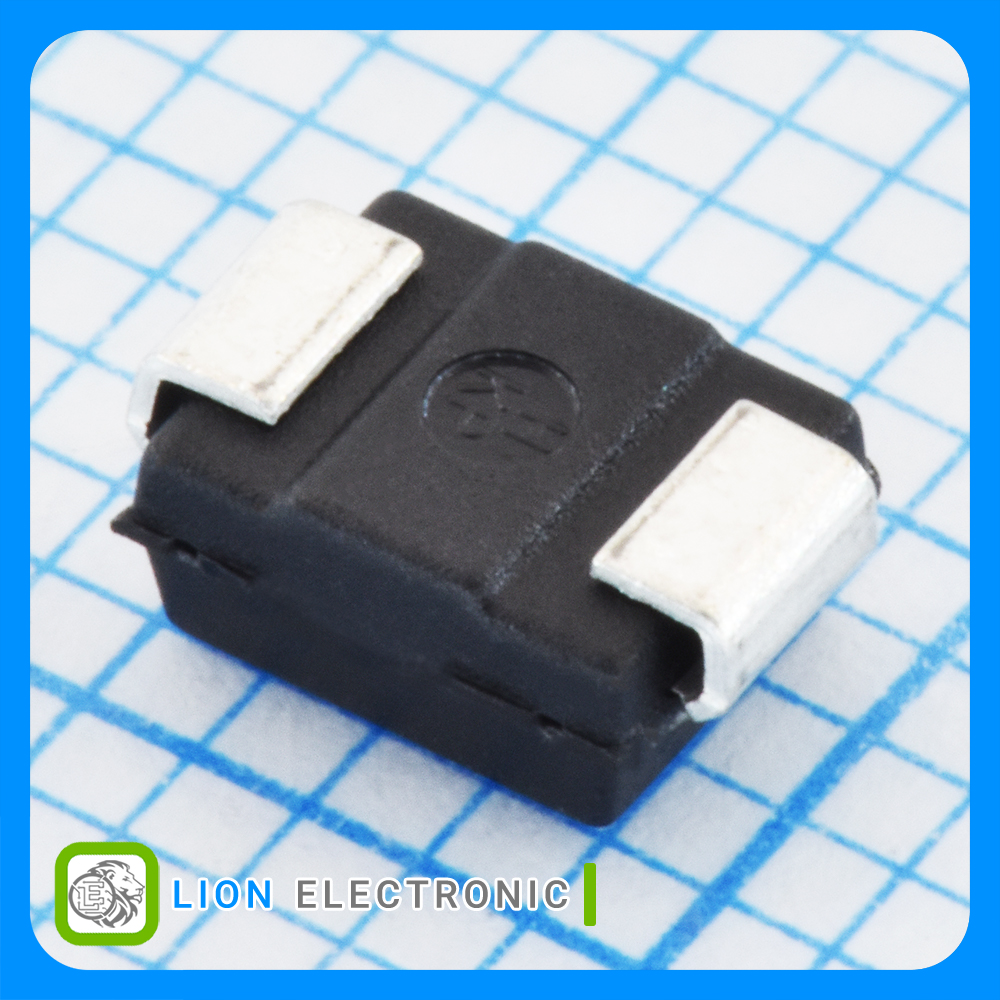

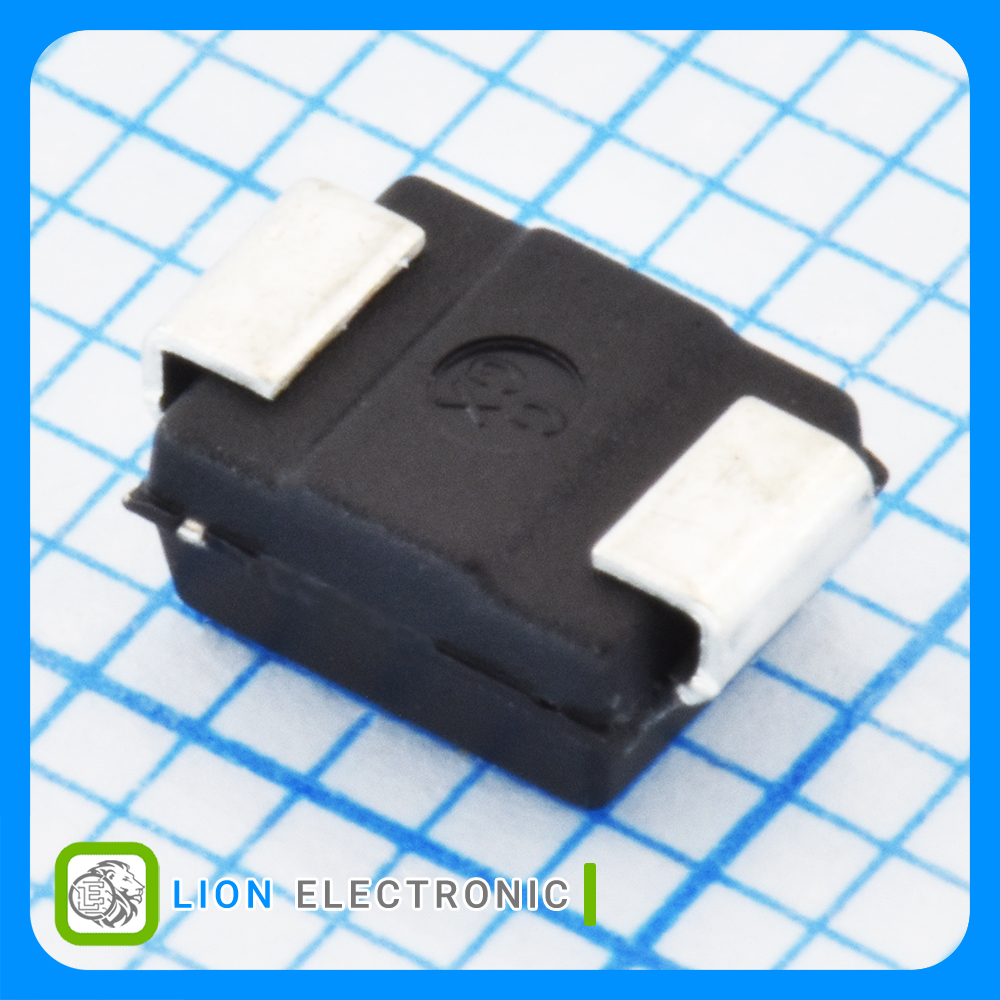

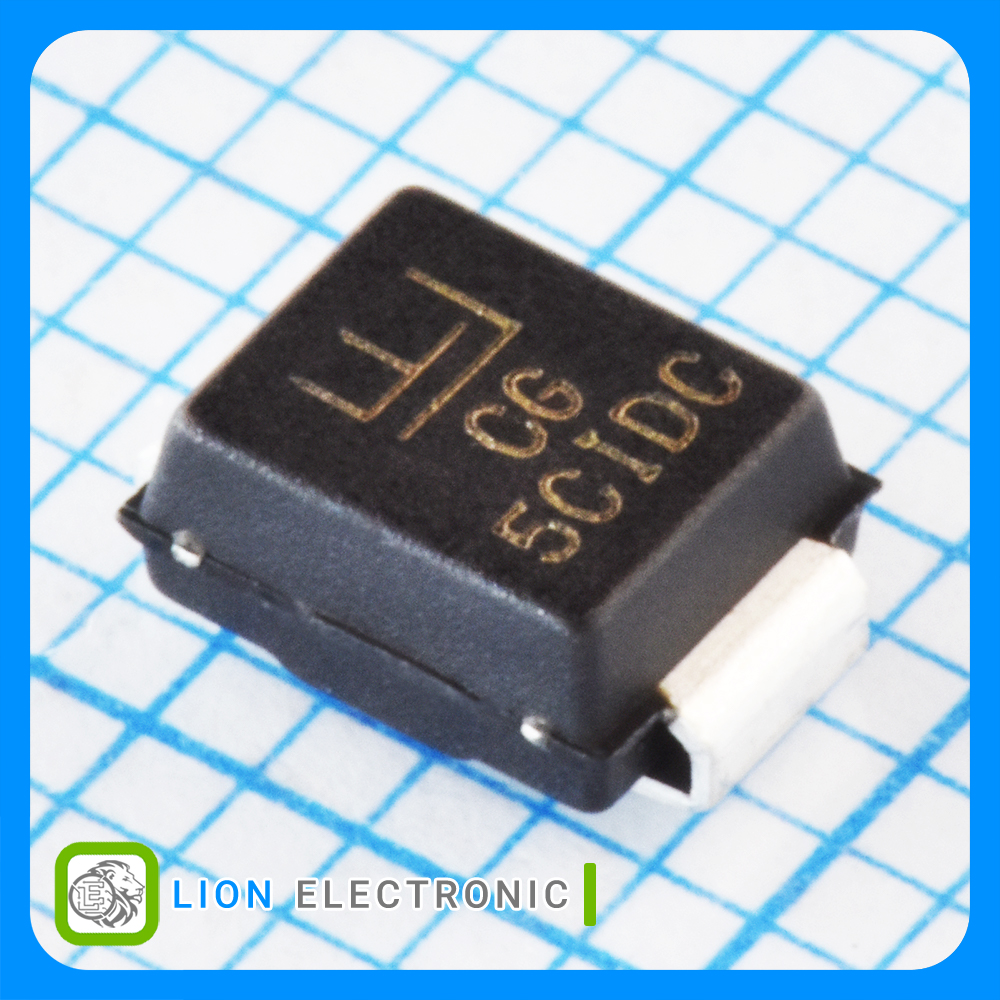

TVS Diode Bidirectional 28V Working, 34.4V Breakdown, 45.4V Clamping, 600W, 13.2A Peak Pulse Current with DO-214AA (SMB) Package
معرفی
دیود TVS دوطرفه ولتاژ کاری 28 ولت، ولتاژ شکست 34.4 ولت، ولتاژ کلمپ 45.4 ولت، 600 وات، بیشینه پالس جریان 13.2 آمپر با پکیج DO-214AA (SMB)
TVS Diode Bidirectional 28V Working, 34.4V Breakdown, 45.4V Clamping, 600W, 13.2A Peak Pulse Current with DO-214AA (SMB) Package
Specifications
- Product Type: TVS Diodes
- Polarity: Bidirectional
- Number of Channels: 1
- Working Voltage: 28V
- Breakdown Voltage: 34.4V
- Clamping Voltage: 45.4V
- Pppm - Peak Pulse Power Dissipation: 600W
- Vesd - Voltage ESD Contact: 30kV
- Vesd - Voltage ESD Air Gap: 30kV
- Ipp - Peak Pulse Current: 13.2A
- Termination style: SMD/SMT
- Package/Case: DO-214AA (SMB)
- Minimum Operating Temperature: -65C
- Maximum Operating Temperature: +150C
- Packaging: Reel
مشخصات دیود تیویاس دوجهته SMBJ28CA
دیود تیویاس دوجهته SMBJ28CA
Part Number
Bidirectional
Polarity
1
Number of Channels
-65C
Minimum Operating Temperature
30kV
Vesd - Voltage ESD Air Gap
SMD/SMT
Termination style
Reel
Packaging
30kV
Vesd - Voltage ESD Contact
600W
Pppm - Peak Pulse Power Dissipation
+150C
Maximum Operating Temperature
28V
Working Voltage
N/A
Cd - Diode Capacitance
45.4V
Clamping Voltage
13.2A
Ipp - Peak Pulse Current
34.4V
Breakdown Voltage
TVS Diodes
Product Type
DO-214AA (SMB)
Package-Case
