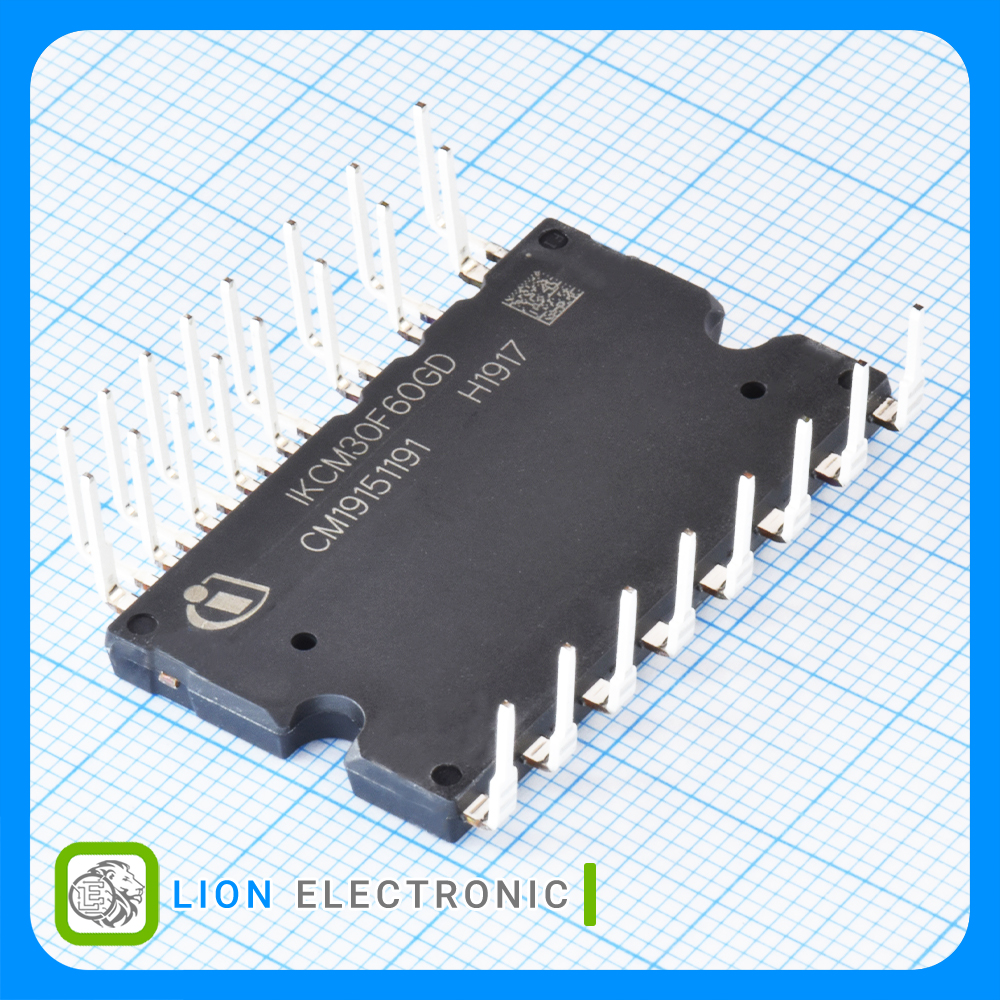

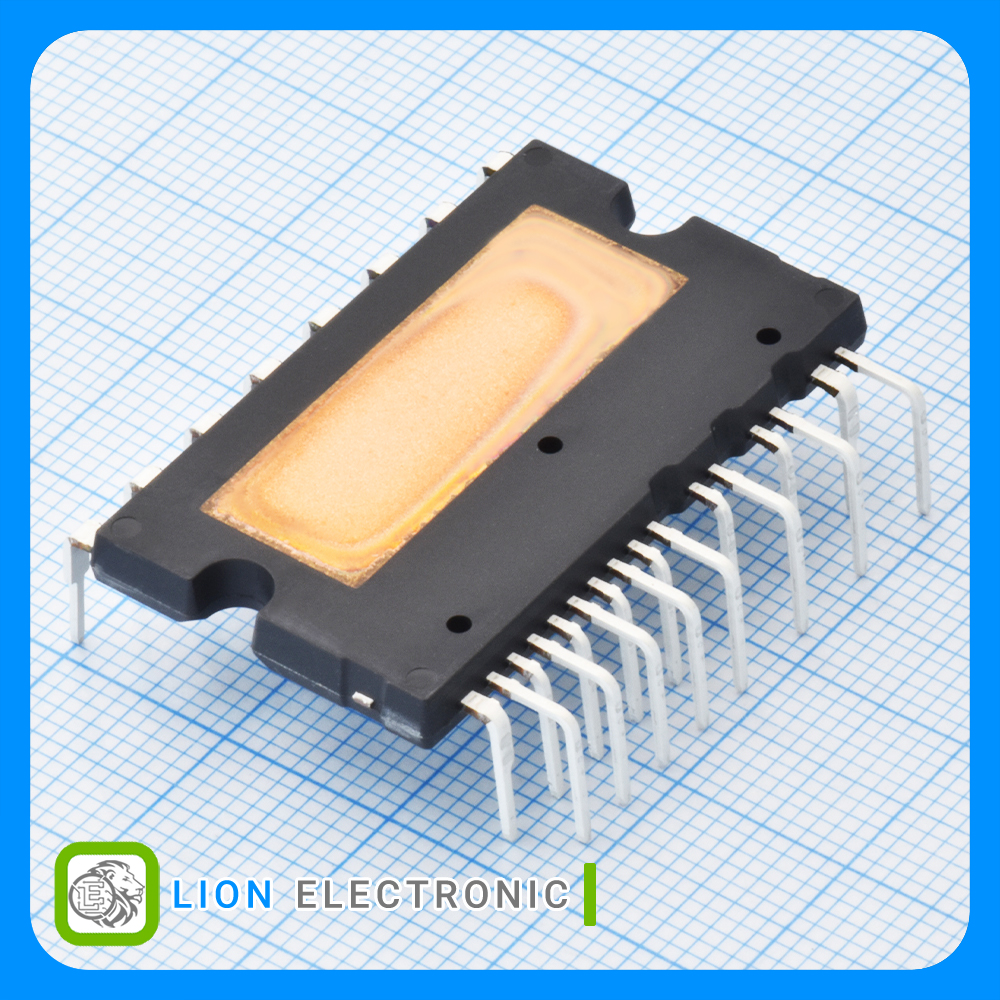

IKCM30F60GD
IKCM30F60GD
Part Number
1532
Lion Part
Datasheet
Infineon Technologies Manufacture
ماژول IGBT هوشمند سه فاز با پل دیود و مدارات گیت درایور و محافظ، 600 ولت 30 آمپر، دو ردیفه، پکیج DIP 36x21D
Dual In-Line Intelligent Power Module 3-Phase Bridge IGBT with gate driver and protection, 600V, 30A, with DIP 36x21D Package
معرفی
System Configuration
- 3 half bridges with TRENCHSTOP™ IGBTs and anti parallel diodes
- 3Φ SOI gate driver
- Thermistor
- Pin-to-heatsink clearance distance typ. 1.6mm
مشخصات ماژول IGBT سه فاز IKCM30F60GD

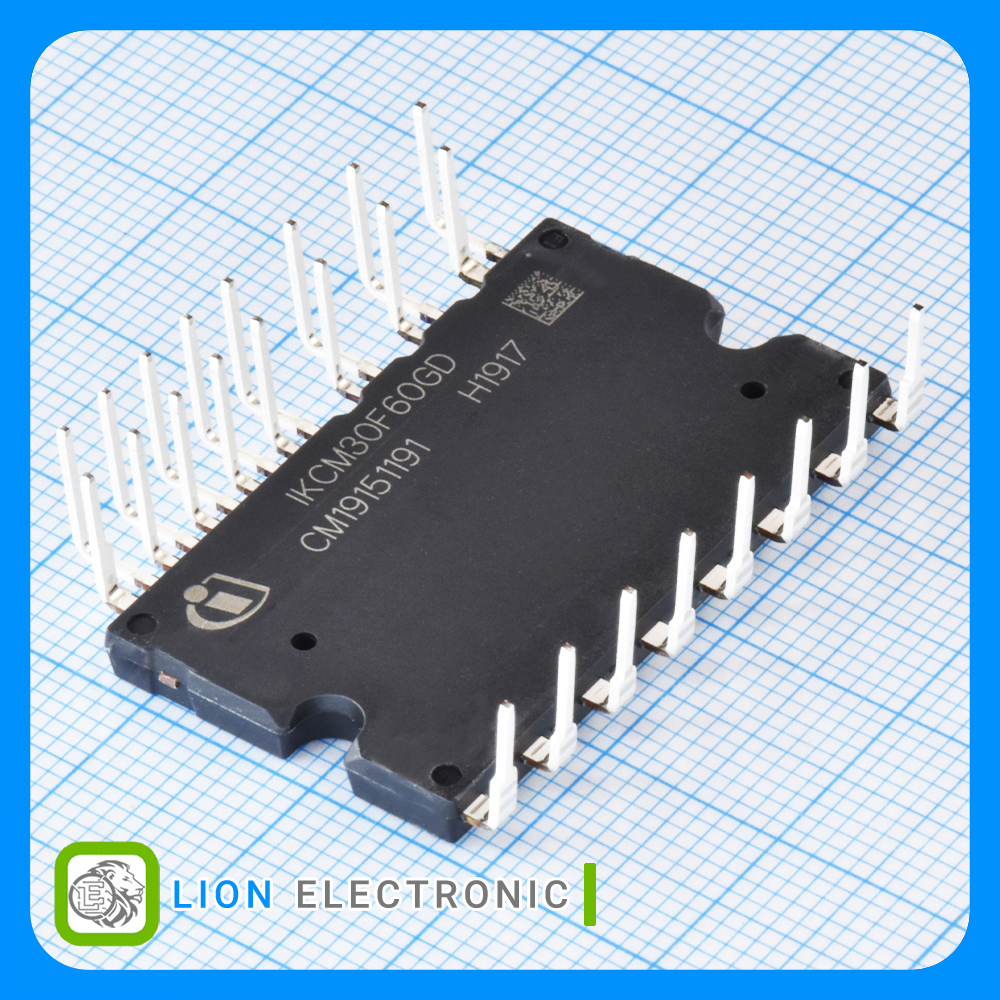

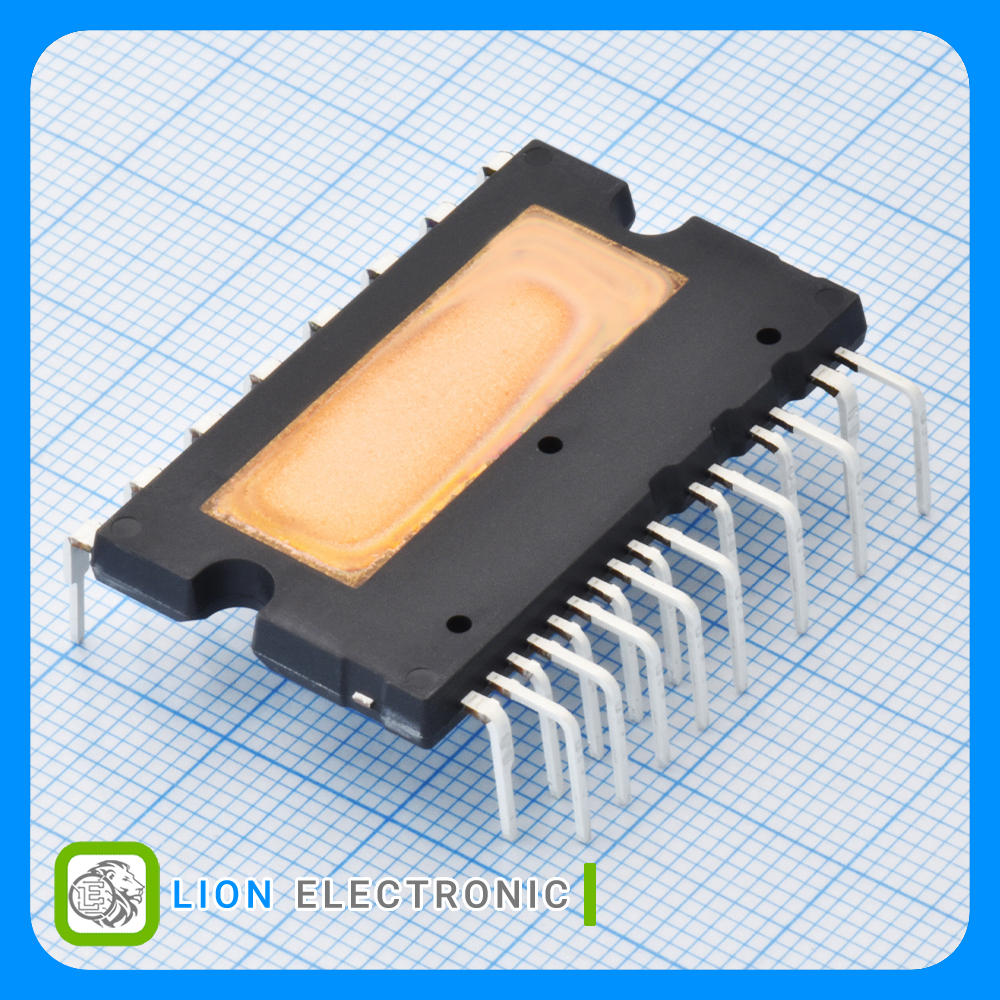

ماژول IGBT سه فاز IKCM30F60GD
Part Number
1mA
Gate - Emitter Leakage Current
30A
Continuous Collector Current aT 25 c
-40C
Minimum Operating Temperature
Tube
Packaging
3-Phase
Configuration
+125C
Maximum Operating Temperature
1.55V
Collector - Emitter Saturation Voltage
600V
Collector - Emitter Voltage VCEO Max
36mm x 28.6mm x 9.7mm
Package-Case
Fan / Motor Controllers / Drivers
Product
79.1W
Pd - Power Dissipation
