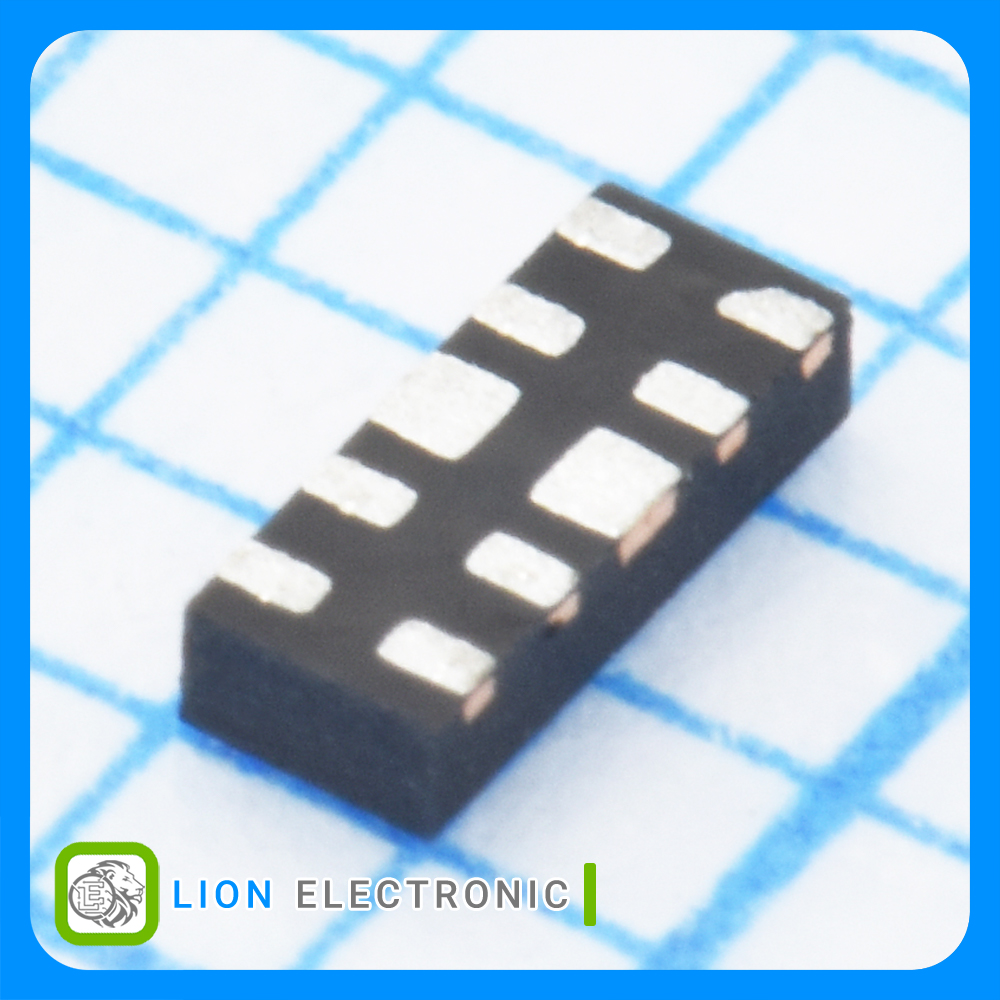

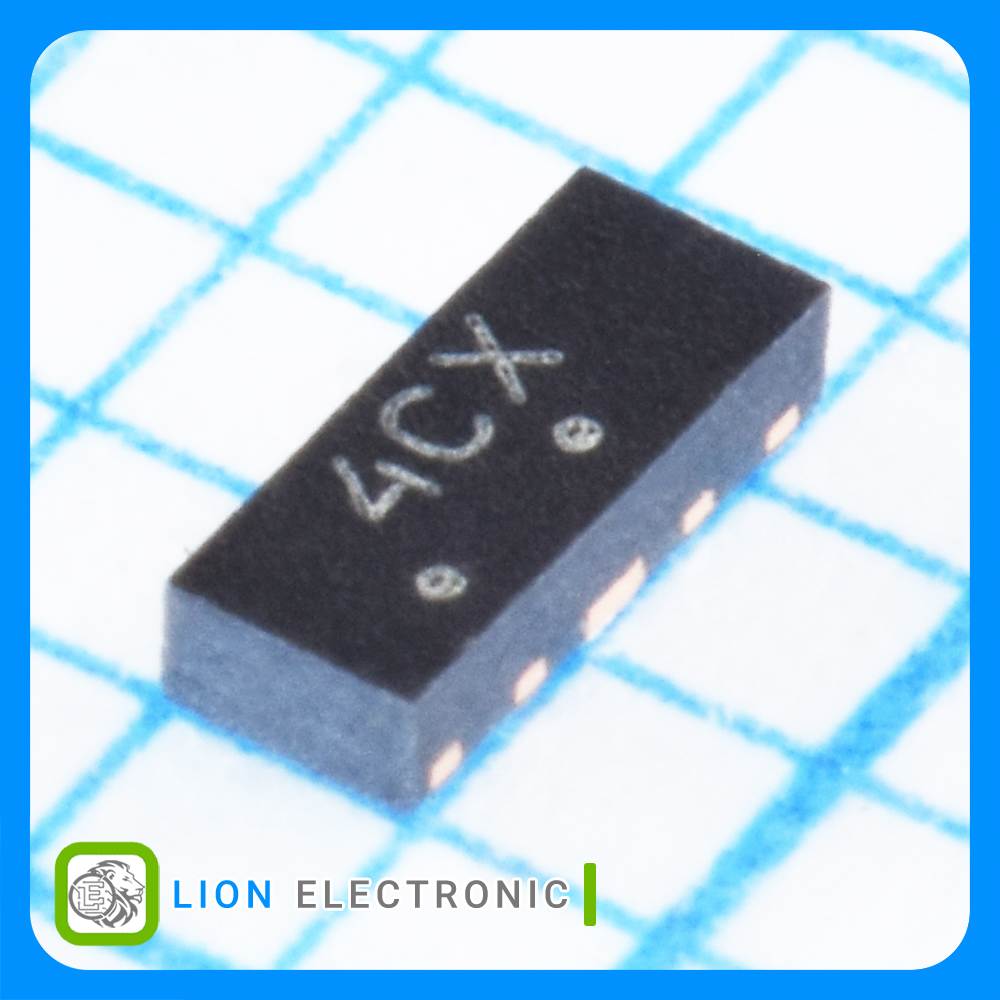

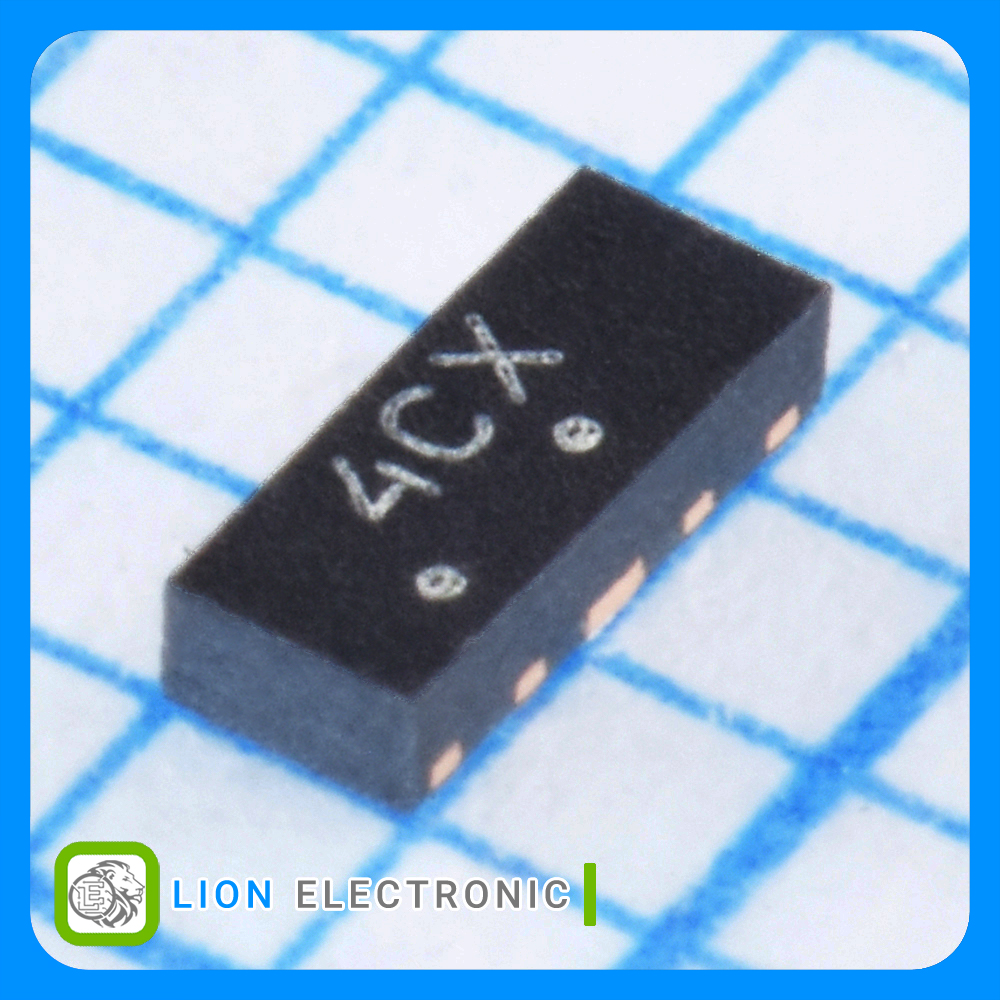

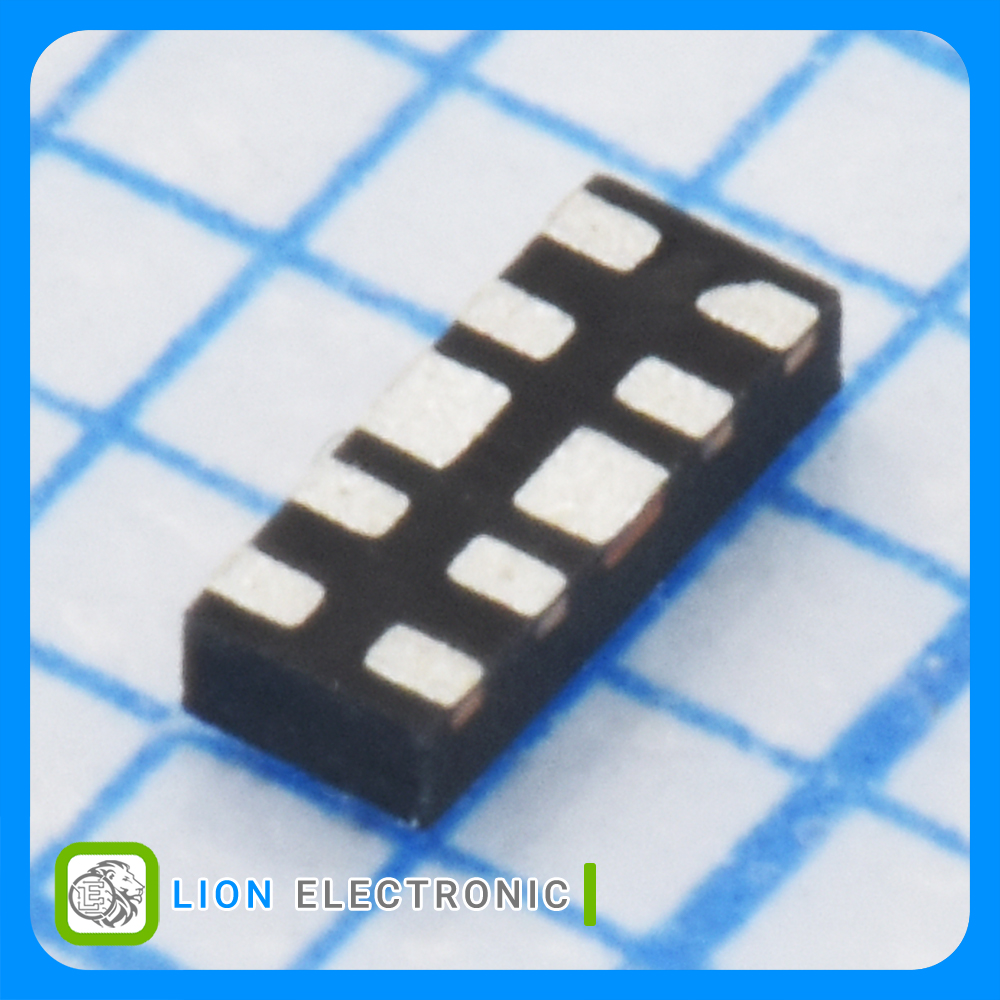

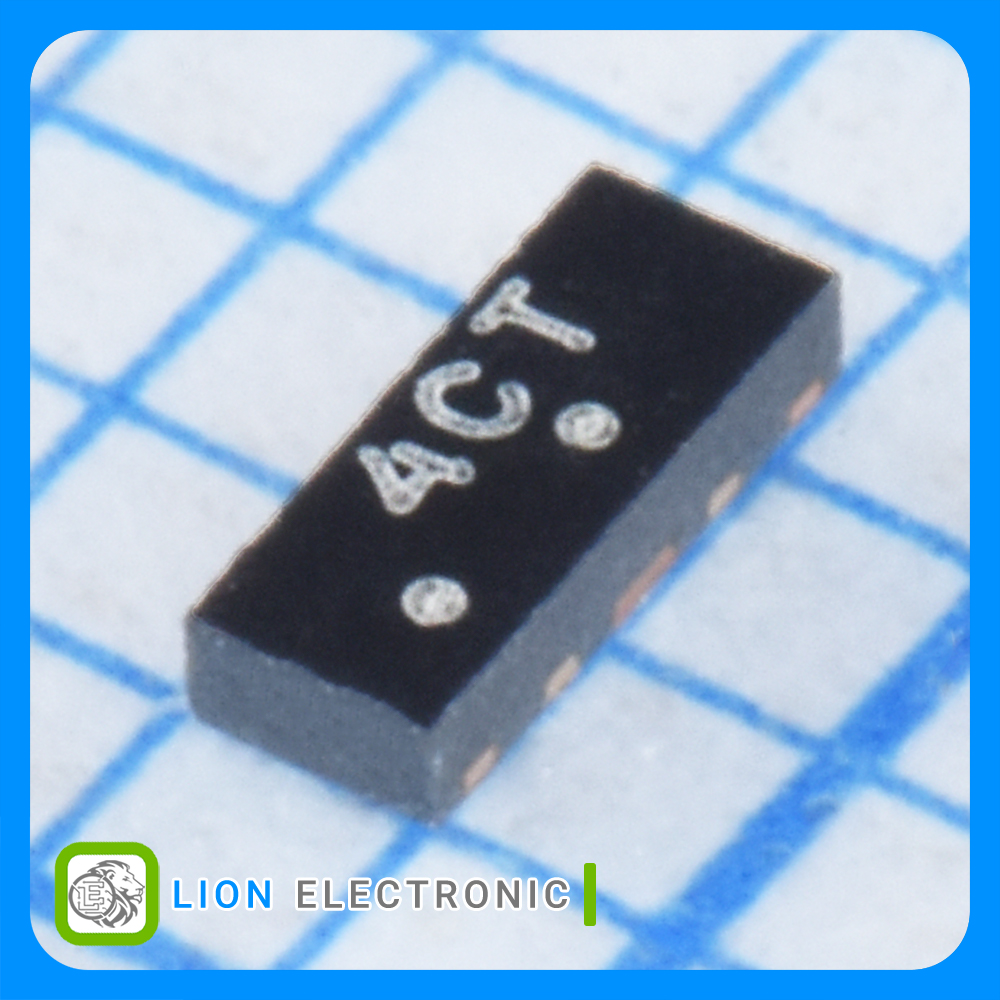

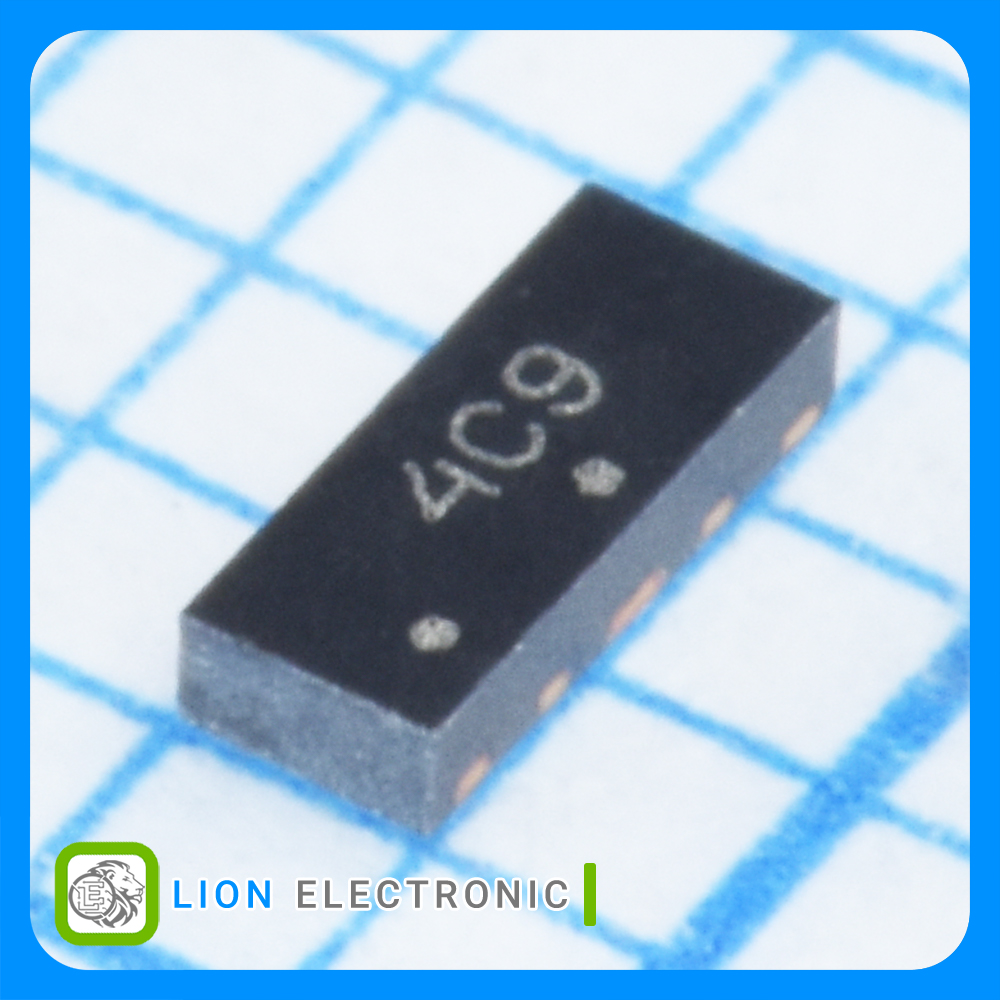

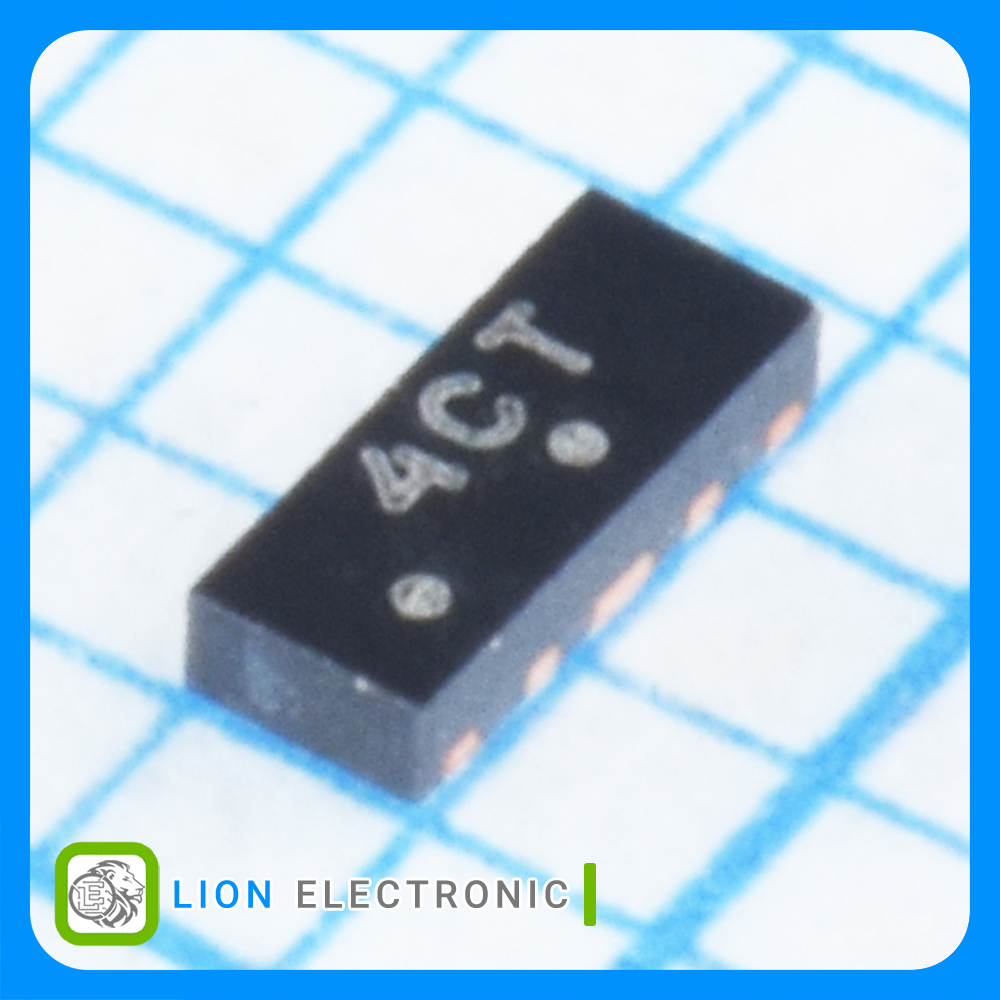

ESD8104MUTAG
ESD8104MUTAG
Part Number
2451
Lion Part
Datasheet
ON Semiconductor Manufacture
دیود TVS محافظ ESD چهار خطه 3.3 ولت با ظرفیت 0.47 پیکوفاراد آرایهای بسیار پر سرعت با پکیج UDFN-10
4-Line Low Capacitance 0.47pF TVS Diode ESD Suppressor 3.3V, High Speed Array for Data Lines, UDFN-10 Package
معرفی
دیود TVS محافظ ESD چهار خطه 3.3 ولت با ظرفیت 0.47 پیکوفاراد آرایهای بسیار پر سرعت با پکیج UDFN-10
4-Line Low Capacitance 0.47pF TVS Diode ESD Suppressor 3.3V, High Speed Array for Data Lines, UDFN-10 Package
Specifications
- Product Type: ESD Suppressors
- Polarity: Unidirectional
- Number of Channels: 4
- Working Voltage: 3.3V
- Breakdown Voltage: 4V
- Clamping Voltage: 11.4V
- Vesd - Voltage ESD Contact: 15kV
- Vesd - Voltage ESD Air Gap: 15kV
- Cd - Diode Capacitance: 0.47pF
- Ipp - Peak Pulse Current: 16A
- Termination style: SMD/SMT
- Package/Case: UDFN-10
- Minimum Operating Temperature: -55C
- Maximum Operating Temperature: +125C
- Packaging: Reel
مشخصات ESD8104MUTAG
ESD8104MUTAG
Part Number
15kV
Vesd - Voltage ESD Air Gap
3.3V
Working Voltage
4V
Breakdown Voltage
15kV
Vesd - Voltage ESD Contact
-55C
Minimum Operating Temperature
0.47pF
Cd - Diode Capacitance
Reel
Packaging
4
Number of Channels
SMD/SMT
Termination style
Unidirectional
Polarity
11.4V
Clamping Voltage
+125C
Maximum Operating Temperature
N/A
Pppm - Peak Pulse Power Dissipation
ESD Suppressors
Product Type
16A
Ipp - Peak Pulse Current
UDFN-10
Package-Case
