SMBJ14A
SMBJ14A
Part Number
2866
Lion Part
Datasheet
Littelfuse Manufacture
دیود TVS یک جهته 14 ولت با بیشنه پالس جریان 25.9 آمپر با پکیج SMB

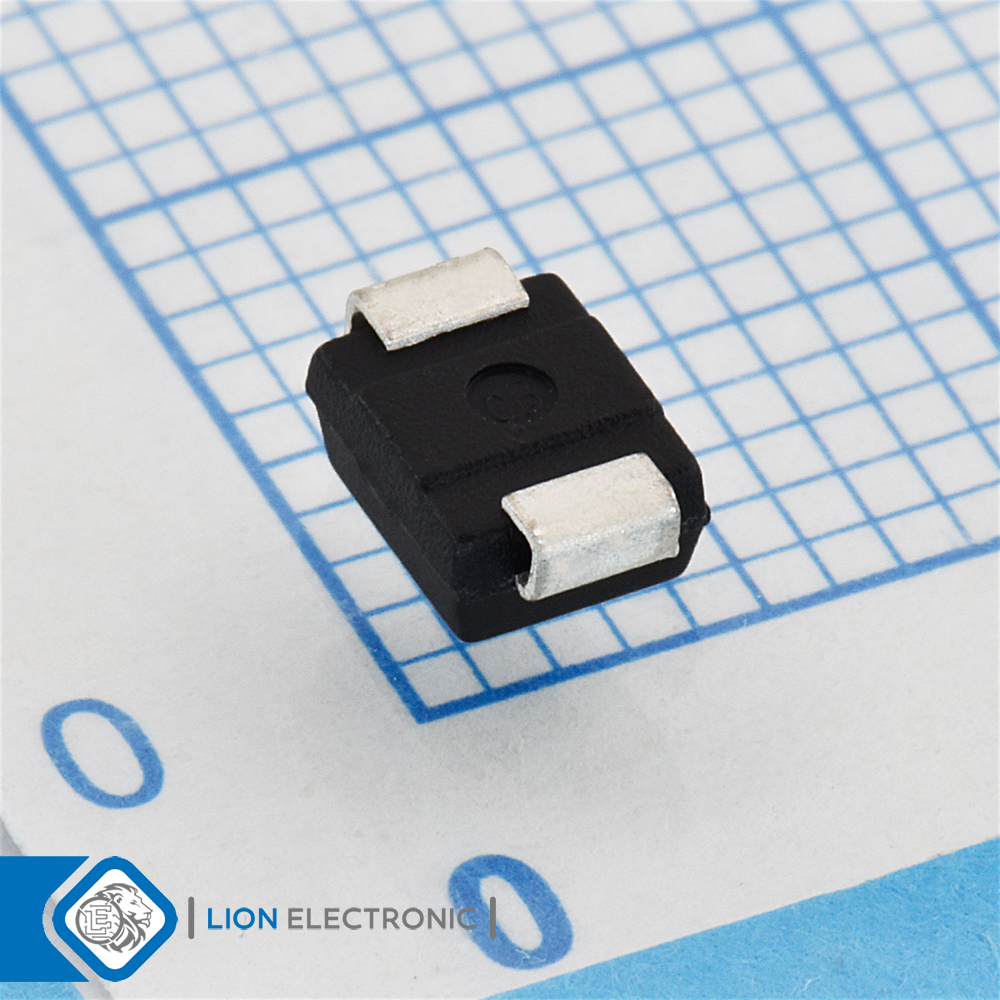

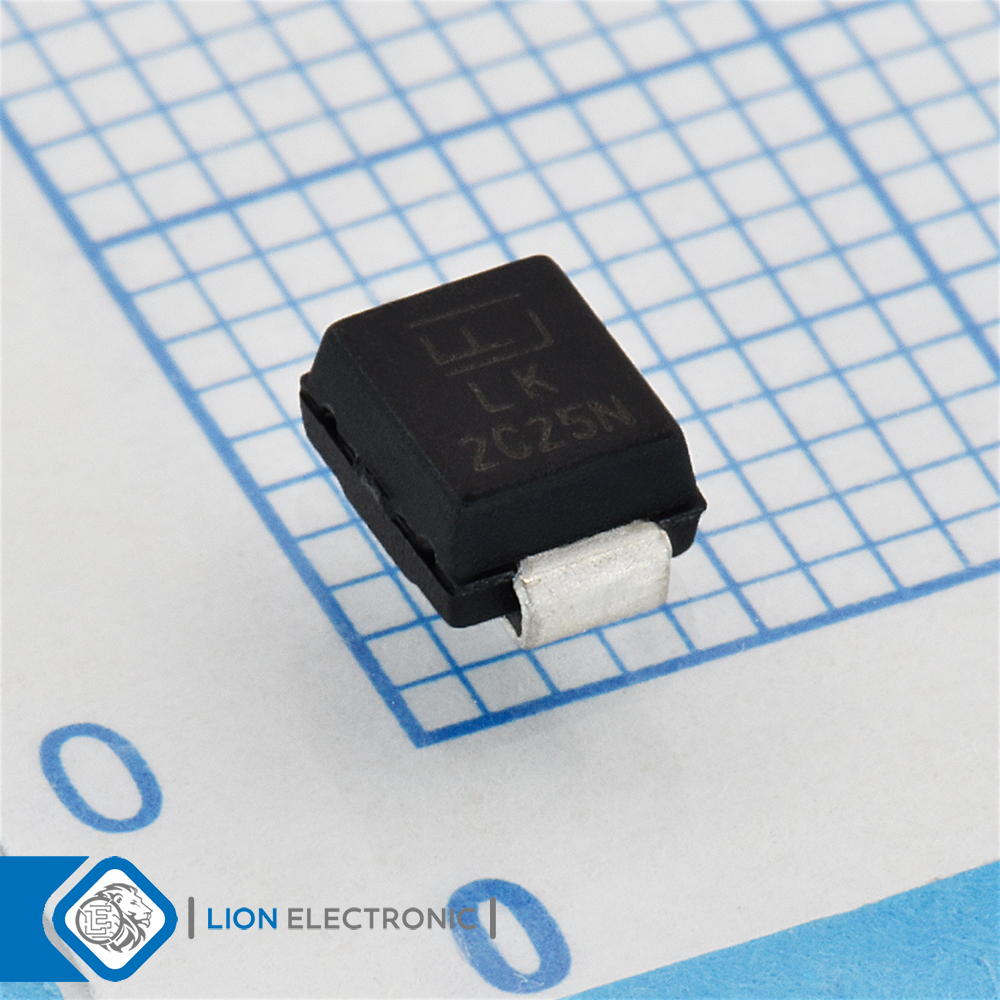

TVS Diode Uni-directional 14V SMB
مشخصات دیود تیویاس SMBJ14A
دیود تیویاس SMBJ14A
Part Number
1
Number of Channels
-65C
Minimum Operating Temperature
30kV
Vesd - Voltage ESD Air Gap
SMD/SMT
Termination style
Reel
Packaging
30kV
Vesd - Voltage ESD Contact
Unidirectional
Polarity
600W
Pppm - Peak Pulse Power Dissipation
14V
Working Voltage
+150C
Maximum Operating Temperature
23.2V
Clamping Voltage
15.6V
Breakdown Voltage
N/A
Cd - Diode Capacitance
25.9A
Ipp - Peak Pulse Current
TVS Diodes
Product Type
DO-214AA (SMB)
Package-Case
