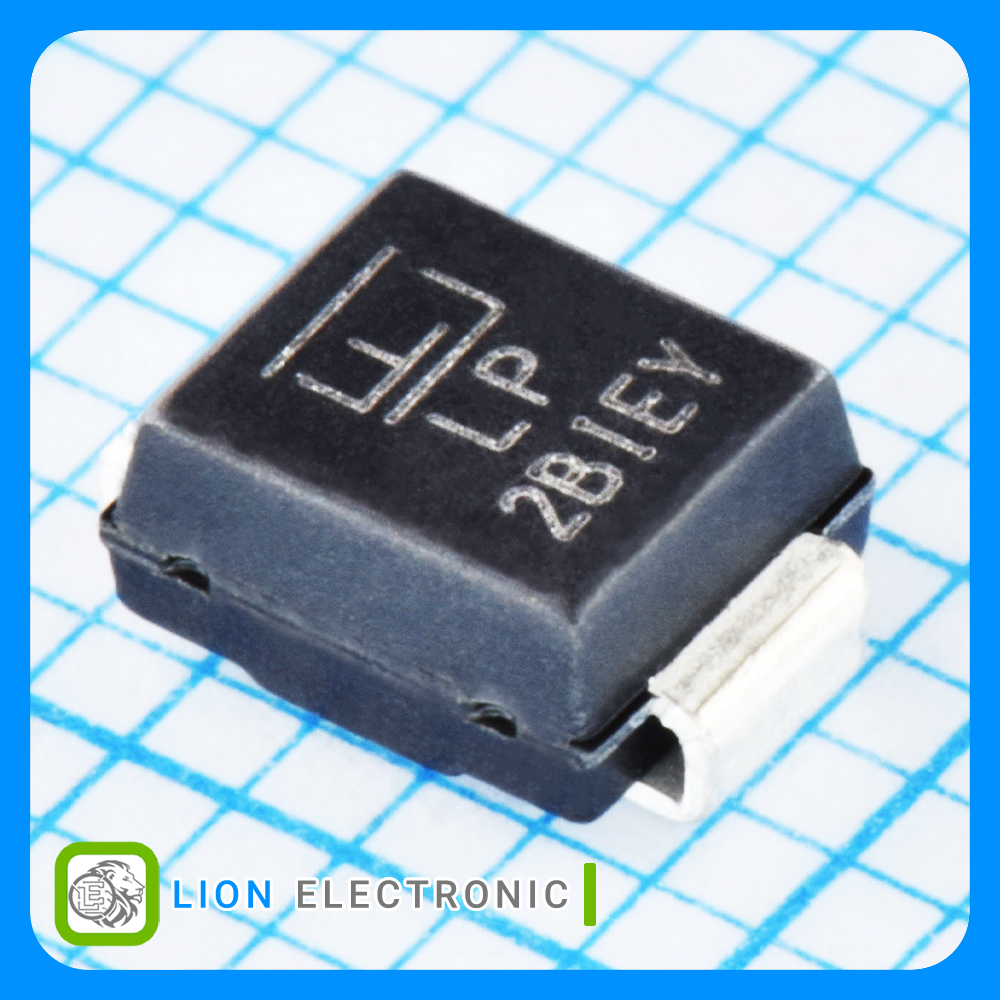

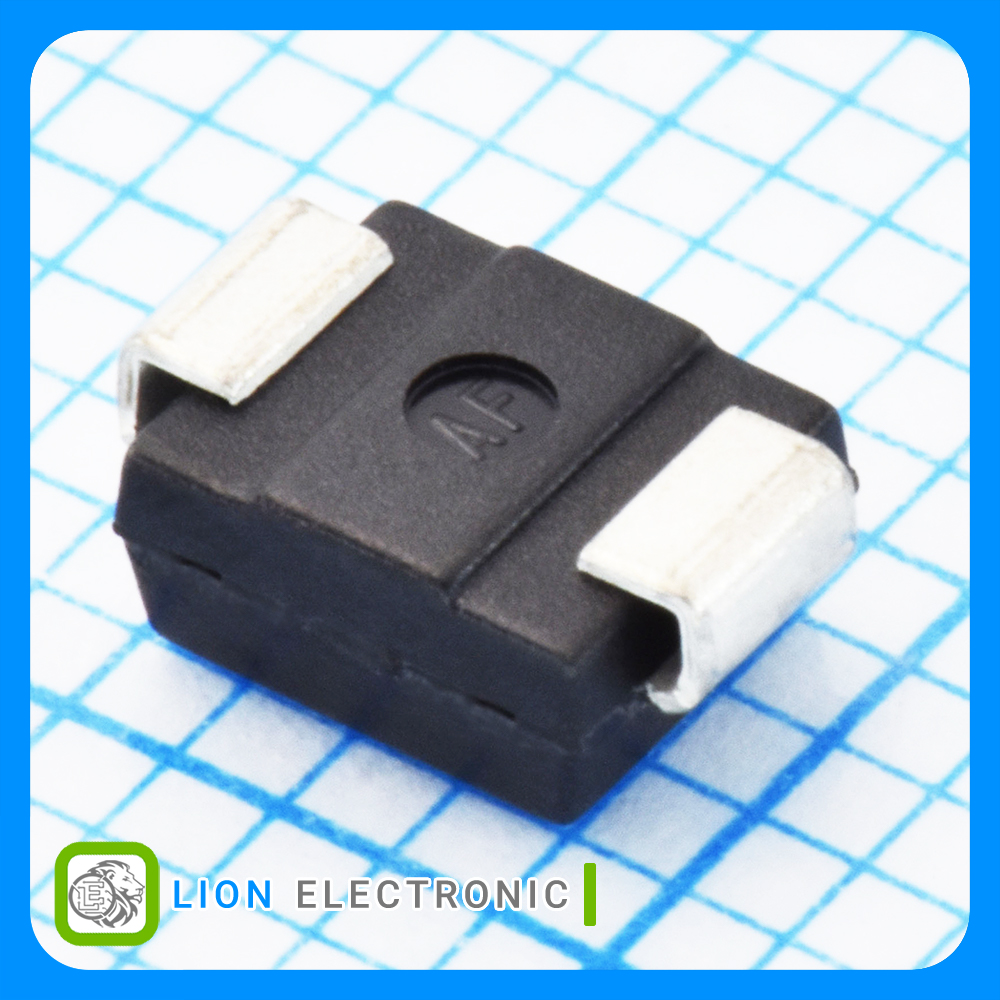

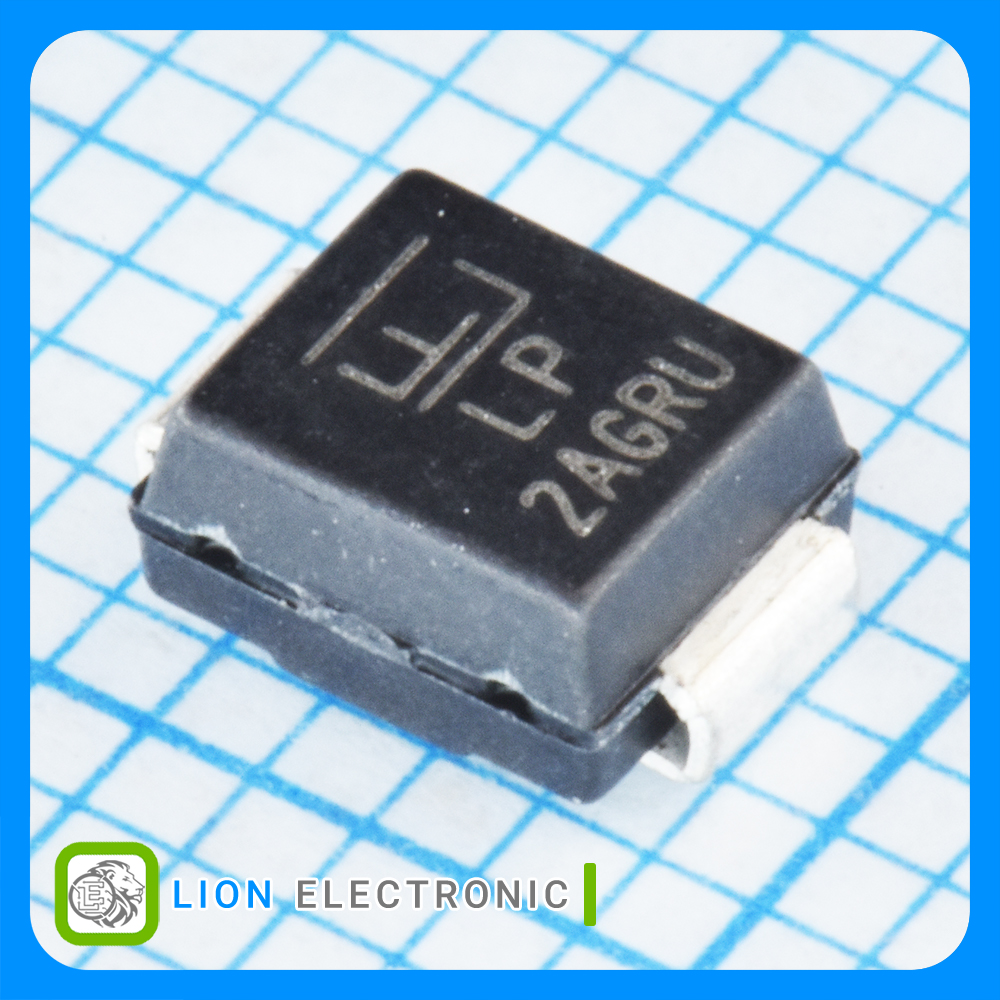

SMBJ16A
SMBJ16A
Part Number
2867
Lion Part
Datasheet
Littelfuse Manufacture
دیود TVS یک جهته 16 ولت با بیشنه پالس جریان 23.1 آمپر با پکیج SMB
TVS Diode Uni-directional 16V SMB
مشخصات دیود تیویاس SMBJ16A
دیود تیویاس SMBJ16A
Part Number
1
Number of Channels
-65C
Minimum Operating Temperature
30kV
Vesd - Voltage ESD Air Gap
Reel
Packaging
30kV
Vesd - Voltage ESD Contact
SMD/SMT
Termination style
Unidirectional
Polarity
600W
Pppm - Peak Pulse Power Dissipation
+150C
Maximum Operating Temperature
16V
Working Voltage
26V
Clamping Voltage
N/A
Cd - Diode Capacitance
17.8V
Breakdown Voltage
23.1A
Ipp - Peak Pulse Current
TVS Diodes
Product Type
DO-214AA (SMB)
Package-Case
