SMBJ75A
SMBJ75A
Part Number
2880
Lion Part
Datasheet
Littelfuse Manufacture
دیود TVS یک جهته 75 ولت با بیشنه پالس جریان 5 آمپر با پکیج SMB

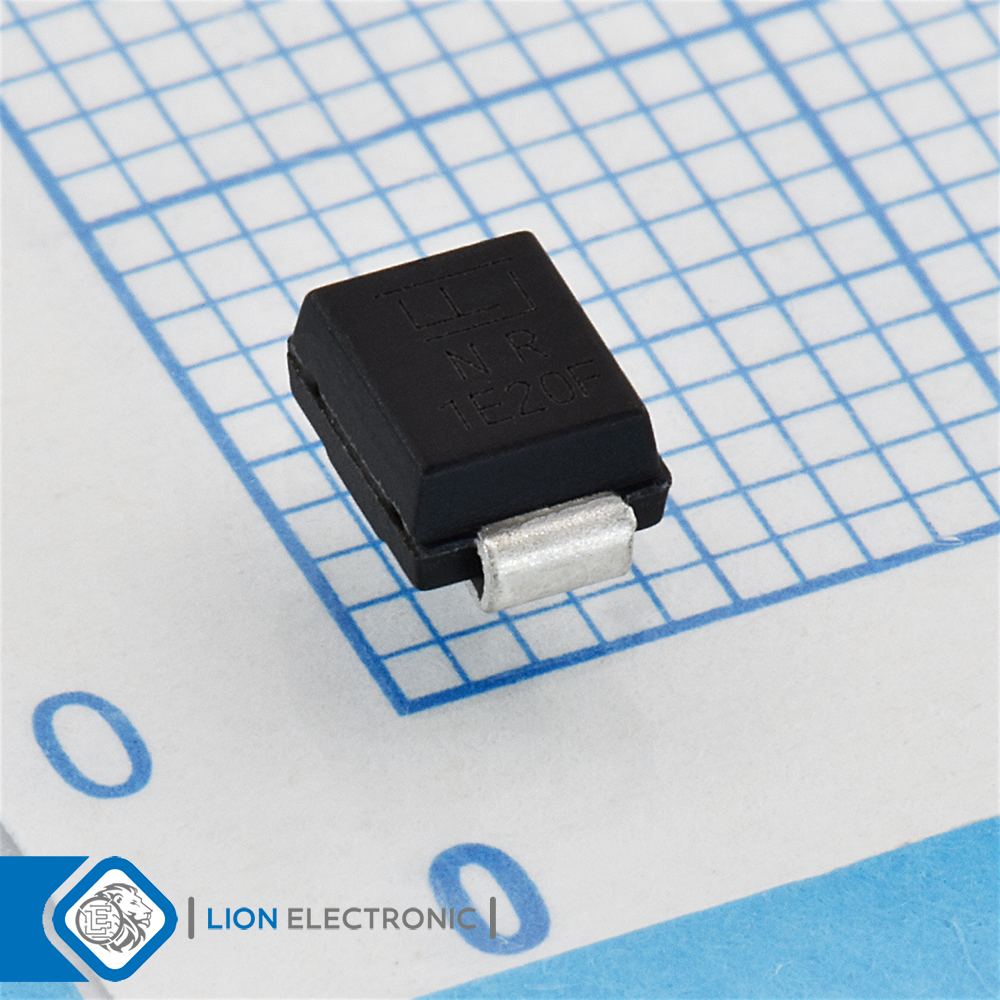

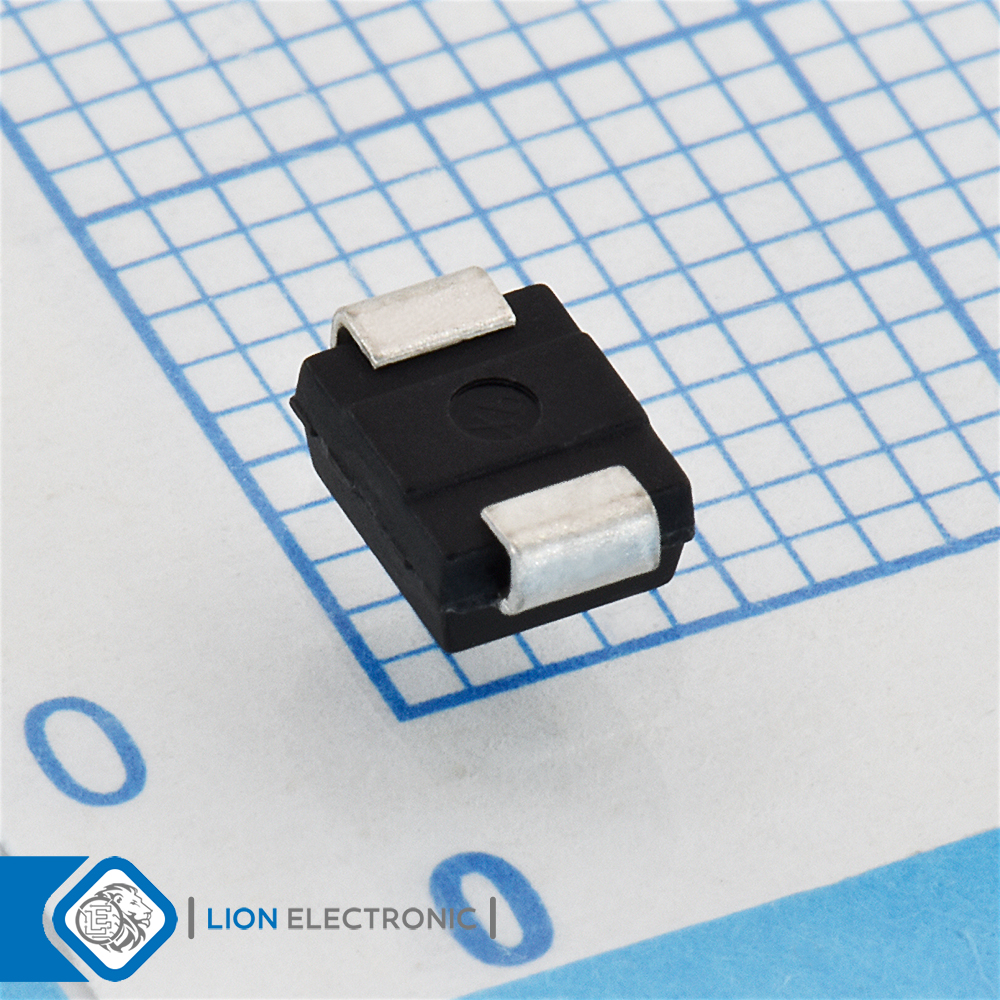

TVS Diode Uni-directional 75V SMB
مشخصات دیود تیویاس SMBJ75A
دیود تیویاس SMBJ75A
Part Number
1
Number of Channels
-65C
Minimum Operating Temperature
30kV
Vesd - Voltage ESD Air Gap
SMD/SMT
Termination style
Reel
Packaging
30kV
Vesd - Voltage ESD Contact
Unidirectional
Polarity
600W
Pppm - Peak Pulse Power Dissipation
5A
Ipp - Peak Pulse Current
+150C
Maximum Operating Temperature
N/A
Cd - Diode Capacitance
75V
Working Voltage
121V
Clamping Voltage
83.3V
Breakdown Voltage
TVS Diodes
Product Type
DO-214AA (SMB)
Package-Case
